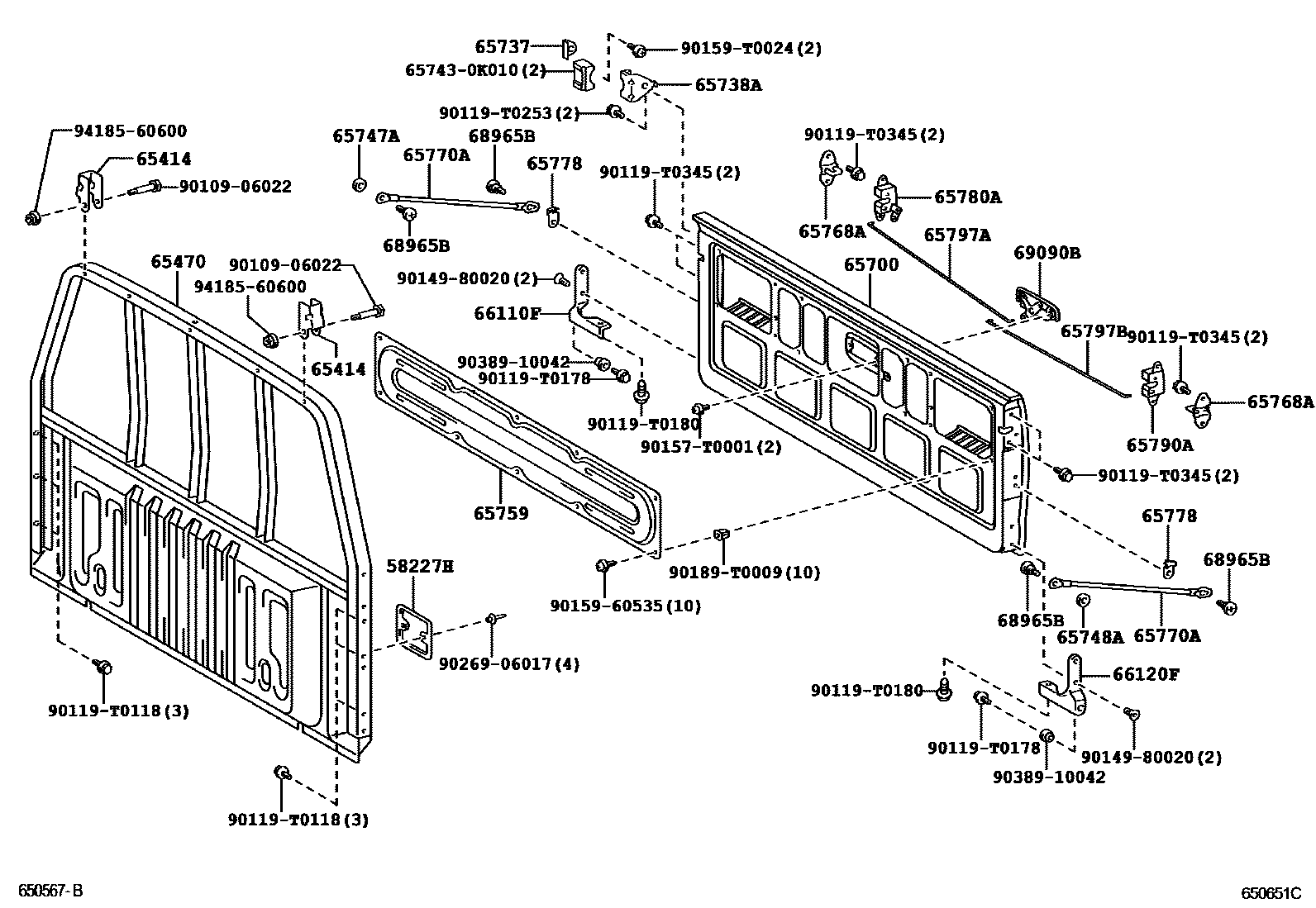

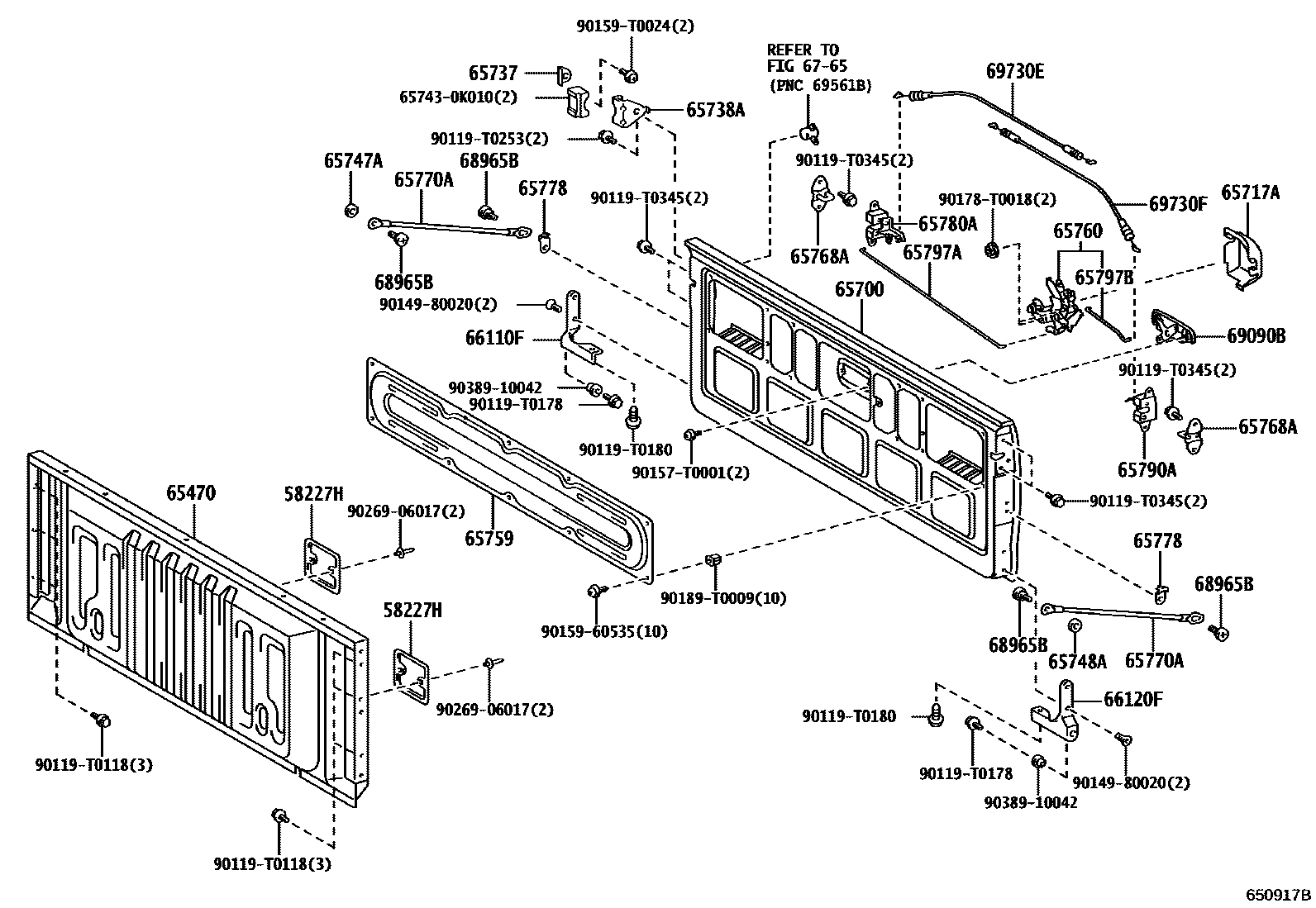

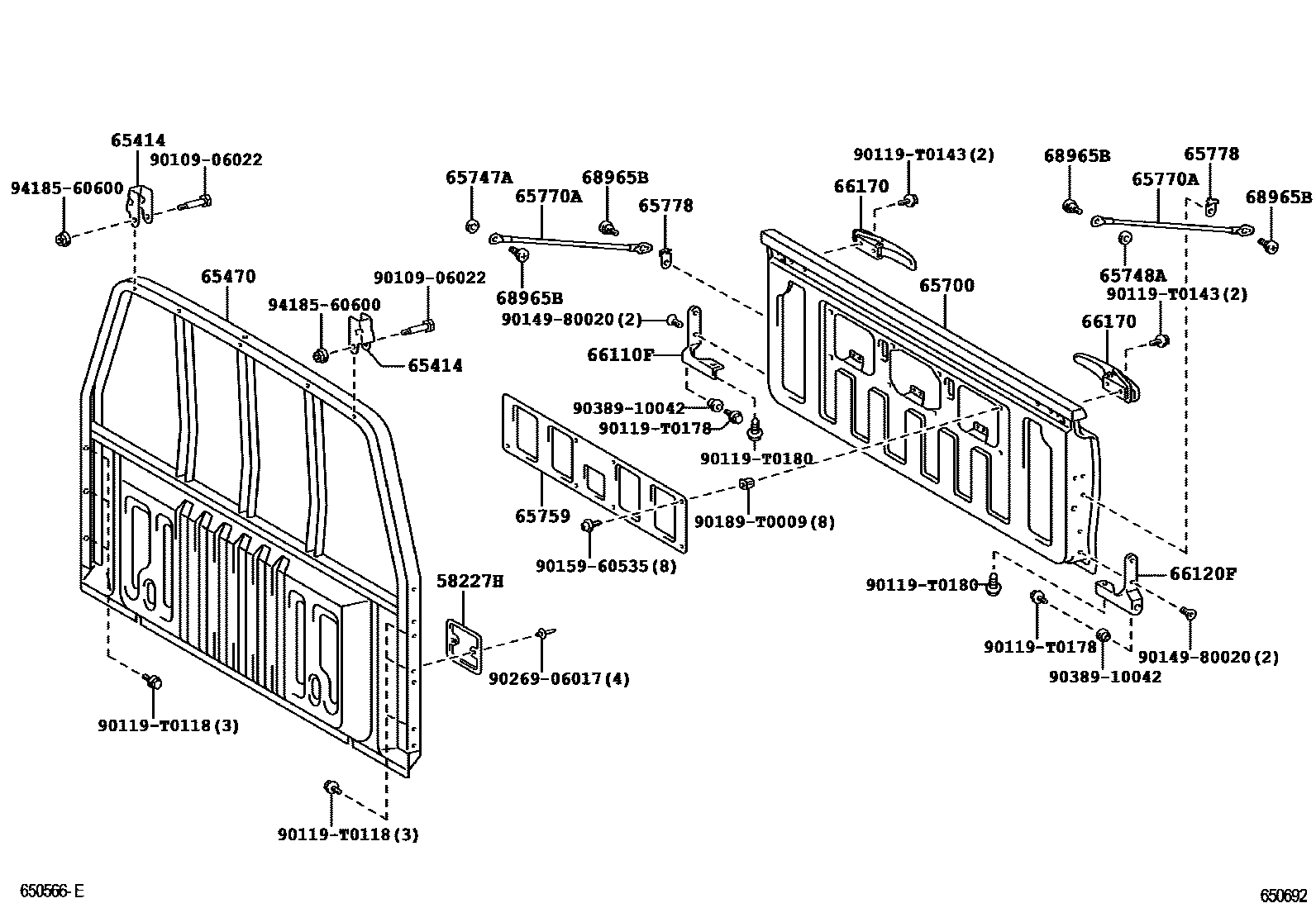

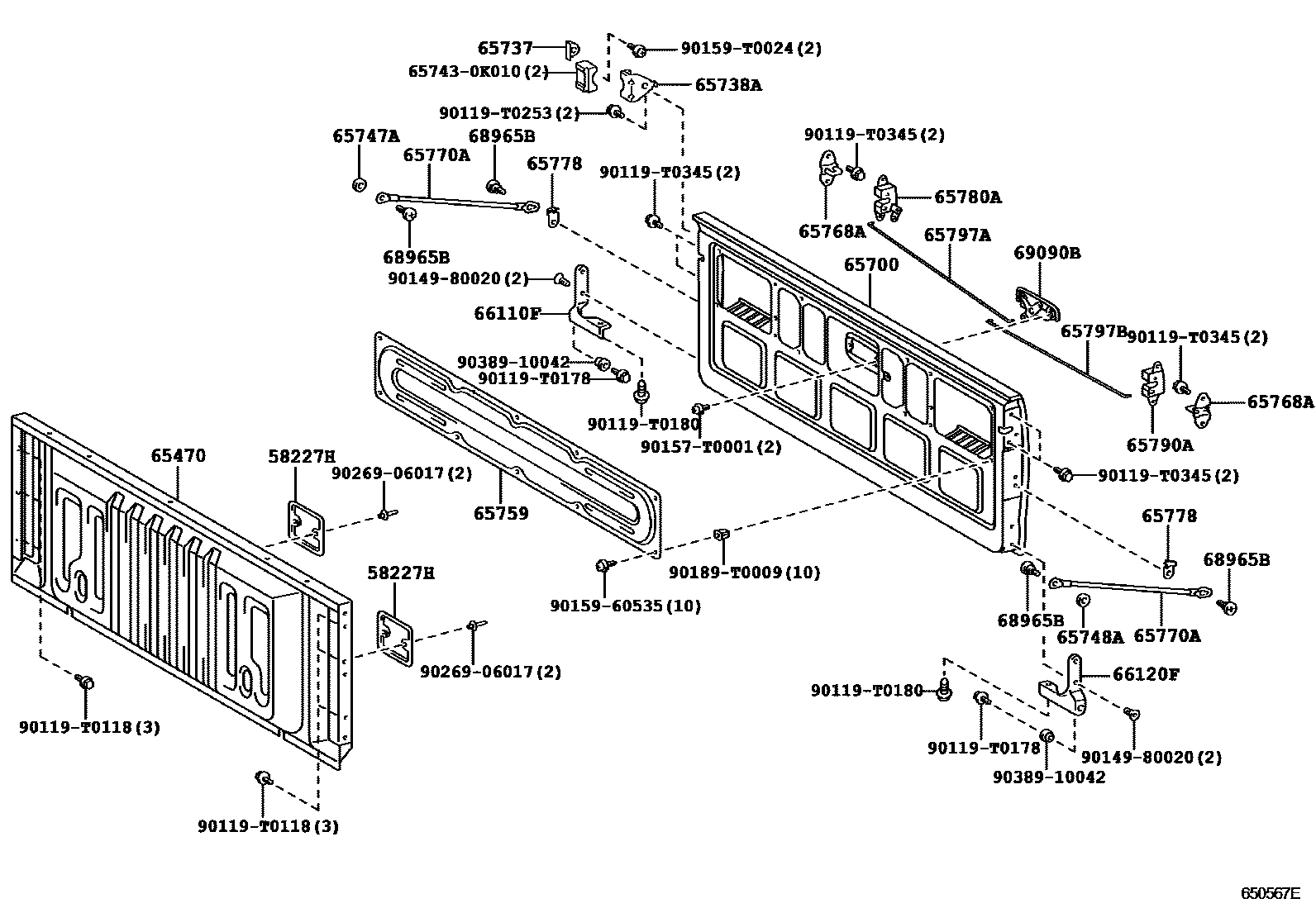

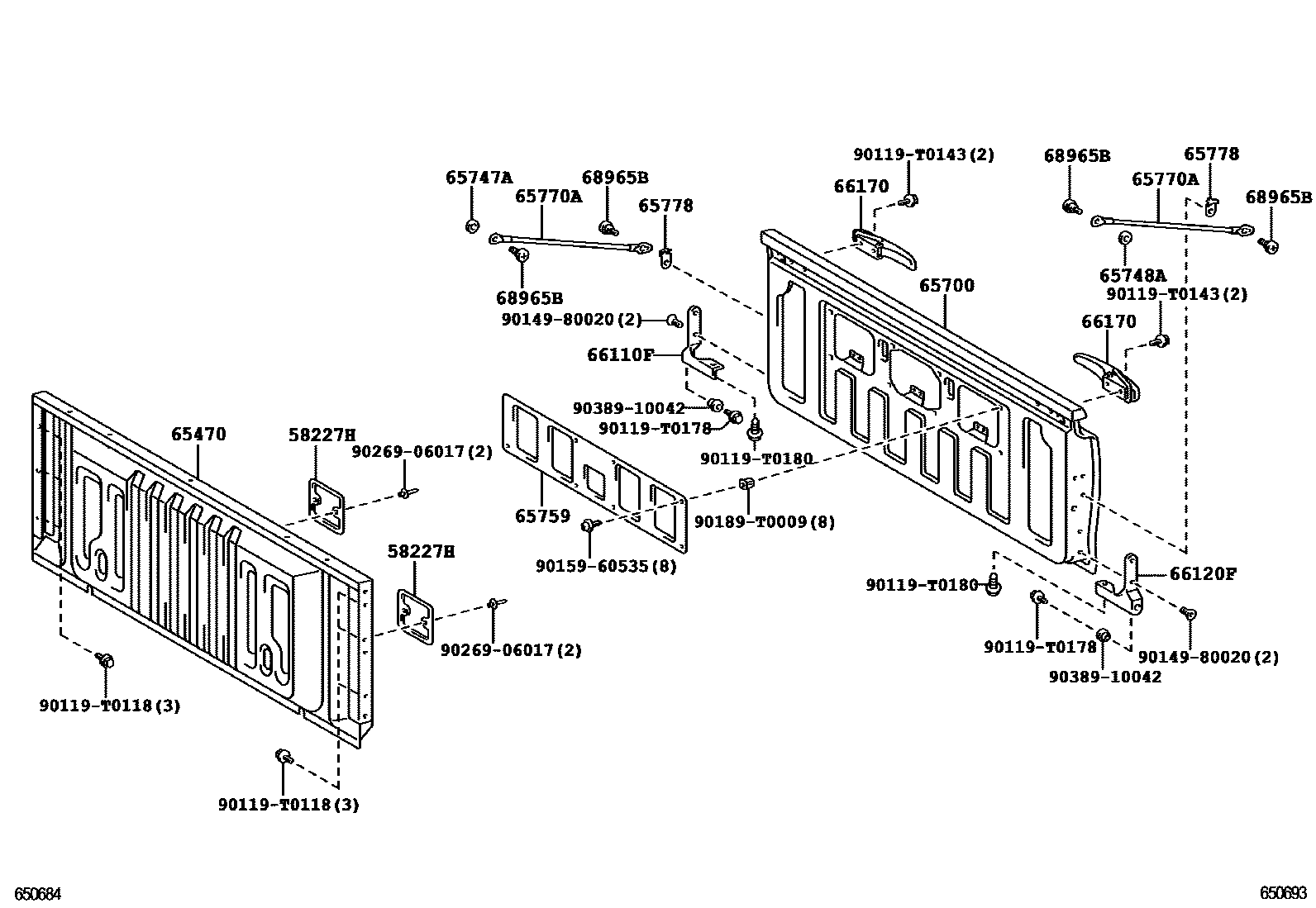

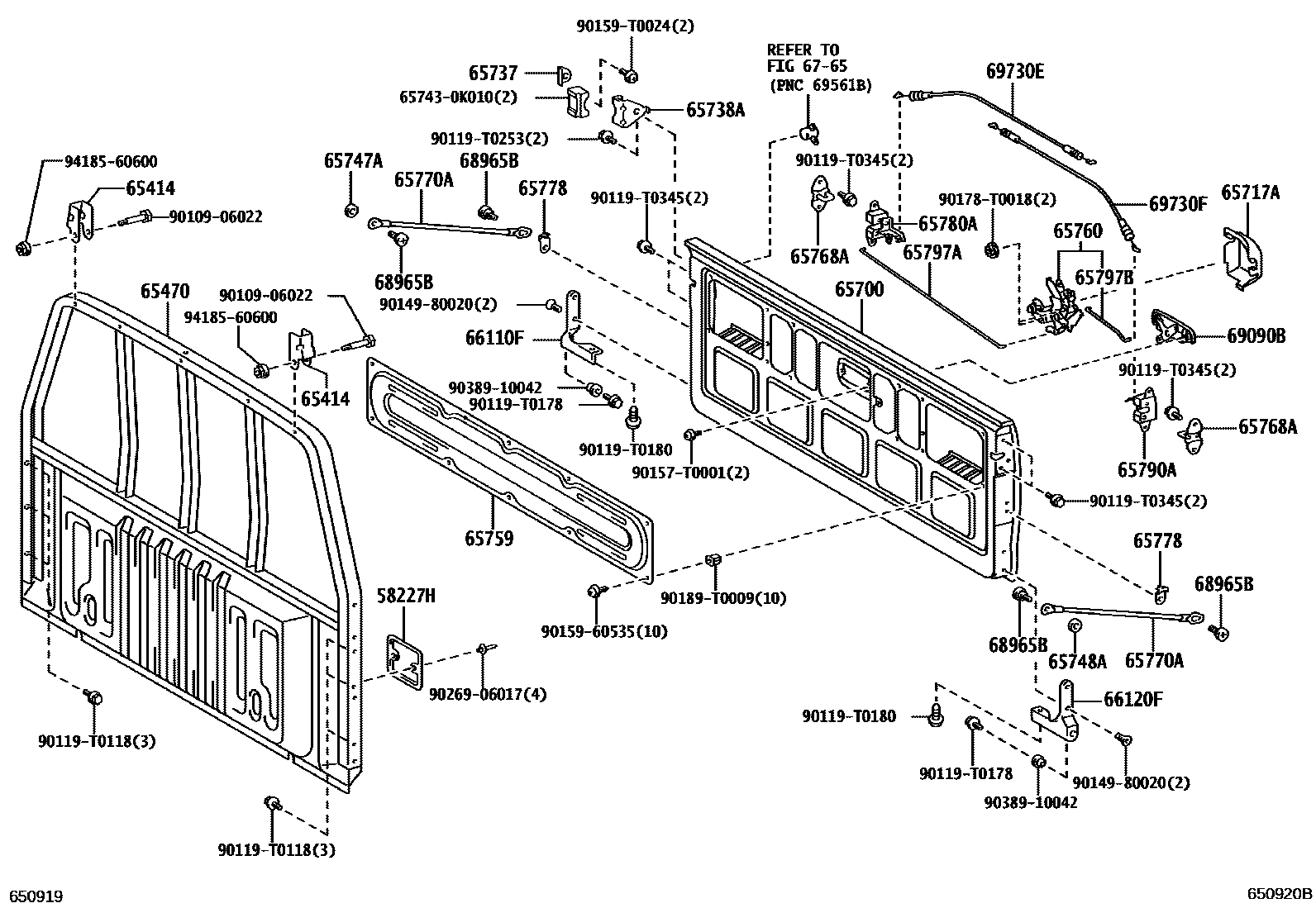

Toyota HILUX 后车身防护架和背门 — Figure 6553
Toyota HILUX EPC diagram 6553, 后车身防护架和背门, with 6 images and 25 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58227H | Top cover No. 1 | 58227-0K030 |
| 65414 | guardrail frame stop | 65414-0K010 |
| 65470 | Top plate assembly | 65470-0K010 · 65470-0K020 |
| 65700 | Rear body back door assembly | 65700-0K020 · 65700-0K040 · 65700-0K041 · 65700-0K070 · 65700-0K100 · 65700-0K101 · 65700-0K120 · 65700-0K130 |
| 65717A | Back door right protection piece | 65717-0K010 |
| 65737 | Back door stopper | 65737-0K010 |
| 65738A | Back door lock No. 1 hinge stop | 65738-0K010 |
| 65747A | Back door right seal plate | 65747-0K010 |
| 65748A | Rear door left seal plate | 65747-0K010 |
| 65759 | Rear door access hole cover | 65759-0K010 · 65759-0K060 |
| 65760 | Back door lock control assembly | 65760-0K010 |
| 65768A | Back door latch | 65768-0K010 |
| 65770A | Back door support rod assembly | 65770-0K010 |
| 65778 | Back door support rod stop | 65778-0K010 |
| 65780A | Back door right lock assembly | 65780-0K010 · 65780-0K020 |
| 65790A | Back door left lock assembly | 65790-0K010 · 65790-0K020 |
| 65797A | Rear door lock control linkage | 65797-0K010 · 65797-0K030 |
| 65797B | Rear door lock control linkage | 65797-0K020 · 65797-0K040 |
| 66110F | Back door right hinge assembly | 66110-0K010 · 66110-0K011 |
| 66120F | Back door left hinge assembly | 66120-0K010 · 66120-0K011 |
| 66170 | Rear body back door lock bolt assembly | 66170-0K020 · 66170-71010 |
| 68965B | Back door support rod shaft | 68965-0K010 |
| 69090B | Rear door handle assembly | 69090-0K040 · 69090-0K050 · 69090-71010 · 69090-89101 |
| 69730E | Rear door lock No. 1 remote control cable assembly | 69730-0K100 |
| 69730F | Rear door lock No. 2 remote control cable assembly | 69730-0K110 |
