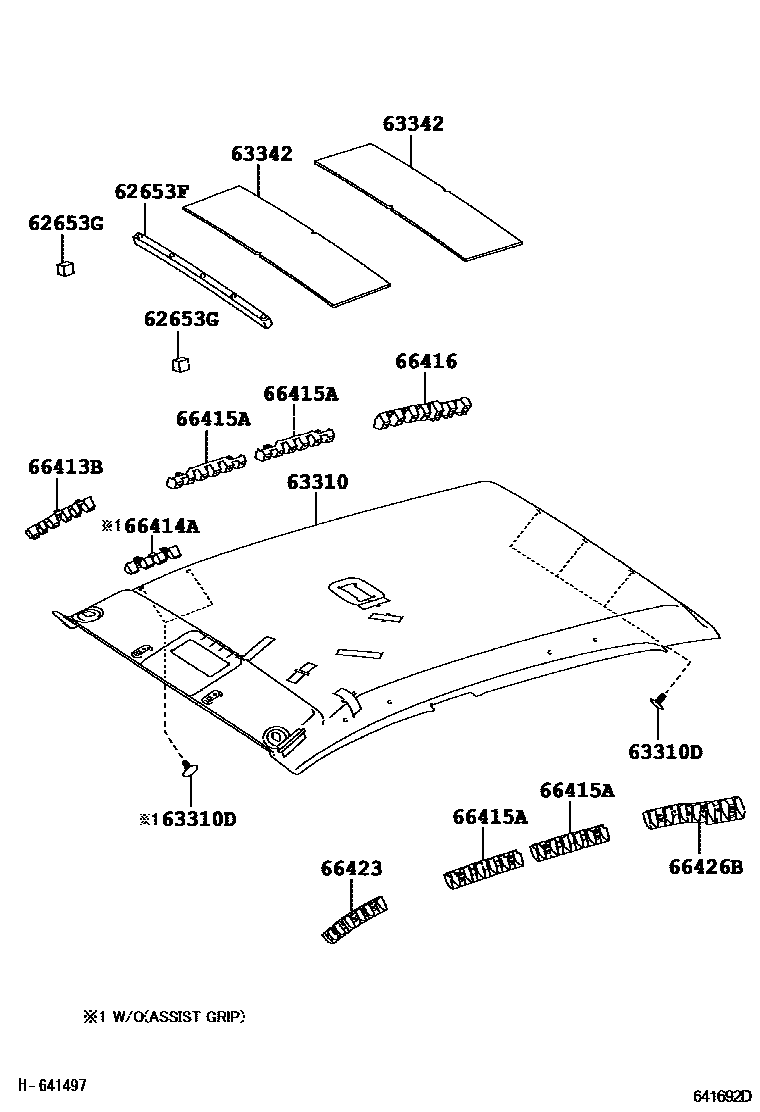

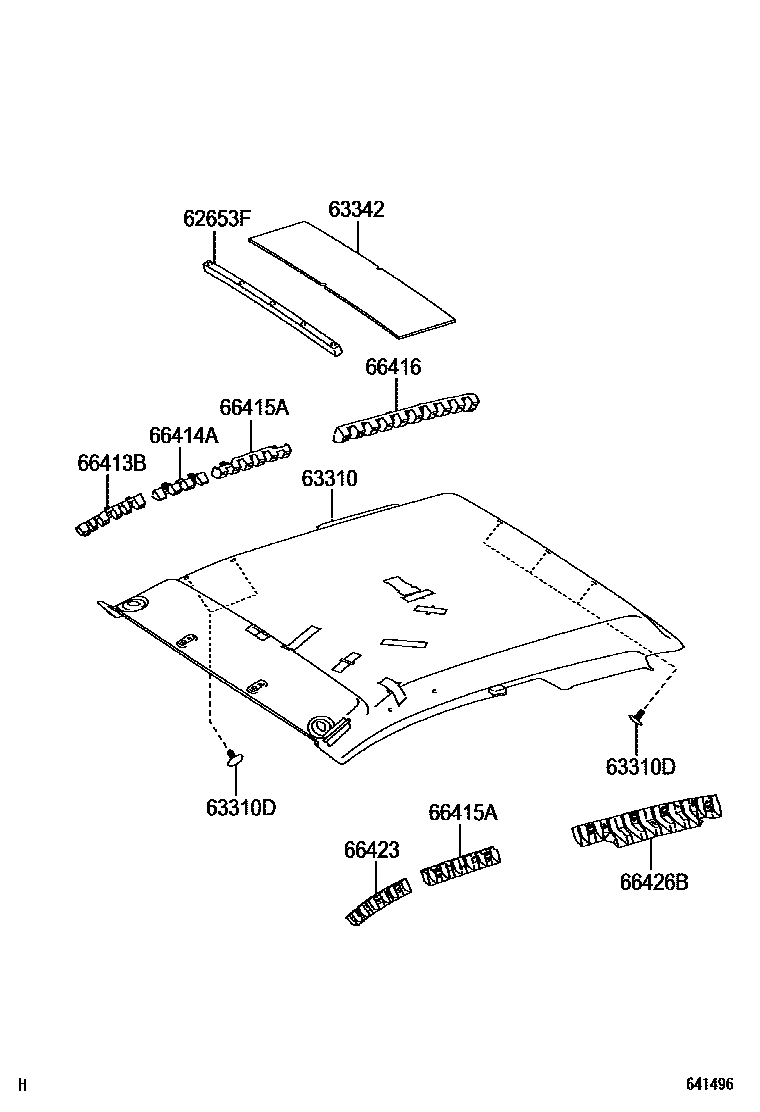

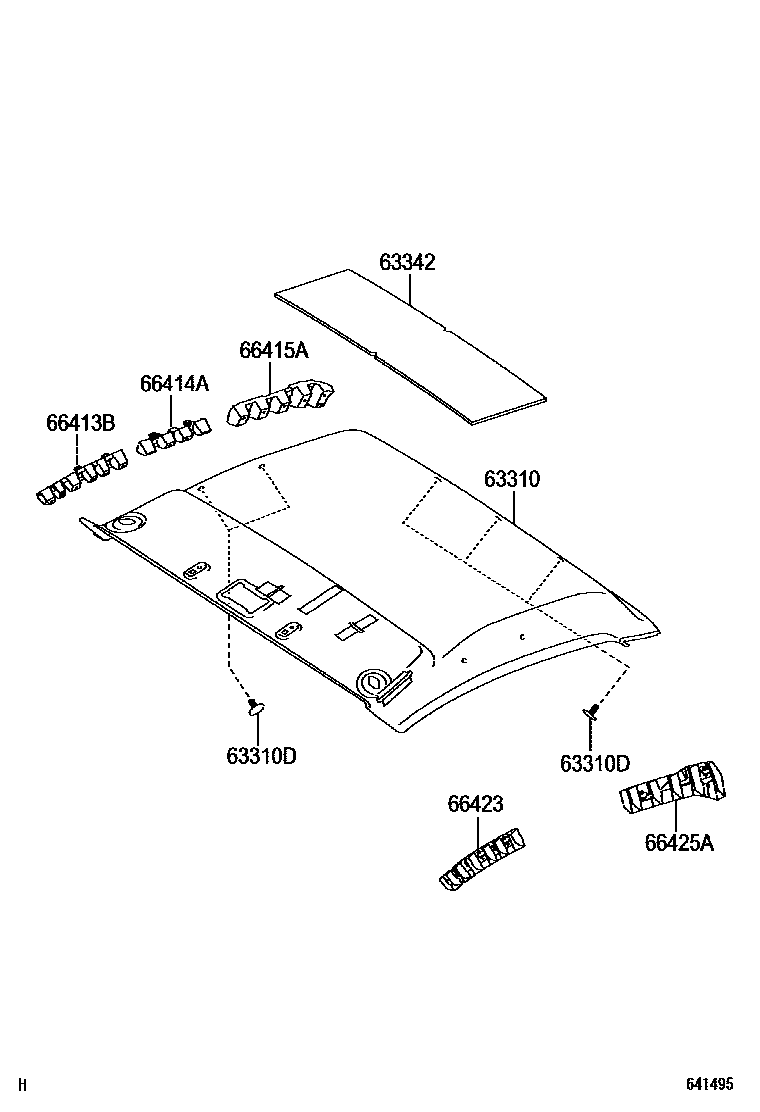

Toyota HILUX 车顶内衬和消声垫 — Figure 6452
Toyota HILUX EPC diagram 6452, 车顶内衬和消声垫, with 3 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 62653F | Seals (for headliner) | 62653-0K080 |
| 62653G | Seals (for headliner) | 62653-0K210 |
| 63342 | No. 2 roof muffler pad | 63342-0K010 · 63342-0K020 · 63342-0K090 · 63342-0K160 |
| 66413B | Right front longitudinal member spacer | 66413-0K010 · 66413-0K020 |
| 66414A | Right rear longitudinal member spacer | 66414-0K010 · 66414-0K020 |
| 66415A | No. 2 right rear longitudinal beam spacer | 66415-0K010 · 66415-0K011 · 66415-0K020 · 66415-0K021 · 66415-0K040 · 66415-0K050 |
| 66416 | No. 3 right rear longitudinal beam spacer | 66416-0K010 · 66416-0K011 · 66416-0K020 · 66416-0K021 · 66416-0K040 |
| 66423 | Left front longitudinal member spacer | 66423-0K010 · 66423-0K020 |
| 66425A | No. 2 left rear longitudinal beam spacer | 66425-0K010 · 66425-0K020 |
| 66426B | No. 3 left rear longitudinal beam spacer | 66426-0K010 · 66426-0K011 · 66426-0K020 · 66426-0K021 · 66426-0K040 |
