Toyota HILUX 侧窗 — Figure 6152

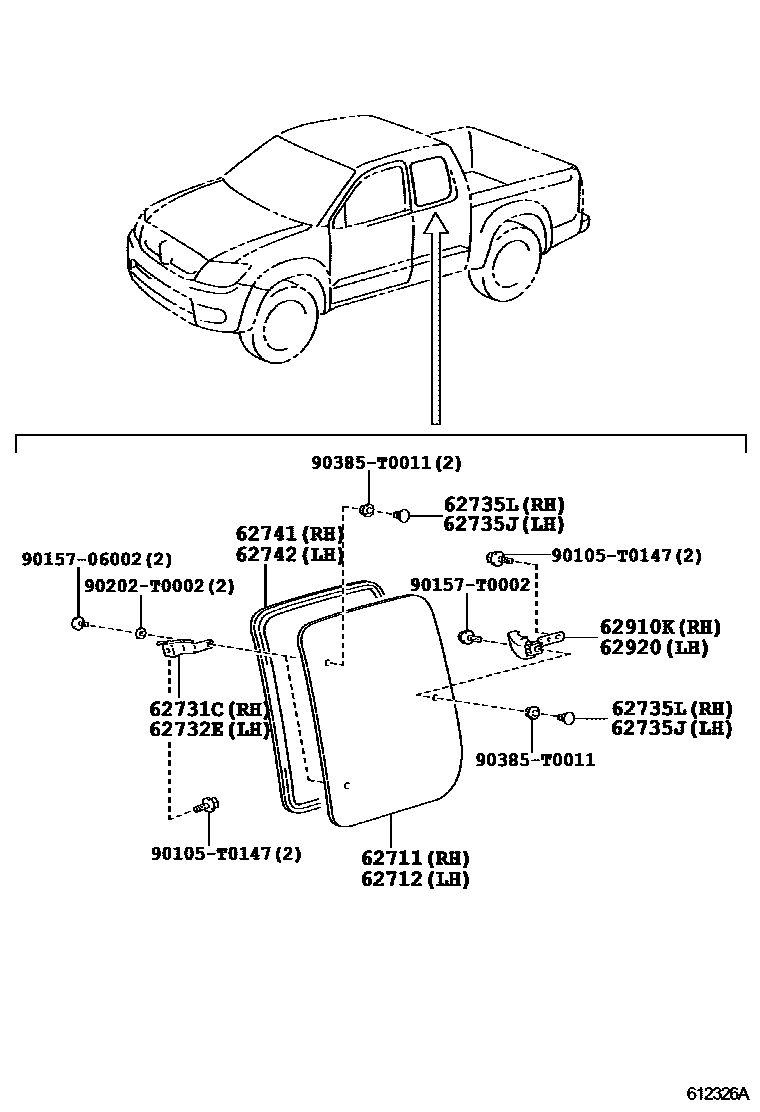

Toyota HILUX EPC diagram 6152, 侧窗, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 62711 | Right corner window glass | 62711-0K010 |
| 62712 | Left corner window glass | 62712-0K010 |
| 62731C | Right corner window hinge | 62731-0K010 · 62731-0K040 |
| 62732E | Left corner window hinge | 62732-0K010 · 62732-0K040 |
| 62735J | Left corner window hinge fixing | 62735-35010 |
| 62735L | Right corner window hinge fixing | 62735-35010 |
| 62741 | Right corner window sealing strip | 62741-0K010 |
| 62742 | Left corner window sealing strip | 62742-0K010 |
