Toyota HILUX 侧梁 — Figure 6151

Toyota HILUX EPC diagram 6151, 侧梁, with 3 images and 55 PNC and OE references.

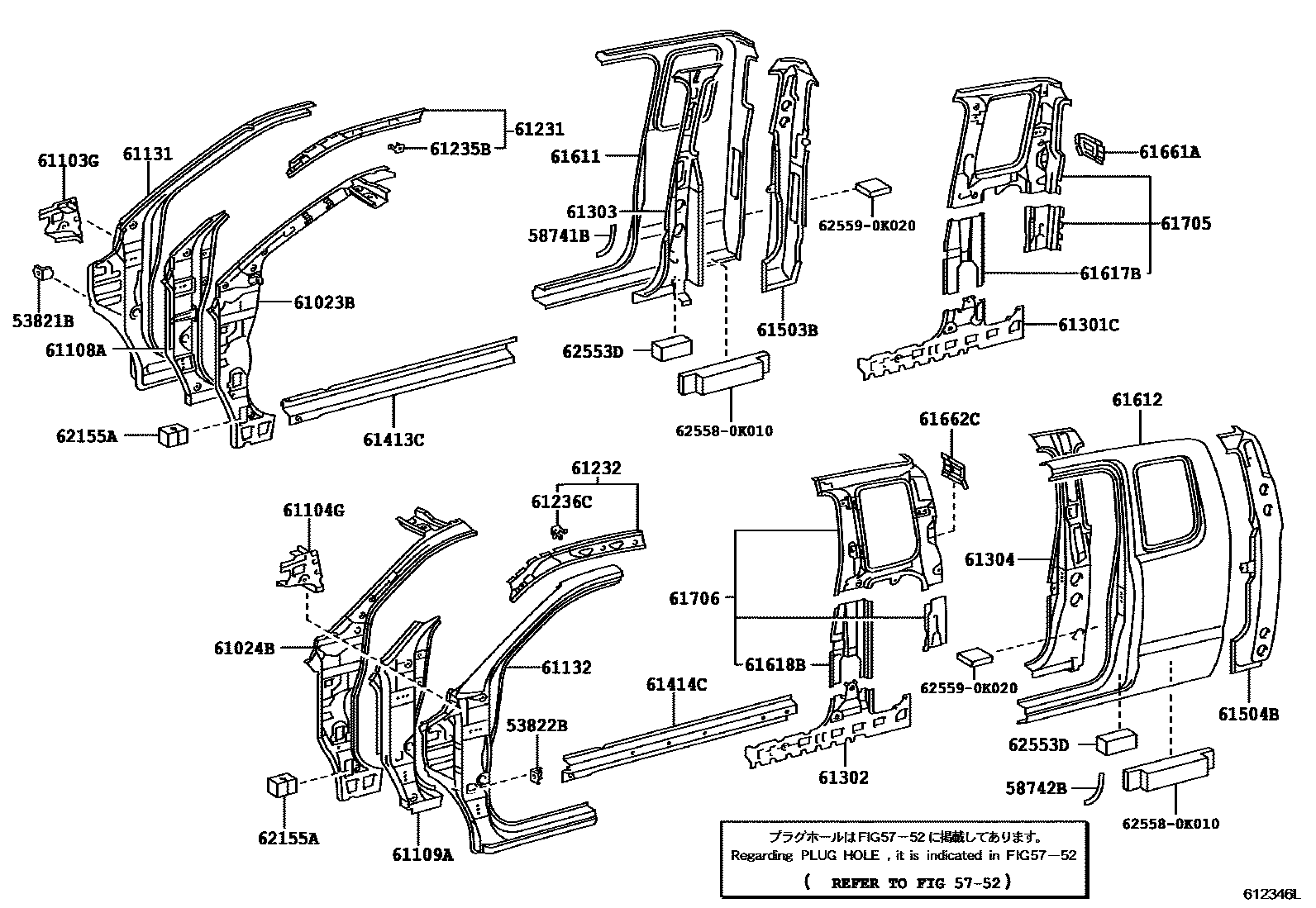

Toyota HILUX 侧梁 EPC diagram — 612346L
侧梁 — 612346L (200507 – 999999)

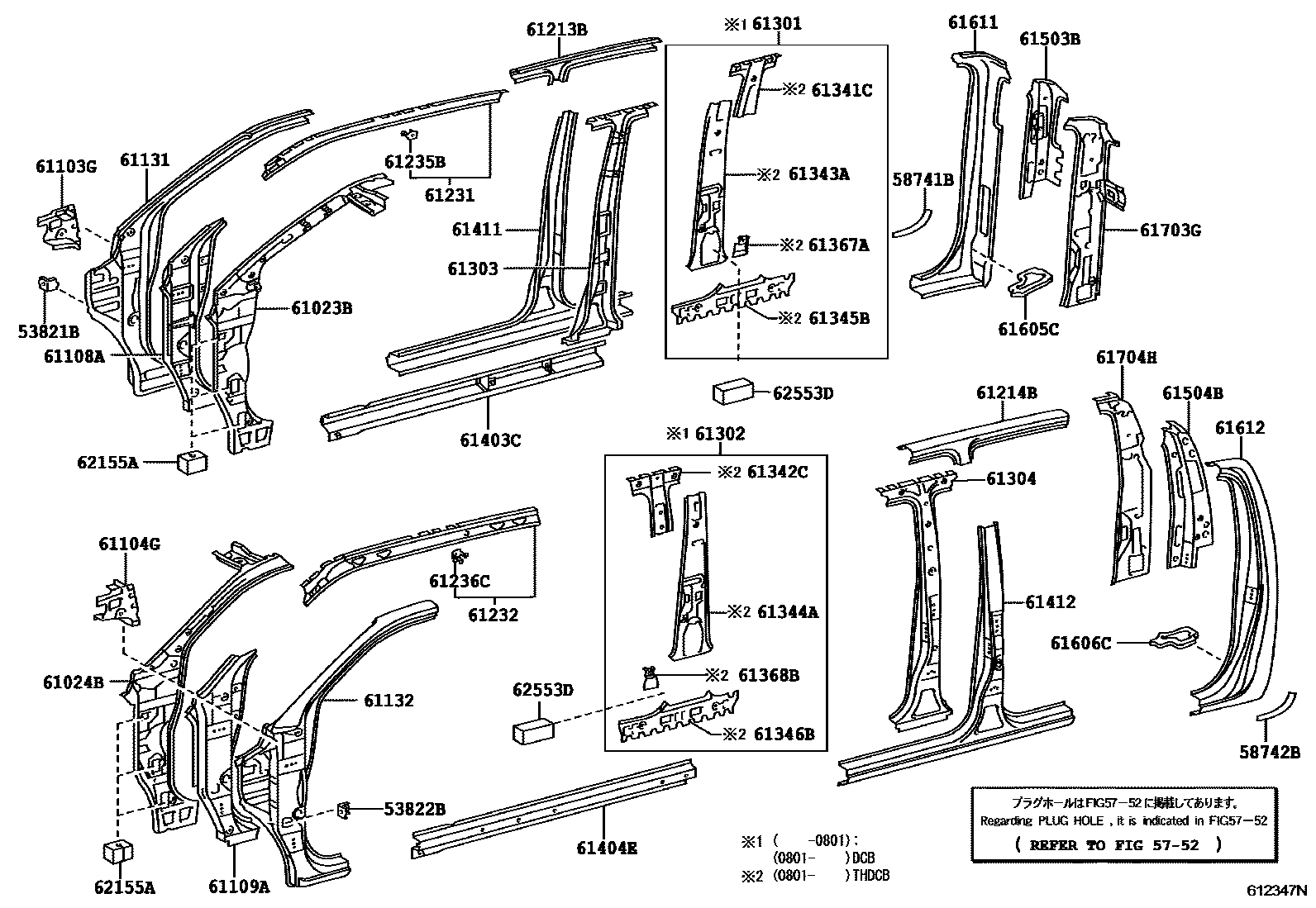

Toyota HILUX 侧梁 EPC diagram — 612347N
侧梁 — 612347N (200507 – 999999)

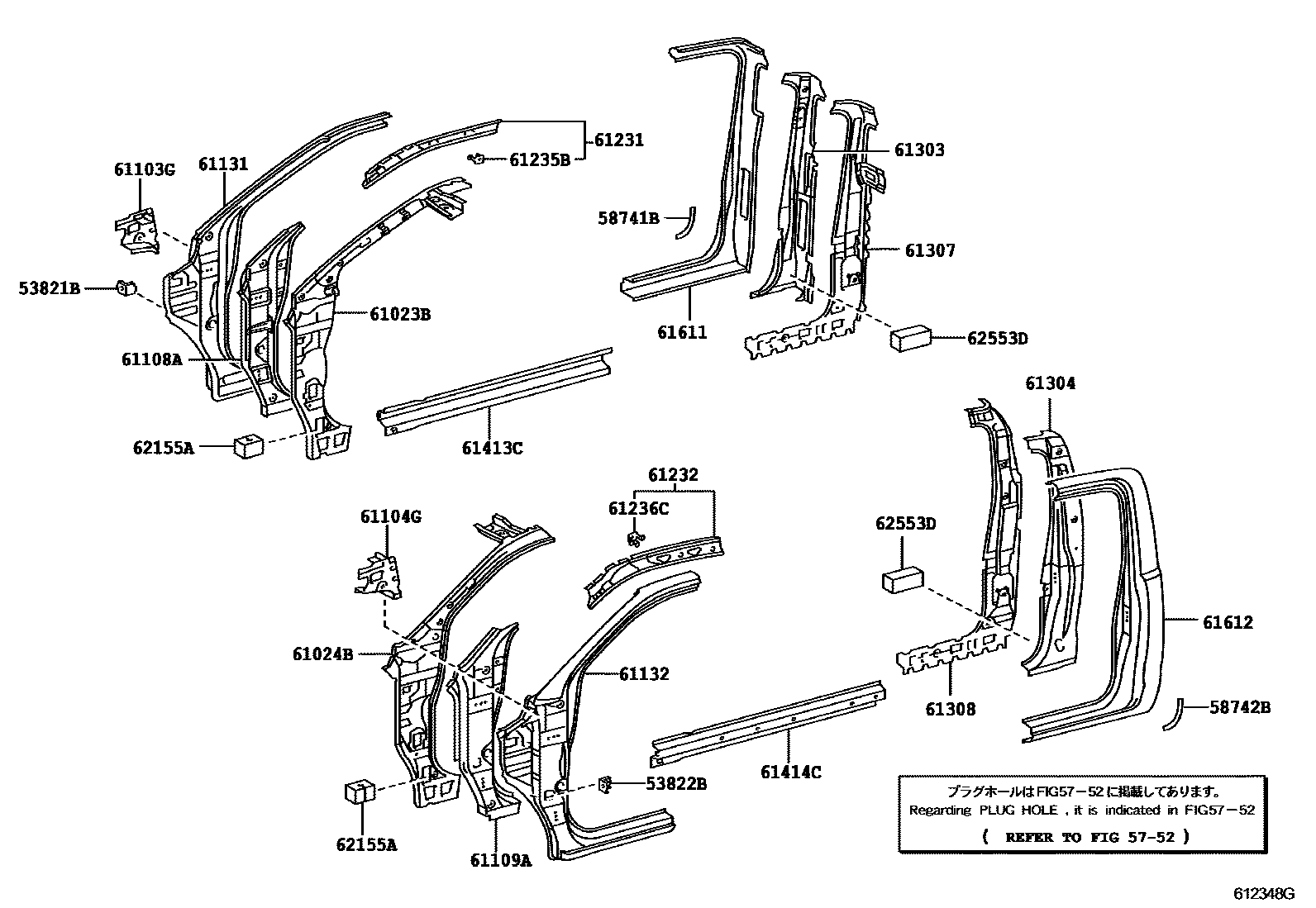

Toyota HILUX 侧梁 EPC diagram — 612348G
侧梁 — 612348G (200507 – 999999)

PNC and OE references

PNCPart nameOE numbers
53821BRight front fender rear support53821-16010
53822BLeft front fender rear support53821-16010
58741BRight side enclosure protection panel58741-0K050 · 58741-0K060
58742BLeft side enclosure protection panel58742-0K040 · 58742-0K050
61023BRight body inner front pillar sub-assembly61023-0K010 · 61023-0K011 · 61023-0K020 · 61023-0K081 · 61023-0K091 · 61023-0K130
61024BLeft body inner front pillar sub-assembly61024-0K010 · 61024-0K011 · 61024-0K020 · 61024-0K091 · 61024-0K092 · 61024-0K101 · 61024-0K102 · 61024-0K130
61103GRight body front pillar lower corner panel sub-assembly61103-0K010
61104GLeft side body front pillar lower corner panel sub-assembly61104-0K010
61108ARight body front pillar lower reinforcement sub-assembly61108-0K010
61109ALeft side body front pillar lower reinforcement sub-assembly61109-0K010
61131Right body outer front upper pillar61131-0K010 · 61131-0K020 · 61131-0K030 · 61131-0K040
61132Left body outer front upper pillar61132-0K010 · 61132-0K020 · 61132-0K030 · 61132-0K040
61213BNo. 2 longitudinal beam on the outer right side of the roof61213-0K010
61214BNo. 2 longitudinal beam on the left side of the roof61214-0K010
61231Inner longitudinal beam on the right side of the roof61210-0K020 · 61210-0K021 · 61210-0K050 · 61231-0K901 · 61231-0K903
61232Roof left inner longitudinal beam61220-0K020 · 61220-0K021 · 61220-0K060 · 61232-0K901 · 61232-0K903 · 61232-0K904
61235BAuxiliary handle bracket61235-0K010
61236CAuxiliary handle bracket61235-0K010
61301Right body center pillar sub-assembly61301-0K901 · 61301-0K903 · 61301-0K904
61301CRight body outer center pillar sub-assembly61301-0K070 · 61301-0K071
61302Left body center pillar sub-assembly61302-0K070 · 61302-0K071 · 61302-0K901 · 61302-0K903 · 61302-0K904
61303Right body center pillar reinforcement sub-assembly61303-0K010 · 61303-0K020 · 61303-0K030 · 61303-0K031 · 61303-0K060
61304Left body center pillar reinforcement sub-assembly61304-0K010 · 61304-0K020 · 61304-0K030 · 61304-0K031 · 61304-0K060
61307Right body inner center pillar sub-assembly61307-0K020 · 61307-0K021 · 61307-0K040
61308Left body inner center pillar sub-assembly61308-0K020 · 61308-0K021 · 61308-0K040
61341CRight inner middle pillar61341-0K010 · 61341-0K040
61342CLeft side inner center pillar61342-0K010 · 61342-0K040
61343ARight body inner center pillar61343-0K010 · 61343-0K040 · 61343-0K041
61344ALeft body inner center pillar61344-0K010 · 61344-0K040 · 61344-0K041
61345BRight body inner middle and lower pillar61345-0K010
61346BLeft side inner middle and lower pillar61346-0K010
61367ARight seat belt anchor to center pillar lower reinforcement61367-0K010
61368BLeft seat belt anchor to center pillar lower reinforcement61368-0K010
61403CRight door outer sill reinforcement sub-assembly61403-0K010
61404ELeft door outer sill reinforcement sub-assembly61404-0K010
61411Right door outer sill panel61411-0K010
61412Left door outer sill panel61412-0K010
61413CRight side door sill panel No. 2 reinforcement61413-0K020
61414CLeft side door sill panel No. 2 reinforcement61414-0K030
61503BRight side locking column reinforcement sub-assembly61503-0K010 · 61503-0K020 · 61503-0K021 · 61503-0K022
61504BLeft side locking column reinforcement sub-assembly61504-0K010 · 61504-0K020 · 61504-0K021 · 61504-0K022
61605CRight rear side panel inner panel sub-assembly61567-0K010
61606CLeft rear side panel inner panel sub-assembly61568-0K010
61611Right side hoarding61611-0K010 · 61611-0K020 · 61611-0K030
61612left side panel61612-0K010 · 61612-0K020 · 61612-0K030
61617BInner lower panel of right side enclosure61617-0K010
61618BInner lower panel of left side enclosure61618-0K010
61661AExtension from right side panel to back panel61661-0K010 · 61661-0K011
61662CExtension from left side panel to back panel61662-0K010 · 61662-0K011
61703GRight side enclosure inner panel sub-assembly61703-0K010 · 61703-0K110 · 61703-0K111
61704HLeft side enclosure inner panel sub-assembly61704-0K010 · 61704-0K150 · 61704-0K151
61705Roof right inner panel sub-assembly61705-0K050 · 61705-0K051
61706Roof left inner panel sub-assembly61706-0K050 · 61706-0K051
62155AFront and lower side muffler pads62155-0K010
62553DNo. 3 column pad62557-0K010 · 62557-0K060
