Toyota HILUX 地板隔热垫 — Figure 5853

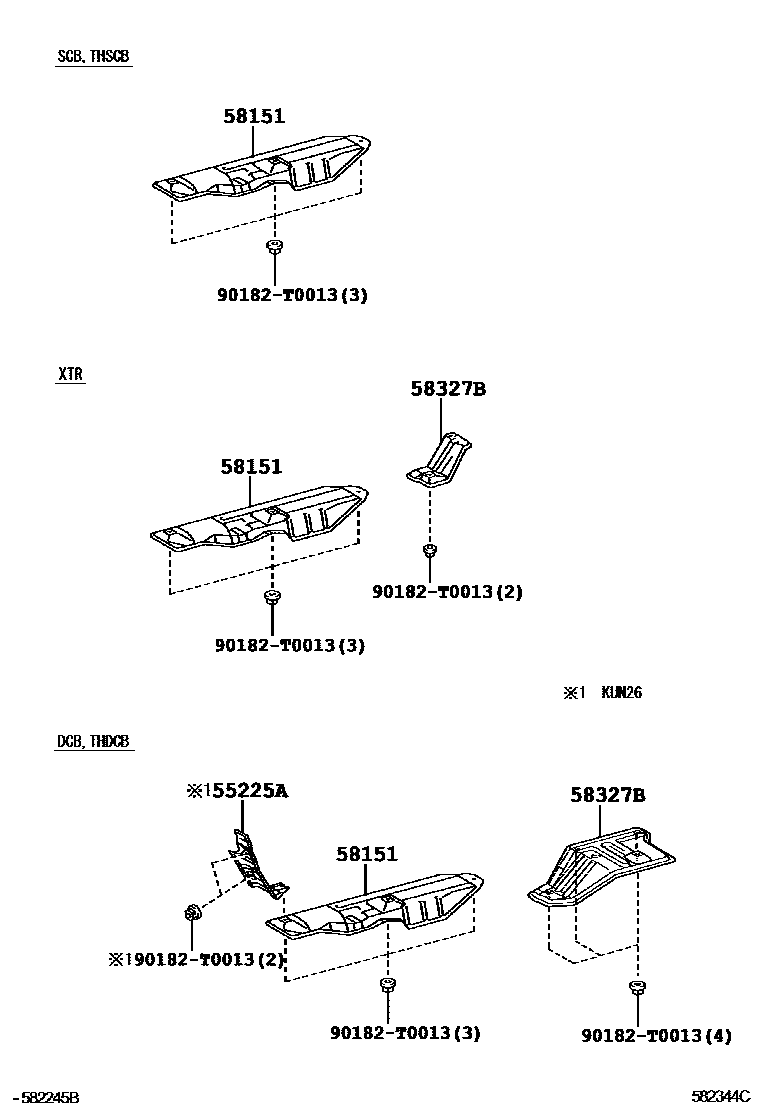

Toyota HILUX EPC diagram 5853, 地板隔热垫, with 1 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55225A | No. 1 insulation pad for front wall panel | 55225-0K010 · 55225-0K030 |
| 58151 | Front floor insulation mat No. 1 | 58151-0K010 |
| 58327B | Main muffler heat insulation pad | 58327-0K010 · 58327-0K020 |
