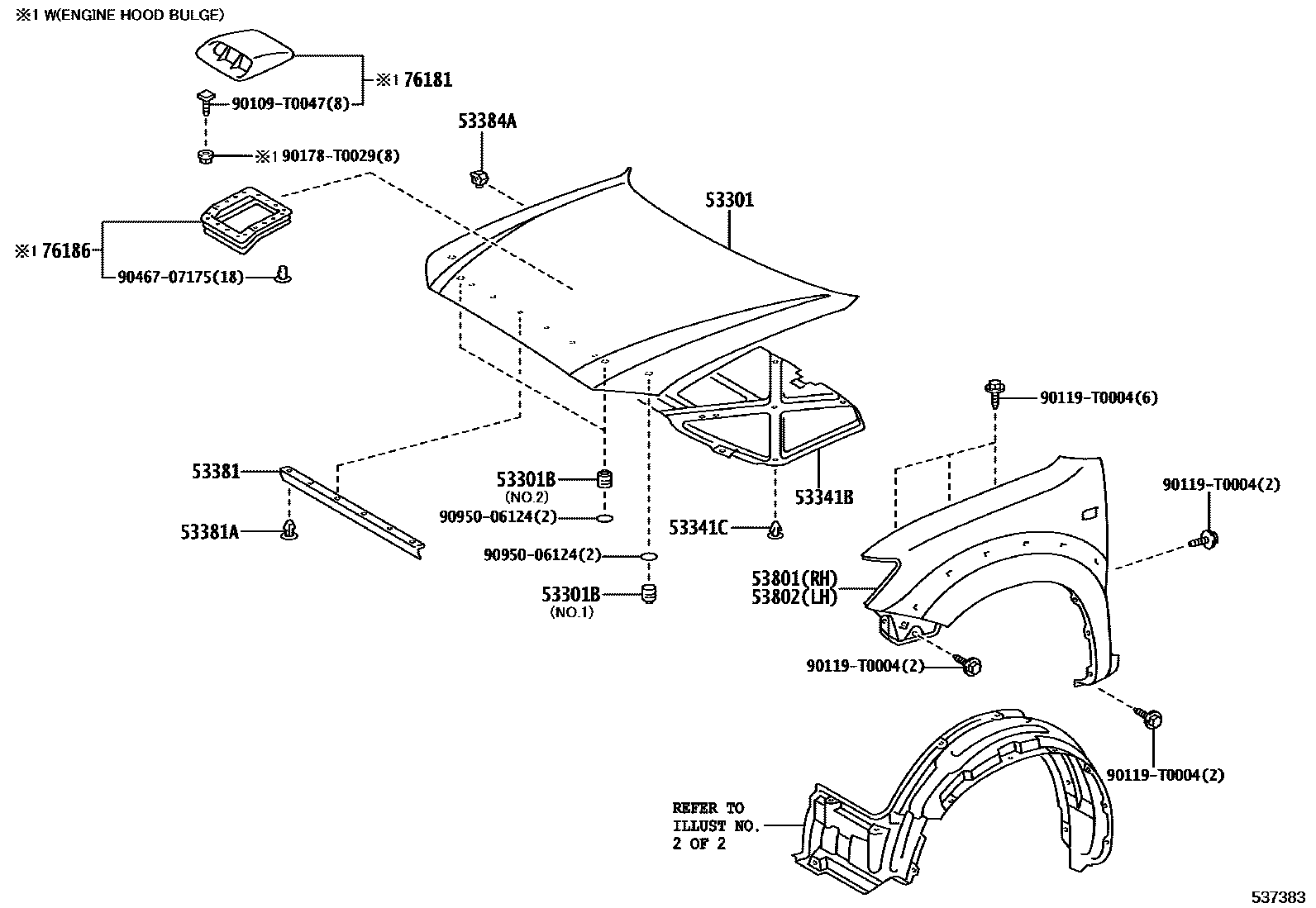

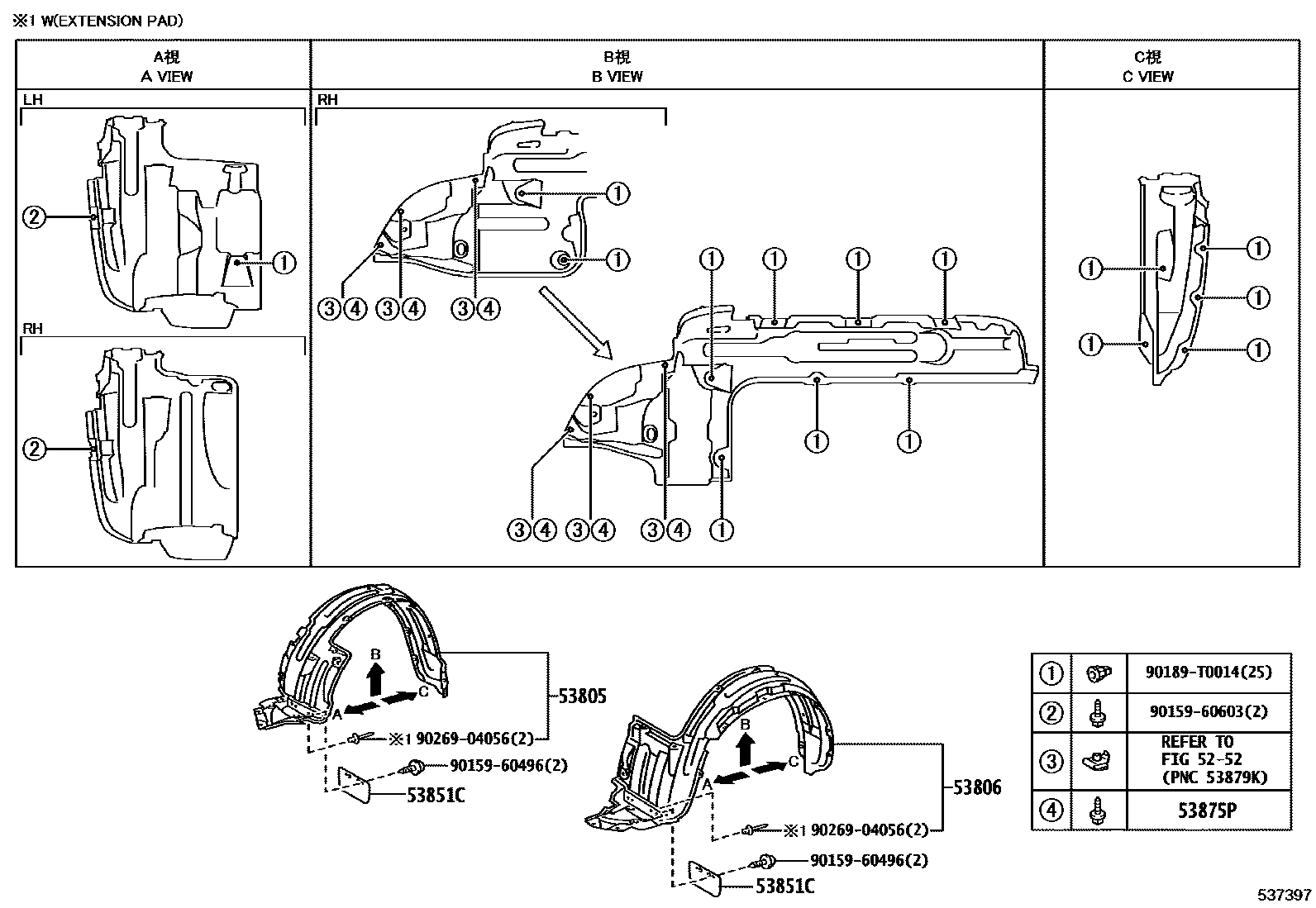

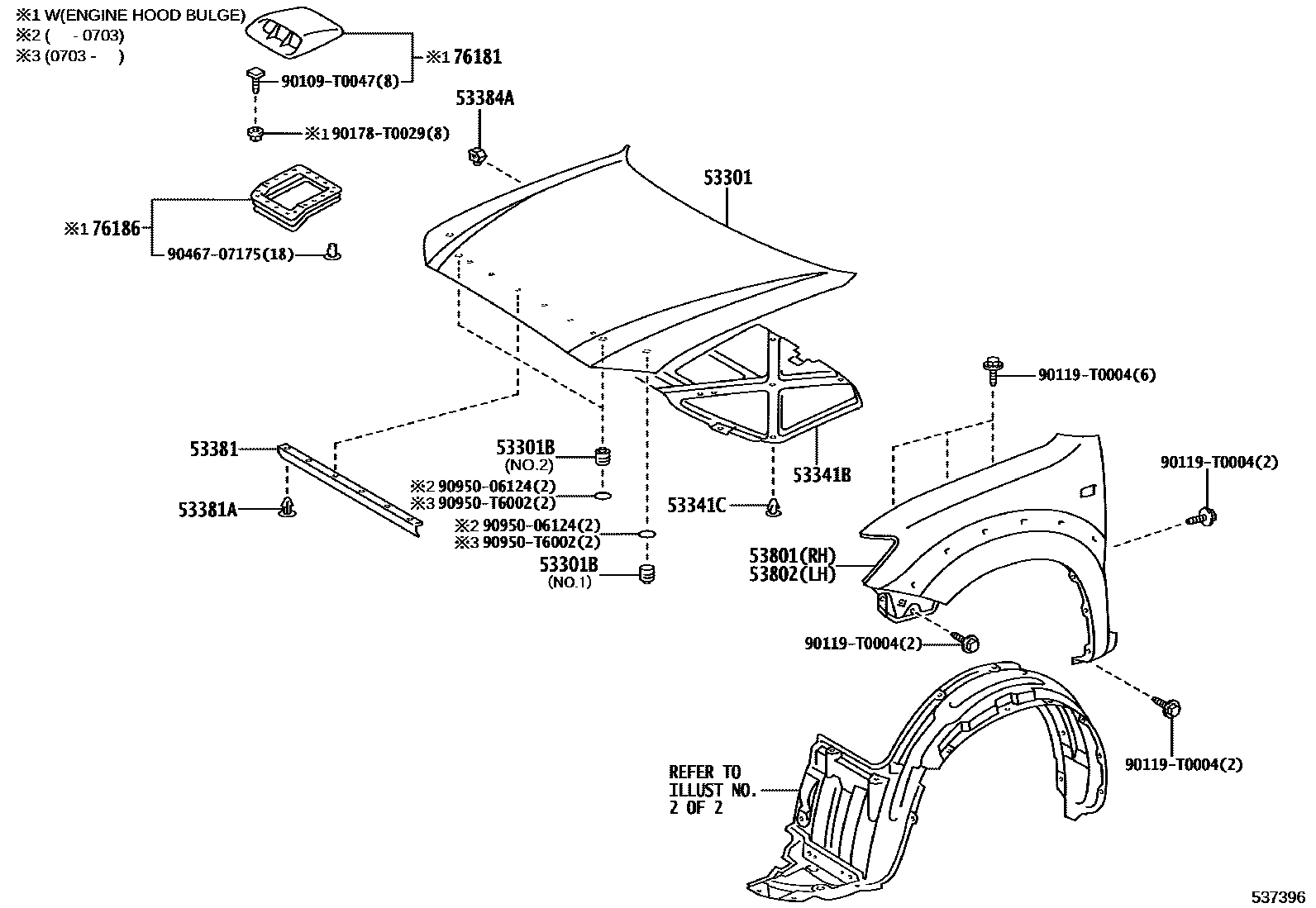

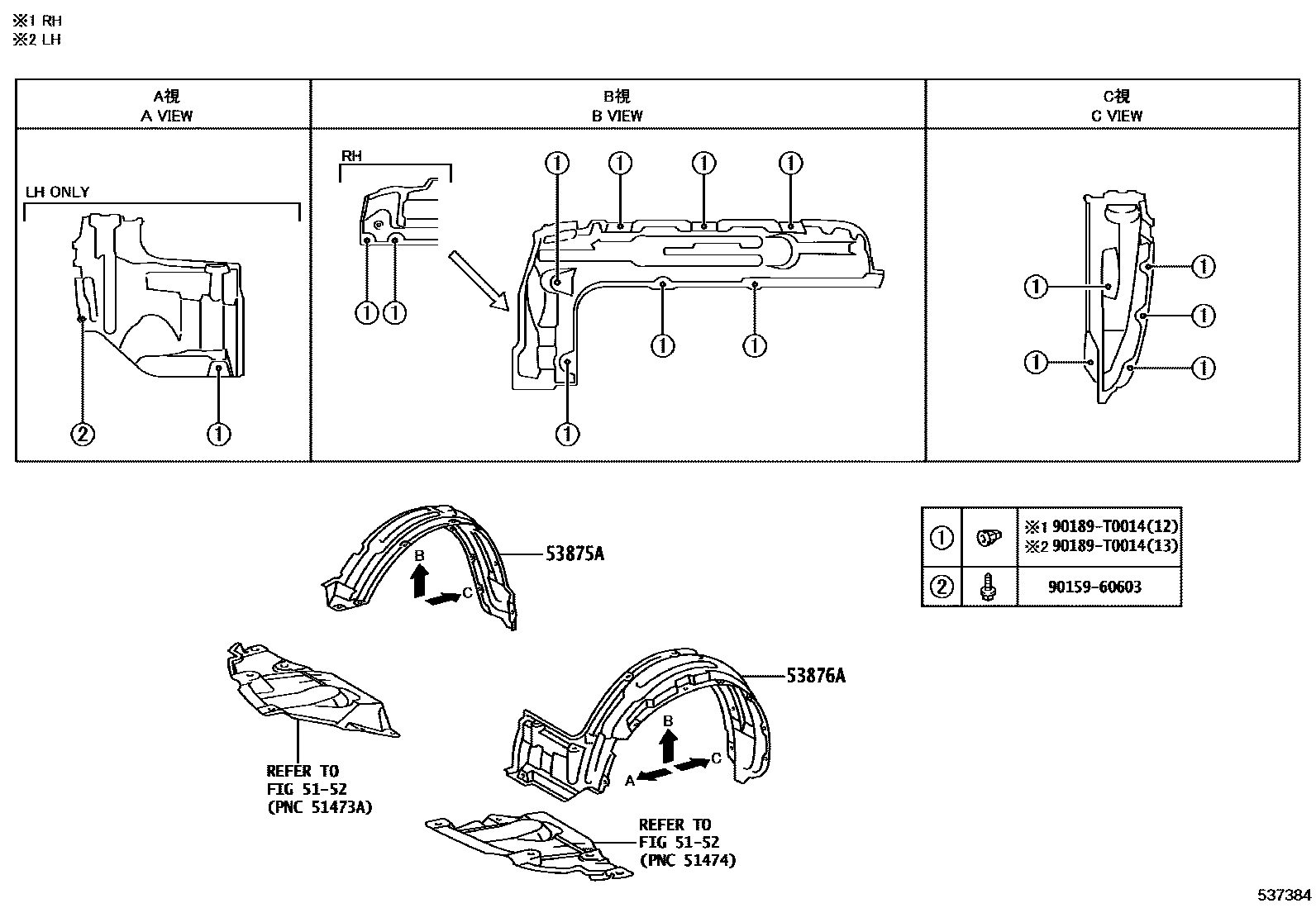

Toyota HILUX 发动机盖和前翼子板 — Figure 5353
Toyota HILUX EPC diagram 5353, 发动机盖和前翼子板, with 4 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53301 | Engine cover sub-assembly | 53301-0K010 · 53301-0K020 · 53301-0K021 |
| 53301B | engine cover cushion | 90541-15019 · 90541-15024 · 90541-T0006 |
| 53341B | engine cover gasket | 53341-0K010 · 53341-0K020 · 53341-0K030 · 53341-0K040 |
| 53341C | Clip (for engine cover gasket) | 90467-T0014 |
| 53381 | Engine cover to radiator bracket seal | 53381-0K010 |
| 53381A | Clip (for engine cover to radiator bracket seal) | 90467-T0013 |
| 53384A | fender to engine cover buffer block | 53384-0K010 |
| 53801 | Right front fender sub-assembly | 53811-0K010 · 53811-0K020 |
| 53802 | Left front fender sub-assembly | 53812-0K010 · 53812-0K020 |
| 53805 | Right front fender splash guard sub-assembly | 53805-0K030 · 53805-0K090 · 53805-0K091 · 53875-0K120 |
| 53806 | Left front fender splash guard sub-assembly | 53806-0K030 · 53806-0K090 · 53806-0K091 · 53876-0K130 |
| 53851C | No. 1 front fender outer panel pad | 53851-0K070 |
| 53875A | Right front fender lining | 53875-0K010 |
| 53875P | VIS, NO.1 | 90159-60217 |
| 53876A | Left front fender lining | 53876-0K010 |
| 76181 | hood bulge | 76180-0K905 · 76180-0K906 |
| 76186 | Engine cover air intake seal | 76186-0K010 |
