Toyota HILUX radiator grille — Figure 5351

Toyota HILUX EPC diagram 5351, radiator grille, with 2 images and 7 PNC and OE references.

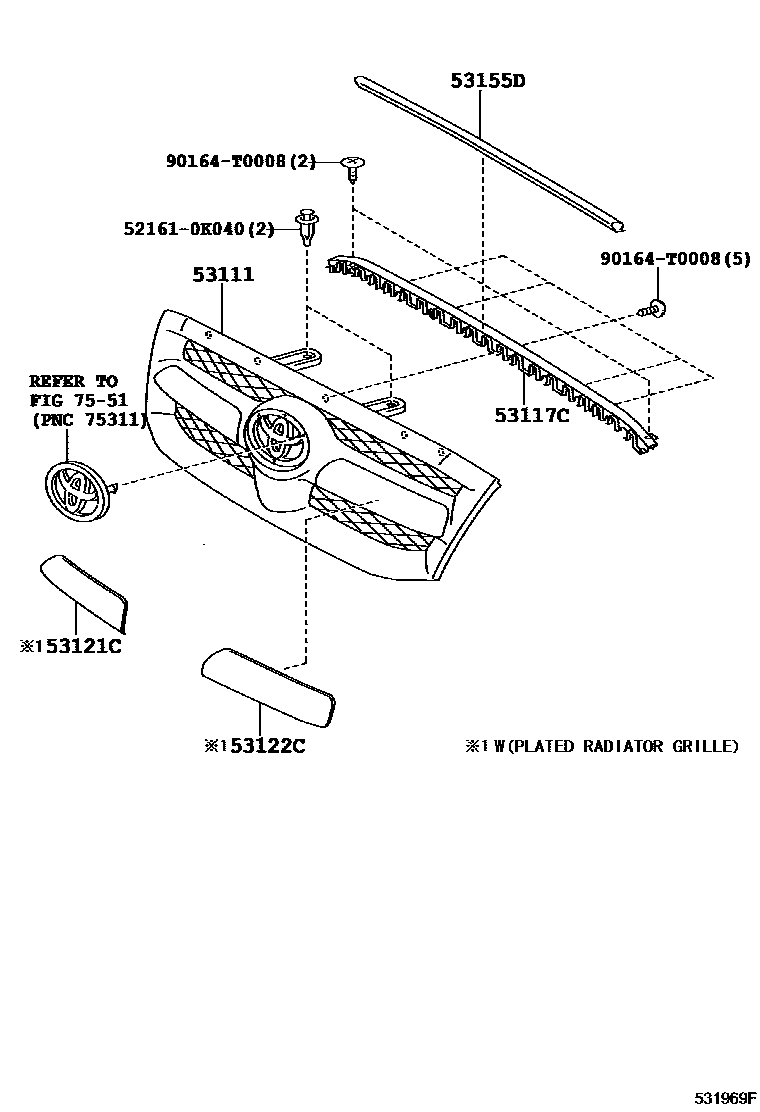

Toyota HILUX radiator grille EPC diagram — 531969F
radiator grille — 531969F (200507 – 200810)

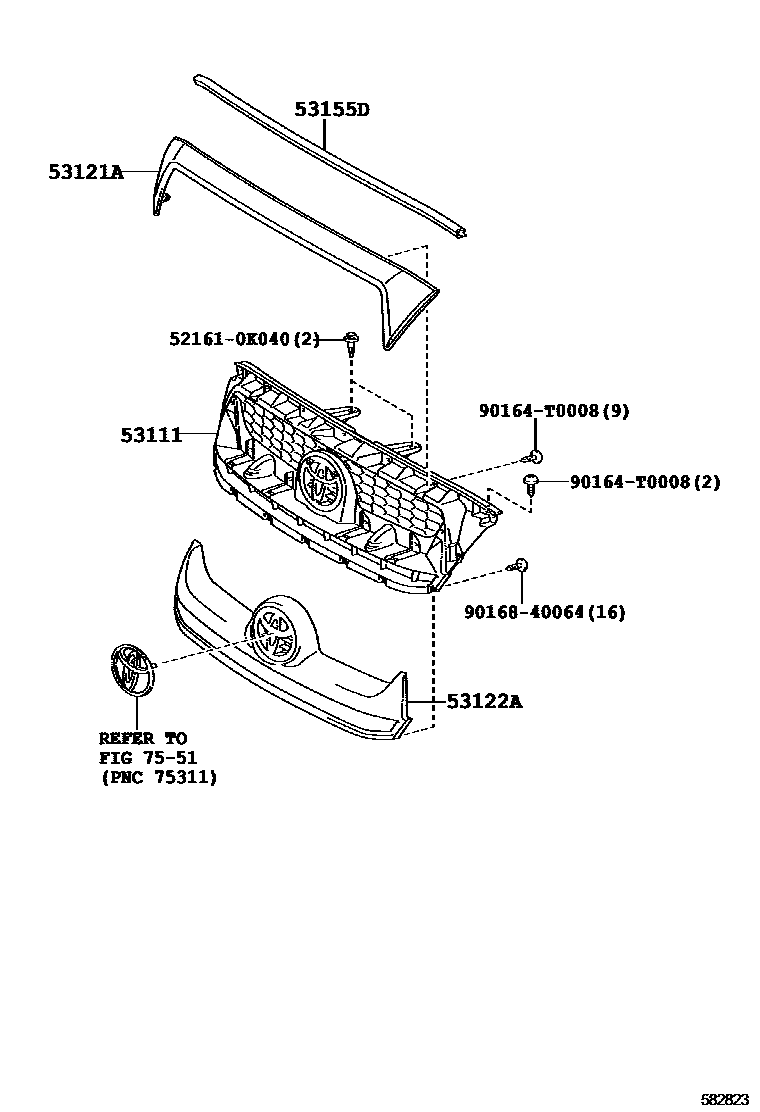

Toyota HILUX radiator grille EPC diagram — 532823
radiator grille — 532823 (200808 – 999999)

PNC and OE references

PNCPart nameOE numbers
53111radiator grille53111-0K010 · 53111-0K090 · 53111-0K200 · 53111-0K210
53117CRadiator grille fixing No. 153117-0K010 · 53117-0K020
53121ARadiator grille protection strip53121-0K060 · 53121-0K080 · 53121-0K240
53121CRadiator grille right decorative panel53121-0K010
53122ARadiator grille lower protective strip53122-0K020 · 53122-0K050 · 53122-0K903
53122CRadiator grille left decorative panel53122-0K010
53155DRadiator grille seal No. 153397-0K030
