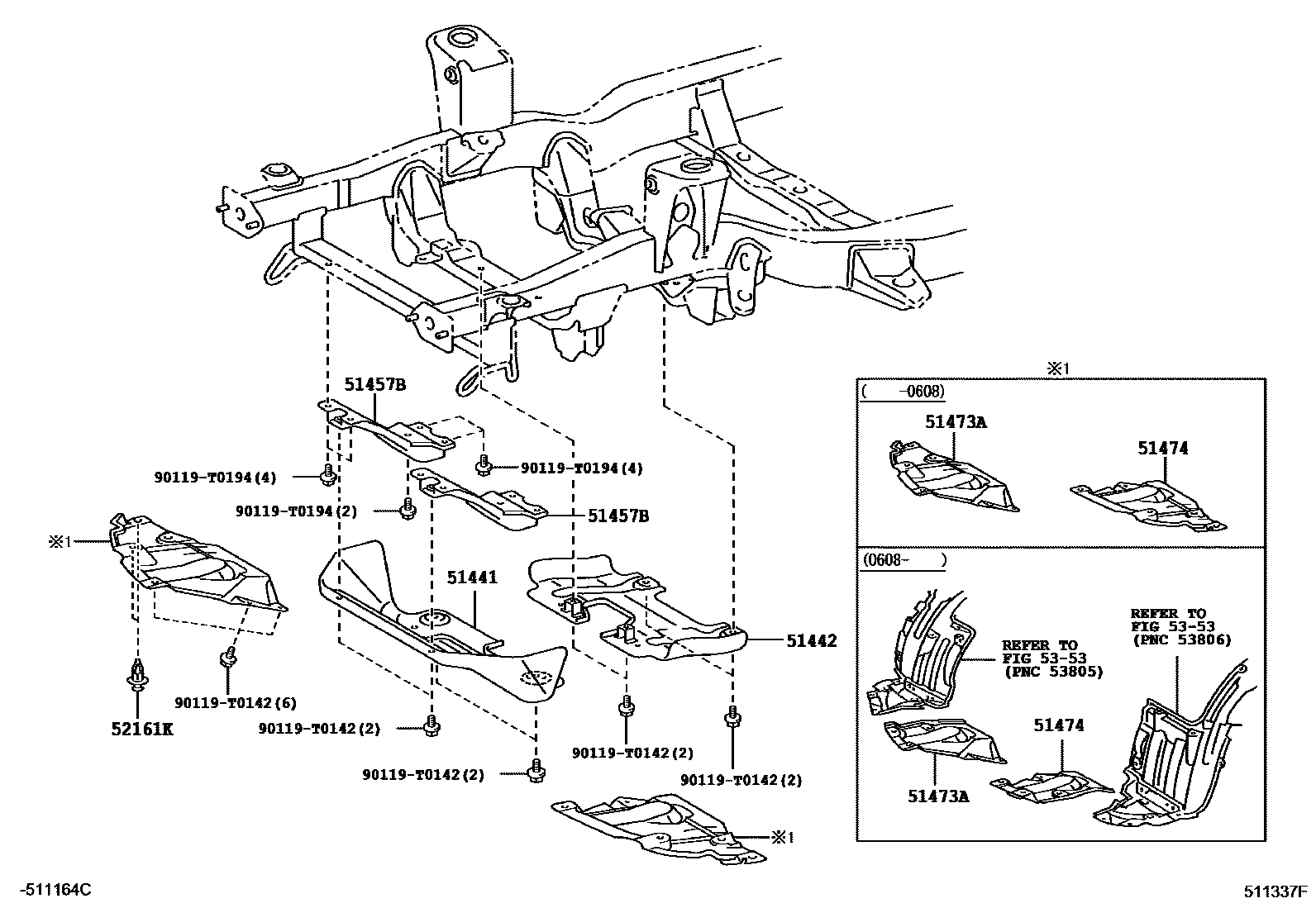

Toyota HILUX 悬架横梁和发动机底罩 — Figure 5152
Toyota HILUX EPC diagram 5152, 悬架横梁和发动机底罩, with 2 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51441 | No. 1 engine bottom cover | 51410-0K020 · 51410-0K021 |
| 51442 | No. 2 engine bottom cover | 51420-0K010 |

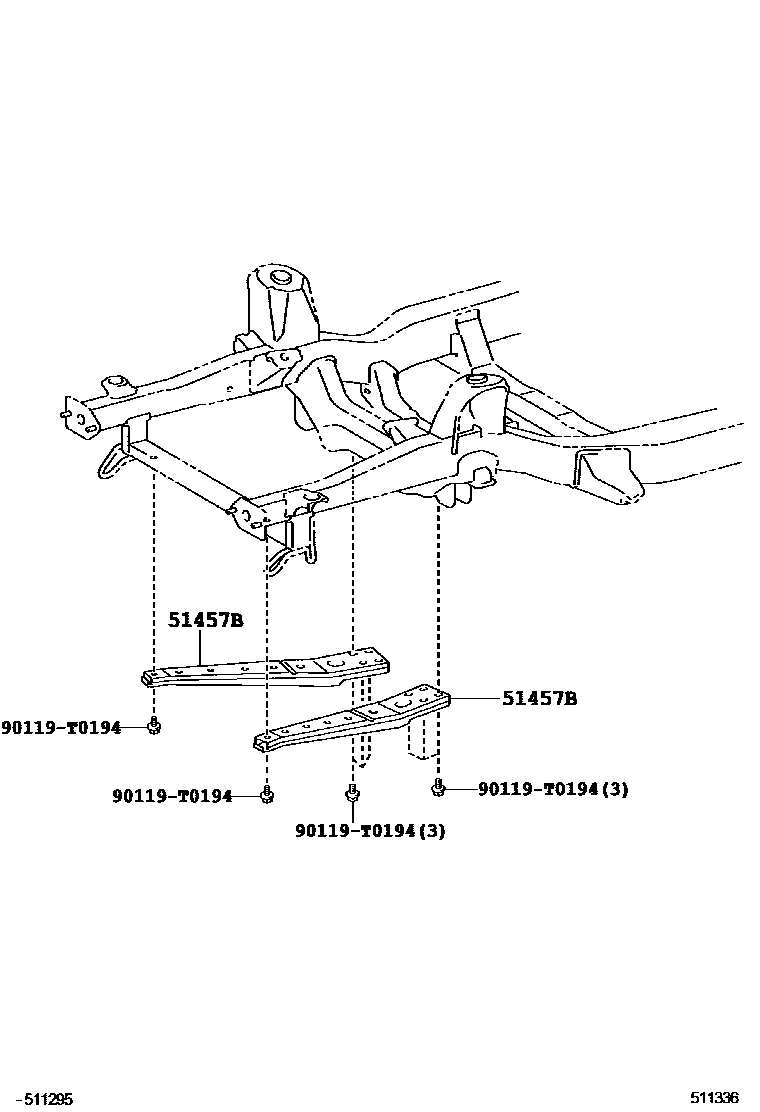

| 51457B | Bracket from front longitudinal beam to front suspension cross member | 51405-0K010 · 51405-0K020 |
| 51473A | Engine right side cover sub-assembly | 51473-0K010 · 51473-71010 · 51473-71031 |
| 51474 | Engine left side cover sub-assembly | 51474-0K010 · 51474-71010 · 51474-71031 |
| 52161K | front bumper insert | 52161-0K050 |
