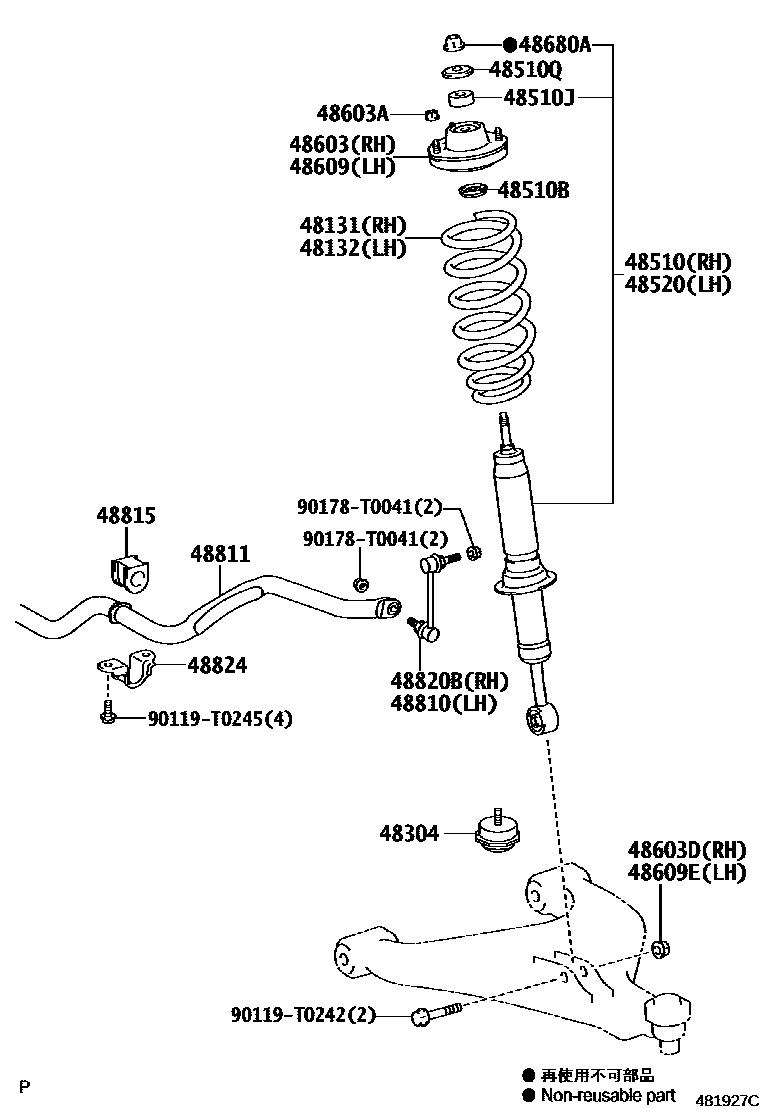

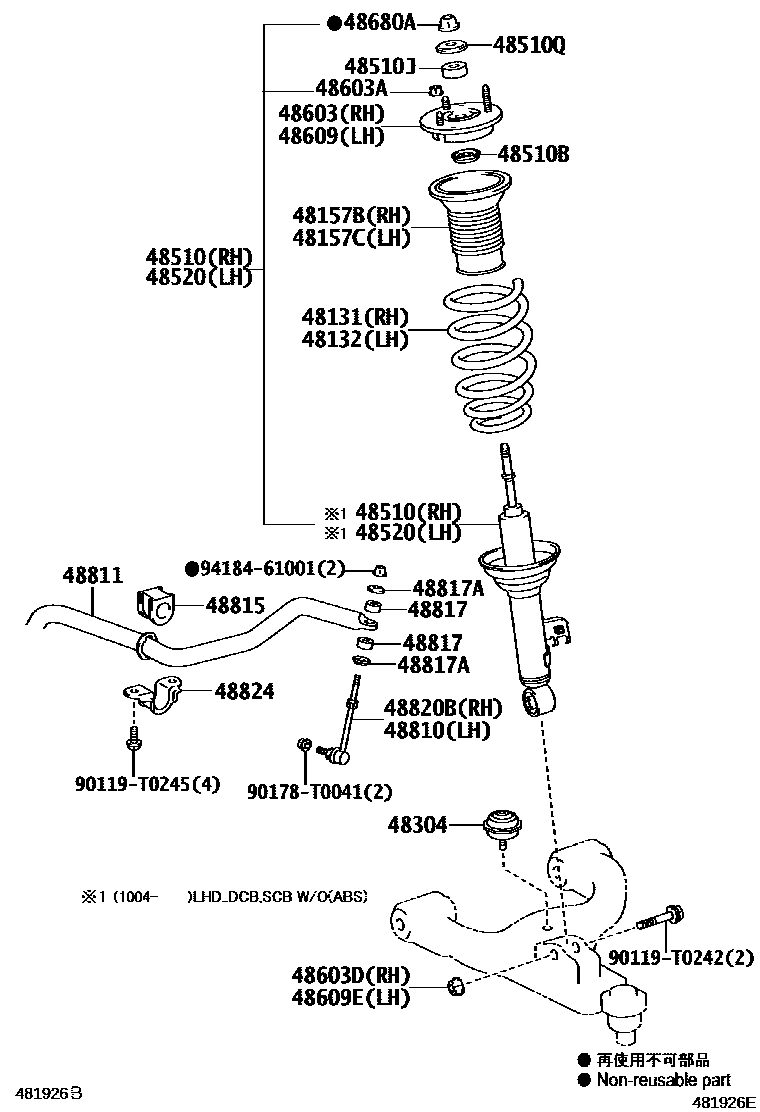

Toyota HILUX Front Spring & Shock Absorber — Figure 4803
Toyota HILUX EPC diagram 4803, Front Spring & Shock Absorber, with 2 images and 23 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 48131 | Right front coil spring | 48131-0K050 · 48131-0K070 · 48131-0K080 · 48131-0K100 · 48131-0K400 · 48131-0K790 · 48131-0K800 · 48131-0K840 · 48131-0K850 |
| 48132 | Left front coil spring | 48131-0K050 · 48131-0K070 · 48131-0K080 · 48131-0K100 · 48131-0K400 · 48131-0K790 · 48131-0K800 · 48131-0K840 · 48131-0K850 |
| 48157B | Front coil spring upper right vibration isolation pad | 48157-0K010 |
| 48157C | Front coil spring upper left vibration isolation pad | 48157-0K010 |
| 48304 | No. 1 front spring buffer block sub-assembly | 48304-0K010 · 48304-0K040 |
| 48510 | Right front shock absorber assembly | 48510-09G90 · 48510-09J70 · 48510-09J80 · 48510-09J90 · 48510-09K10 · 48510-09Q20 · 48510-09Q30 · 48510-09Y90 · 48510-09Z00 · 48510-09Z60 · 48510-09Z70 · 48510-0K530 · 48510-0K540 |
| 48510B | No. 1 bumper plate (for front shock absorber) | 90948-T2003 |
| 48510J | Front shock absorber No. 1 cushion | 90948-T1001 |
| 48510Q | No. 3 cushion block (for front shock absorber) | 90948-T2004 |
| 48520 | Left front shock absorber assembly | 48510-09J90 · 48510-09K10 · 48520-09C70 · 48520-09D10 · 48520-09D30 · 48520-09J70 · 48520-09J80 · 48520-09R70 · 48520-09R80 · 48520-09S40 · 48520-09S50 · 48520-0K530 · 48520-0K540 |
| 48603 | Right front suspension bearing sub-assembly | 48609-0K010 · 48609-0K040 |
| 48603A | Nut (for front suspension mount) | 90178-T0050 |
| 48603D | Nut (for front mount to right front shock absorber) | 90178-T0048 |
| 48609 | Left front suspension bearing sub-assembly | 48609-0K010 · 48609-0K040 |
| 48609E | Nut (for front mount to left front shock absorber) | 90178-T0048 |
| 48680A | Nut (for front mount to front shock absorber) | 94188-01241 |
| 48810 | Left front stabilizer bar link assembly | 48810-0K010 · 48820-0K010 |
| 48811 | front stabilizer bar | 48811-0K011 · 48811-0K021 · 48811-0K050 · 48811-0K080 · 48811-0K090 · 48811-0K100 · 48811-71010 |
| 48815 | Front stabilizer bar bushing No. 1 | 48815-0K010 · 48815-0K050 · 48815-0K070 |
| 48817 | Front stabilizer bar cushion | 90948-T1002 |
| 48817A | Crash pad block No. 1 (for front stabilizer bar) | 90948-T2002 |
| 48820B | Right front stabilizer bar link assembly | 48820-0K010 · 48820-0K030 |
| 48824 | front stabilizer bar bracket | 48824-0K010 |
