Toyota HILUX 前盘式制动器卡钳和防尘罩 — Figure 4705

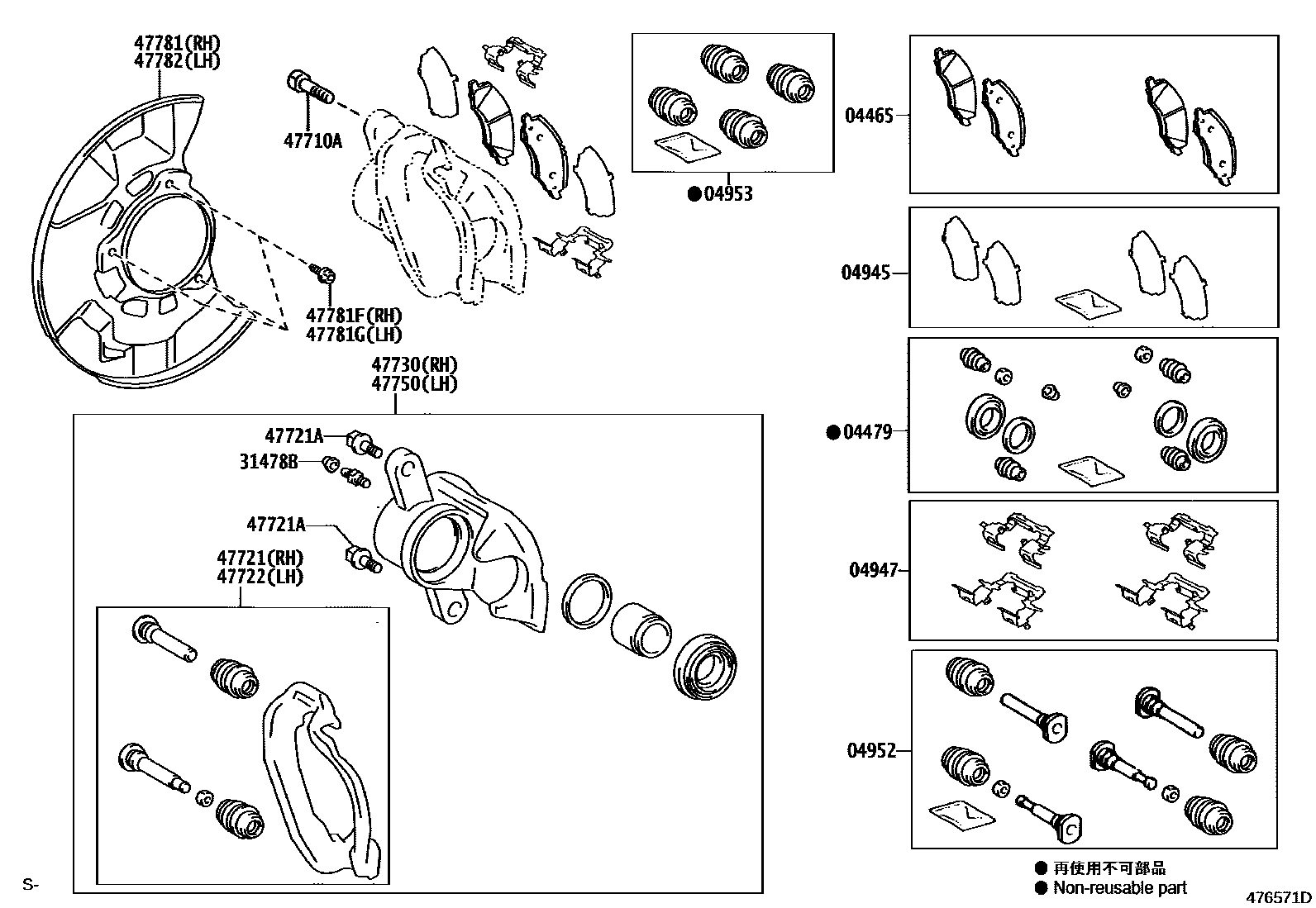

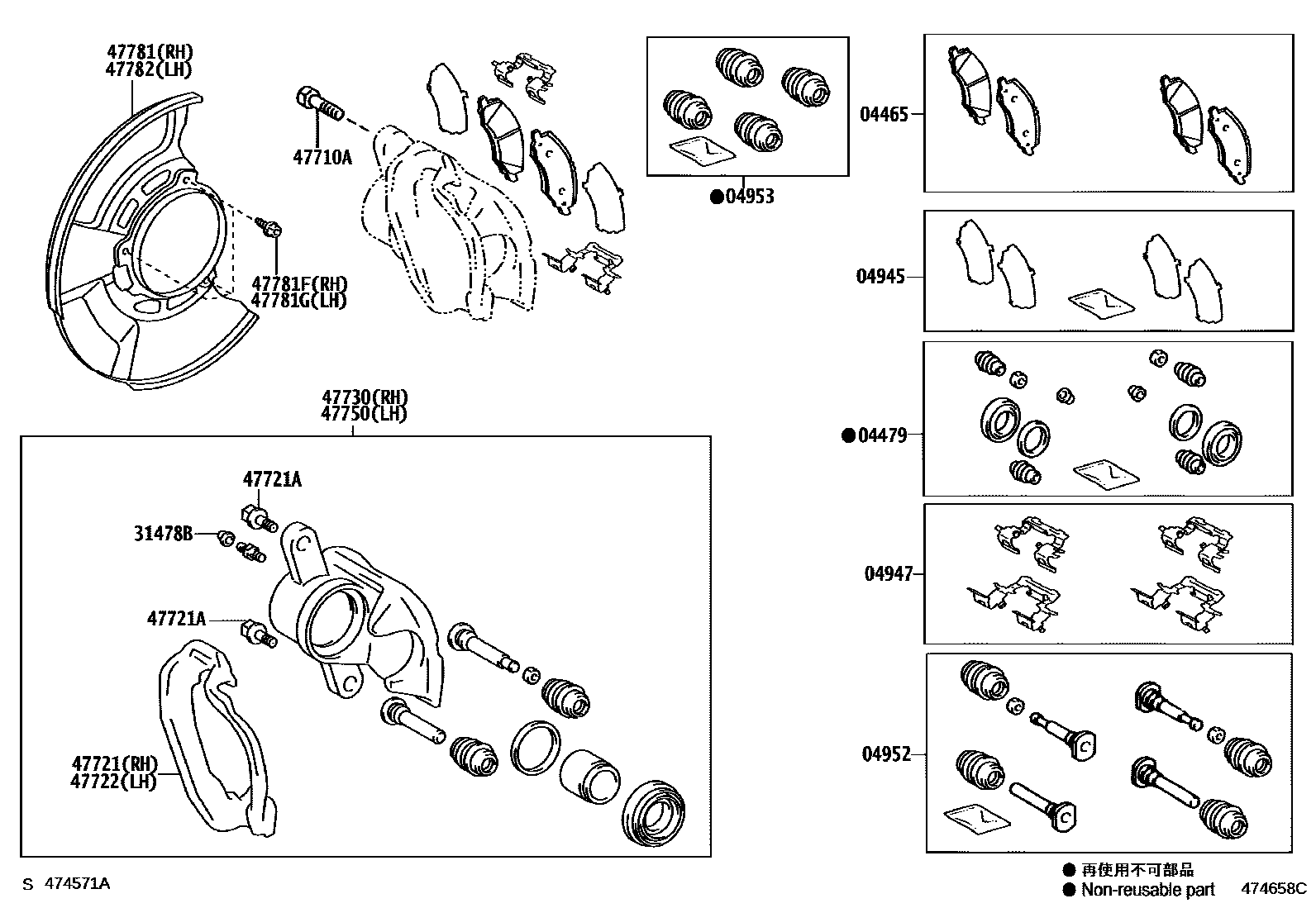

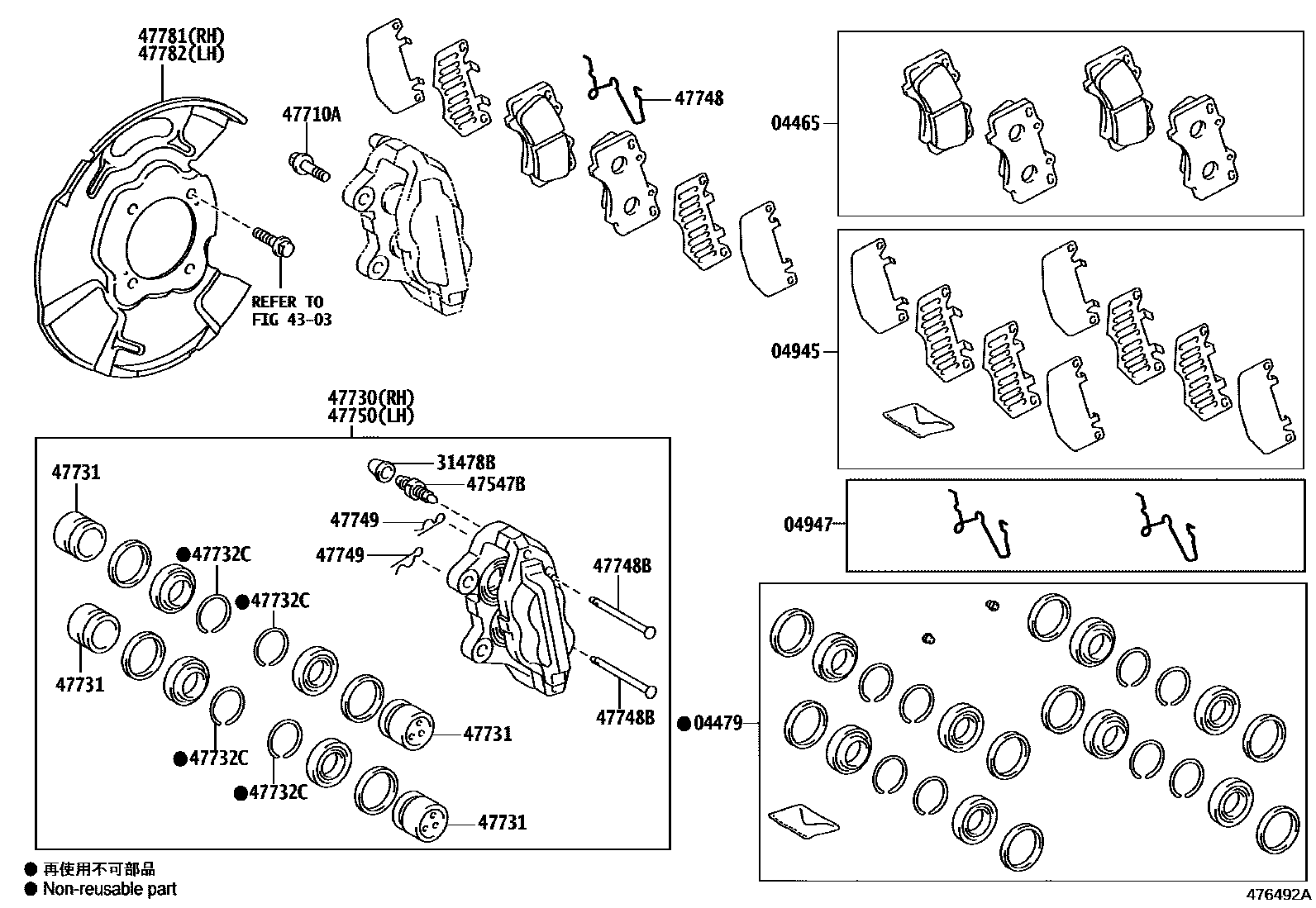

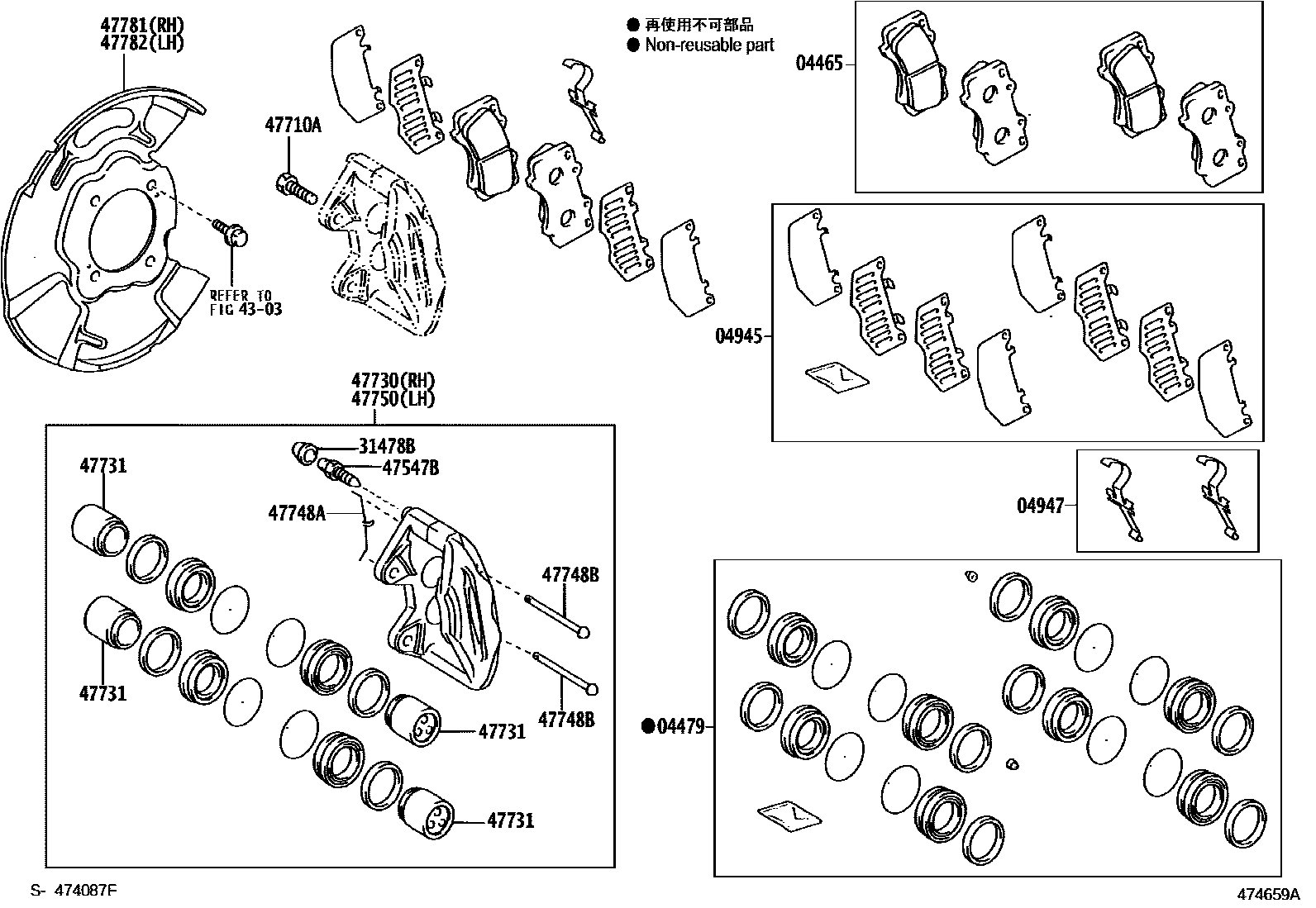

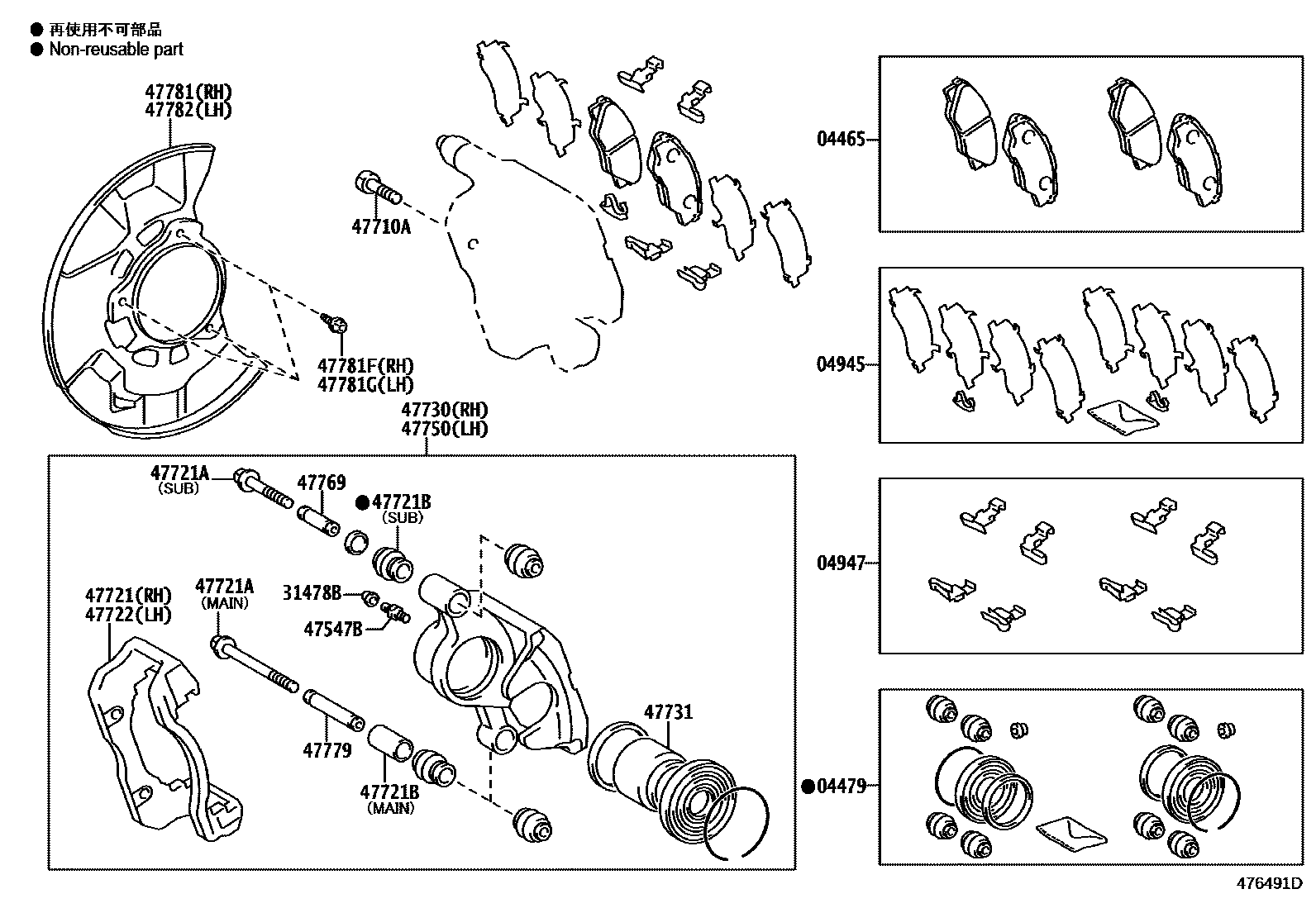

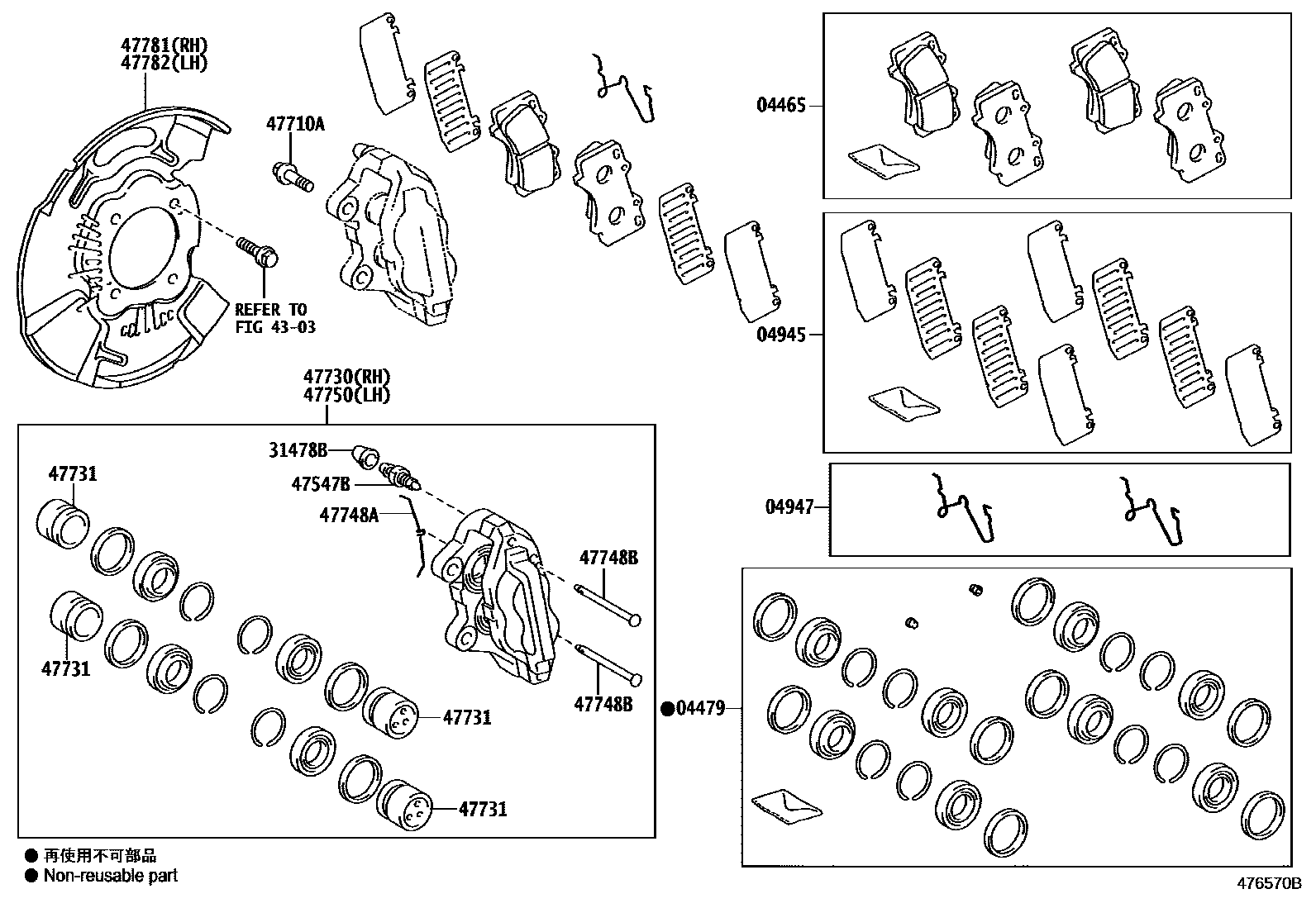

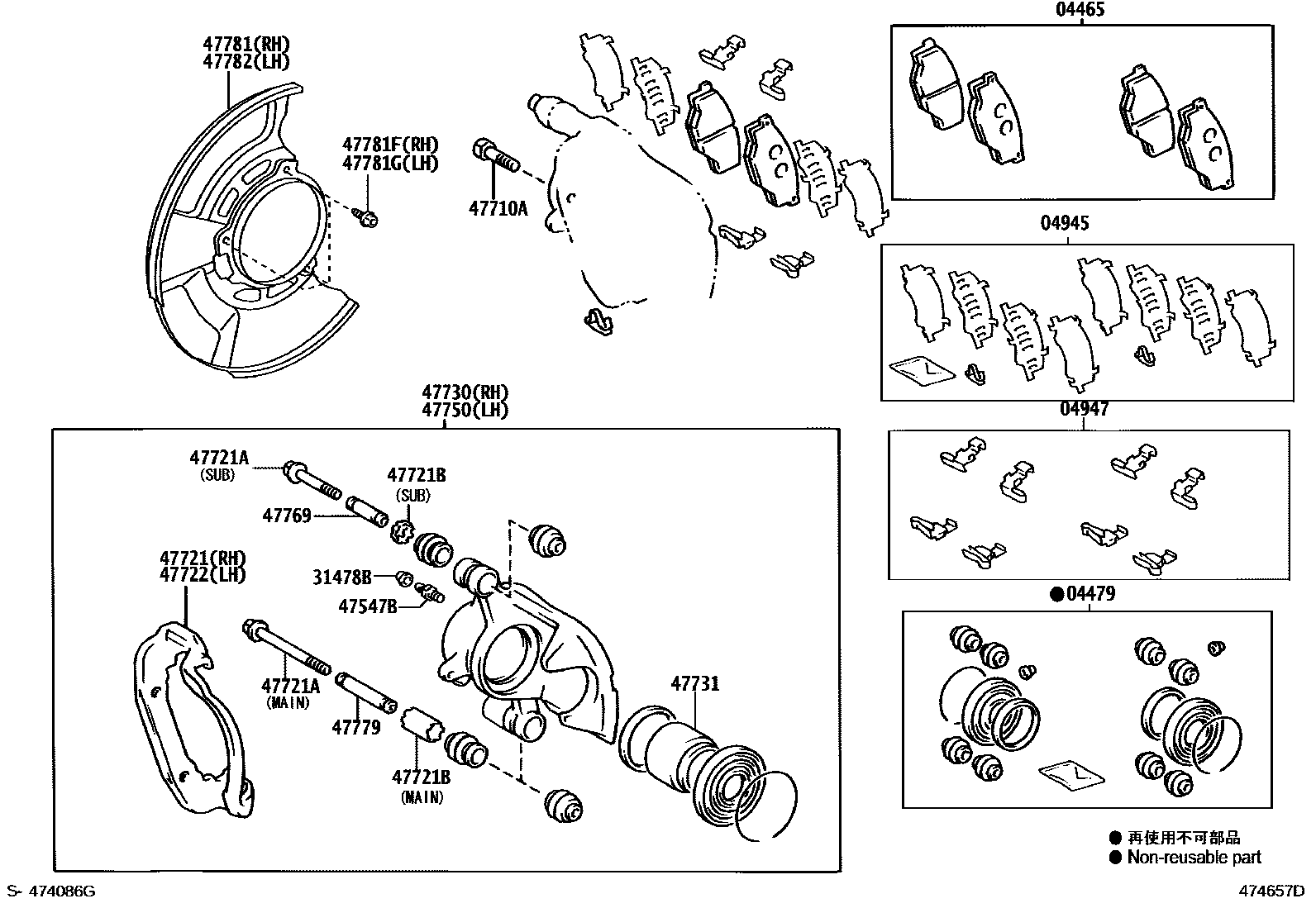

Toyota HILUX EPC diagram 4705, 前盘式制动器卡钳和防尘罩, with 7 images and 27 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04465 | Front disc brake pad assembly | 04465-0K020 · 04465-0K090 · 04465-0K130 · 04465-0K140 · 04465-0K160 · 04465-0K240 · 04465-0K290 · 04465-0K310 · 04465-35290 |
| 04479 | Front disc brake cylinder assembly | 04478-0K060 · 04478-0K110 · 04478-0K130 · 04478-60050 · 04479-04030 |
| 04945 | Front silencer gasket assembly | 04945-0K130 · 04945-0K150 · 04945-0K171 · 04945-0K180 · 04945-0K210 · 04945-0K220 · 04945-0K250 · 04945-35120 |
| 04947 | Front disc brake mounting kit | 04947-0K010 · 04947-0K020 · 04947-0K030 · 04947-0K070 · 04947-35050 · 04947-60080 |
| 04952 | Front disc brake cylinder sliding pin assembly | 04952-02030 |
| 04953 | Front disc brake cylinder sliding pin dust boot assembly | 04953-02030 |
| 31478B | Bleeder plug cap (for front disc brake) | 31478-0K020 · 31478-0K030 · 31478-30010 |
| 47547B | Bleed plug (for front disc brake) | 47547-12010 · 47547-20030 · 47547-27030 · 47547-35020 · 90069-0K072 |
| 47710A | Hexagonal bolt (for front disc brake caliper) | 90105-12175 · 91552-C1230 |
| 47721 | Right front disc brake cylinder retainer | 47721-09500 · 47721-0K010 · 47721-0K020 · 47721-0K110 |
| 47721A | Bolt (for front disc brake cylinder retainer) | 90016-AA201 · 90080-10190 · 90080-11308 |
| 47721B | Collar (for front disc brake cylinder retainer) | 90016-AX202 · 90016-AX203 |
| 47722 | Left front disc brake cylinder retainer | 47722-09200 · 47722-0K010 · 47722-0K020 · 47722-0K110 |
| 47730 | Right front disc brake cylinder assembly | 47730-0K010 · 47730-0K020 · 47730-0K060 · 47730-0K061 · 47730-0K070 · 47730-0K071 · 47730-0K110 · 47730-0K120 · 47730-0K140 · 47730-0K180 · 47730-71010 |
| 47731 | Front disc brake piston | 47731-04050 · 47731-0K060 · 47731-0K070 · 47731-35040 |
| 47732C | Positioning ring No. 2 (for front disc brake) | 90522-50003 |
| 47748 | Anti-vibration spring No. 1 (for front disc brake) | 47748-35010 |
| 47748A | Clamp (for front disc brake vibration isolator) | 90069-0K073 · 90069-49009 · 90468-12015 |
| 47748B | Pin with hole (for front disc brake vibration isolator) | 90069-0K071 · 90240-06014 · 90240-06158 |
| 47749 | pin fixing clip | 47749-35040 |
| 47750 | Left disc brake cylinder assembly | 47750-0K010 · 47750-0K020 · 47750-0K060 · 47750-0K061 · 47750-0K070 · 47750-0K071 · 47750-0K110 · 47750-0K120 · 47750-0K140 · 47750-0K180 · 47750-71010 |
| 47769 | No. 1 brake cylinder sliding sleeve (for front disc brake) | 47769-04010 |
| 47779 | No. 2 brake cylinder sliding sleeve (for front disc brake) | 47779-0K010 |
| 47781 | Right front disc brake dust cover | 47703-0K010 · 47781-0K010 · 47781-0K020 · 47781-0K030 · 47781-0K031 · 47781-0K050 · 47781-0K070 |
| 47781F | Bolt (for dust boot to right knuckle arm) | 90119-T0005 |
| 47781G | Bolt (for dust boot to left knuckle arm) | 90119-T0005 |
| 47782 | Left front disc brake dust cover | 47704-0K010 · 47782-0K010 · 47782-0K020 · 47782-0K030 · 47782-0K031 · 47782-0K050 · 47782-0K070 |
