Toyota HILUX Brake Pedal & Bracket — Figure 4701

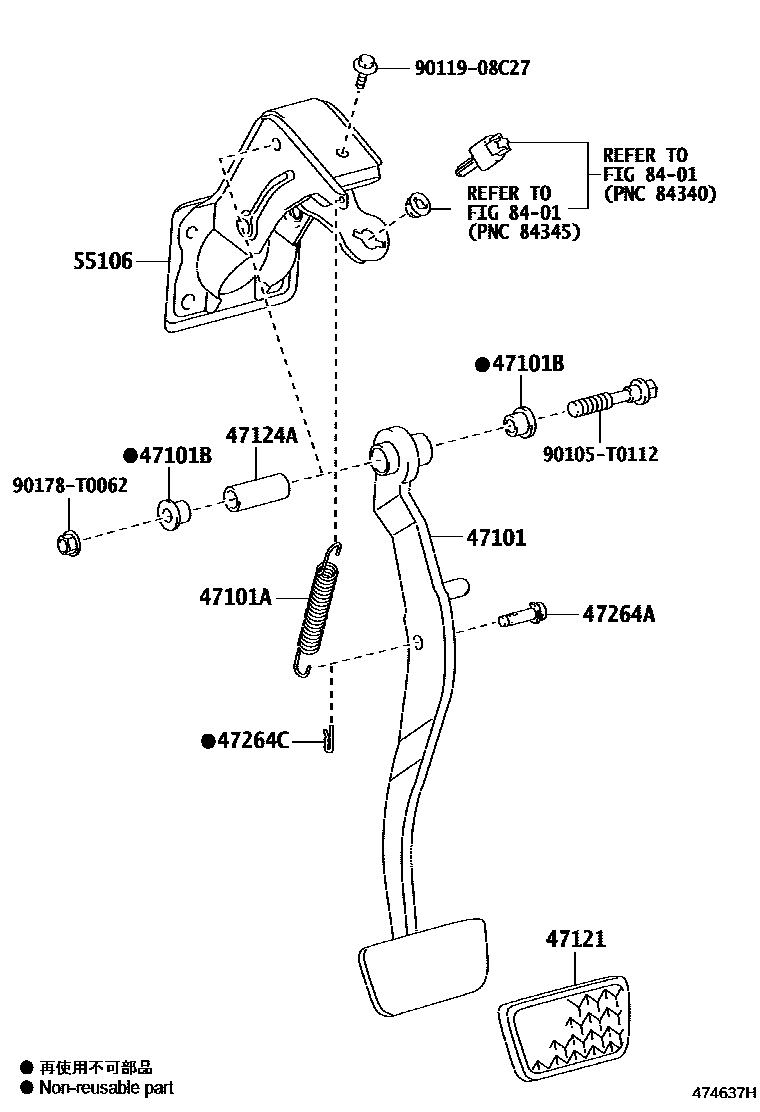

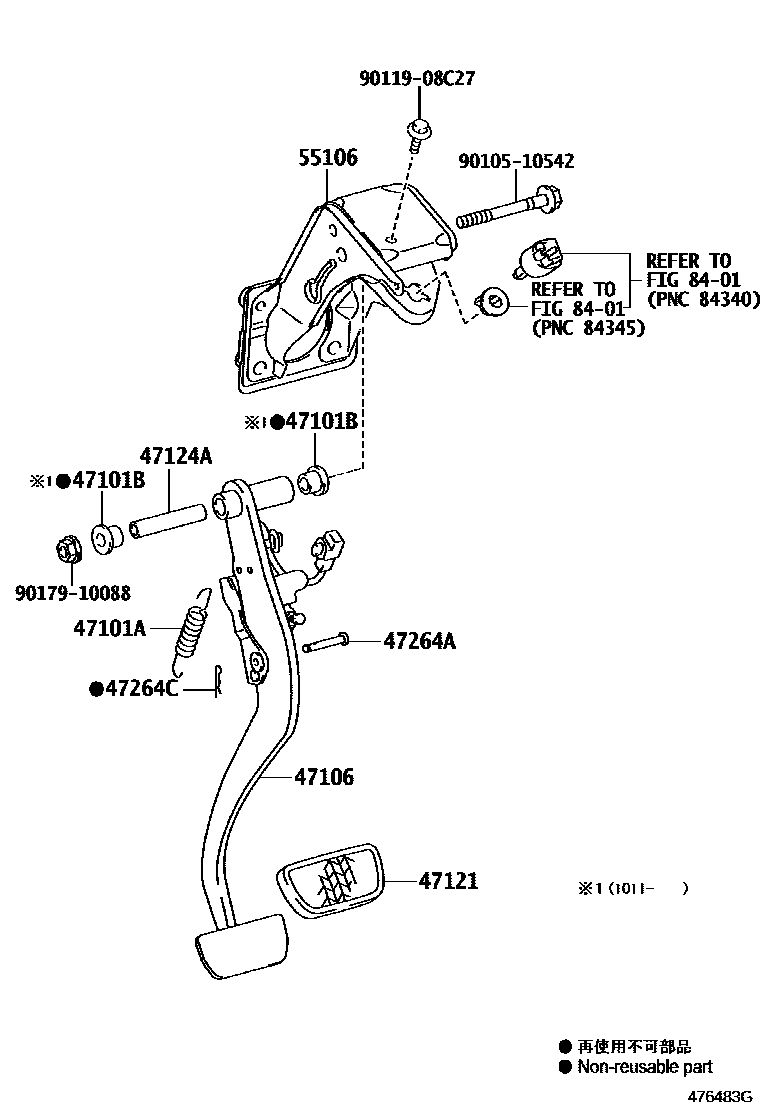

Toyota HILUX EPC diagram 4701, Brake Pedal & Bracket, with 2 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 47101 | Brake pedal sub-assembly | 47101-0K010 · 47101-0K020 · 47101-0K040 · 47101-0K050 · 47101-0K060 · 47101-0K070 · 47101-0K100 · 47101-0K110 |
| 47101A | Spring (for brake pedal return) | 90507-T0002 |
| 47101B | Bushing (for brake pedal) | 90386-13015 |
| 47106 | Brake pedal sub-assembly with switch | 47106-71010 · 47106-71020 · 47106-71030 · 47106-71040 · 47106-71050 · 47106-71060 · 47106-71070 · 47106-71080 |
| 47121 | brake pedal pad | 31321-52010 · 47121-52010 |
| 47124A | Collar (for brake pedal shaft) | 90387-10003 · 90387-10121 · 90440-14008 |
| 47264A | Pin (for push rod) | 47148-35010 · 90240-06025 |
| 47264C | Clip (for push rod clevis pin) | 90468-16012 · 90468-16142 |
| 55106 | Brake pedal bracket sub-assembly | 55106-0K010 · 55106-0K011 · 55106-71010 · 55106-71011 |
