Toyota HILUX 叶片泵和储油罐(动力转向) — Figure 4502

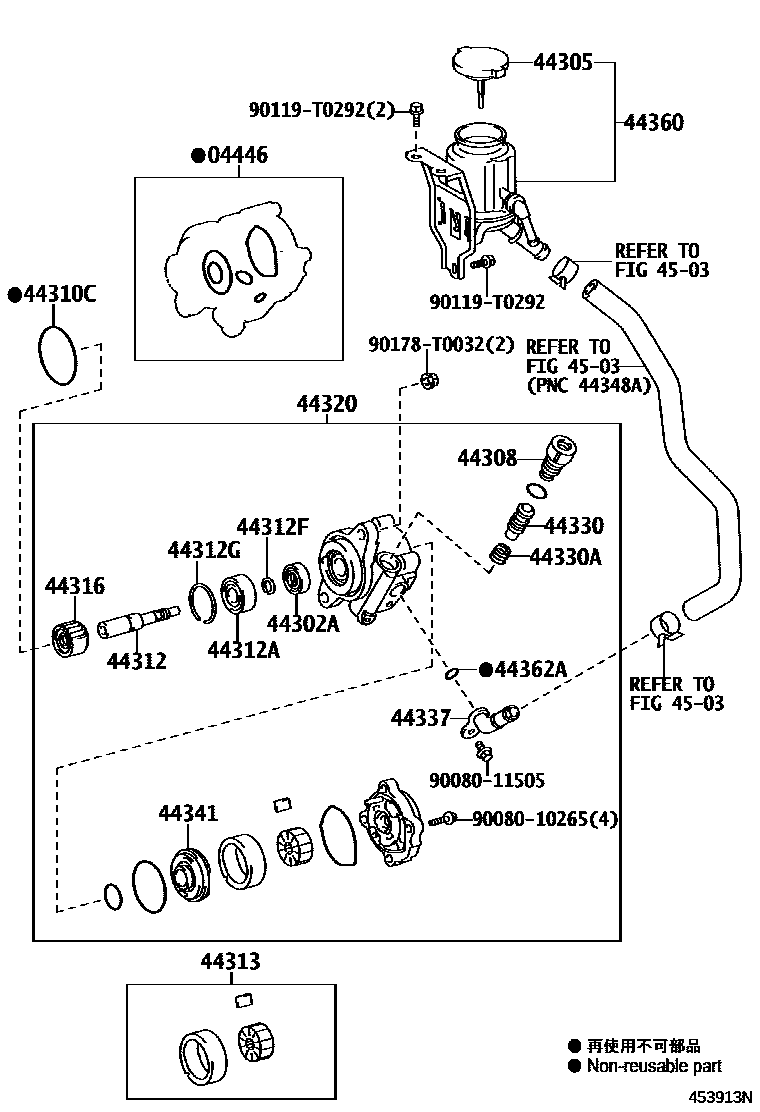

Toyota HILUX EPC diagram 4502, 叶片泵和储油罐(动力转向), with 1 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04446 | Power steering pump gasket assembly | 04446-0B040 · 04446-0K010 |
| 44302A | No. 1 oil seal (for vane pump housing) | 90316-T0001 |
| 44305 | Vane pump oil storage tank cover sub-assembly | 44305-0K020 · 44305-0K040 · 44305-0K041 |
| 44308 | Pressure hole connector sub-assembly | 44308-0K020 · 44308-0K050 |
| 44310C | O-ring (for vane pump) | 90301-T0014 |
| 44312 | vane pump shaft | 44312-0K010 |
| 44312A | Bearings (for vane pump shafts) | 90363-T0005 |
| 44312F | No. 1 snap ring (for vane pump shaft bearing) | 90520-T0001 |
| 44312G | No. 2 snap ring (for vane pump shaft bearing) | 90520-T0002 |
| 44313 | vane pump rotor | 44313-09010 |
| 44316 | vane pump gear | 44316-0K010 |
| 44320 | Vane pump assembly | 44310-0K020 · 44310-0K040 |
| 44330 | Flow control valve assembly | 44330-0K130 · 44330-0K140 · 44330-0K150 · 44330-0K160 · 44330-0K170 · 44330-0K180 |
| 44330A | Compression spring (for flow control valve) | 90501-T0001 |
| 44337 | Power steering suction port connector | 44337-06060 |
| 44341 | Vane pump front cover | 44341-06010 |
| 44360 | Vane pump oil storage tank assembly | 44360-0K020 |
| 44362A | O-ring (for vane pump oil storage tank) | 90080-30093 |
