Toyota HILUX Front Drive Shaft — Figure 4302

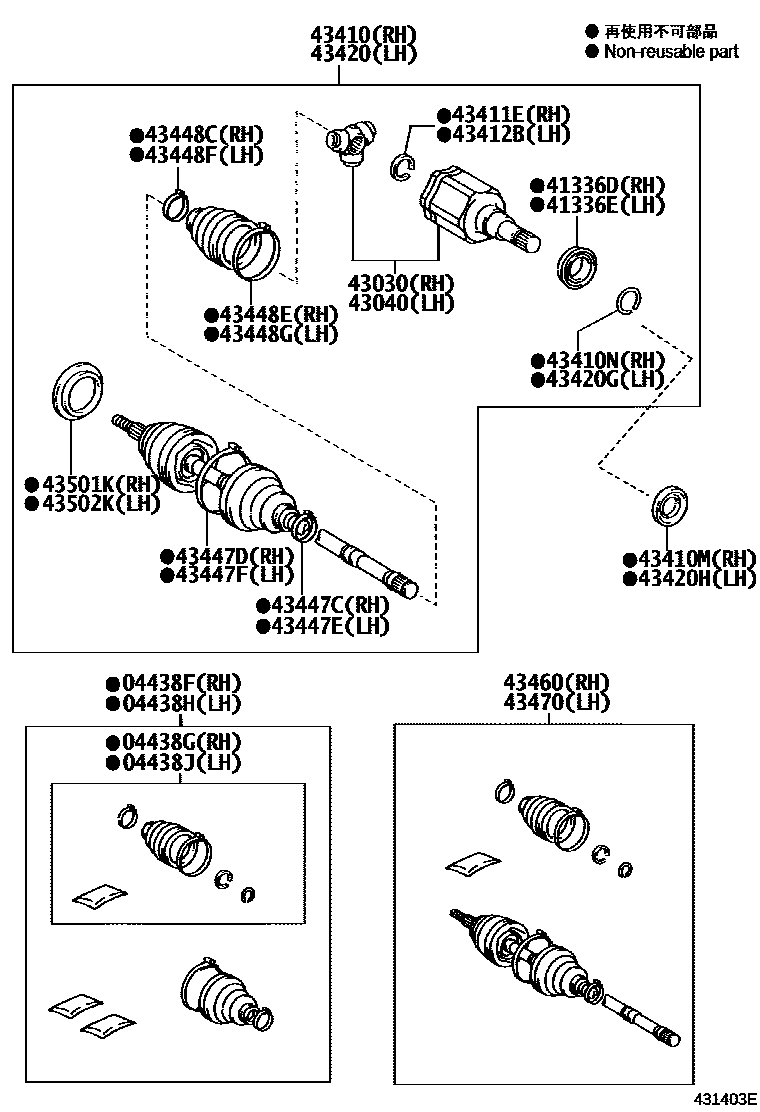

Toyota HILUX EPC diagram 4302, Front Drive Shaft, with 1 images and 28 PNC and OE references.

Toyota HILUX Front Drive Shaft EPC diagram — 431403E
Front Drive Shaft — 431403E (200507 – 999999)

PNC and OE references

PNCPart nameOE numbers
04438FRight front driveshaft inboard and outboard dust boot assembly04427-0K020 · 04427-0K030 · 04427-0K040
04438GRight front drive shaft inner universal joint dust boot assembly04437-0K020 · 04437-0K030 · 04437-0K040
04438HLeft front driveshaft inboard and outboard dust boot assembly04427-0K020 · 04427-0K030 · 04427-0K040
04438JLeft front drive shaft inner universal joint dust boot assembly04437-0K020 · 04437-0K030 · 04437-0K040
41336DRight front driveshaft dust cover41336-0K010 · 41336-0K020 · 41336-0K060 · 41336-0K070
41336ELeft front driveshaft dust cover41336-0K010 · 41336-0K020 · 41336-0K060 · 41336-0K070
43030Right front drive shaft inner universal joint assembly43040-0K010 · 43040-0K020 · 43040-0K040
43040Left front drive shaft inner universal joint assembly43040-0K010 · 43040-0K020 · 43040-0K040
43410Right front driveshaft assembly43430-0K020 · 43430-0K021 · 43430-0K022 · 43430-0K030 · 43430-0K050
43410MJOINT D'HUILE, ARBRE DE TRANSMISSION AVANT, MD90311-47013 · 90311-47021 · 90311-T0016 · 90311-T0035
43410NHole snap ring (for right front driveshaft)43425-0K040 · 43425-0K060 · 43425-0K110
43411EInner shaft snap ring (for right front axle inner drive shaft)43425-0K010 · 43425-0K020 · 43425-0K100
43412BInner shaft snap ring (for left front axle inner drive shaft)43425-0K010 · 43425-0K020 · 43425-0K100
43420Left front drive shaft assembly43430-0K020 · 43430-0K021 · 43430-0K022 · 43430-0K030 · 43430-0K050
43420GHole snap ring (for left front driveshaft)43425-0K040 · 43425-0K060 · 43425-0K110
43420HJOINT D'HUILE, ARBRE DE TRANSMISSION AVANT, MG90311-47012 · 90311-47020 · 90311-T0015 · 90311-T0037
43447CClamp (for the outer universal joint dust cover of the right front axle)42345-0K070 · 42345-0K080 · 42345-0K150
43447DNo. 2 clip (for the universal joint dust cover on the outside of the right front axle)42345-0K100 · 42345-0K110 · 42345-0K160
43447EClamp (for left front axle outer universal joint dust cover)42345-0K070 · 42345-0K080 · 42345-0K150
43447FNo. 2 clip (for left front axle outer universal joint dust cover)42345-0K100 · 42345-0K110 · 42345-0K160
43448CClamp (for the universal joint dust cover inside the right front axle)42345-0K040 · 42345-0K050 · 42345-0K140
43448ENo. 2 clip (for the universal joint dust cover inside the right front axle)42345-0K010 · 42345-0K020 · 42345-0K130
43448FClamp (for left front axle inner universal joint dust cover)42345-0K040 · 42345-0K050 · 42345-0K140
43448GClamp No. 2 (for the universal joint dust cover inside the left front axle)42345-0K010 · 42345-0K020 · 42345-0K130
43460Right front outer drive universal joint shaft assembly43460-09V10 · 43460-09V20 · 43460-80033 · 43460-80035
43470Left front outer drive universal joint shaft assembly43460-09V10 · 43460-09V20 · 43460-80033 · 43460-80035
43501KDust seal (for right front axle hub)90304-T0001
43502KDust seal (for left front axle hub)90304-T0001
