Toyota HILUX 车轮和车轮盖 — Figure 4103
Toyota HILUX EPC diagram 4103, 车轮和车轮盖, with 5 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

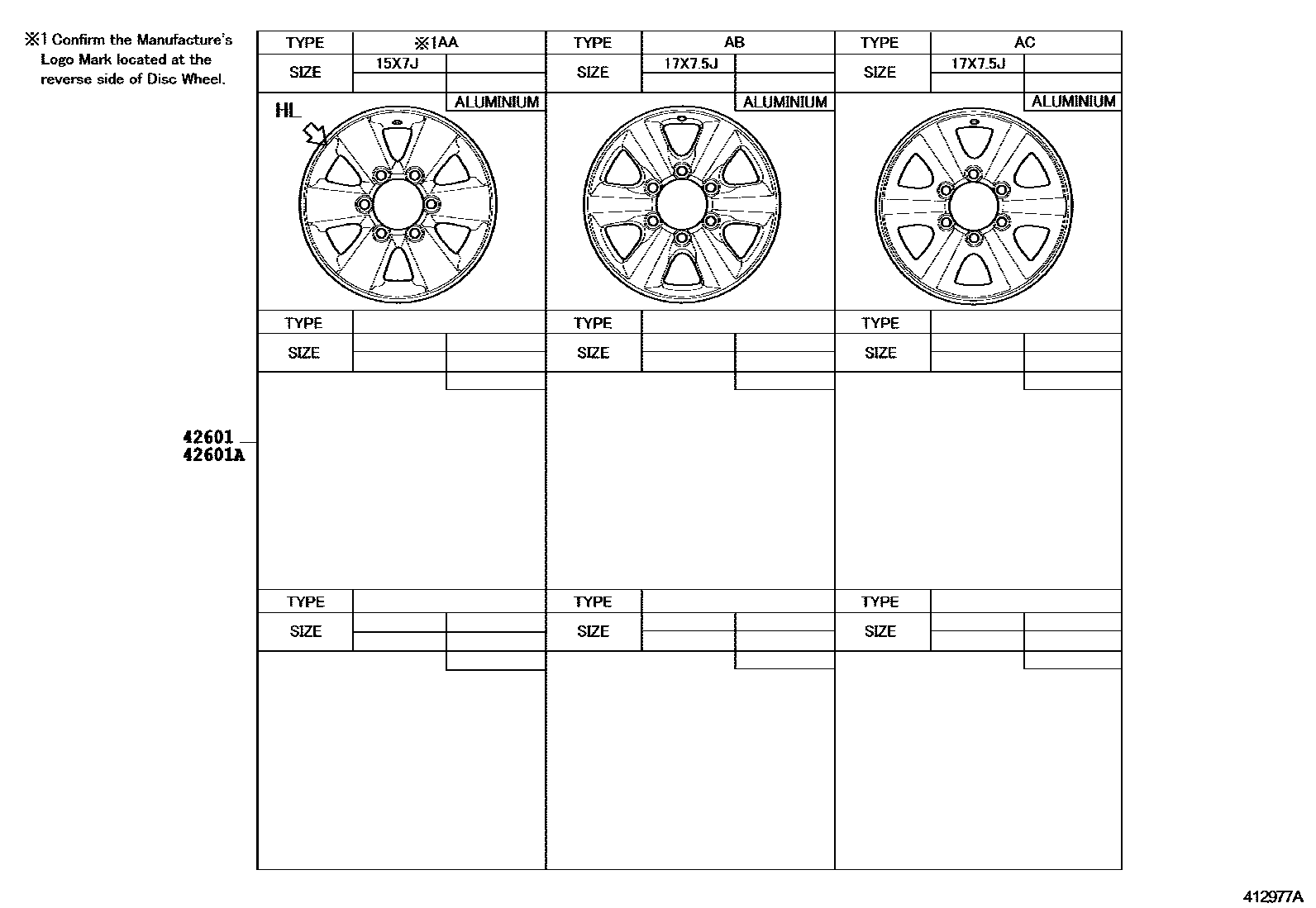

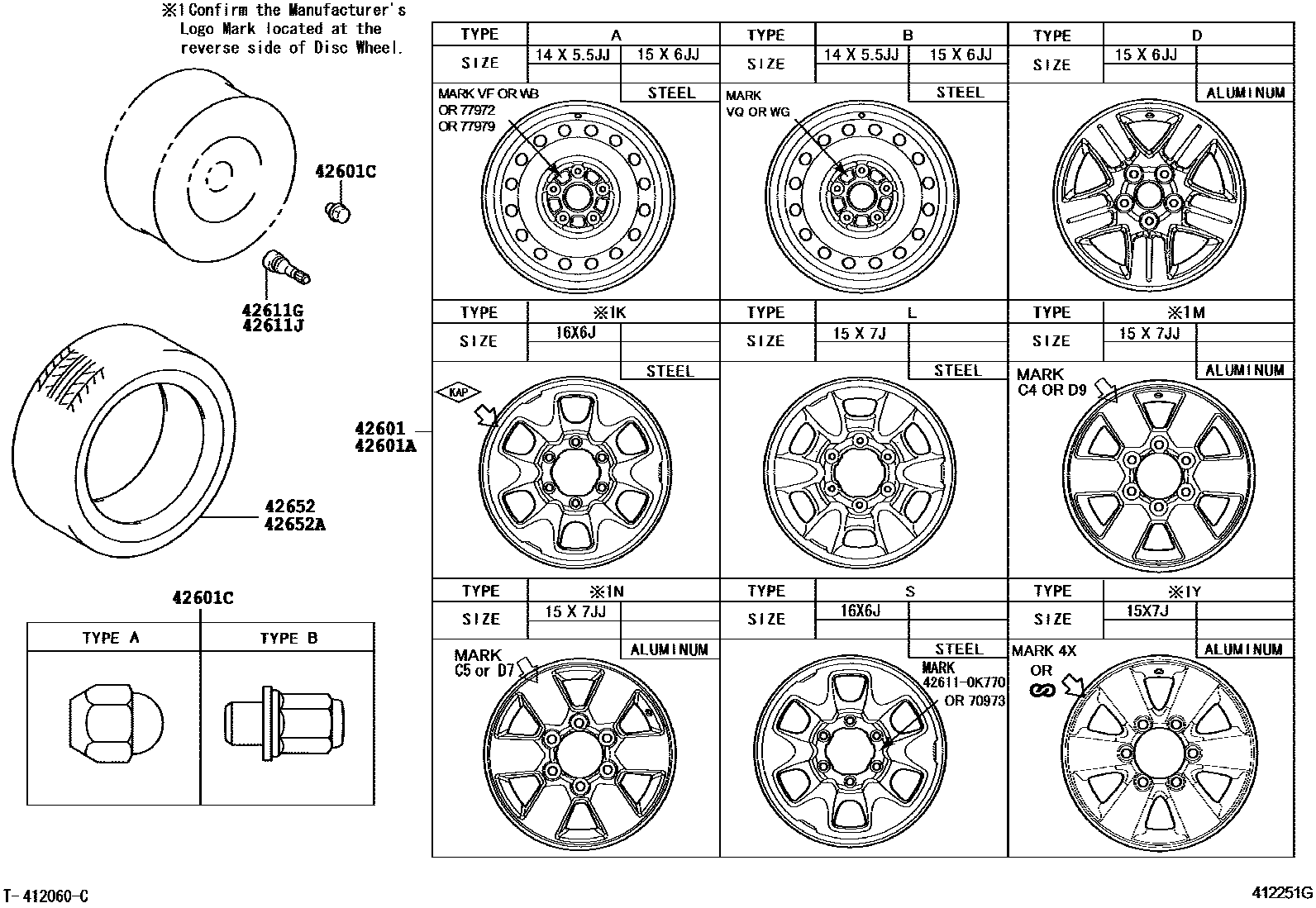

| 42601 | spoke wheel | 42611-0K220 · 42611-0K230 · 42611-0K240 · 42611-0K380 · 42611-0K400 · 42611-0K720 · 42611-0K840 · 42611-0K880 · 42611-0KA80 · 42611-0KB00 · 42611-0KB81 · 42611-0KB91 · 42611-0KC01 · 42611-0KC10 · 42611-0KC30 · 42611-0KD40 · 42611-0KD50 · 42611-0KD60 |
| 42601A | Spoke wheel (for spare tire) | 42611-0K220 · 42611-0K240 · 42611-0K720 · 42611-0K840 · 42611-0KA80 · 42611-0KB00 · 42611-0KB81 · 42611-0KB91 · 42611-0KC01 · 42611-0KC10 · 42611-0KC30 |
| 42601C | Hub nut (for axle) | 90942-01082 · 90942-01109 |

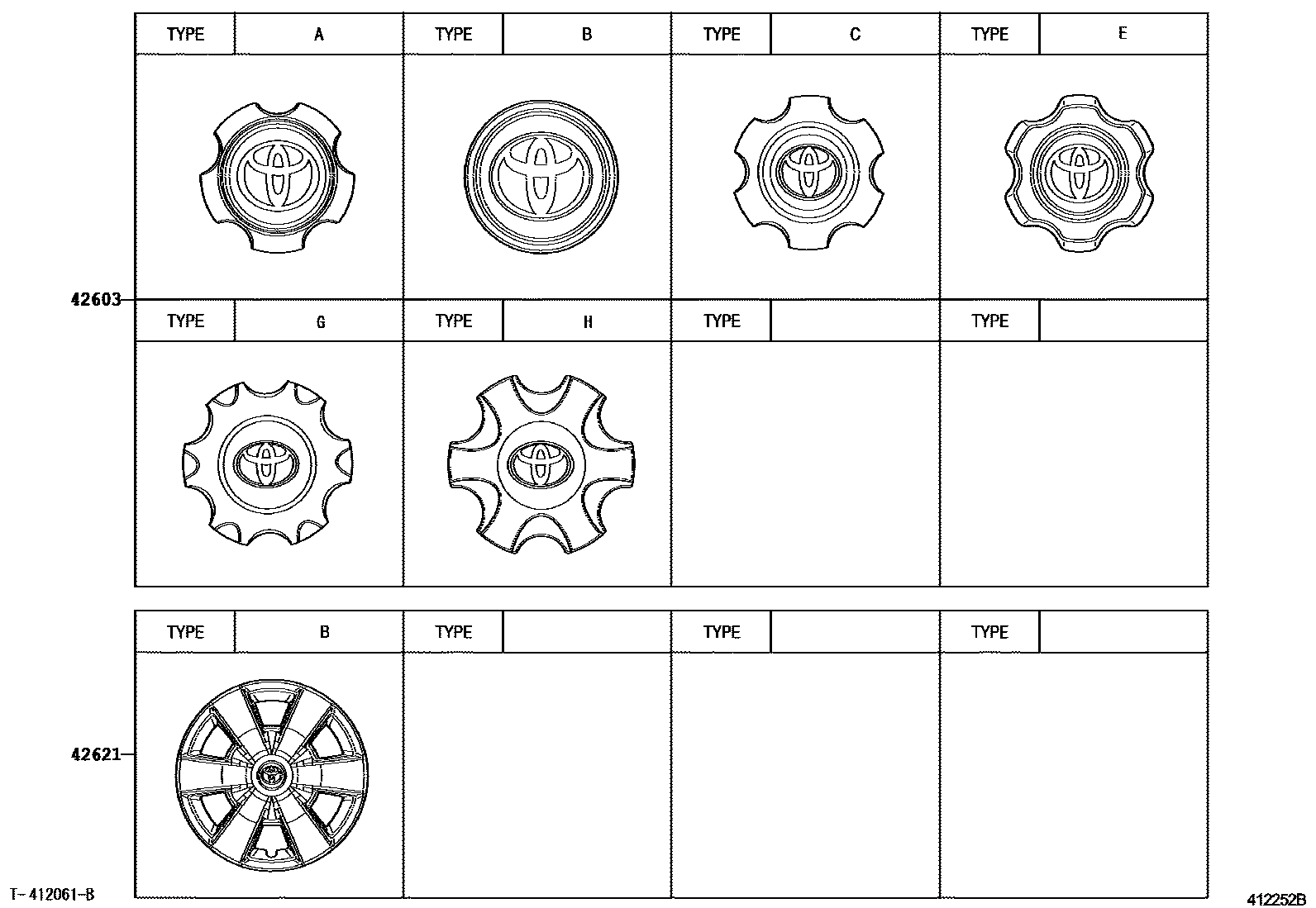

| 42603 | Wheel hub decorative parts sub-assembly | 42603-0K010 · 42603-0K030 · 42603-0K050 · 42603-0K060 · 42603-0K110 · 42603-0K140 · 42603-0K150 · 4260B-0K010 · 4260B-0K020 · 4260B-0K021 · 4260B-0K030 · 4260B-0K040 |
| 42611G | Valve (for tubeless tires) | 90080-94031 · 90080-94180 · 90942-05009 |
| 42611J | Valve (for tubeless spare tire) | 90080-94031 · 90080-94180 · 90942-05009 |
| 42621 | wheel cover | 42602-0K020 |
| 42652 | tires | 42652-0K010 · 42652-0K040 · 42652-0K050 · 42652-0K330 · 42652-0K340 · 42652-0K360 · 42652-0K370 |
| 42652A | Tire (for Spare Wheel) | 42652-0K010 · 42652-0K040 · 42652-0K050 · 42652-0K330 · 42652-0K340 · 42652-0K360 · 42652-0K370 |
