Toyota HILUX Propeller Shaft & Universal Joint — Figure 3701

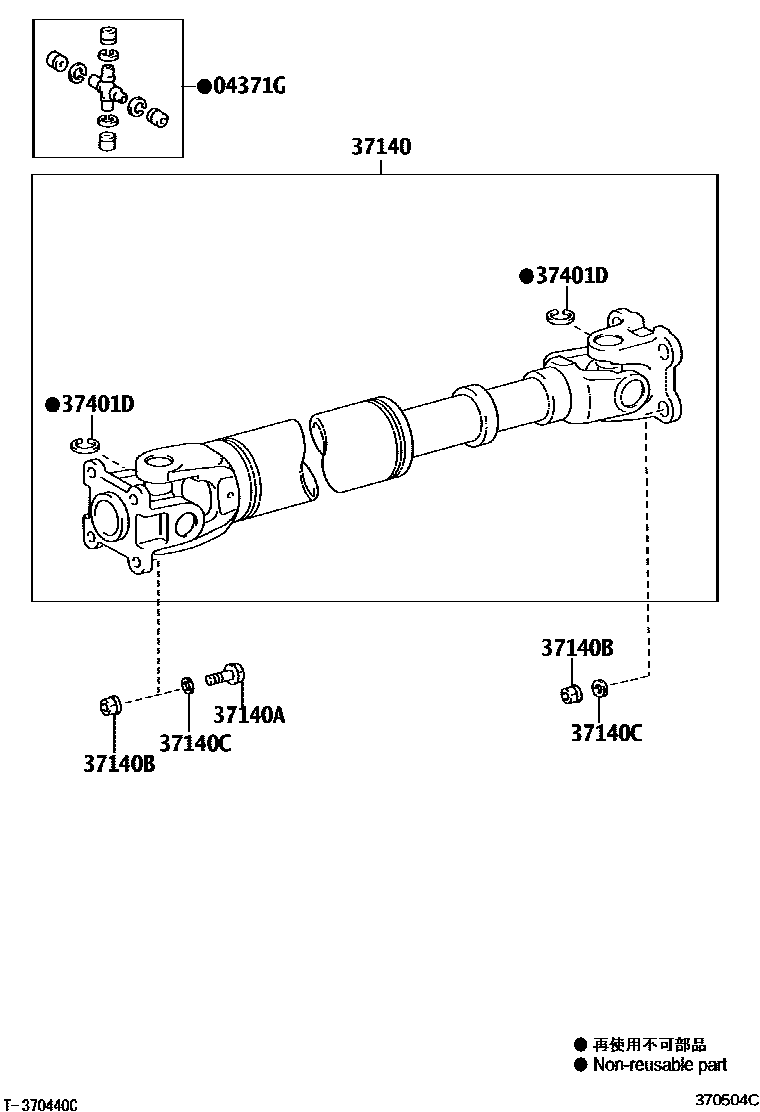

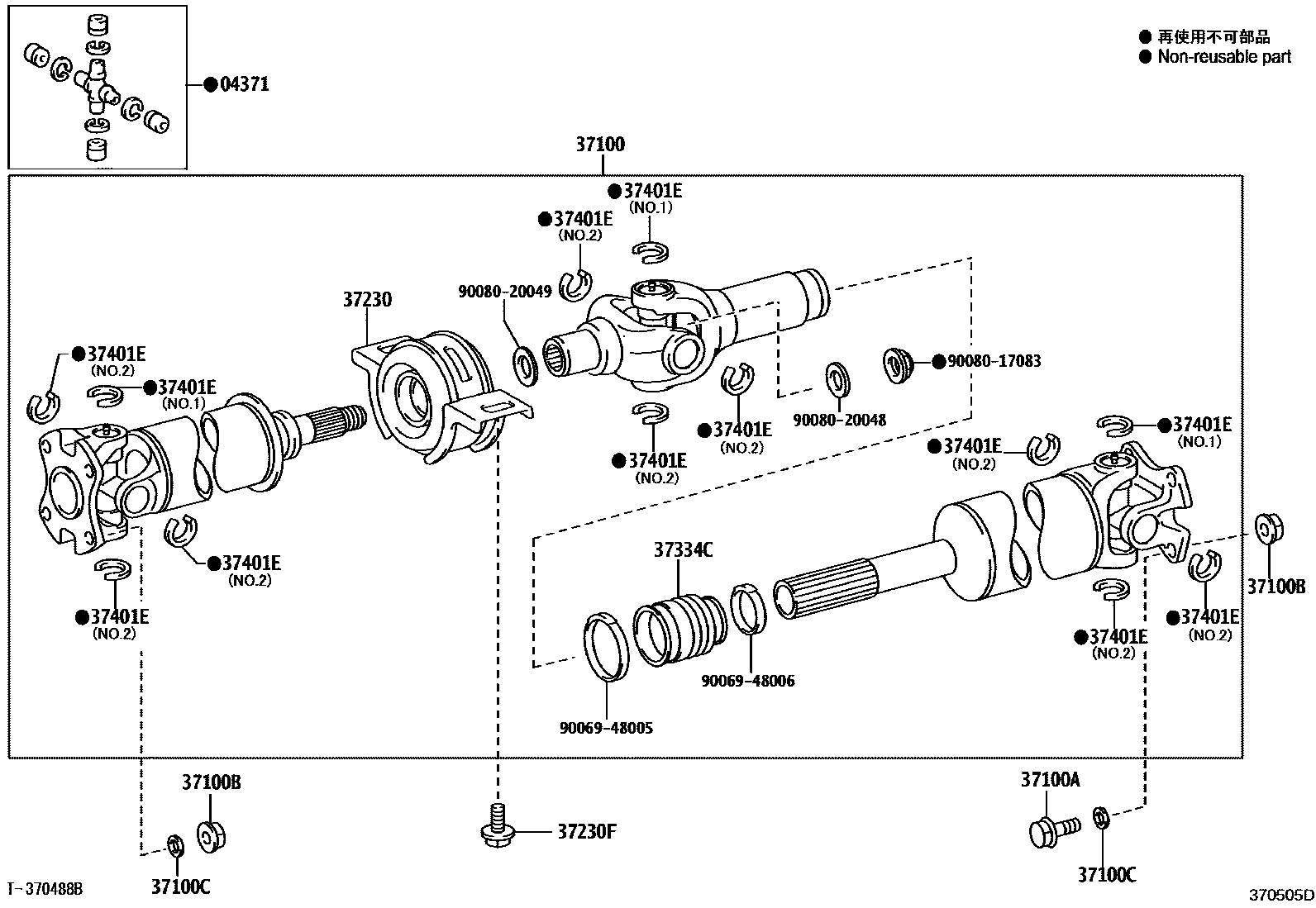

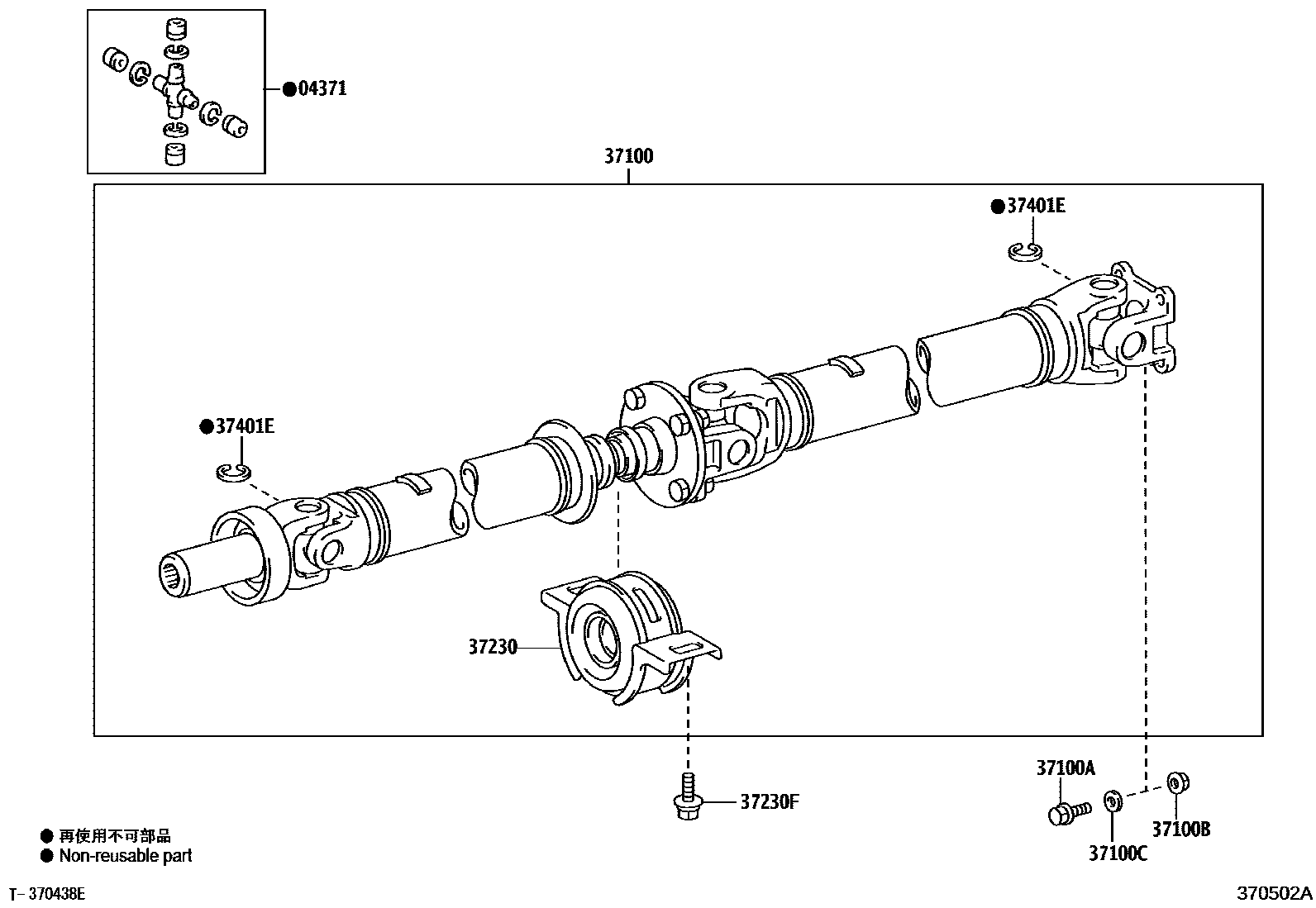

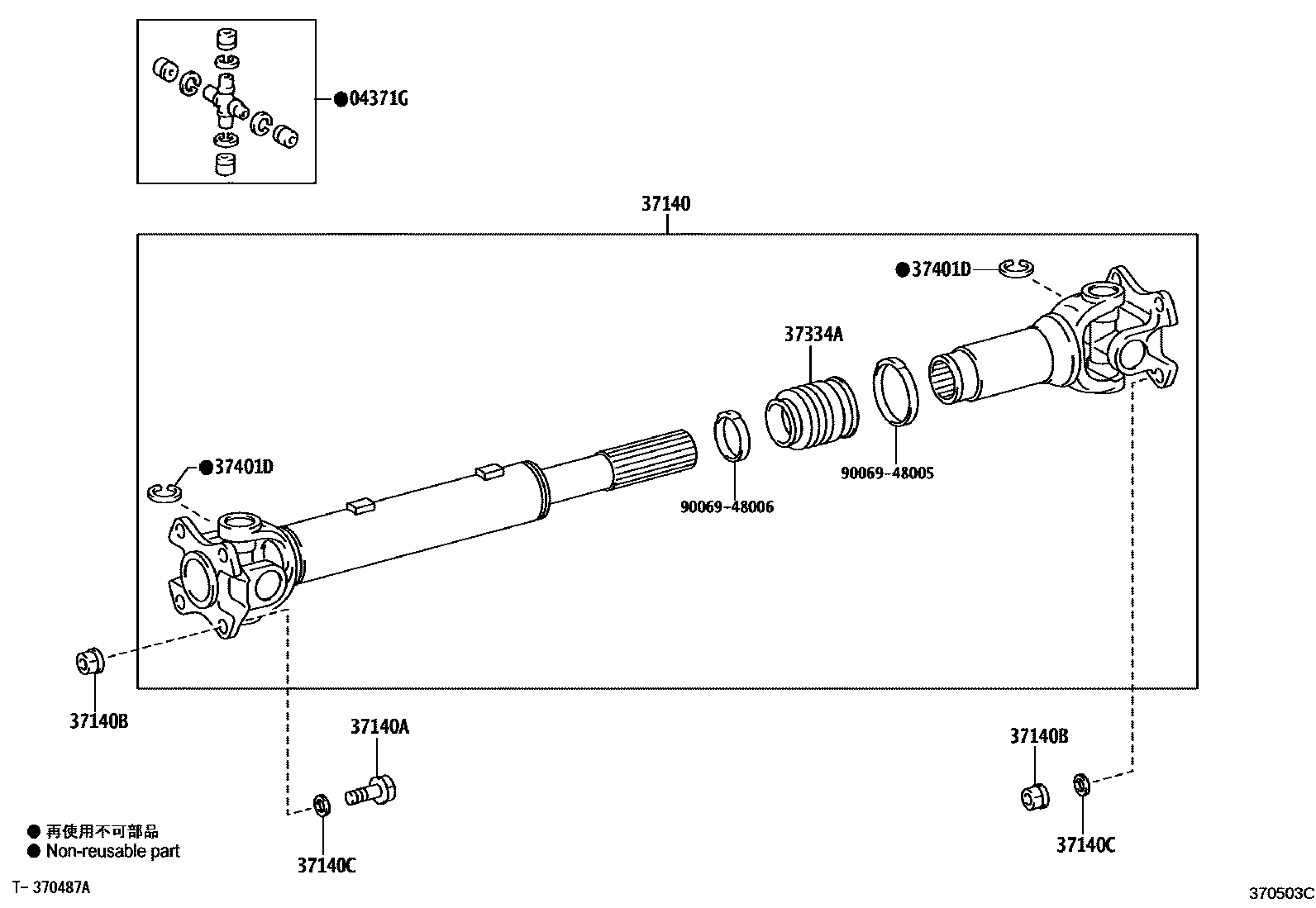

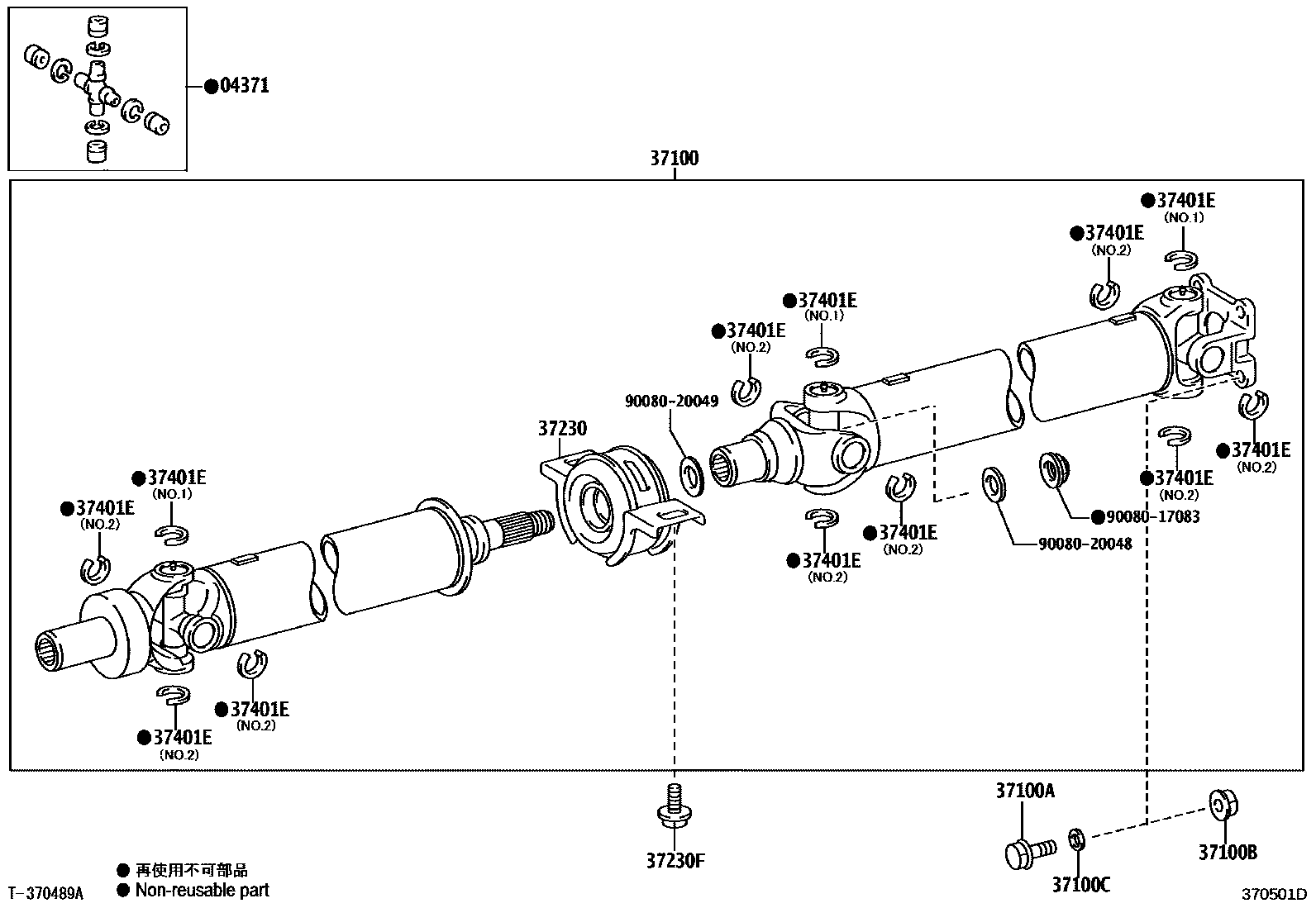

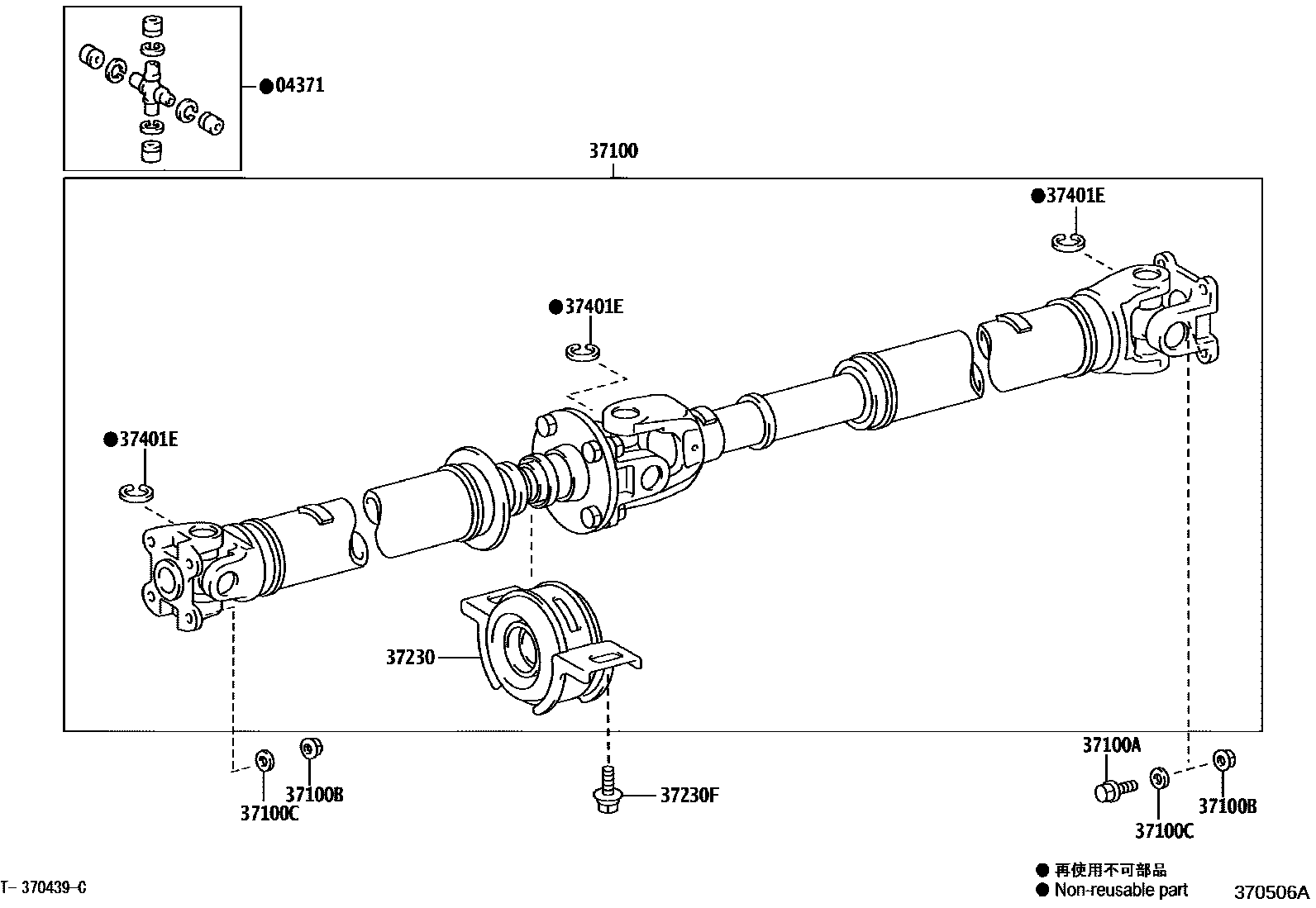

Toyota HILUX EPC diagram 3701, Propeller Shaft & Universal Joint, with 6 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04371 | Universal joint cross shaft assembly (for drive shaft) | 04371-04030 · 04371-0K050 · 04371-0K060 · 04371-0K080 · 04371-0K081 · 04371-0K082 |
| 04371G | Front drive shaft universal joint cross shaft assembly | 04371-0K060 · 04375-0K010 · 04375-0K011 · 04375-0K012 |
| 37100 | Drive shaft assembly with central bearing | 37100-0K030 · 37100-0K040 · 37100-0K180 · 37100-0K181 · 37100-0K200 · 37100-0K260 · 37100-0K261 · 37100-0K262 · 37100-0K263 · 37100-0K330 · 37100-0K350 · 37100-0K660 · 37100-0K670 · 37100-0K671 · 37100-0K672 · 37100-0K673 · 37100-0K674 · 37100-0K700 · 37100-0K710 · 37100-0K711 · 37100-0K712 · 37100-0K713 |
| 37100A | No. 1 bolt (used to secure the drive shaft and differential) | 90105-T0084 |
| 37100B | No. 1 nut (used to secure the drive shaft and differential) | 90178-T0024 |
| 37100C | No. 1 washer (used to secure drive shaft and differential) | 90201-T0003 |
| 37140 | Front drive shaft assembly | 37140-0K010 · 37140-0K030 · 37140-0K040 · 37140-0K060 · 37140-0K061 · 37140-0K062 · 37140-0K130 · 37140-0K131 · 37140-0K200 · 37140-0K201 |
| 37140A | Bolt (for front driveshaft) | 90105-T0084 |
| 37140B | Nut (for front driveshaft) | 90178-T0024 |
| 37140C | Washer (for front driveshaft) | 90201-T0003 |
| 37230 | No. 1 intermediate support bearing assembly | 37230-0K011 · 37230-0K021 · 37230-0K030 · 37230-0K040 · 37230-0K050 |
| 37230F | No. 1 bolt (for intermediate support bearing) | 90119-T0148 |
| 37334A | Sliding shaft dust cover | 37334-0C010 |
| 37334C | Sliding shaft dust boot (for rear) | 37334-0K010 |
| 37401D | Snap ring (for front drive shaft universal joint cross shaft bearing) | 90080-52038 · 90080-52039 · 90080-52040 · 90080-52041 · 90080-52042 · 90080-52043 · 90080-52044 · 90080-52174 · 90080-52175 · 90080-52176 · 90080-52177 · 90080-52178 · 90080-52179 · 90080-52180 · 90520-T0007 · 90520-T0008 · 90520-T0009 · 90520-T0010 · 90520-T0011 · 90520-T0012 · 90520-T0013 · 90520-T0014 · 90520-T0015 · 90520-T0016 · 90520-T0017 · 90520-T0018 · 90520-T0019 · 90520-T0020 · 90520-T0021 · 90520-T0022 · 90520-T0023 · 90520-T0024 · 90520-T0025 · 90520-T0026 |
| 37401E | Snap ring (for rear drive shaft universal joint cross shaft bearing) | 90080-52038 · 90080-52039 · 90080-52040 · 90080-52041 · 90080-52042 · 90080-52043 · 90080-52044 · 90080-52156 · 90080-52174 · 90080-52175 · 90080-52176 · 90080-52177 · 90080-52178 · 90080-52179 · 90080-52180 · 90520-T0007 · 90520-T0008 · 90520-T0009 · 90520-T0010 · 90520-T0011 · 90520-T0012 · 90520-T0013 · 90520-T0014 · 90520-T0015 · 90520-T0016 · 90520-T0017 · 90520-T0018 · 90520-T0019 · 90520-T0020 · 90520-T0021 · 90520-T0022 · 90520-T0023 · 90520-T0024 · 90520-T0025 · 90520-T0026 |
