Toyota HILUX 变速器油冷却器和配管(ATM) — Figure 3514

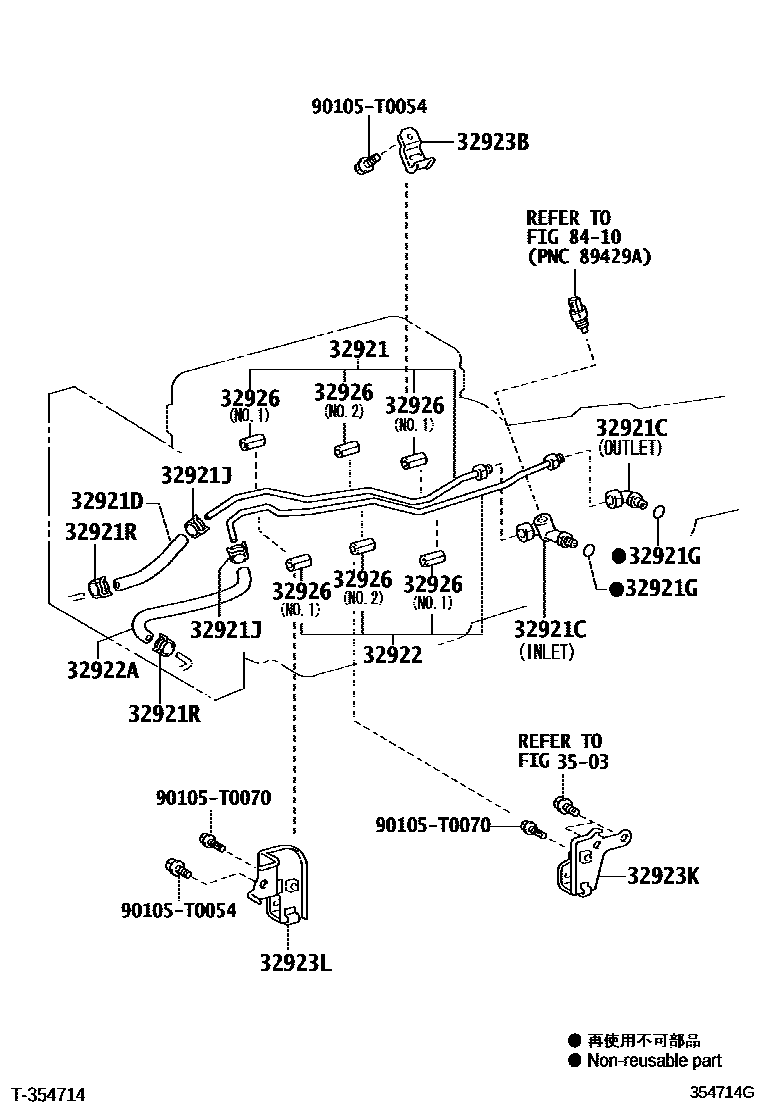

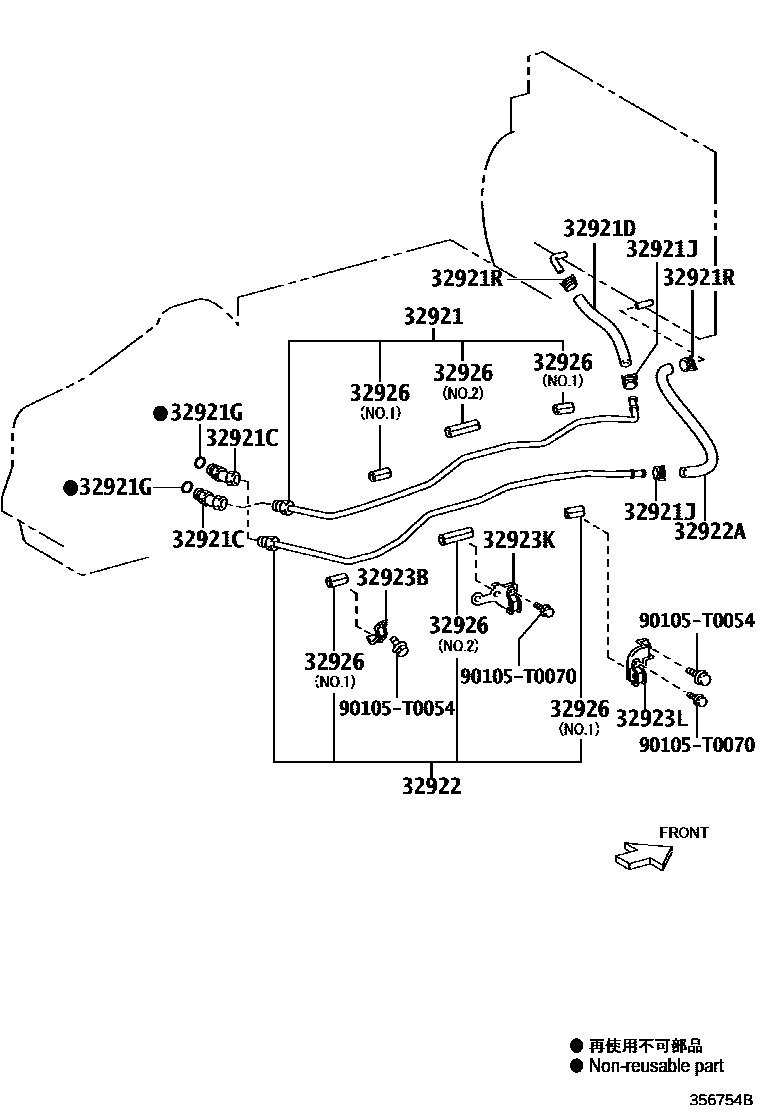

Toyota HILUX EPC diagram 3514, 变速器油冷却器和配管(ATM), with 2 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 32921 | No. 1 transmission oil cooler oil inlet pipe | 32921-0K030 · 32921-0K070 · 32921-0K071 |
| 32921C | Fitting (for transmission oil cooler tube) | 90407-14024 · 90407-16009 |
| 32921D | Hose (for transmission oil cooler oil inlet) | 90445-T0012 · 90445-T0013 |
| 32921G | O-ring (for transmission oil cooler pipe joint) | 90301-11006 · 90301-11030 |
| 32921J | Clamp (for transmission oil cooler hose) | 90466-T0016 |
| 32921R | Clamp No. 2 (for transmission oil cooler hose) | 90466-T0016 |
| 32922 | No. 1 transmission oil cooler oil outlet pipe | 32922-0K030 · 32922-0K070 |
| 32922A | Hoses (for transmission oil cooler oil outlet) | 90445-T0012 · 90445-T0013 |
| 32923B | No. 1 automatic transmission oil cooler pipe clamp | 32929-0K020 · 32929-0K030 |
| 32923K | No. 2 automatic transmission oil cooler pipe clamp | 32909-0K060 |
| 32923L | No. 3 automatic transmission oil cooler pipe clamp | 32909-0K070 |
| 32926 | Automatic transmission oil cooler pipe cushion | 32926-26010 · 32926-30020 |
