Toyota HILUX 中央支架和行星太阳齿轮(ATM) — Figure 3508

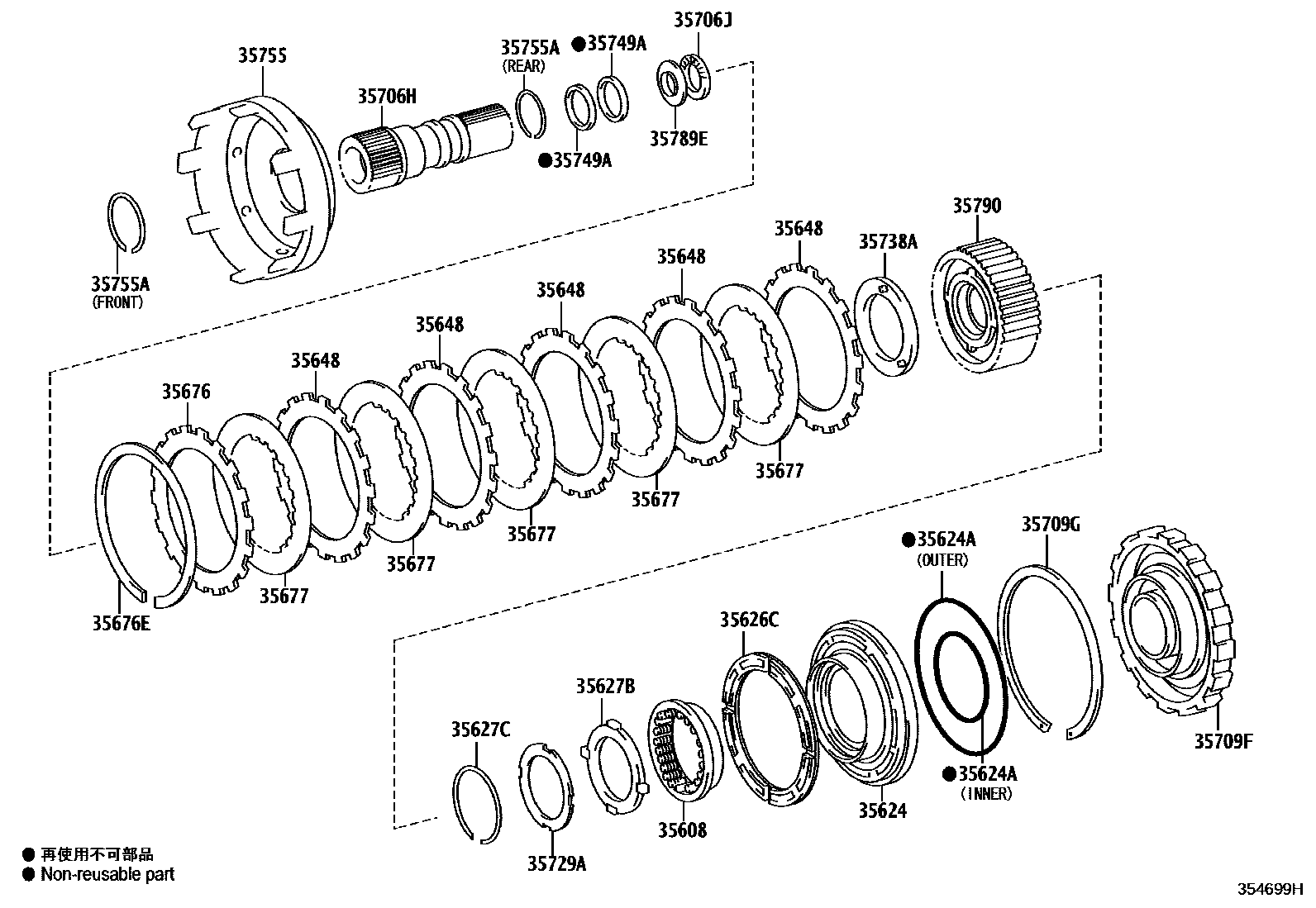

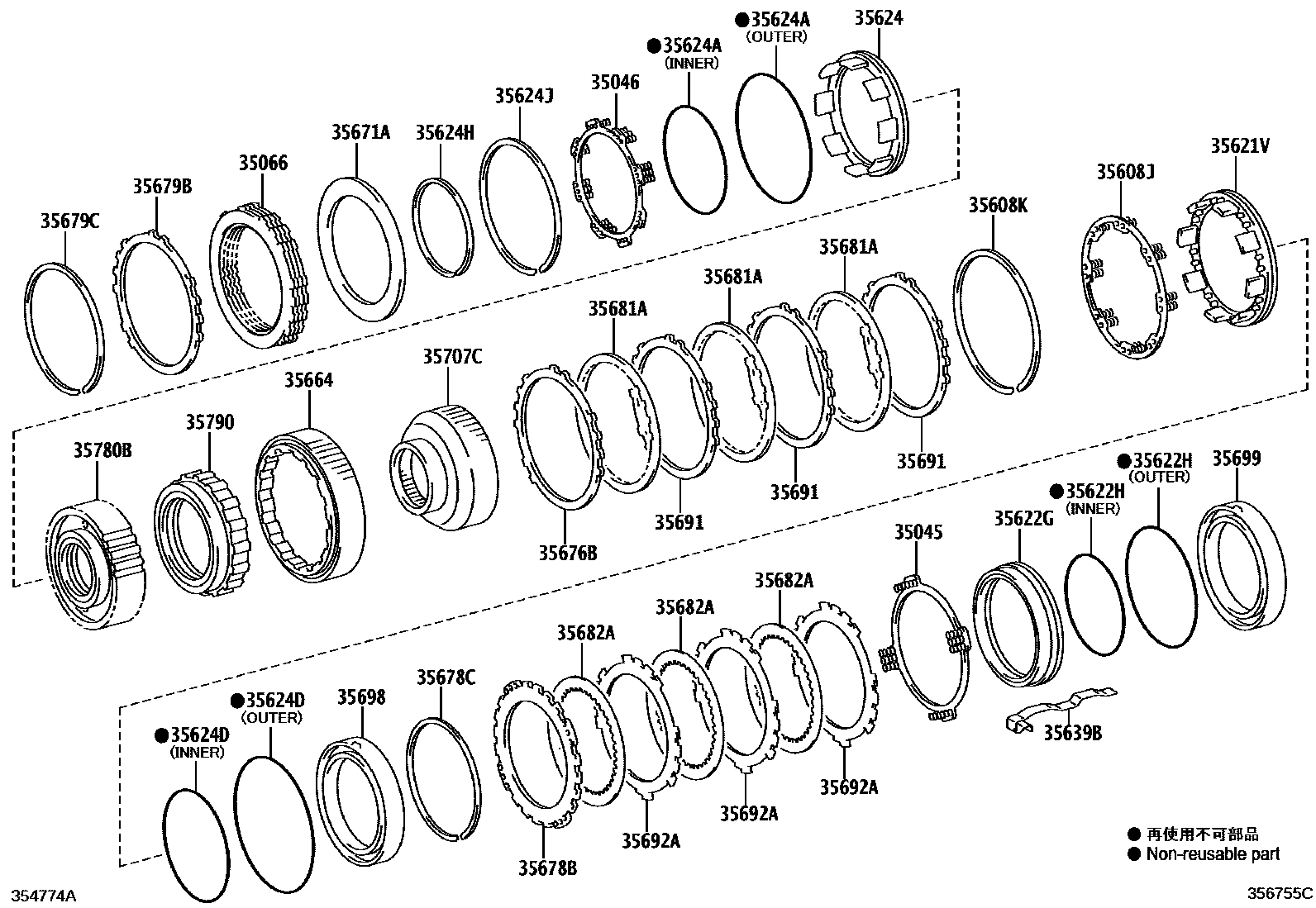

Toyota HILUX EPC diagram 3508, 中央支架和行星太阳齿轮(ATM), with 2 images and 48 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 35045 | No. 2 brake piston return spring sub-assembly | 35045-60010 |
| 35046 | No. 3 brake piston return spring sub-assembly | 35046-60010 |
| 35066 | Second gear brake disc assembly | 35066-60030 |
| 35608 | Second gear brake piston return spring sub-assembly | 35608-30010 |
| 35608J | Brake piston return spring sub-assembly | 35608-60020 |
| 35608K | Snap ring (for brake piston return spring) | 90520-99039 |
| 35621V | Brake piston No. 1 | 35621-60020 |
| 35622G | Brake piston No. 2 | 35622-60020 |
| 35622H | O-ring (for brake piston No. 2) | 90301-99095 · 90301-99118 |
| 35624 | Second gear brake piston | 35624-30010 · 35624-60010 |
| 35624A | O-ring (for second gear brake piston) | 90301-85001 · 90301-99038 · 90301-99095 · 90301-99115 |
| 35624D | O-ring (for brake piston No. 4) | 90301-99126 · 90301-99142 |
| 35624H | Snap ring (for second gear brake piston) | 90520-99077 |
| 35624J | Bore snap ring (for 2nd gear brake piston) | 90521-99130 |
| 35626C | Second gear brake piston sleeve | 35626-30030 |
| 35627B | Second gear brake piston return spring seat | 35627-30010 |
| 35627C | Shaft snap ring (for second gear brake piston return spring seat) | 90520-54001 |
| 35639B | Brake pad limit spring | 35639-60010 |
| 35648 | Clutch disc (for second gear brake) | 35647-30020 · 35647-30030 |
| 35664 | Second gear brake cylinder | 35664-60010 |
| 35671A | brake cushion | 35671-60010 |
| 35676 | Brake flange (for second gear brake) | 35676-30020 |
| 35676B | No. 1 brake flange | 35676-60080 · 35676-60090 · 35676-60100 · 35676-60110 |
| 35676E | Hole snap ring (for second gear brake) | 90521-99032 |
| 35677 | Clutch disc (for second gear brake) | 35667-30080 |
| 35678B | No. 2 brake flange | 35678-60010 |
| 35678C | Snap ring (for brake No. 2) | 90520-99075 |
| 35679B | No. 3 brake flange | 35679-60010 |
| 35679C | Snap ring (for No. 3 brake) | 90520-99080 |
| 35681A | No. 1 brake disc | 35681-60020 |
| 35682A | Brake disc No. 2 | 35682-50010 |
| 35691 | No. 1 brake pad | 35691-60010 |
| 35692A | No. 2 brake pad | 35692-60010 |
| 35698 | No. 1 brake cylinder | 35698-60010 |
| 35699 | No. 2 brake cylinder | 35699-60010 |
| 35706H | Planetary gear train sun gear sub-assembly | 35706-30061 |
| 35706J | Thrust needle roller bearing (for planetary gear train sun gear) | 90374-27009 |
| 35707C | One-way clutch inner race sub-assembly | 35707-60010 |
| 35709F | Second gear brake drum sub-assembly | 35709-30061 |
| 35709G | Hole snap ring (for second gear brake drum) | 90521-99044 |
| 35729A | No. 4 planetary gear carrier thrust washer | 35729-30010 |
| 35738A | No. 1 one-way clutch thrust washer | 35738-30040 |
| 35749A | Sun gear shaft oil ring | 35749-30010 |
| 35755 | sun gear input drum | 35755-50010 |
| 35755A | Shaft snap ring (for sun gear input drum) | 90520-46002 · 90520-49001 |
| 35780B | No. 2 one-way clutch assembly | 35780-50040 |
| 35789E | Thrust bearing race (for planetary gear train sun gear) | 35789-30240 |
| 35790 | One-way clutch assembly | 35790-30050 · 35790-30060 · 35790-50020 |
