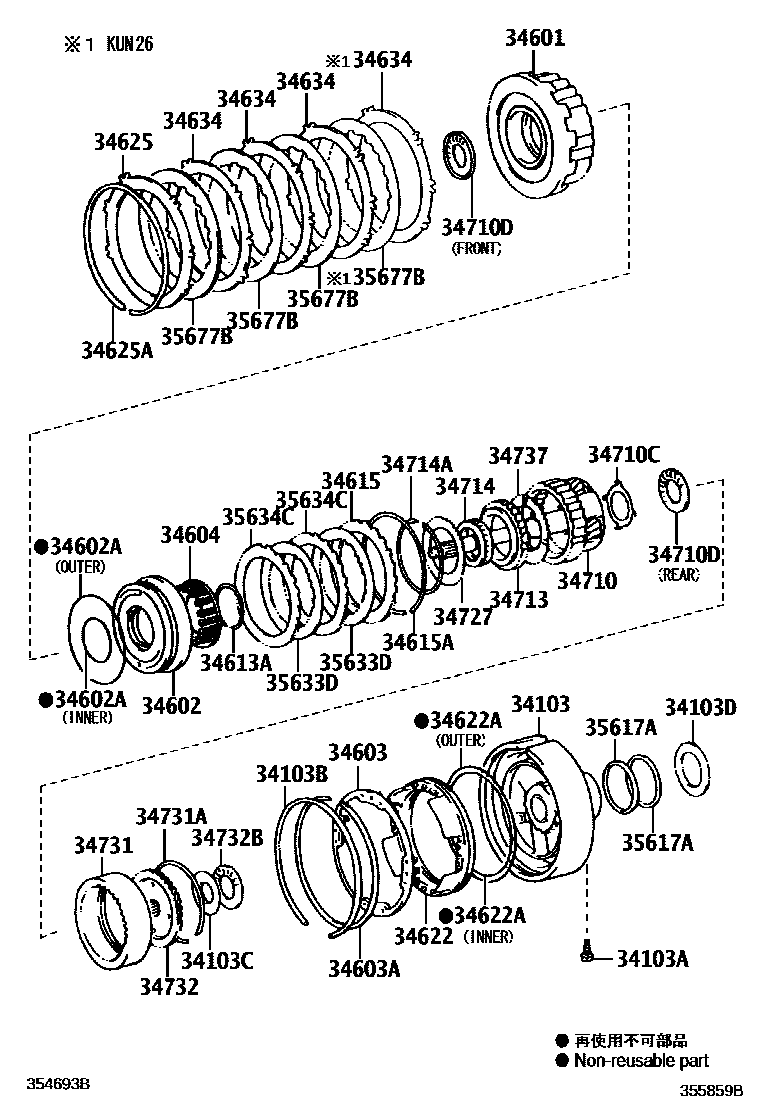

Toyota HILUX 超速档齿轮(ATM) — Figure 3506
Toyota HILUX EPC diagram 3506, 超速档齿轮(ATM), with 1 images and 35 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 34103 | Overdrive bracket sub-assembly | 34103-30020 |
| 34103A | Bolt (for overdrive bracket) | 90105-08281 |
| 34103B | Hole snap ring (for overdrive bracket) | 90521-99033 |
| 34103C | Thrust bearing race (for front overdrive bracket) | 35789-22060 |
| 34103D | Thrust bearing race (for rear overdrive bracket) | 35789-30090 |
| 34601 | Overspeed direct gear clutch drum sub-assembly | 34601-26020 |
| 34602 | Overspeed direct gear clutch piston sub-assembly | 34602-30020 |
| 34602A | O-ring (for overspeed direct clutch piston) | 90301-65006 · 90301-99086 |
| 34603 | Overdrive brake return spring sub-assembly | 34603-30030 |
| 34603A | Hole snap ring (for overdrive brake return spring) | 90520-99039 |
| 34604 | Overdrive clutch return spring sub-assembly | 34604-30010 |
| 34613A | Shaft snap ring (for overdrive direct gear clutch return spring) | 90520-58001 |
| 34615 | Overdrive clutch flange | 34615-22010 · 34615-22020 · 34615-22030 · 34615-50030 · 34615-50040 · 34615-50050 |
| 34615A | Hole snap ring (for overdrive clutch flange) | 90521-99001 |
| 34622 | overdrive brake piston | 34622-30090 · 34622-30100 |
| 34622A | O-ring (for overdrive brake piston) | 90301-99088 · 90301-99090 |
| 34625 | No. 1 overdrive brake flange | 34625-22030 · 34625-22040 · 34625-22050 · 34625-22060 · 34625-50020 · 34625-50030 · 34625-50040 |
| 34625A | Hole snap ring (for overdrive brake flange) | 90521-99027 |
| 34634 | overdrive brake pads | 34634-30021 |
| 34710 | Overdrive planetary gear assembly | 34710-22031 · 34710-71010 |
| 34710C | Thrust bearing race (for overdrive planetary gear) | 35789-30052 |
| 34710D | Thrust needle roller bearing (for overdrive planetary gear) | 90374-31005 · 90374-31008 |
| 34713 | One-way clutch outer race (for overdrive) | 34713-32010 |
| 34714 | One-way clutch (for overdrive) | 35791-30060 · 35791-50010 |
| 34714A | Hole snap ring (for one-way clutch) | 90521-99028 |
| 34727 | Block (for overdrive) | 34727-32010 |
| 34731 | Overdrive planetary ring gear | 34731-30030 |
| 34731A | Hole snap ring (for overdrive planetary ring gear) | 90521-99024 |
| 34732 | Overdrive planetary gear flange | 34732-22011 |
| 34732B | Thrust bearing (for overdrive planetary gear flange) | 90374-33002 |
| 34737 | No. 3 overdrive planetary gear thrust washer | 34737-30030 |
| 35617A | Clutch drum oil guard (for overdrive) | 35617-30020 |
| 35633D | Clutch disc (for overdrive direct clutch) | 35633-14010 |
| 35634C | Clutch disc (for overdrive direct gear clutch) | 34616-30010 |
| 35677B | Clutch disc (for overdrive brake) | 34633-60010 |
