Toyota HILUX 离合器壳和变速器壳(MTM) — Figure 3302

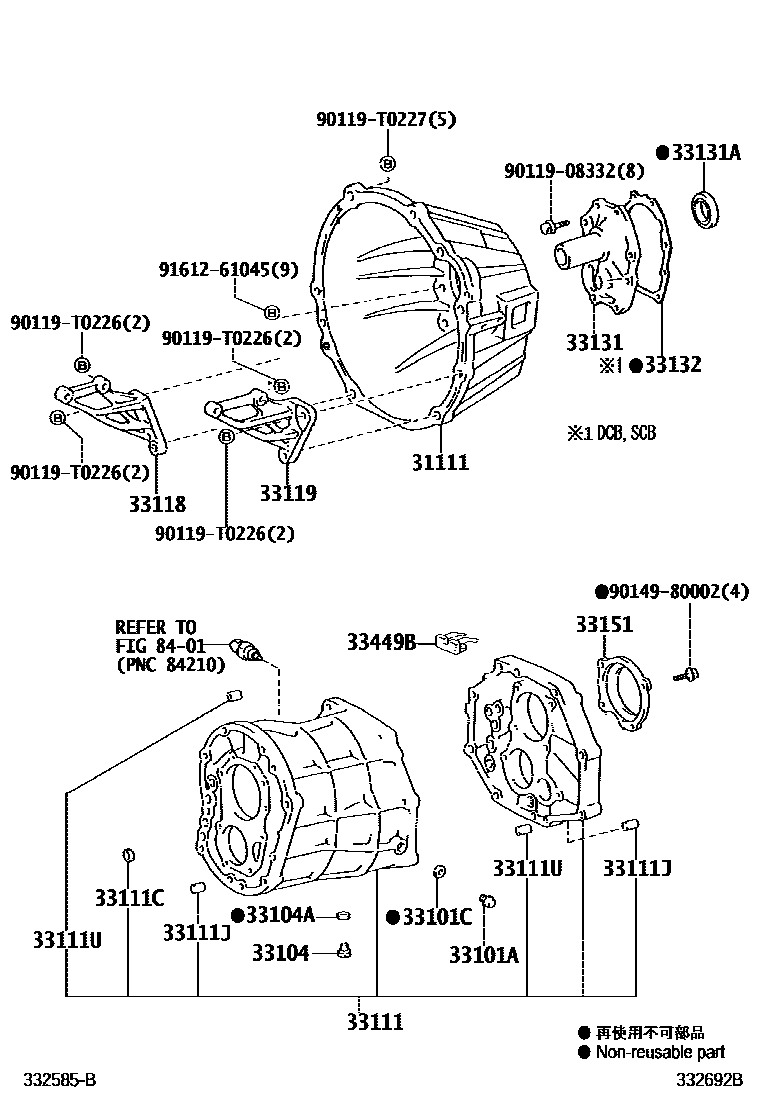

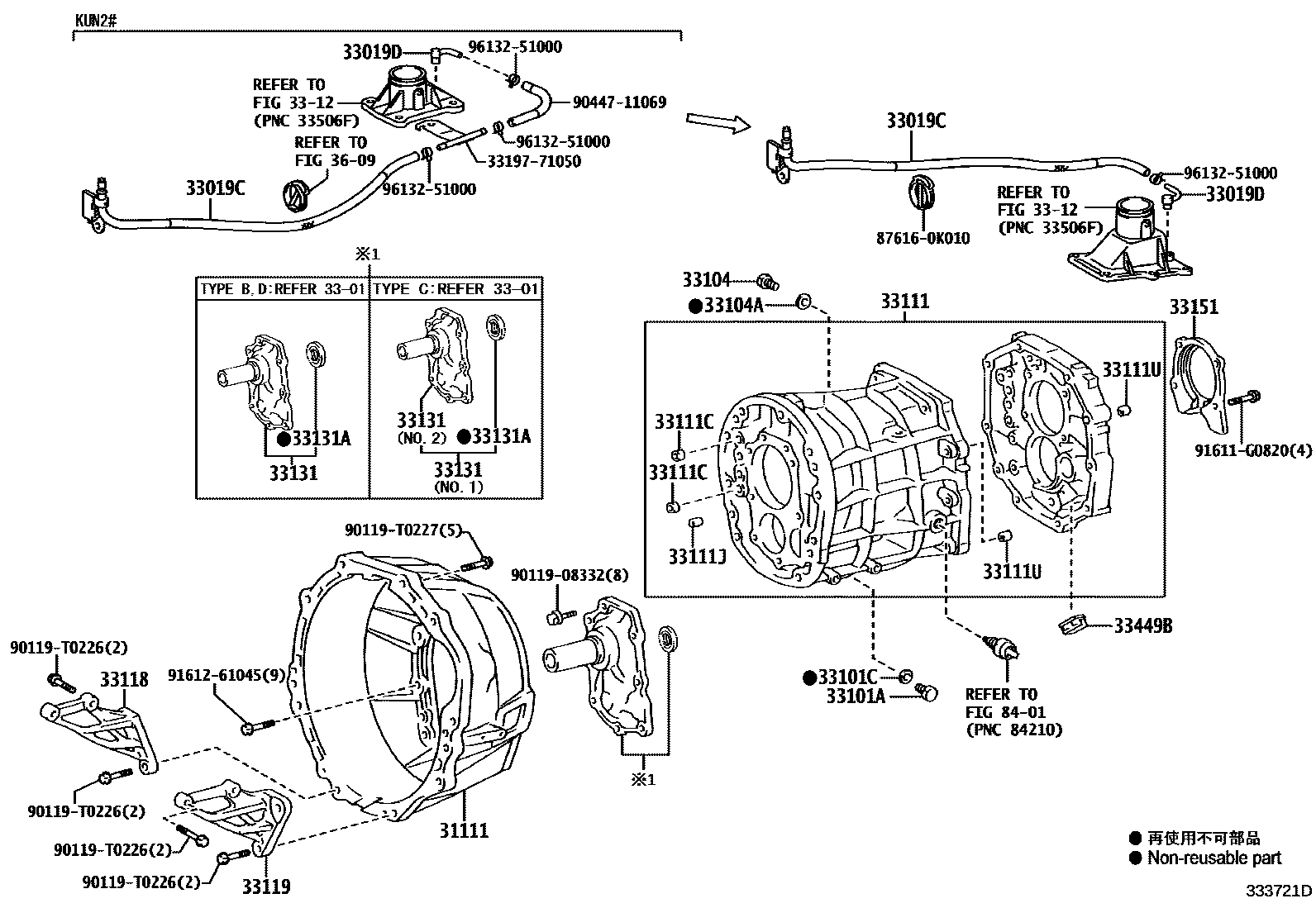

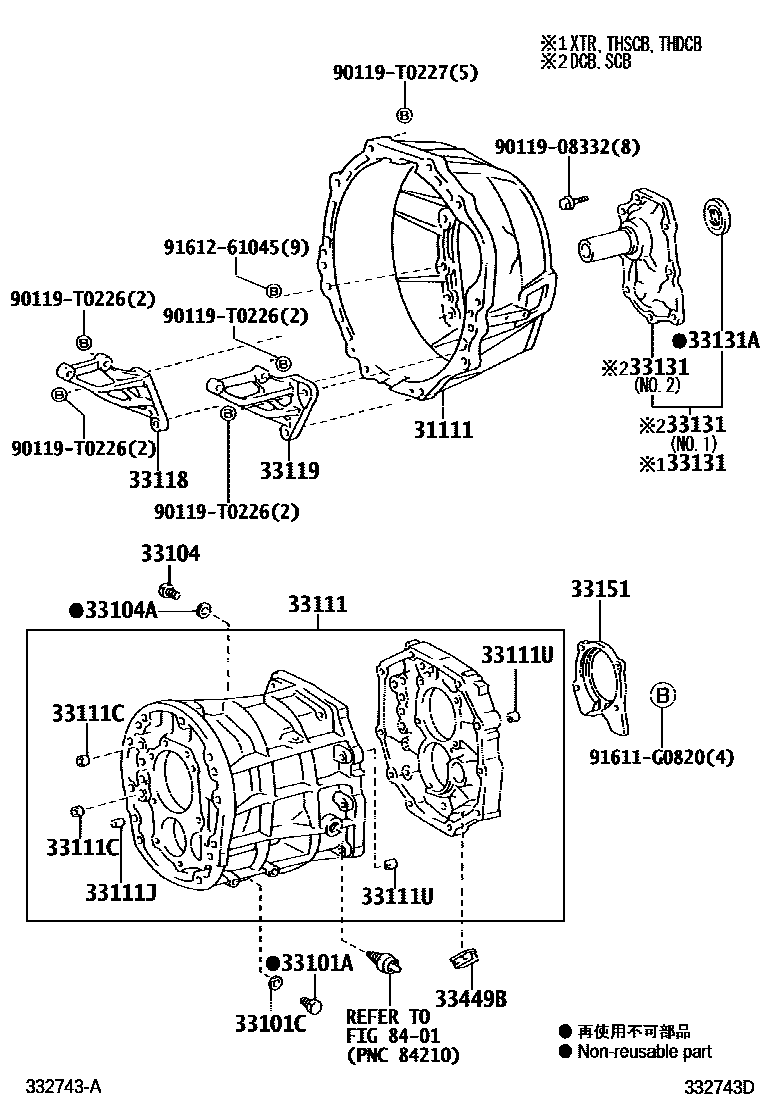

Toyota HILUX EPC diagram 3302, 离合器壳和变速器壳(MTM), with 3 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 31111 | clutch housing | 31111-0K010 · 31111-0K060 · 31111-0K090 · 31111-0W070 · 31111-25050 |
| 33019C | Transmission breather sub-assembly | 33019-71020 · 33019-71100 |
| 33019D | Dual hose (for transmission breather hose) | 36149-60070 · 90412-07005 |
| 33101A | Screw plug (for manual transmission oil filler port) | 90341-18006 |
| 33101C | Gasket (for manual transmission filler plug) | 90430-18008 |
| 33104 | Drain plug sub-assembly (MTM) | 90341-18006 · 90341-18057 |
| 33104A | Drain plug gasket (MTM) | 90430-18008 |
| 33111 | Manual transmission housing | 33101-0K010 · 33101-0K020 · 33101-0K030 · 33101-0K040 · 33101-35051 |
| 33111C | Screw plug (for gearbox) | 90331-14004 · 96411-41800 |
| 33111J | Direct sales (for manual transmission) | 90250-12002 · 90250-T0020 |
| 33111U | Ring pin (for manual transmission) | 90253-15001 |
| 33118 | Right reinforcement plate (MTM) | 33118-04020 |
| 33119 | Left reinforcement plate (MTM) | 33119-0K020 |
| 33131 | Front bearing retainer (MTM) | 33018-0K010 · 33018-0K040 · 33018-0K070 · 33131-0K010 · 33131-0K030 · 33131-26020 |
| 33131A | Oil seal (for transmission front bearing retainer) | 90311-30014 · 90311-T0017 · 90311-T0021 · 90311-T0027 |
| 33132 | Front bearing retainer pad (MTM) | 33132-28010 |
| 33151 | Output shaft rear bearing retainer (MTM) | 33151-0K010 · 33151-0K020 · 33151-0K030 · 33151-0K040 · 33151-35030 |
| 33449B | derailleur magnet | 33449-26010 · 33449-35030 |
