Toyota HILUX 传动桥或变速器总成和衬垫组件(MTM) — Figure 3301
Toyota HILUX EPC diagram 3301, 传动桥或变速器总成和衬垫组件(MTM), with 3 images and 2 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

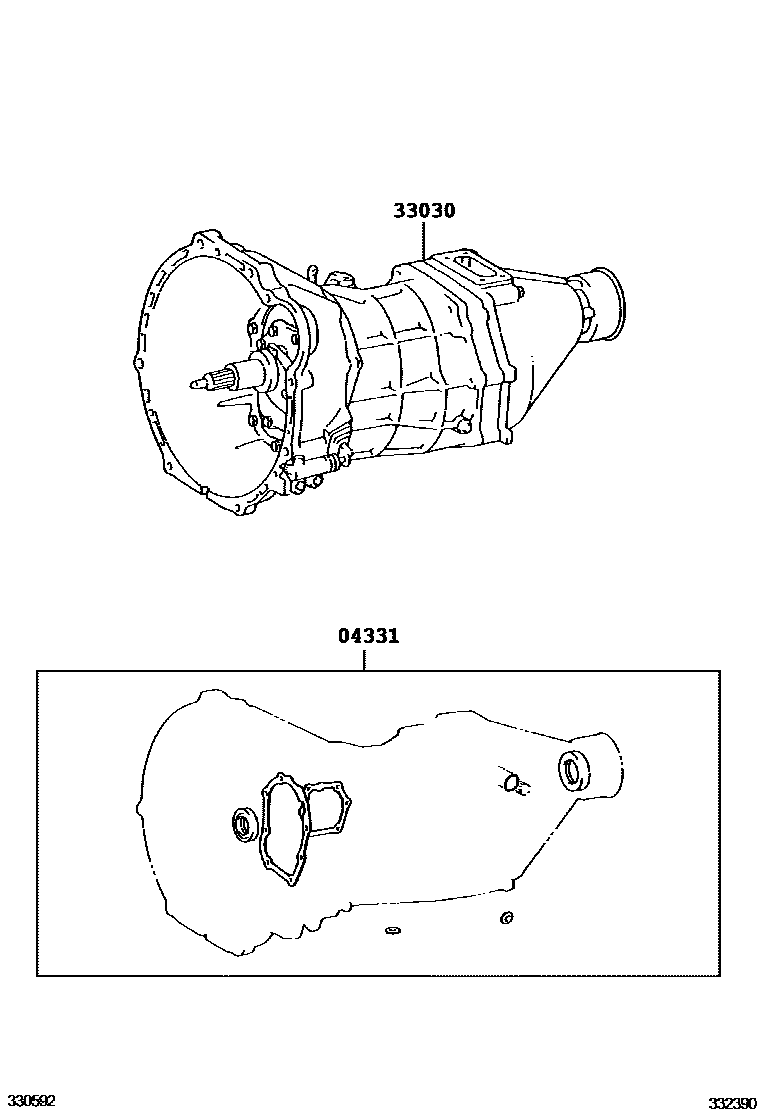

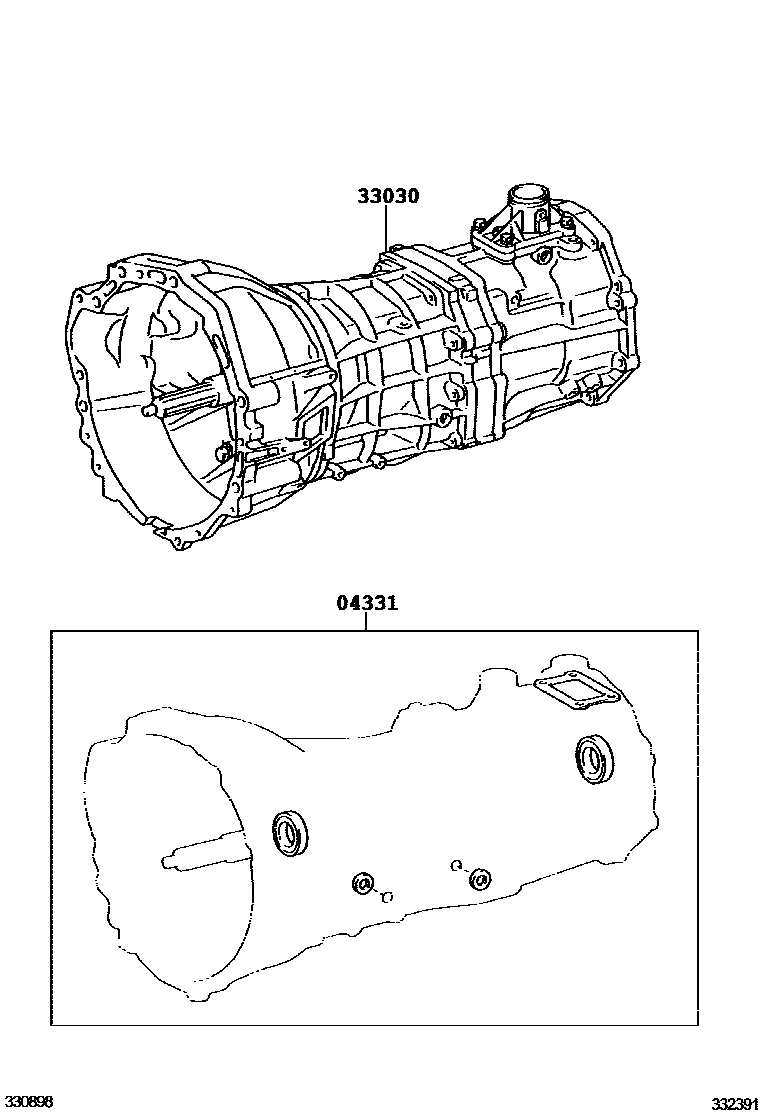

| 04331 | Manual transmission overhaul gasket assembly | 04331-0K200 · 04331-0K220 · 04331-0K390 · 04331-26210 · 04331-60280 · 04331-60300 · 04331-60370 · 04331-71070 · 04331-71110 |
| 33030 | Manual transmission unit assembly | 33030-0K030 · 33030-0K070 · 33030-0K090 · 33030-0K130 · 33030-0K230 · 33030-0K260 · 33030-0K290 · 33030-0K320 · 33030-0K350 · 33030-0K420 · 33030-0K450 · 33030-0K500 · 33030-0K530 · 33030-0K650 · 33030-71090 |
