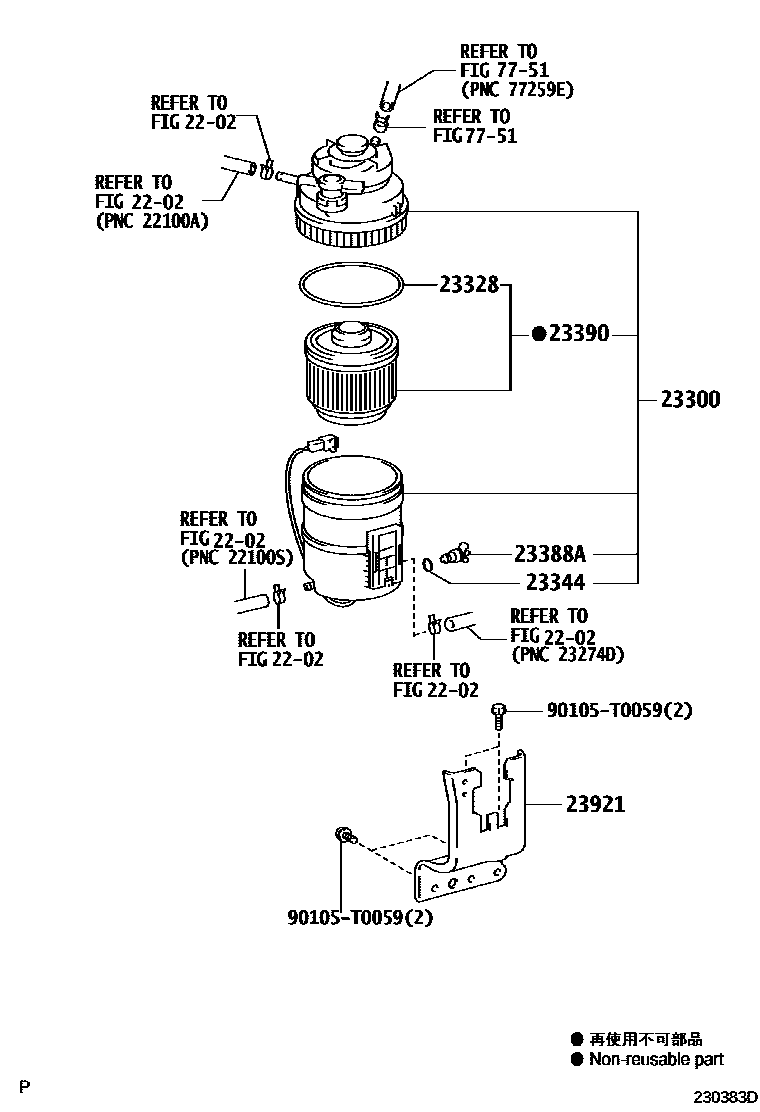

Toyota HILUX fuel filter — Figure 2302
Toyota HILUX EPC diagram 2302, fuel filter, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 23300 | fuel filter assembly | 23300-0L010 · 23300-0L011 · 23300-0L030 |
| 23328 | Gasket (for fuel filter) | 23344-0L010 |
| 23344 | Clamp nut gasket (for fuel filter) | 23344-0L041 |
| 23388A | Fuel filter drain plug | 23388-0L041 |
| 23390 | Fuel filter element assembly | 23390-0L010 · 23390-0L020 · 23390-0L030 |
| 23921 | Fuel filter support | 23921-0L010 · 23921-0L040 |
