Toyota HILUX 喷油嘴 — Figure 2201

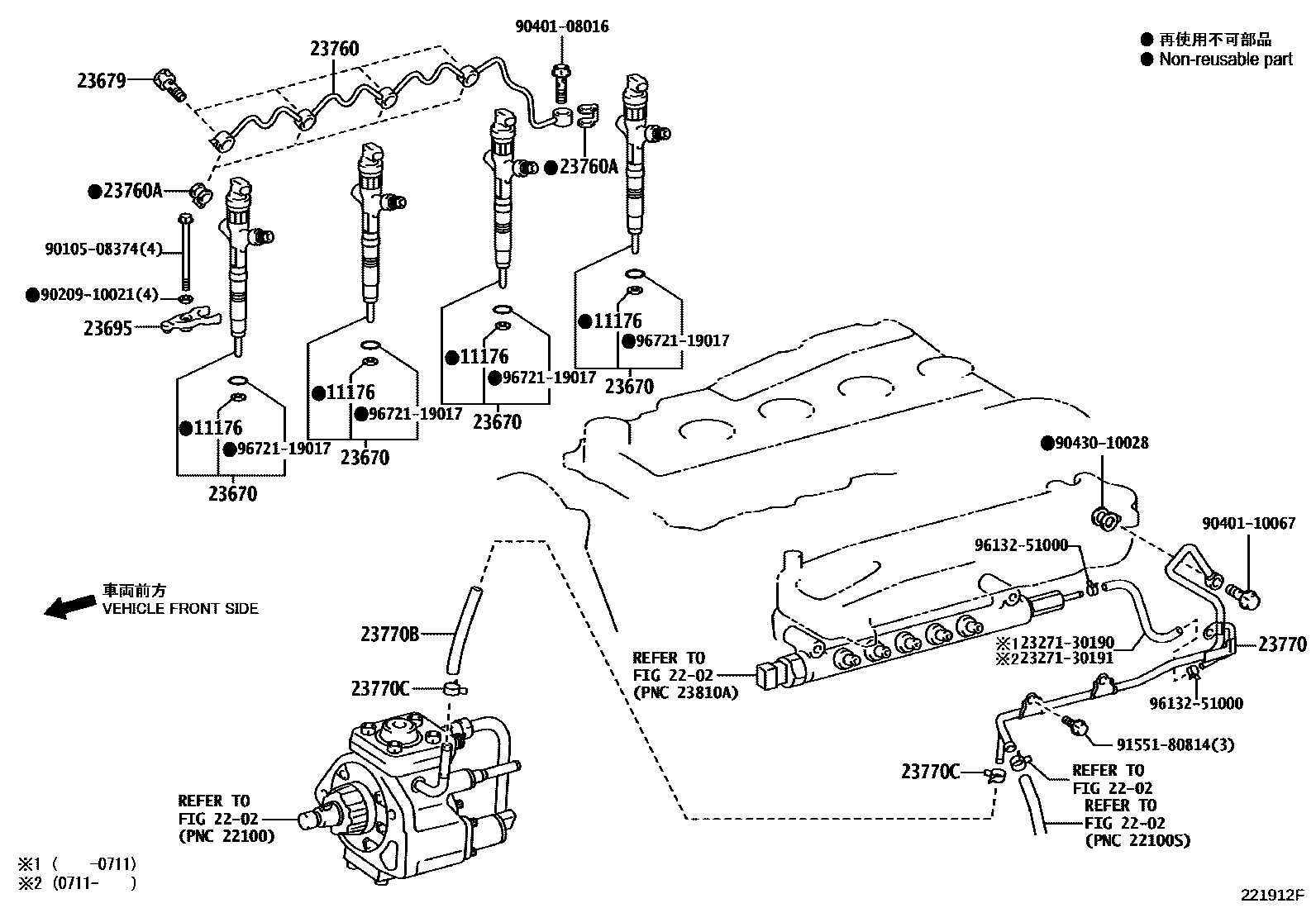

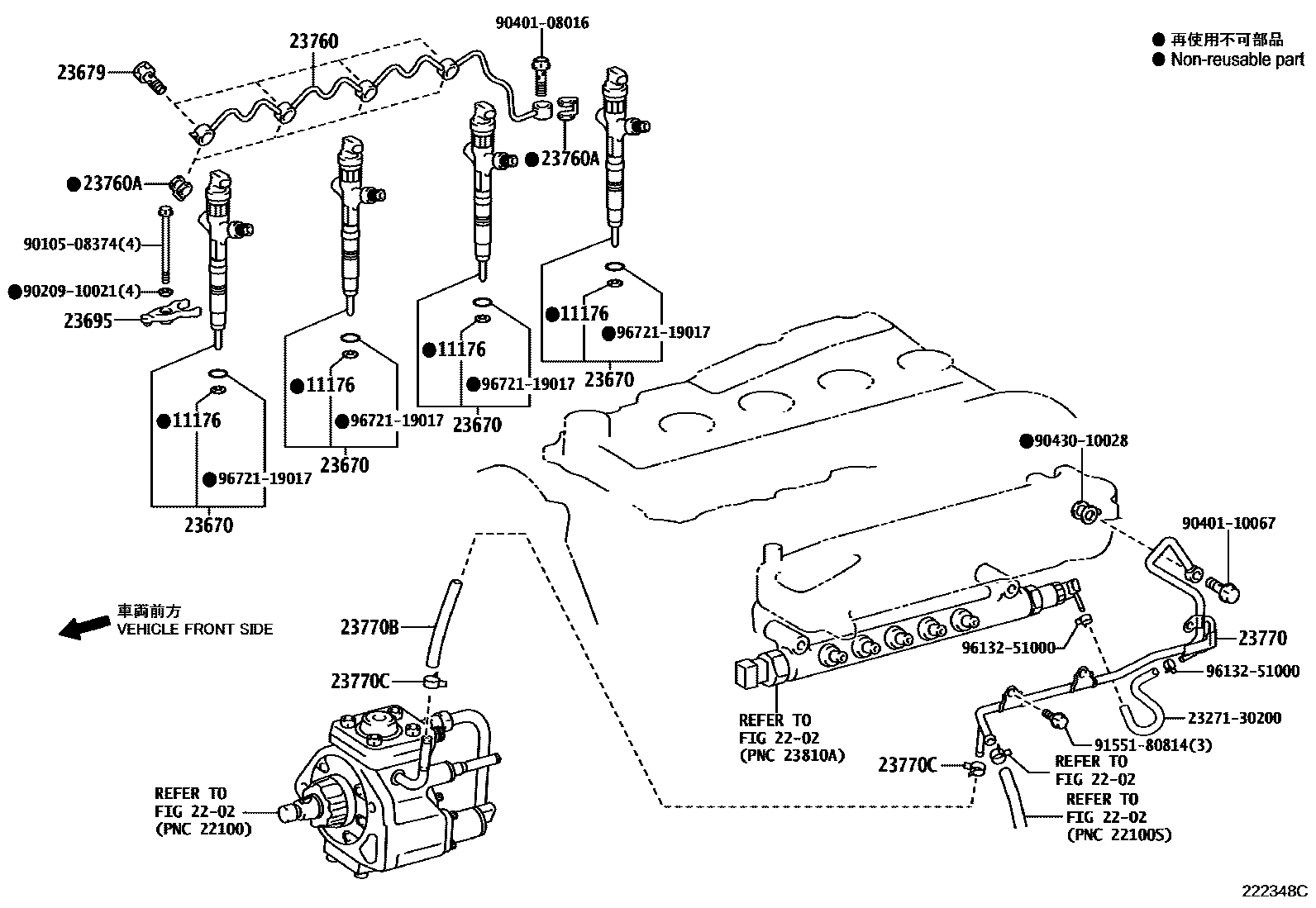

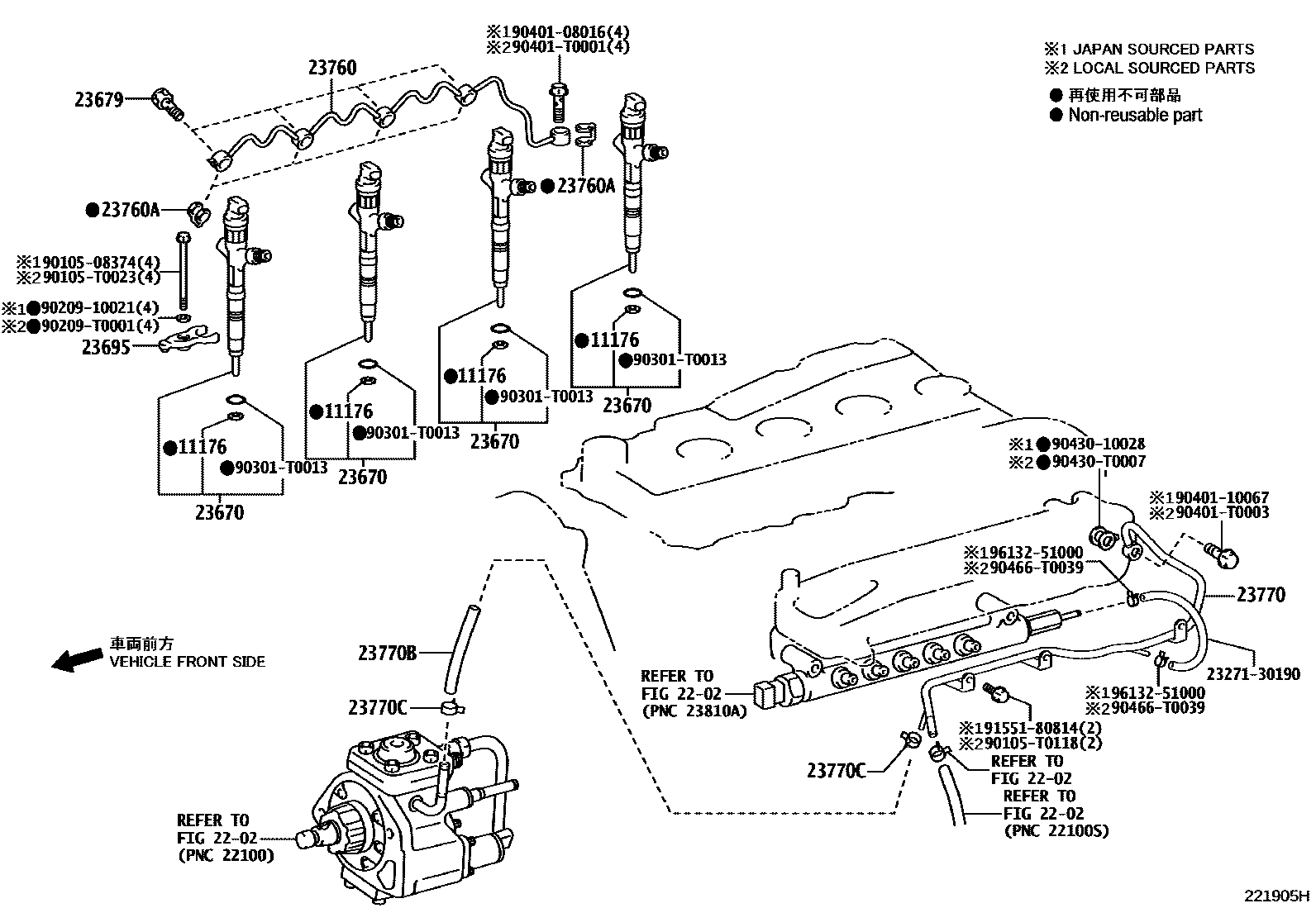

Toyota HILUX EPC diagram 2201, 喷油嘴, with 3 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11176 | Injector seat | 11176-0L010 · 11176-30010 · 11176-30011 |
| 23670 | Fuel injector assembly | 23670-09060 · 23670-39145 · 23670-39146 · 23670-39185 · 23670-39186 · 23670-39285 · 23670-39316 · 23670-39355 · 23670-39365 |
| 23679 | Fuel injector hollow screw | 23679-0L010 · 23679-30020 · 23679-30021 |
| 23695 | No. 1 injector body clamp | 23695-0L010 · 23695-30010 · 23695-30011 |
| 23760 | Fuel injector overflow pipe assembly | 23760-0L010 · 23760-30020 |
| 23760A | padding | 90430-T0008 · 90904-30013 |
| 23770 | No. 2 injector oil spill pipe assembly | 23770-0L020 · 23770-30060 · 23770-30070 |
| 23770B | fuel hose | 23273-30180 · 95337-06020 |
| 23770C | Clip or clip (for fuel hose assembly) | 90466-T0043 · 96135-51100 |
