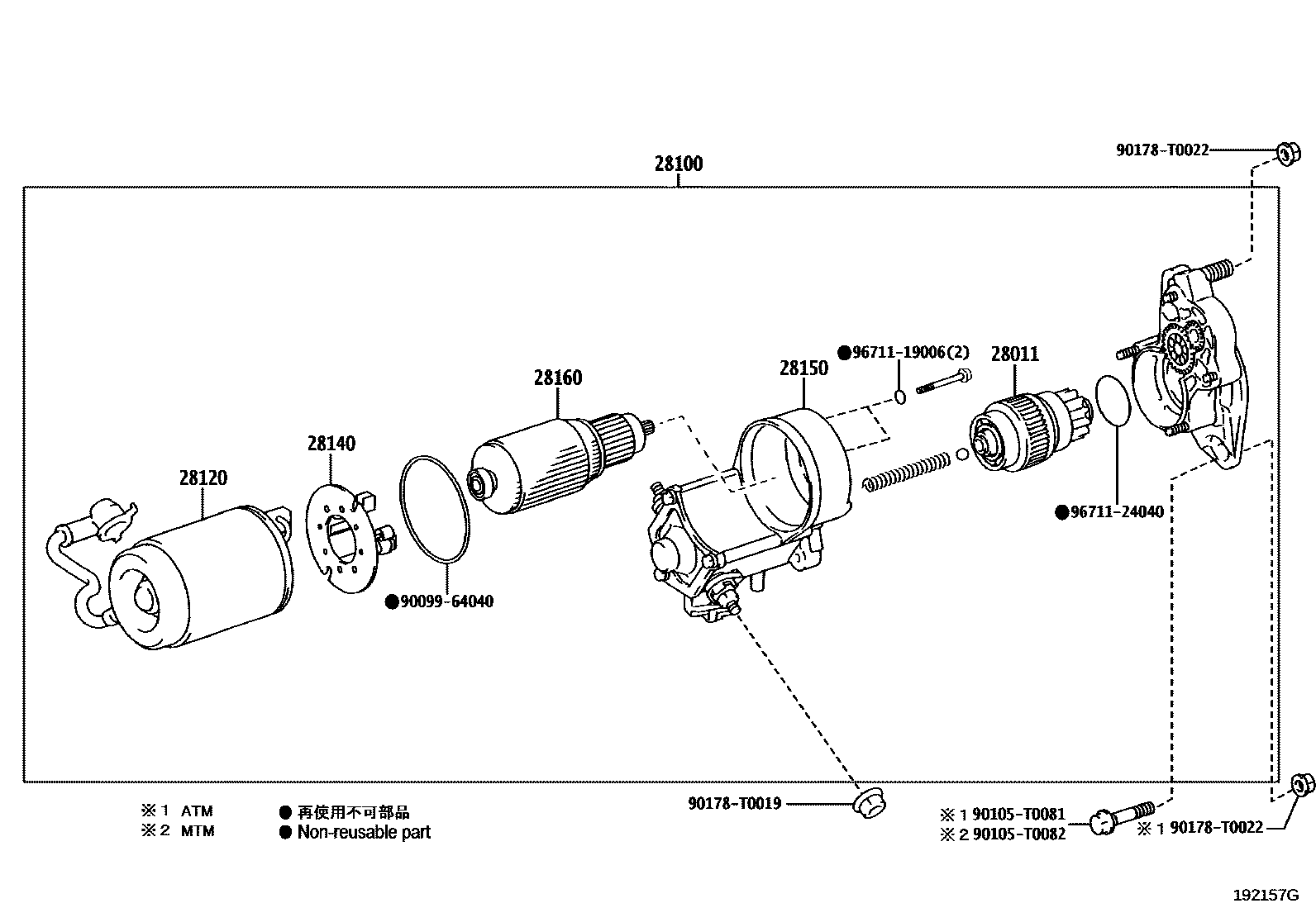

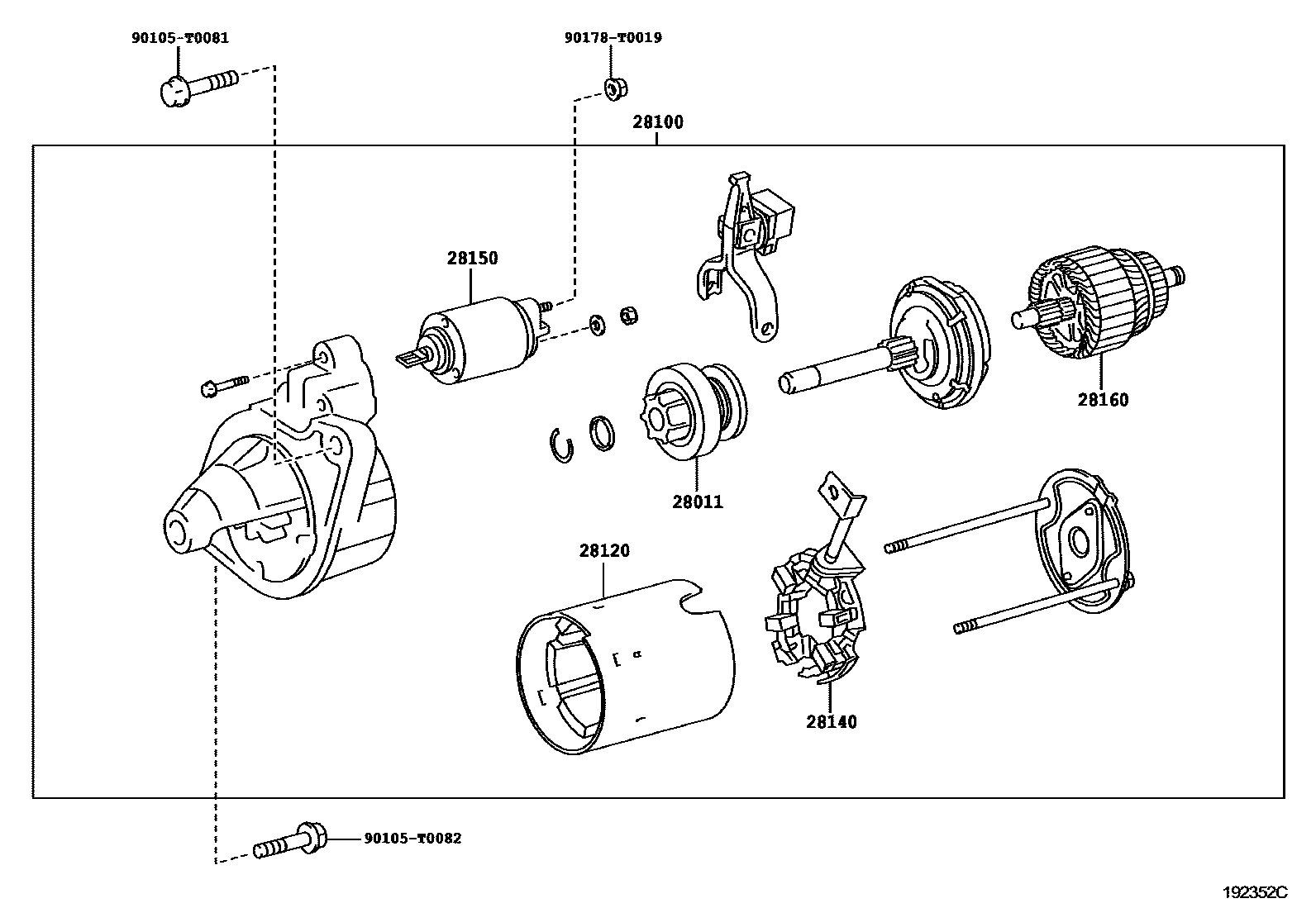

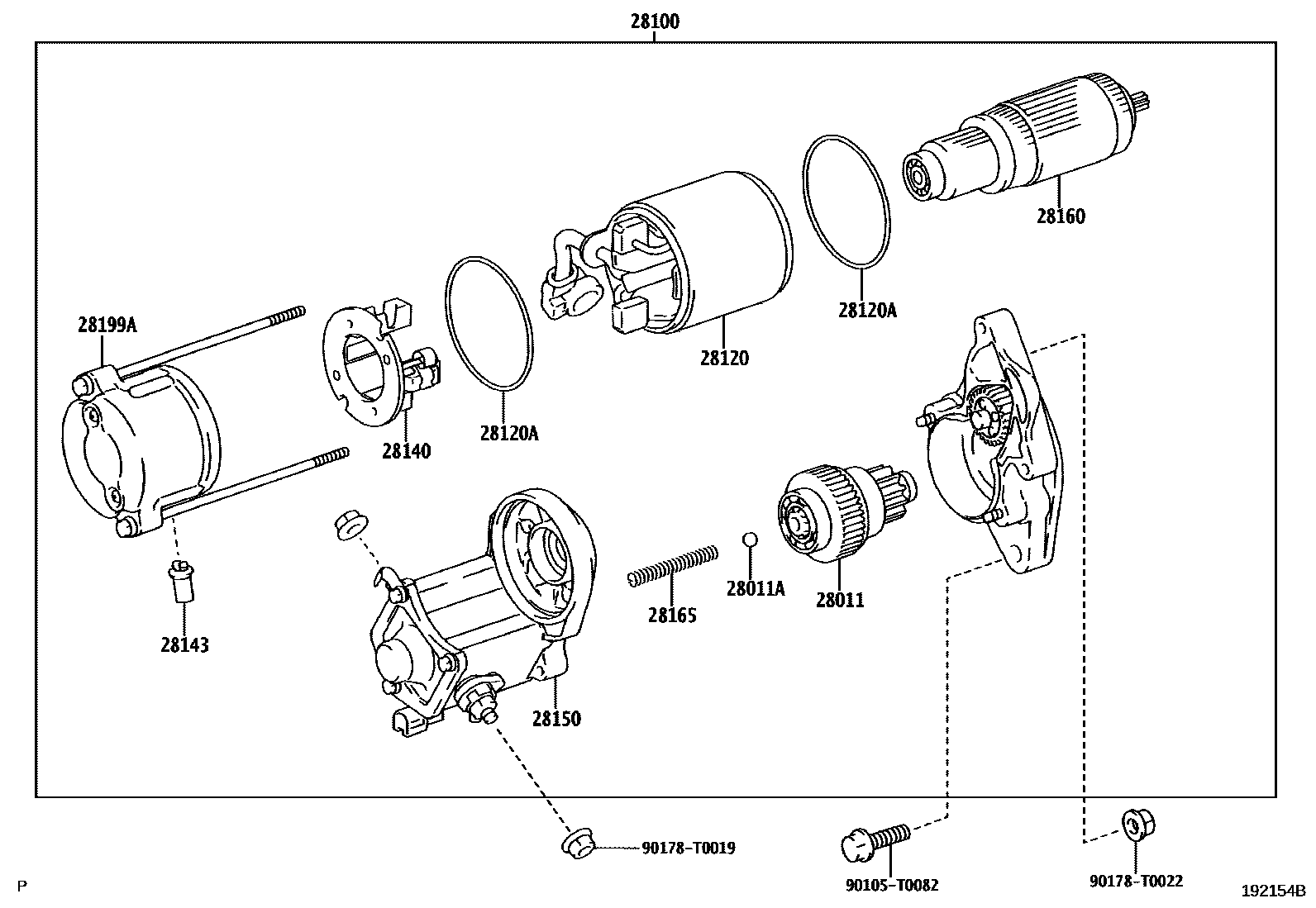

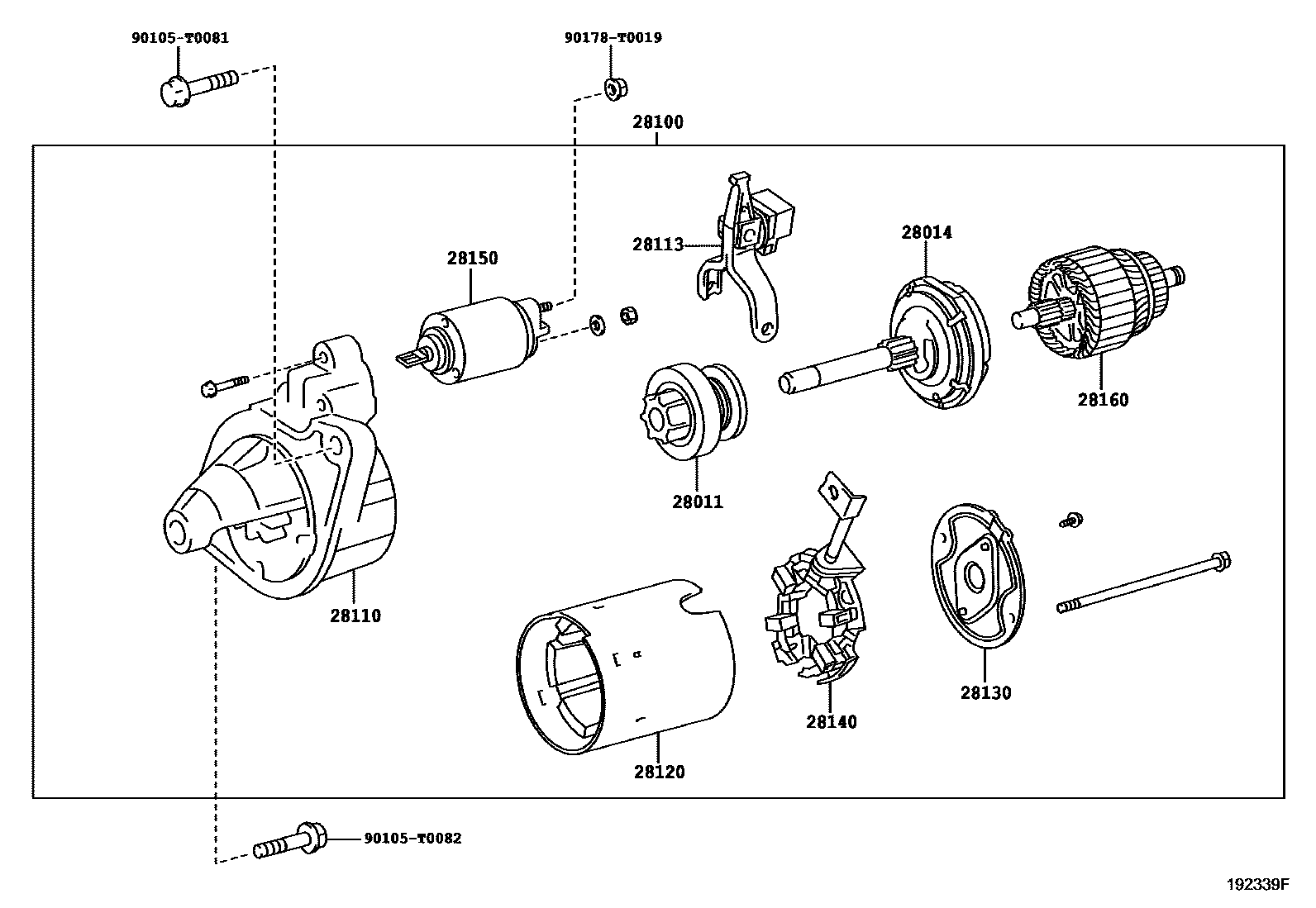

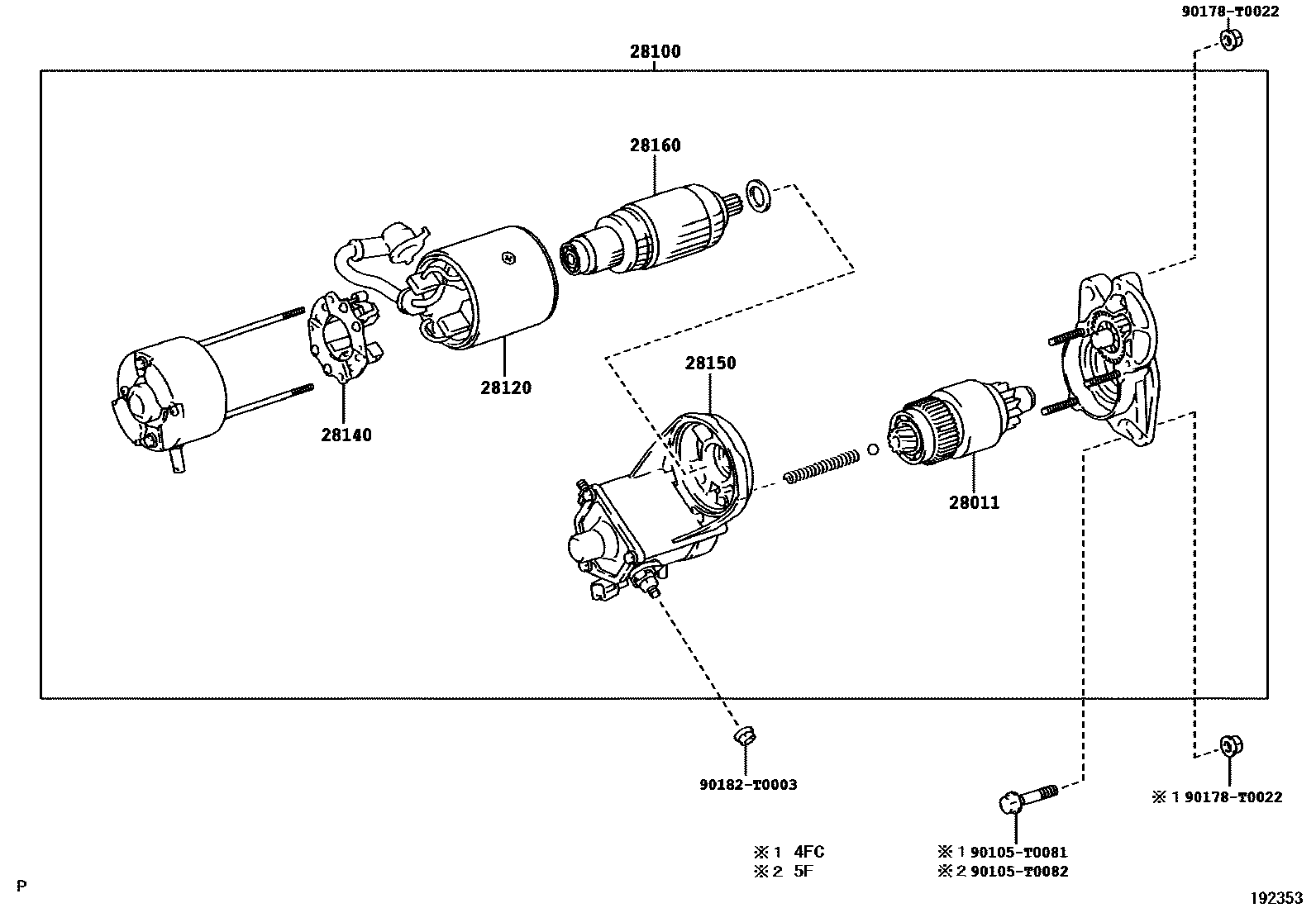

Toyota HILUX 起动机 — Figure 1904
Toyota HILUX EPC diagram 1904, 起动机, with 5 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28011 | Starter clutch sub-assembly | 28011-0L030 · 28011-0L080 · 28011-0L081 · 28011-0L120 · 28011-30040 · 28011-30050 · 28011-67030 |
| 28011A | starter clutch ball | 90099-12009 |
| 28014 | Planetary gear carrier shaft sub-assembly | 28014-0L081 |
| 28100 | Starter assembly | 28100-0L030 · 28100-0L031 · 28100-0L032 · 28100-0L040 · 28100-0L041 · 28100-0L050 · 28100-0L051 · 28100-0L080 · 28100-0L081 · 28100-0L120 · 28100-0L121 |
| 28110 | Starter drive end housing assembly | 28110-0L071 · 28110-30040 |
| 28113 | starter pinion drive rod | 28113-0L081 |
| 28120 | Starter yoke assembly | 28120-0L030 · 28120-0L050 · 28120-0L081 · 28120-64040 · 28120-67020 · 28120-YE010 |
| 28120A | O-ring (for starter yoke) | 90099-14064 |
| 28130 | Starter commutator end frame assembly | 28130-0L070 · 28130-30040 |
| 28140 | Starter brush holder assembly | 28140-0L030 · 28140-0L070 · 28140-0L080 · 28140-54380 · 28140-64040 · 28140-77090 |
| 28143 | starter brush spring | 28143-54380 |
| 28150 | Starter electromagnetic switch assembly | 28150-0L030 · 28150-0L040 · 28150-0L041 · 28150-0L050 · 28150-0L071 · 28150-0L080 |
| 28160 | Starter armature assembly | 28160-0L070 · 28160-0L080 · 28160-54140 · 28160-64041 · 28160-YE010 |
| 28165 | Starter solenoid switch return spring | 28165-76070 |
| 28199A | Starter dust protection device | 28199-87505 |
| 28228A | starter clutch roller | 28228-26040 |
| 28229 | Starter idler gear fixing | 28229-74070 |
| 28251 | Starter drive pinion | 28254-54380 |
| 28252 | starter idler gear | 28254-64130 |
