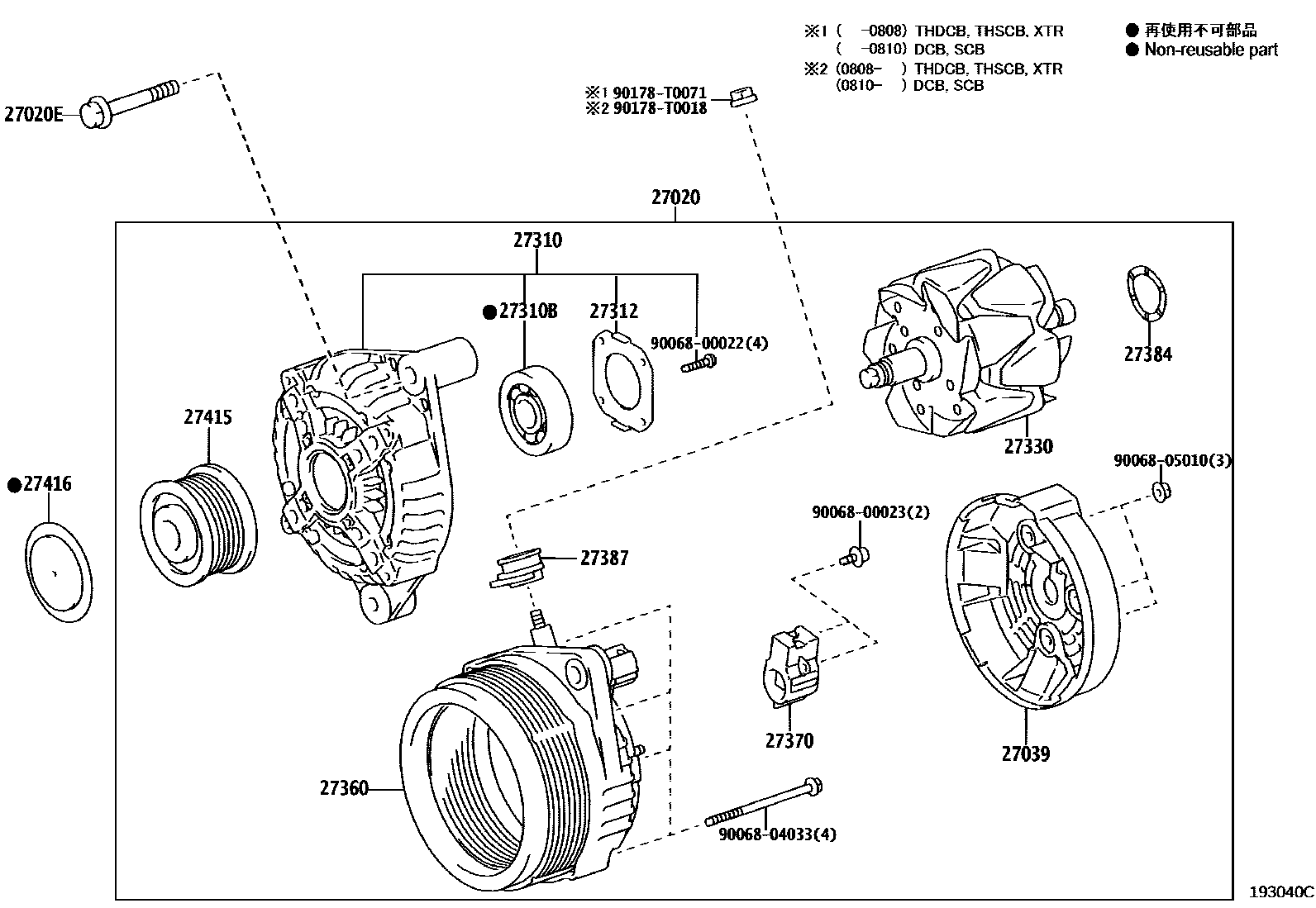

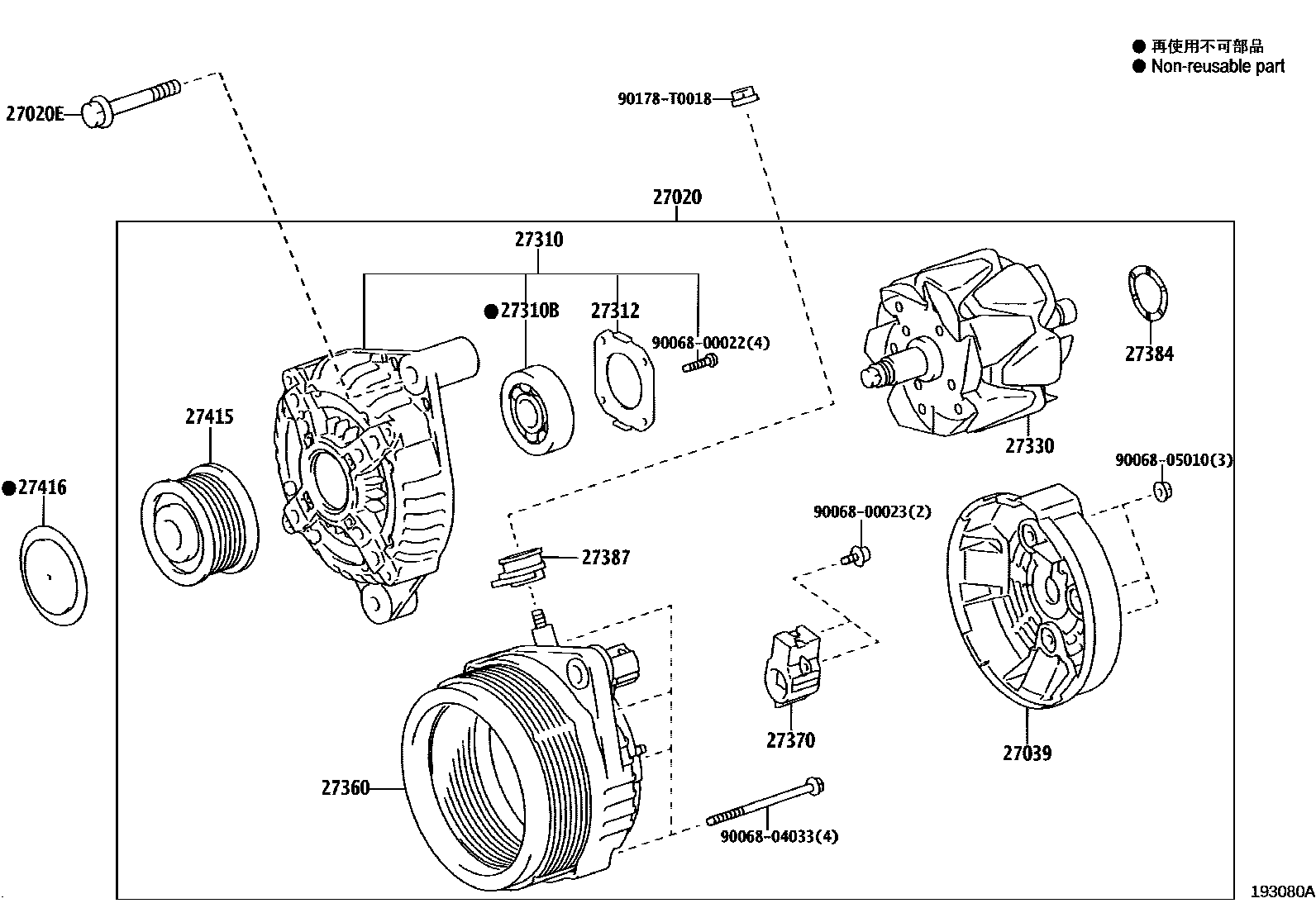

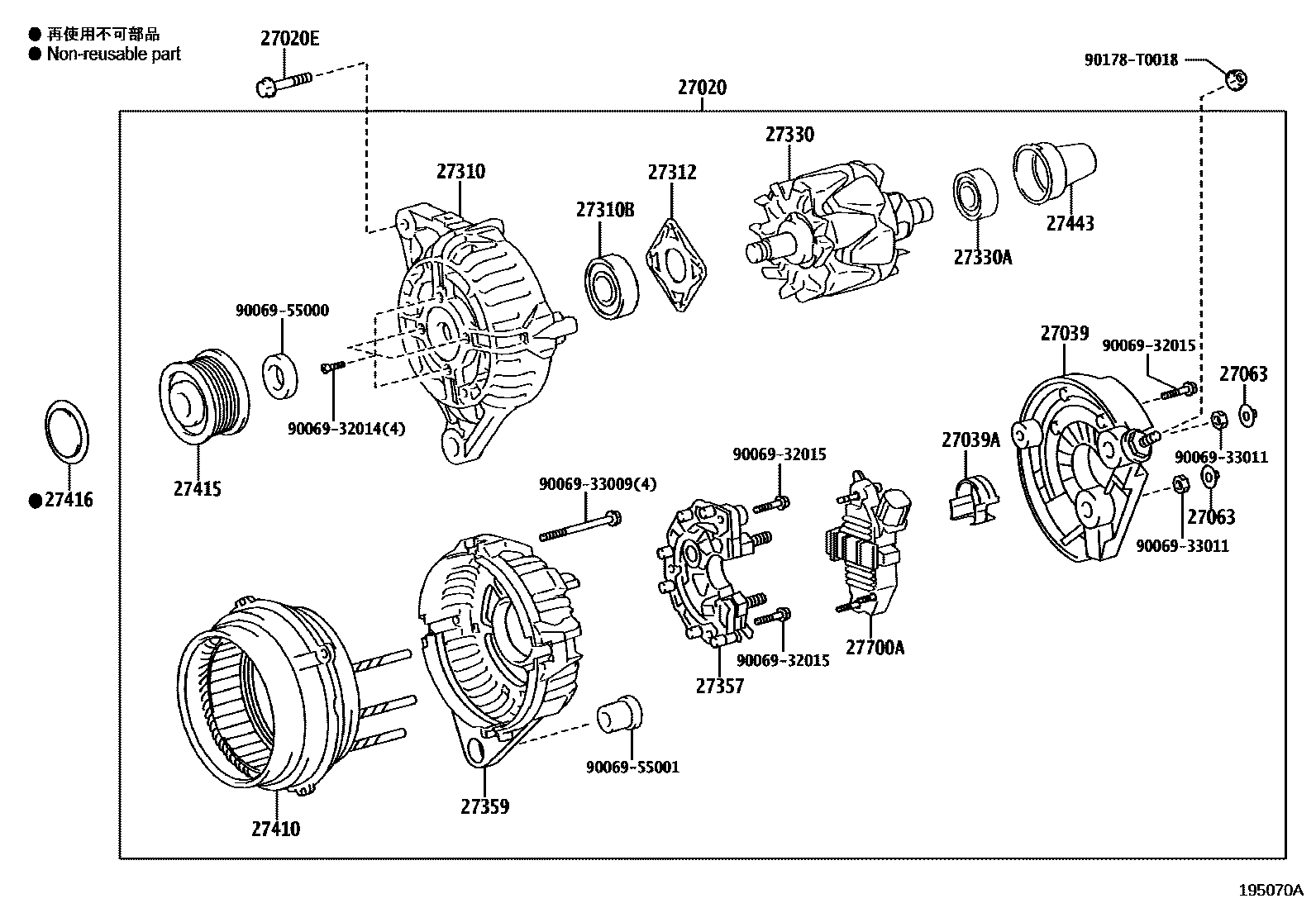

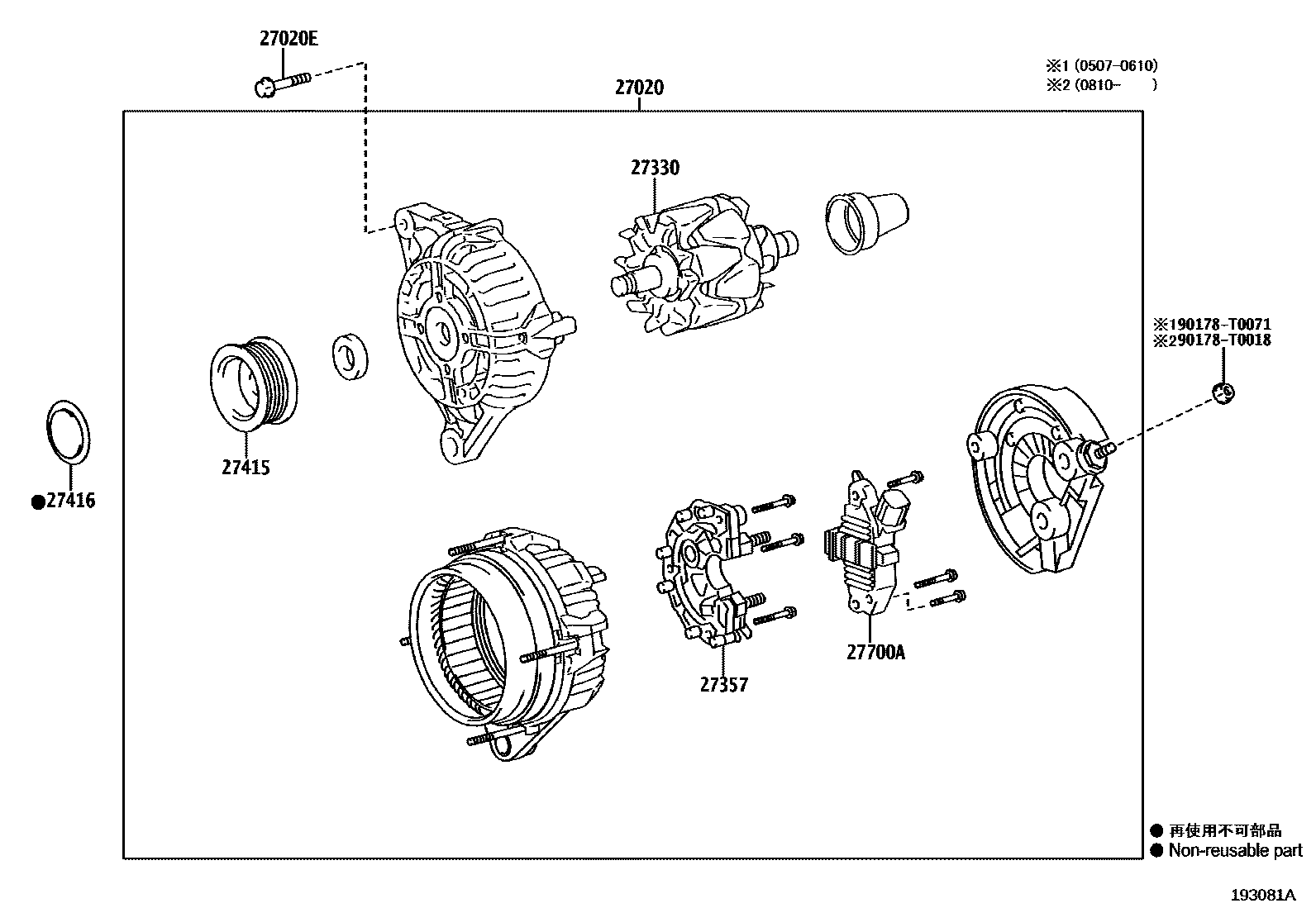

Toyota HILUX Alternator — Figure 1903
Toyota HILUX EPC diagram 1903, Alternator, with 4 images and 21 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 27020 | Alternator Assembly | 27060-0L020 · 27060-0L021 · 27060-0L022 · 27060-0L050 · 27060-0L060 · 27060-0L080 · 27060-0L081 · 27060-0L090 · 27060-0L100 |
| 27020E | Bolts (for generator) | 90105-10092 · 90105-T0074 |
| 27039 | Alternator Rear End Cover | 27039-0L020 · 27039-0L030 |
| 27039A | No. 2 generator rear end cover | 27041-0L030 |
| 27063 | Generator cover sub-assembly | 27063-0L030 |
| 27310 | Alternator Drive End Frame Assembly | 27310-0L020 · 27310-0L021 · 27310-0L030 |
| 27310B | Bearing (for Alternator Drive End Frame) | 90068-10024 · 90068-10029 · 90069-40000 |
| 27312 | Retainer Plate | 27312-0C020 · 27312-0L030 |
| 27330 | Alternator Rotor Assembly | 27330-0L050 · 27330-0M040 |
| 27330A | Bearings (for generator rotor) | 90069-40002 |
| 27357 | Generator rectifier frame | 27357-0L050 |
| 27359 | Generator rectifier end frame | 27359-0L030 |
| 27360 | Alternator Stator Coil Assembly | 27360-0L020 · 27360-0L021 · 27360-0L120 · 27360-0L121 · 27360-0L130 |
| 27370 | Alternator Brush Holder Assembly | 27370-0C020 |
| 27384 | Washer | 27384-0C020 |
| 27387 | Terminal Insulator | 27387-0C020 |
| 27410 | Generator stator assembly | 27410-0L040 |
| 27415 | PULLEY, ALTERNATOR W/CLUTCH | 27415-0L010 · 27415-0L020 · 27415-0L030 · 27415-0L040 |
| 27416 | Generator pulley cover | 27416-0L010 · 27416-0L020 · 27416-0L030 · 27416-33010 |
| 27443 | Generator bearing cap | 27443-0L030 |
| 27700A | Generator voltage regulator assembly | 27700-0D020 |
