Toyota HILUX vacuum tube — Figure 1708

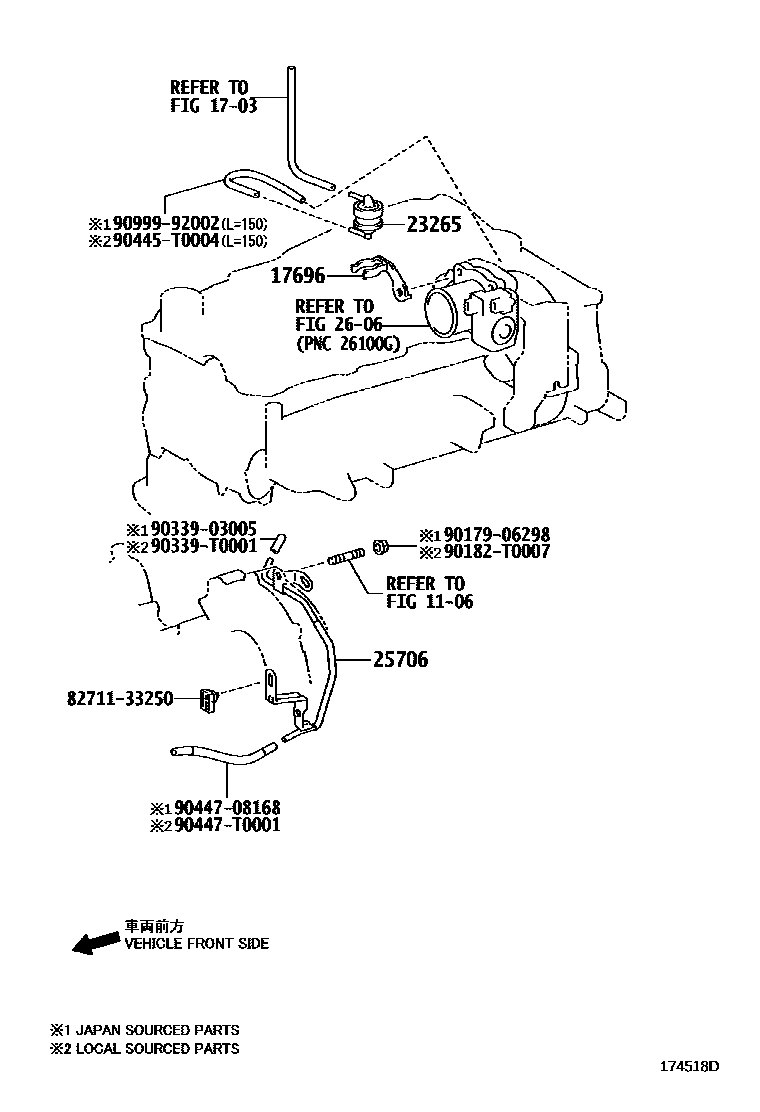

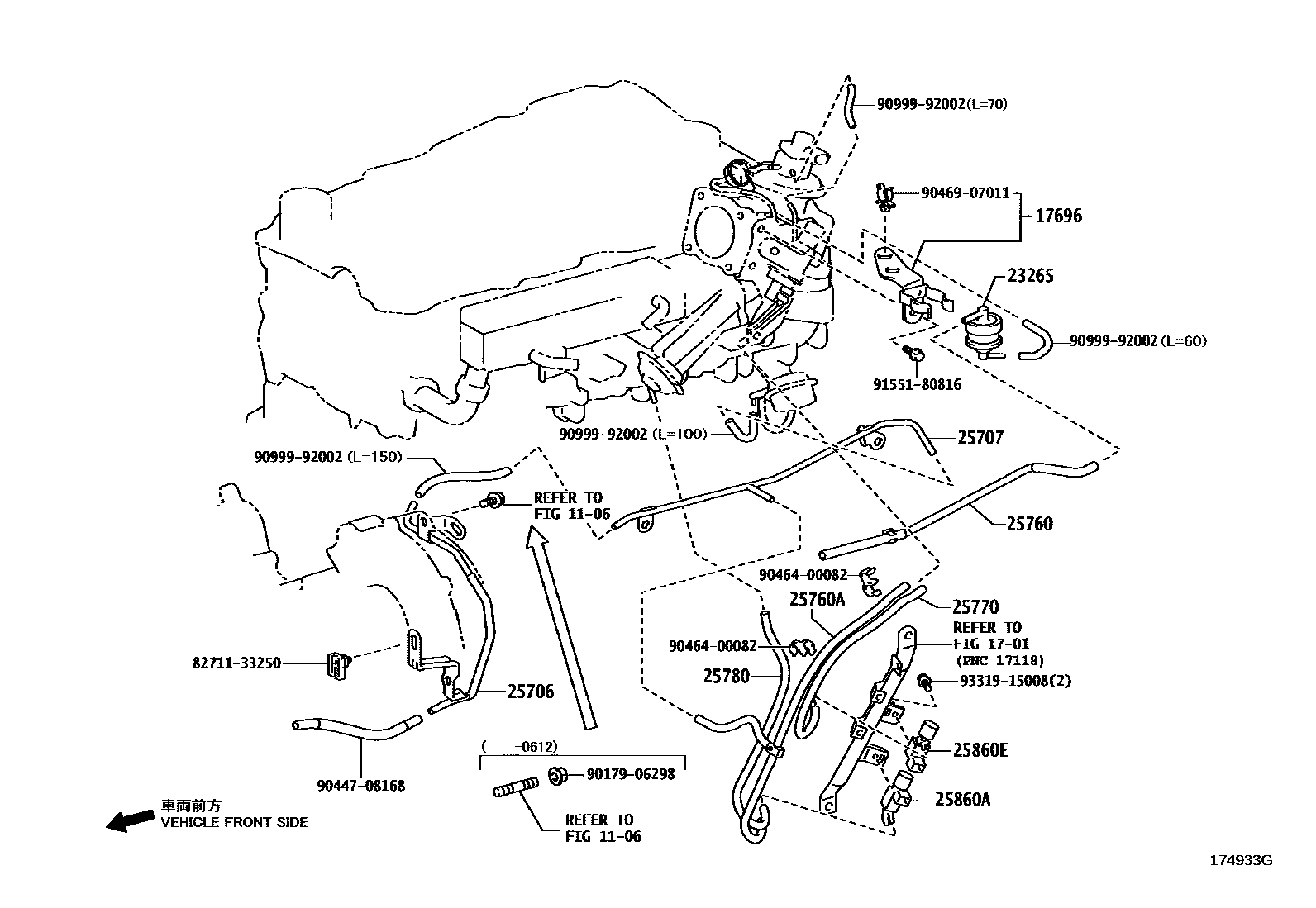

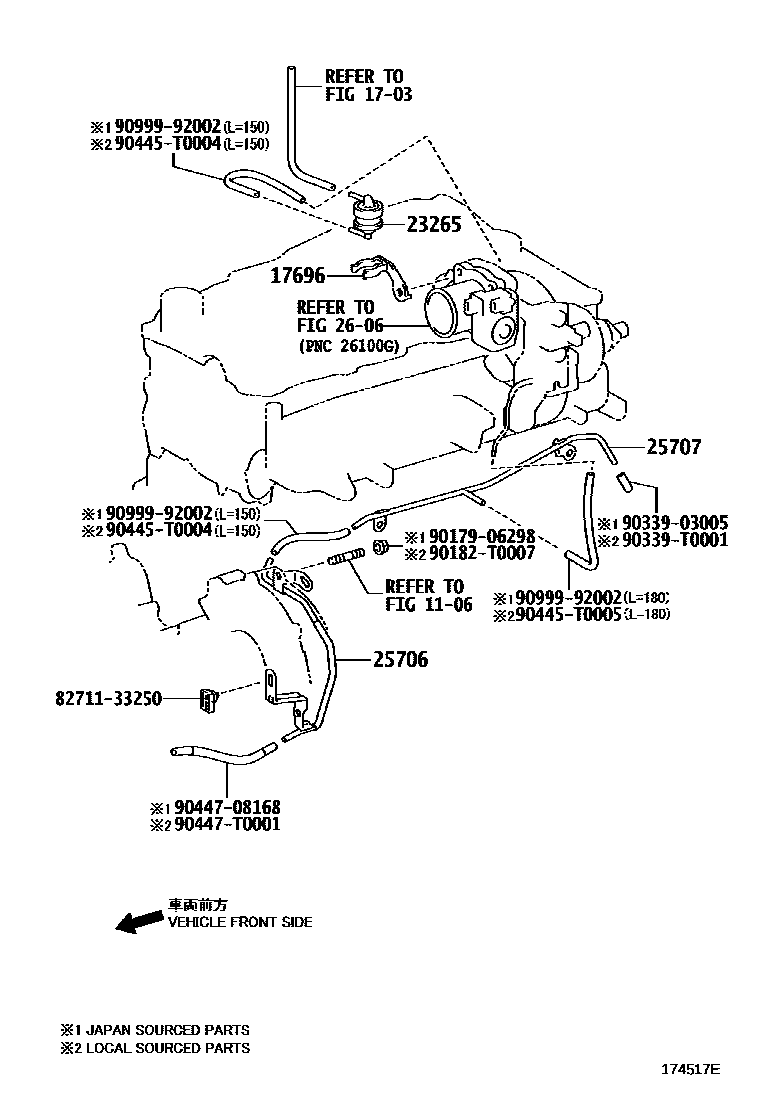

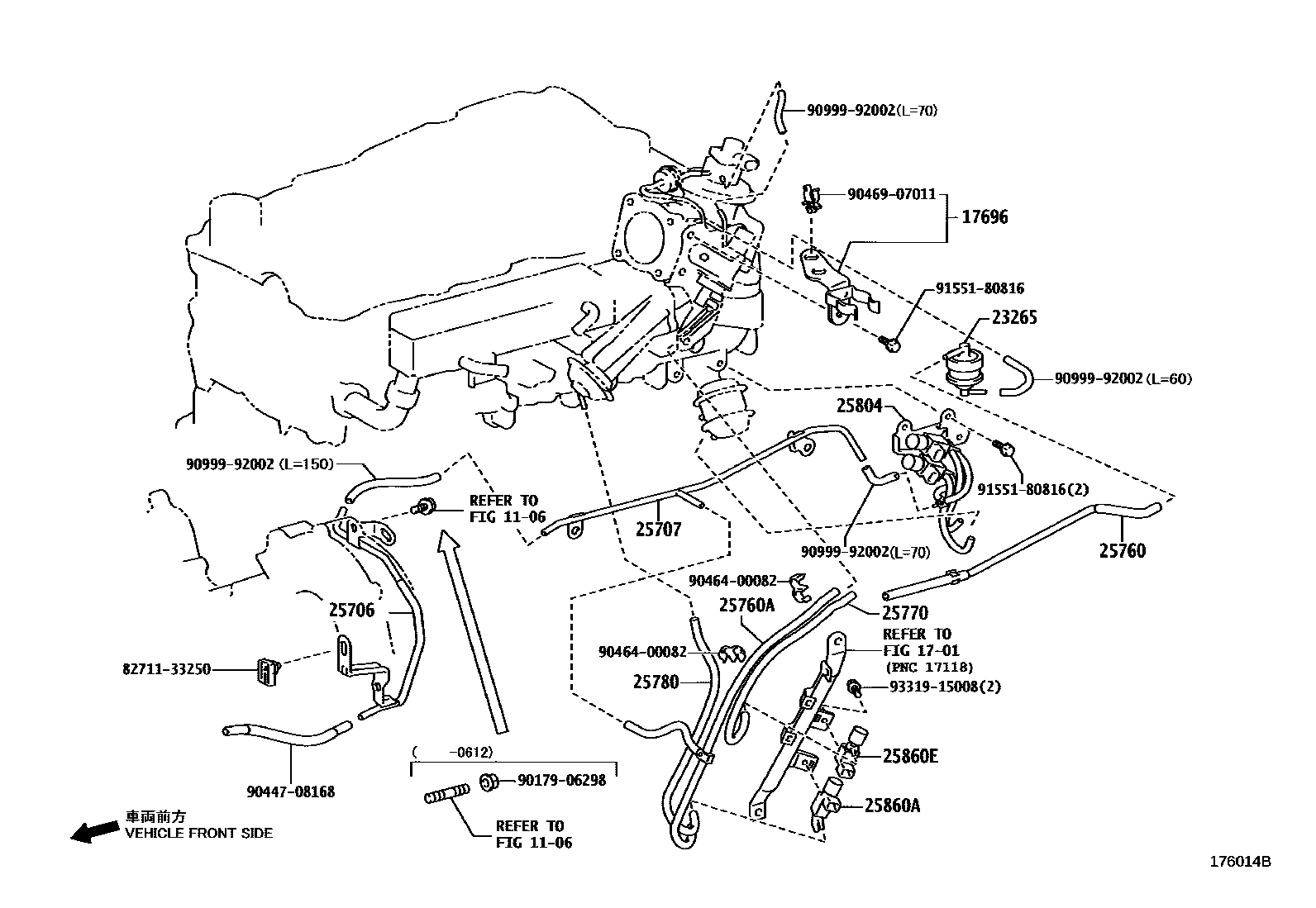

Toyota HILUX EPC diagram 1708, vacuum tube, with 4 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17696 | Gas filter bracket | 17696-0L010 · 17696-30010 · 17696-30020 |
| 23265 | No. 1 gas filter | 90917-11036 · 90917-11044 |
| 25706 | No. 1 vacuum transfer tube sub-assembly | 25706-0L010 · 25706-30020 |
| 25707 | No. 2 vacuum transfer pipe sub-assembly | 25707-0L020 · 25707-30020 |
| 25760 | Vacuum transfer hose assembly | 25760-30060 |
| 25760A | Vacuum transfer hose assembly | 25760-30090 |
| 25770 | No. 2 vacuum transmission hose assembly | 25770-30020 |
| 25780 | No. 3 vacuum transmission hose assembly | 25780-30010 |
| 25804 | Vacuum control valve assembly | 25804-30010 |
| 25860A | No. 1 vacuum switch valve | 90910-12093 |
| 25860E | No. 2 vacuum switch valve | 90910-12184 |
