Toyota HILUX Air Cleaner — Figure 1703

Toyota HILUX EPC diagram 1703, Air Cleaner, with 11 images and 30 PNC and OE references.

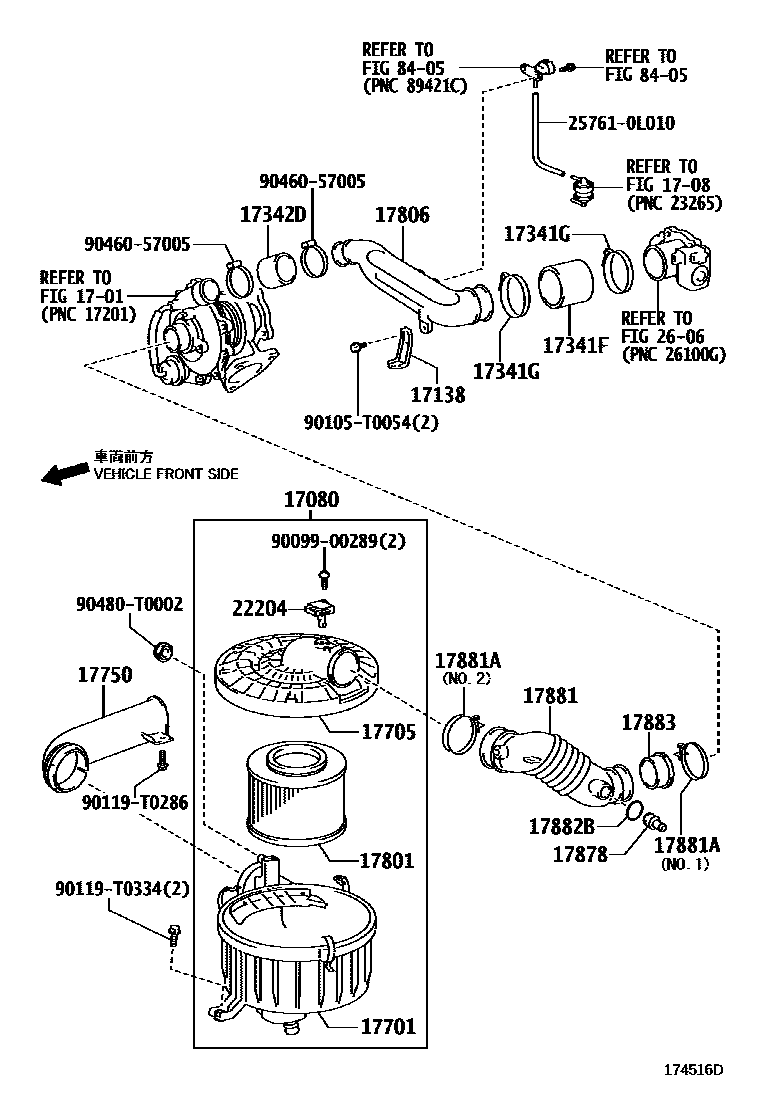

Toyota HILUX Air Cleaner EPC diagram — 174516D — Air Cleaner — 174516D (200507 – 200608)

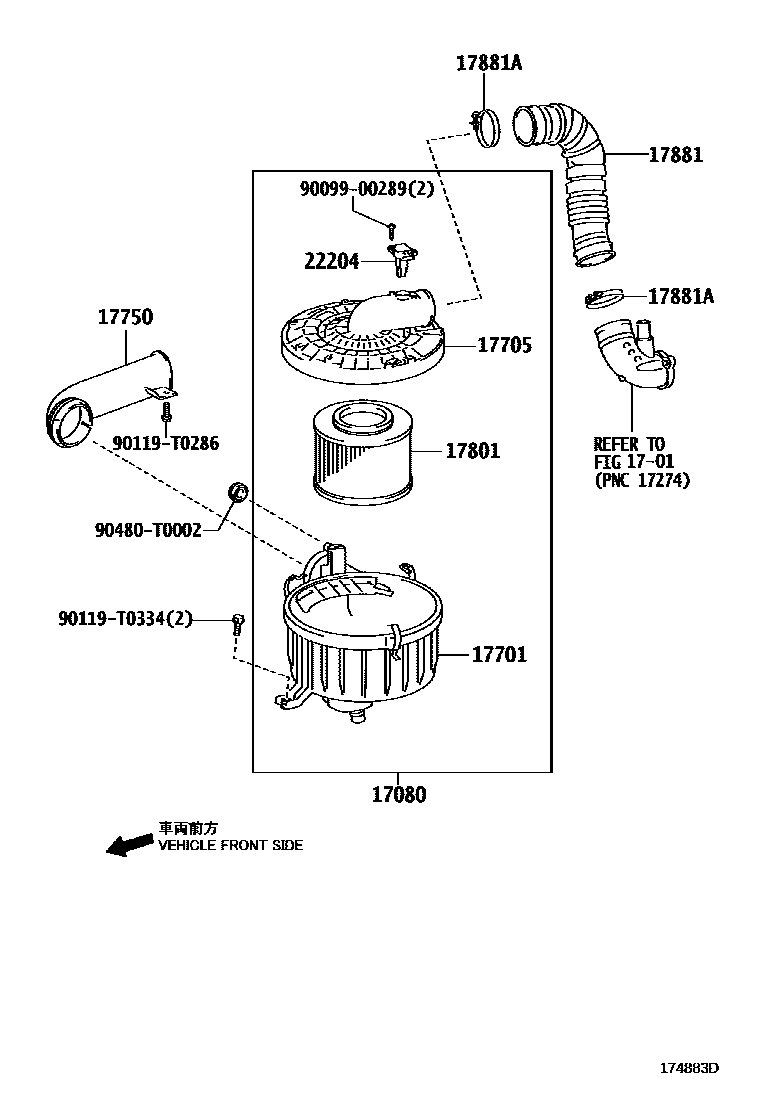

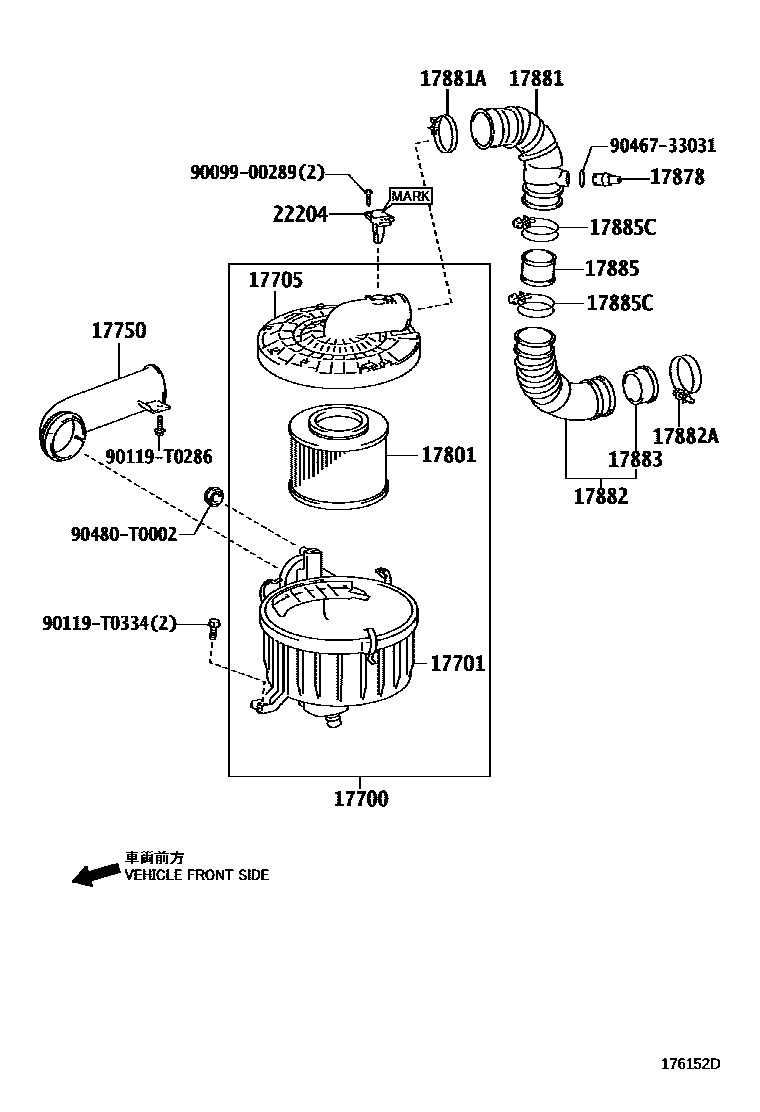

Toyota HILUX Air Cleaner EPC diagram — 174883D — Air Cleaner — 174883D (200608 – 200809)

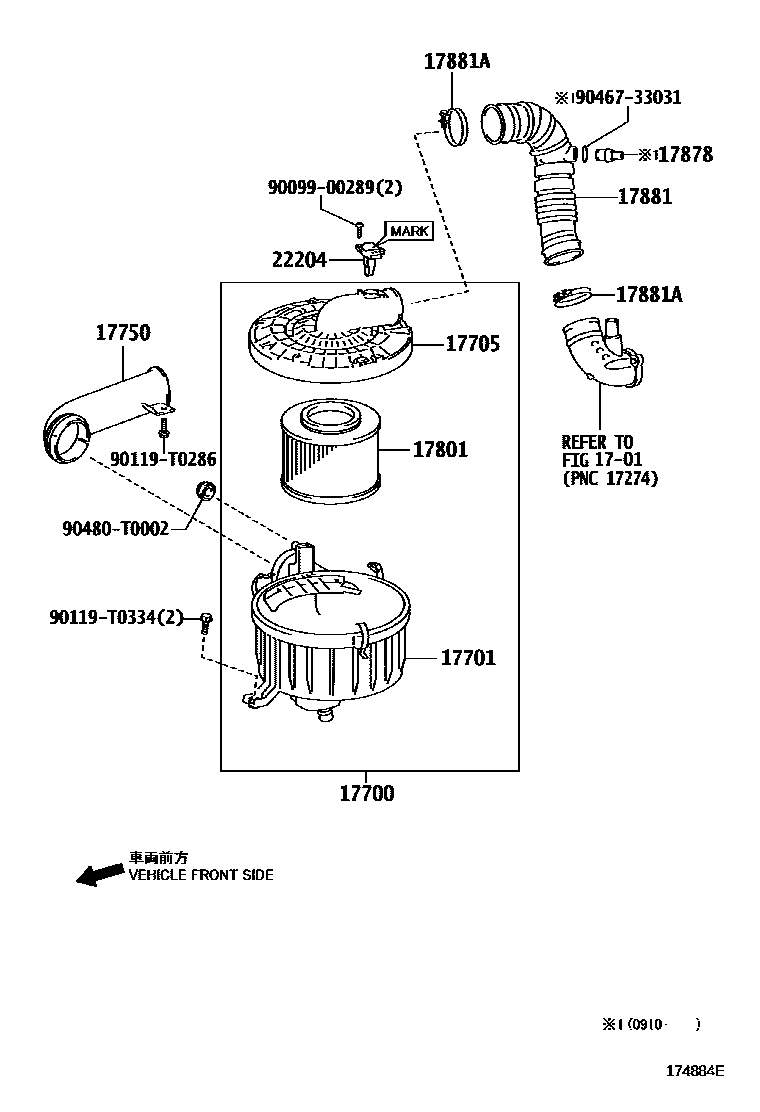

Toyota HILUX Air Cleaner EPC diagram — 174884E — Air Cleaner — 174884E (200610 – 999999)

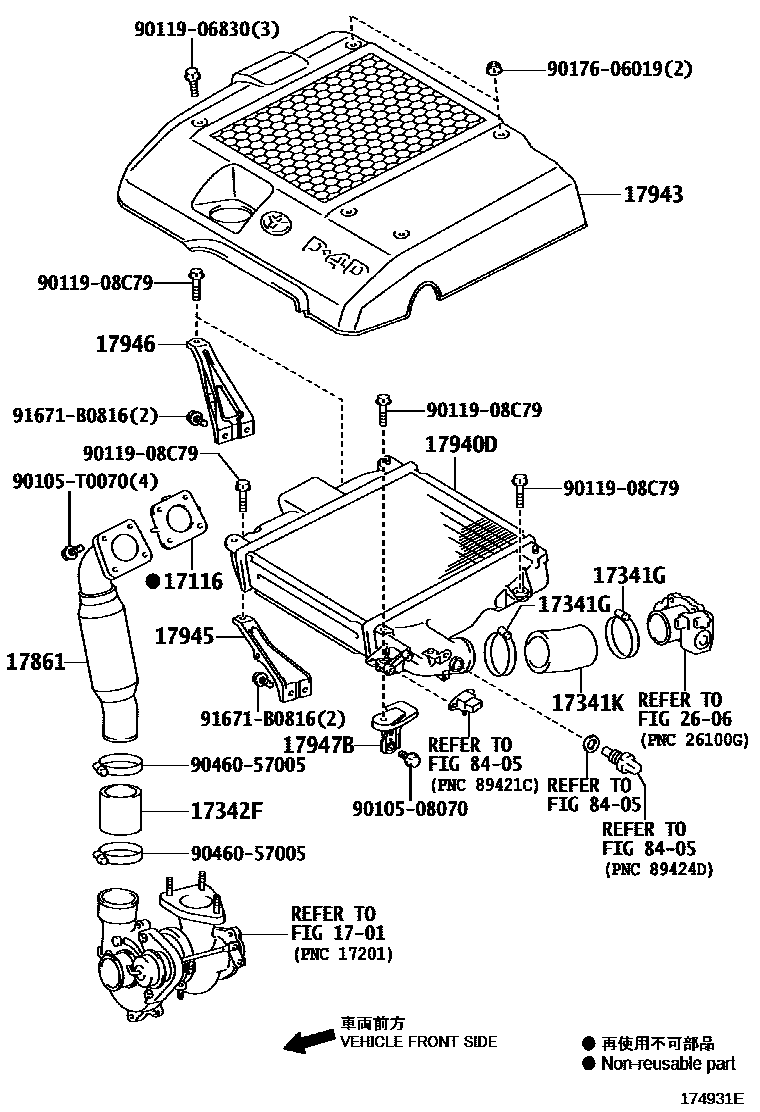

Toyota HILUX Air Cleaner EPC diagram — 174931E — Air Cleaner — 174931E (200608 – 200810)

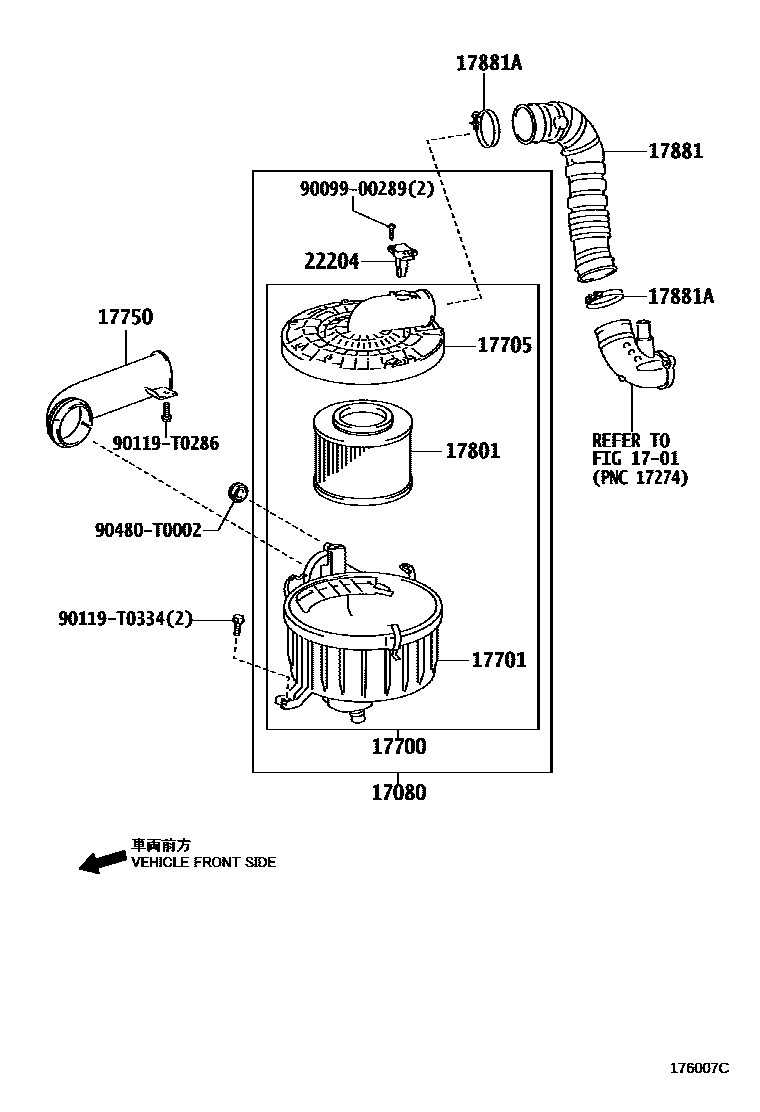

Toyota HILUX Air Cleaner EPC diagram — 176007C — Air Cleaner — 176007C (200702 – 200808)

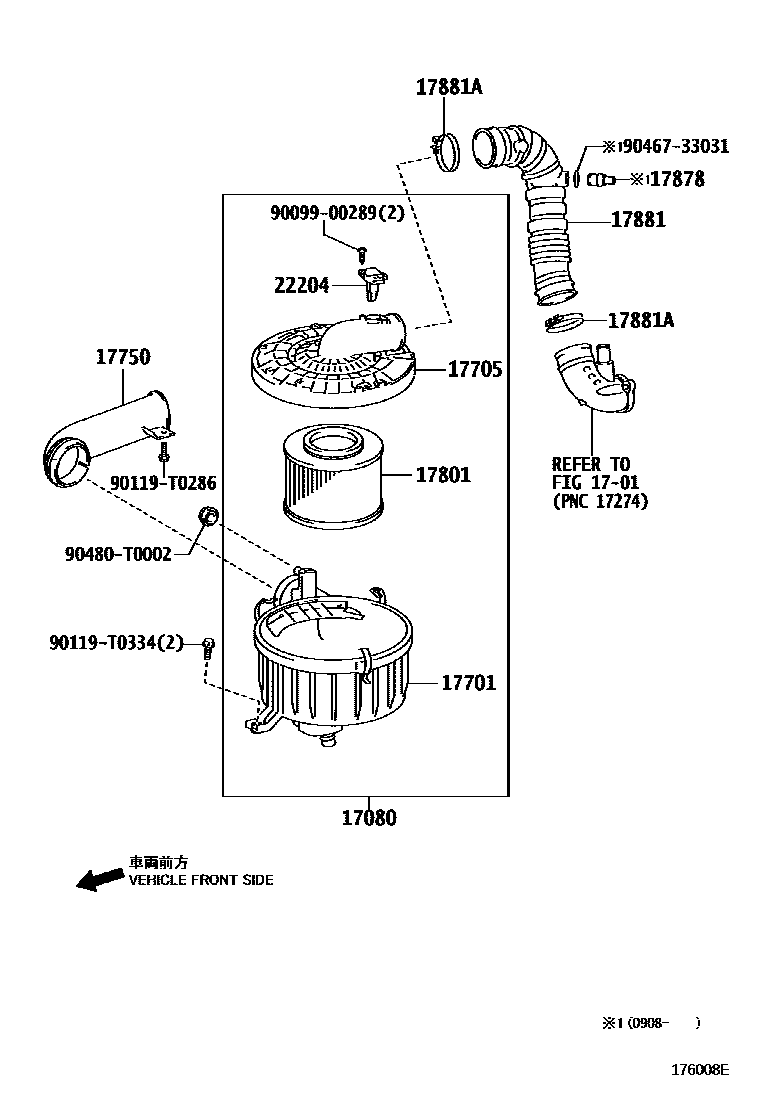

Toyota HILUX Air Cleaner EPC diagram — 176008E — Air Cleaner — 176008E (200808 – 999999)

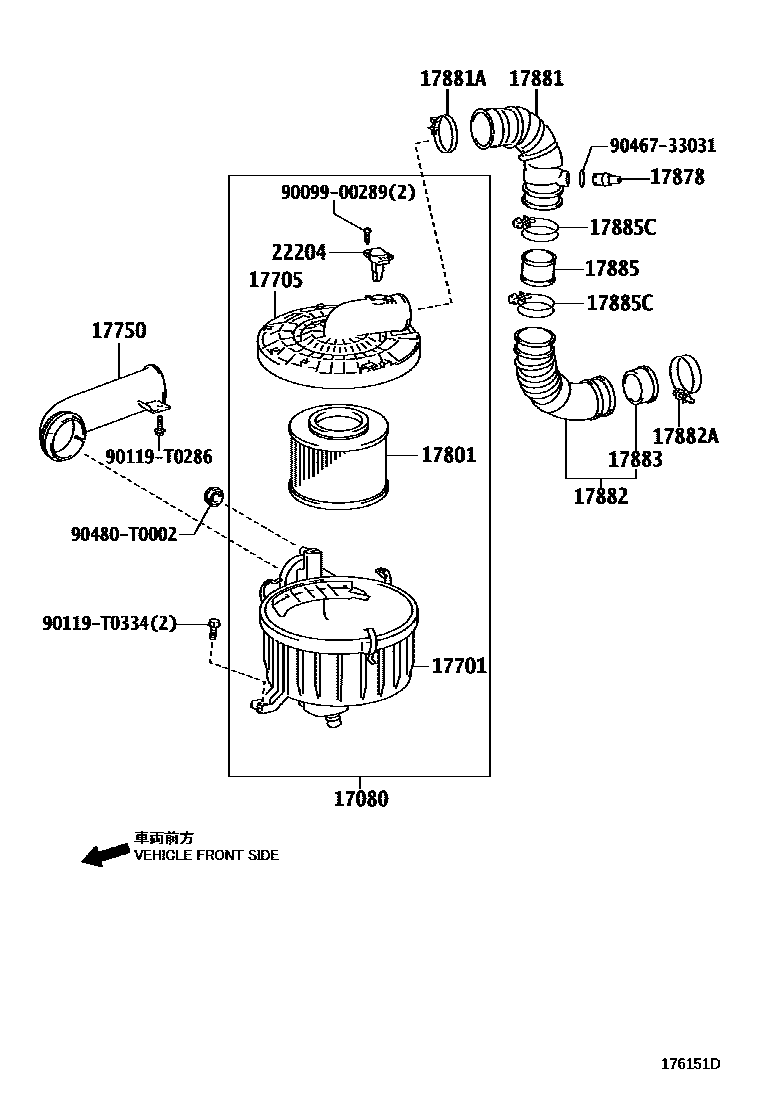

Toyota HILUX Air Cleaner EPC diagram — 176151D — Air Cleaner — 176151D (200809 – 999999)

Toyota HILUX Air Cleaner EPC diagram — 176152D — Air Cleaner — 176152D (200810 – 999999)

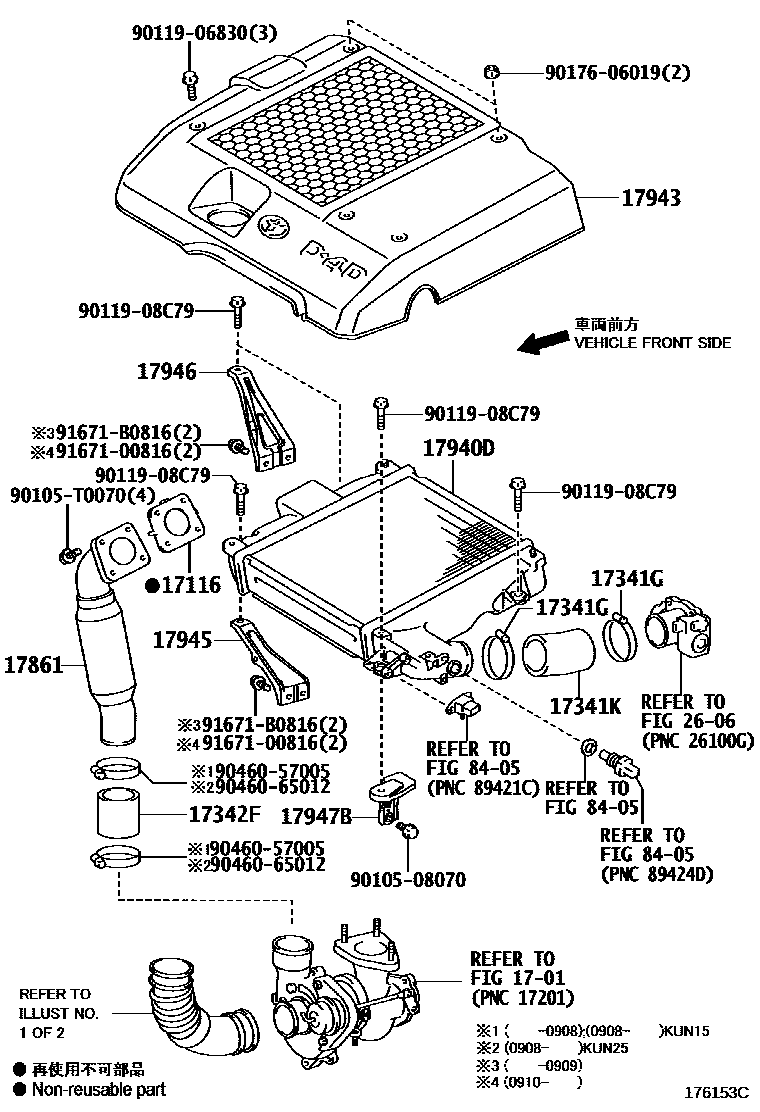

Toyota HILUX Air Cleaner EPC diagram — 176153D — Air Cleaner — 176153D (200809 – 999999)

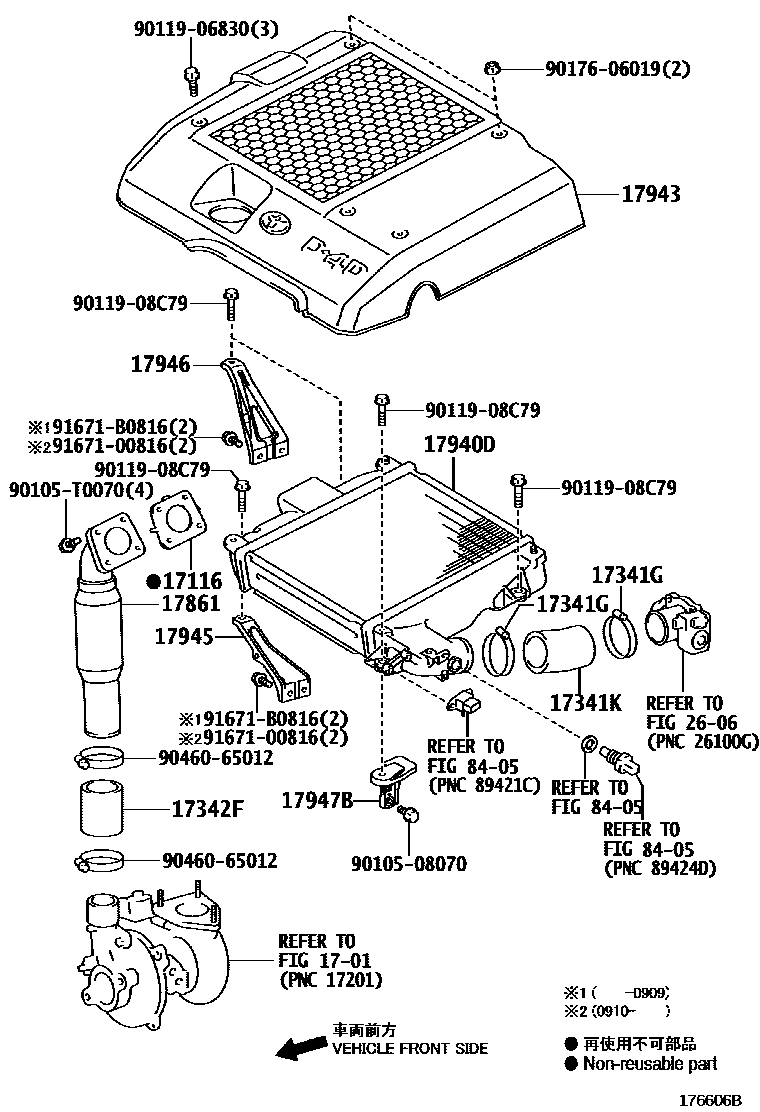

Toyota HILUX Air Cleaner EPC diagram — 176606B — Air Cleaner — 176606B (200610 – 999999)

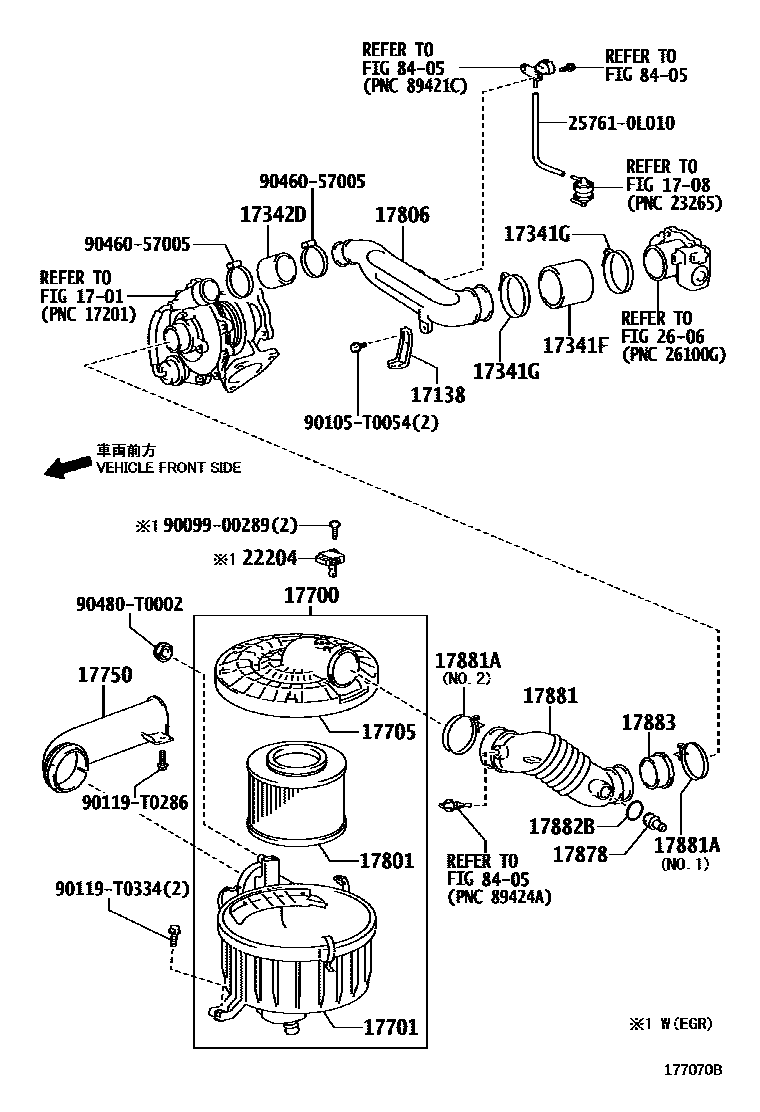

Toyota HILUX Air Cleaner EPC diagram — 177070B — Air Cleaner — 177070B (200507 – 200610)

PNC and OE references

PNC	Part name	OE numbers
17080	Air filter assembly with air flow meter	17080-0L050 · 17080-0L051 · 17080-0L080 · 17080-0L100 · 17080-0L101
17116	Intake flange gasket	17116-0L010
17138	Air intake pipe or air intake hose stay	17138-0L010
17341F	Air hose No. 1	17341-30060
17341G	Clip or clip (for No. 1 air hose)	90460-80006
17341K	Air hose No. 1 (for intercooler)	17341-30060
17342D	Air hose No. 2	17342-30050
17342F	Air hose No. 2 (for intercooler)	17342-30010 · 17342-30050
17700	air filter assembly	17700-0L050 · 17700-0L051 · 17700-0L060 · 17700-0L061 · 17700-0L100 · 17700-0L140 · 17700-0L170 · 17700-0L171
17701	Air filter housing sub-assembly	17701-0C080 · 17701-0C081 · 17701-0C100 · 17701-0C101
17705	Air filter cover sub-assembly	17705-0L020 · 17705-0L030 · 17705-0L070 · 17705-0L100 · 17705-0L110 · 17705-0L130 · 17705-0L140
17750	Air filter air inlet cover seal assembly	17751-0L010 · 17751-0L030
17801	Air filter element sub-assembly	17801-0C010
17806	No. 2 air filter pipe assembly	17113-0L020
17861	Intake connecting pipe	17860-30030 · 17860-30040
17878	No. 3 air intake connecting pipe	17878-0L010 · 17878-0L011 · 17878-0L040
17881	No. 1 air cleaner hose	17881-0L030 · 17881-0L050 · 17881-0L051 · 17881-0L052 · 17881-0L080 · 17881-0L081 · 17881-0L110 · 17881-0L170 · 17881-0L180
17881A	Clamp (for No. 1 air cleaner hose)	90460-T0004 · 90460-T0005
17882	No. 2 air cleaner hose	17882-0L010
17882A	Clamp (for No. 2 air cleaner hose)	90460-T0004
17882B	Clamp (for cold air intake pipe)	90467-31110
17883	No. 3 air cleaner hose	17883-0L010
17885	air cleaner tube	17885-0L010 · 17885-30050
17885C	Clamp (for No. 5 air cleaner hose)	96111-10830
17940D	Intercooler assembly	17940-0L030 · 17940-0L060
17943	Intercooler protection device	12601-0L050
17945	intercooler bracket	17945-30080
17946	No. 2 intercooler bracket	17946-30040
17947B	Intercooler bracket No. 3	17947-30010 · 17947-30020
22204	Intake air flow meter assembly	22204-0L010 · 22204-0N010
