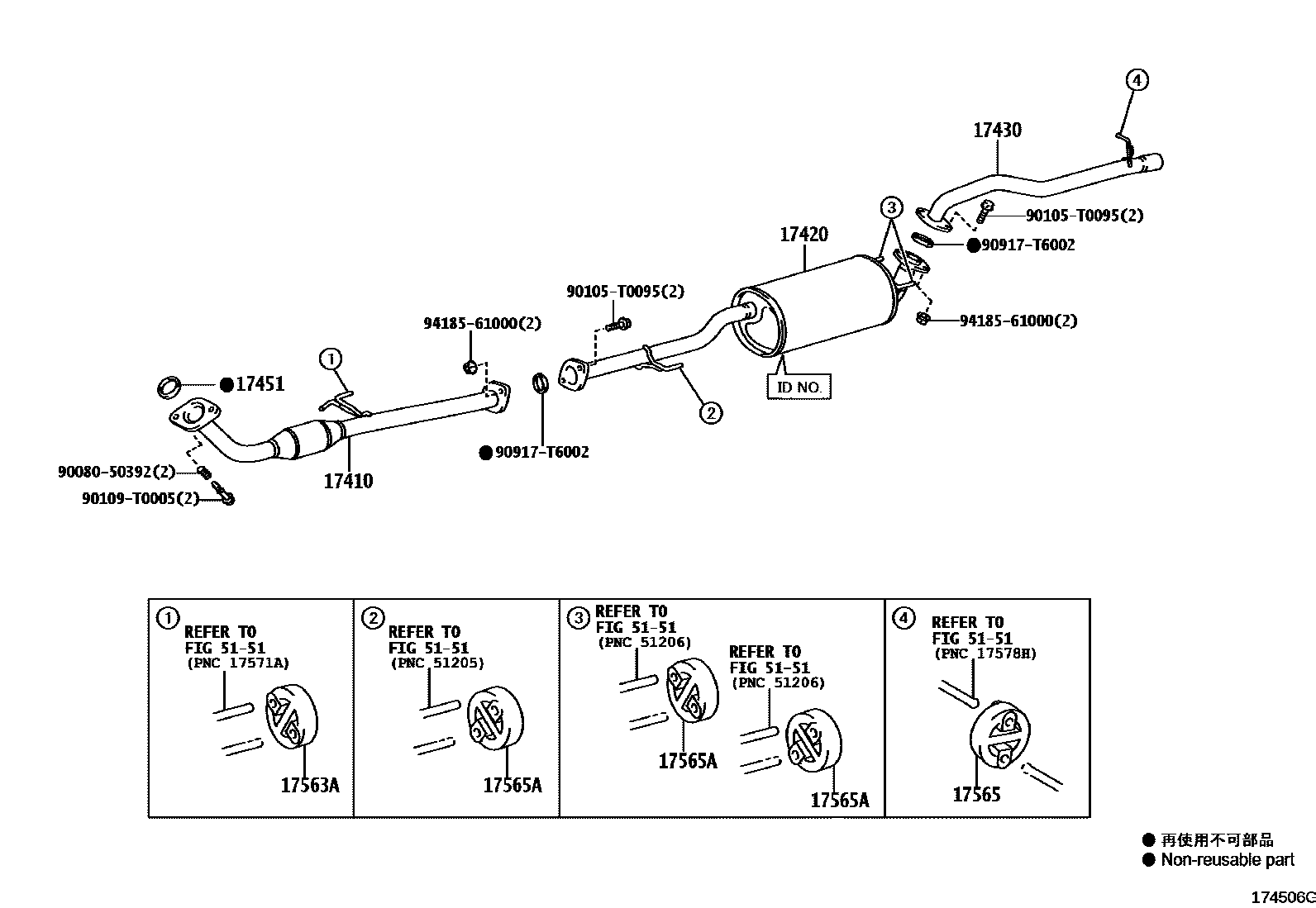

Toyota HILUX Exhaust Pipe — Figure 1702
Toyota HILUX EPC diagram 1702, Exhaust Pipe, with 1 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17410 | Front exhaust pipe assembly | 17401-0L060 · 17401-0L070 · 17401-0L080 · 17401-0L090 · 17401-0L100 |
| 17420 | Central exhaust pipe assembly | 17403-0L060 · 17403-0L061 · 17403-0L080 |
| 17430 | Exhaust tailpipe assembly | 17405-0L110 · 17405-0L111 |
| 17451 | Exhaust pipe gasket | 17451-0L010 |
| 17563A | No. 3 exhaust pipe lifting lug | 17565-0M010 |
| 17565 | No. 5 exhaust pipe lifting lug | 17565-0M010 |
| 17565A | No. 4 exhaust pipe lifting lug | 17565-0M010 |
