Toyota HILUX Manifold — Figure 1701

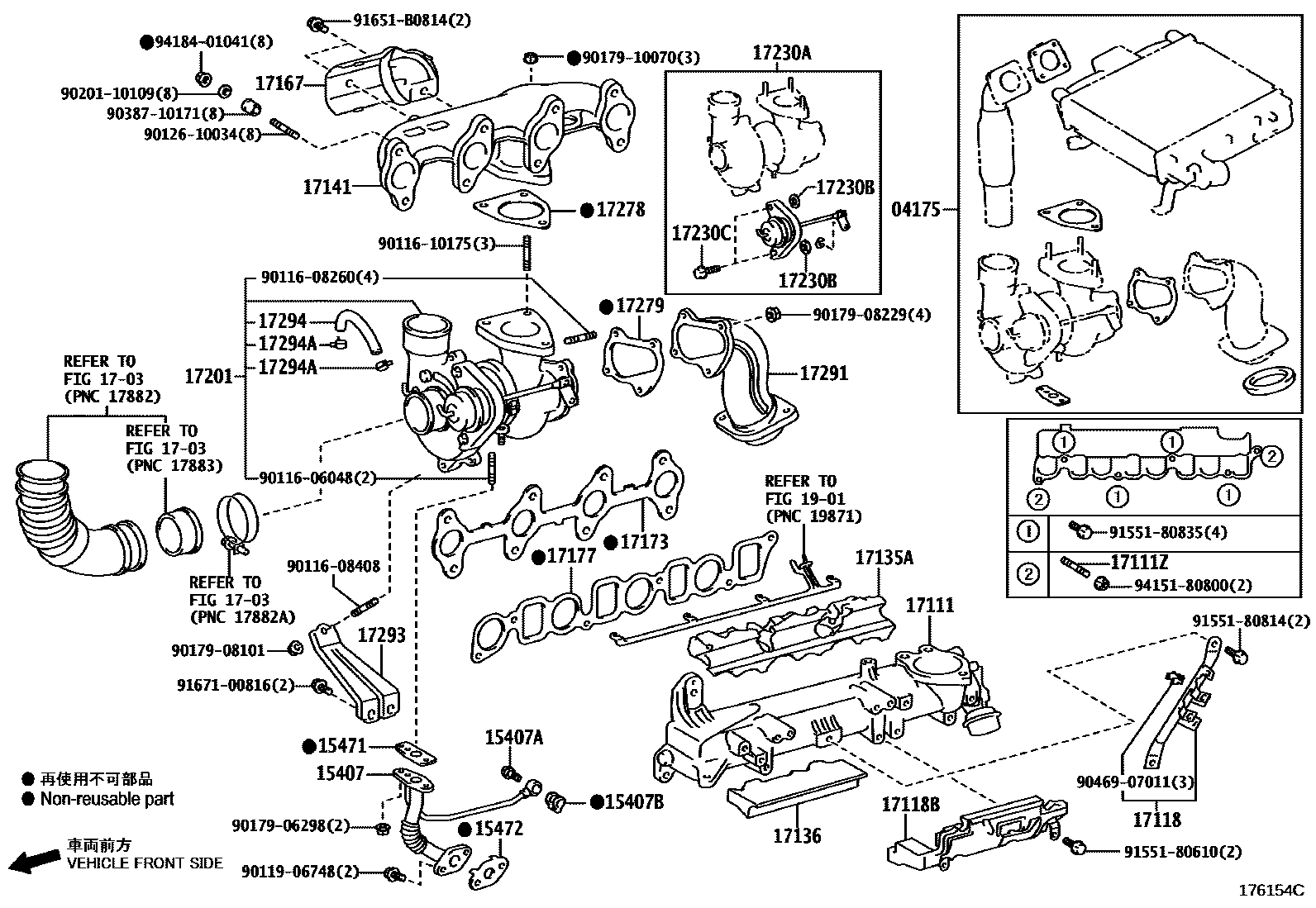

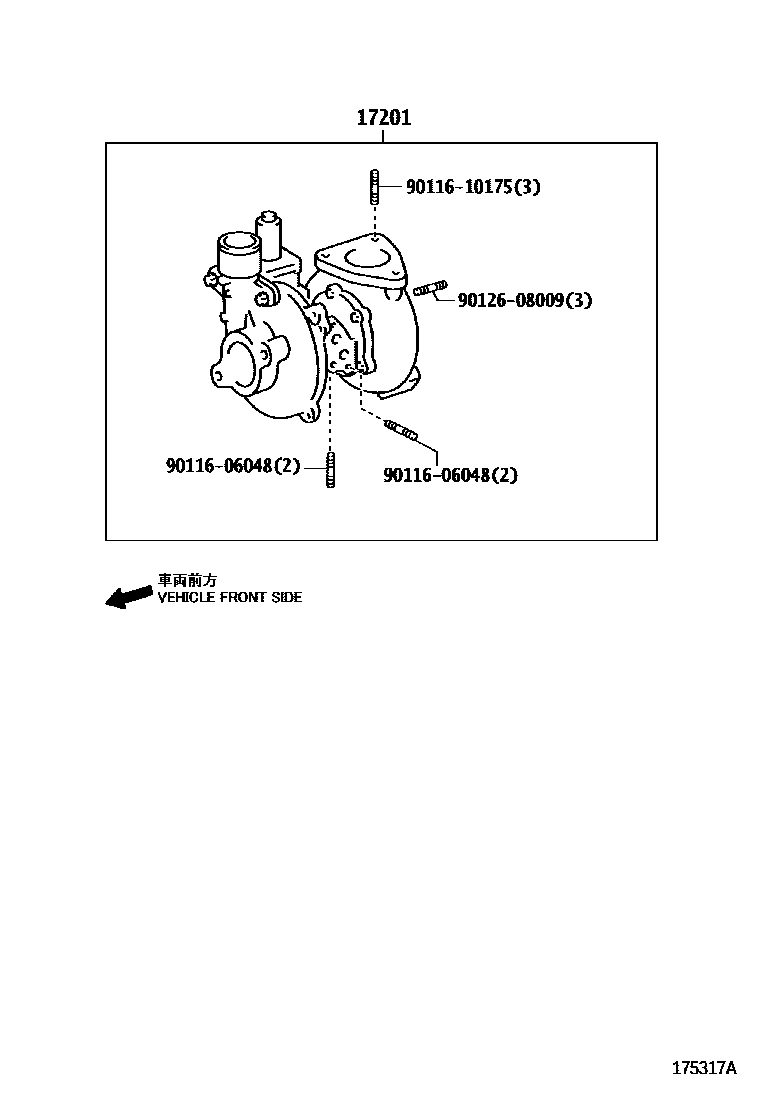

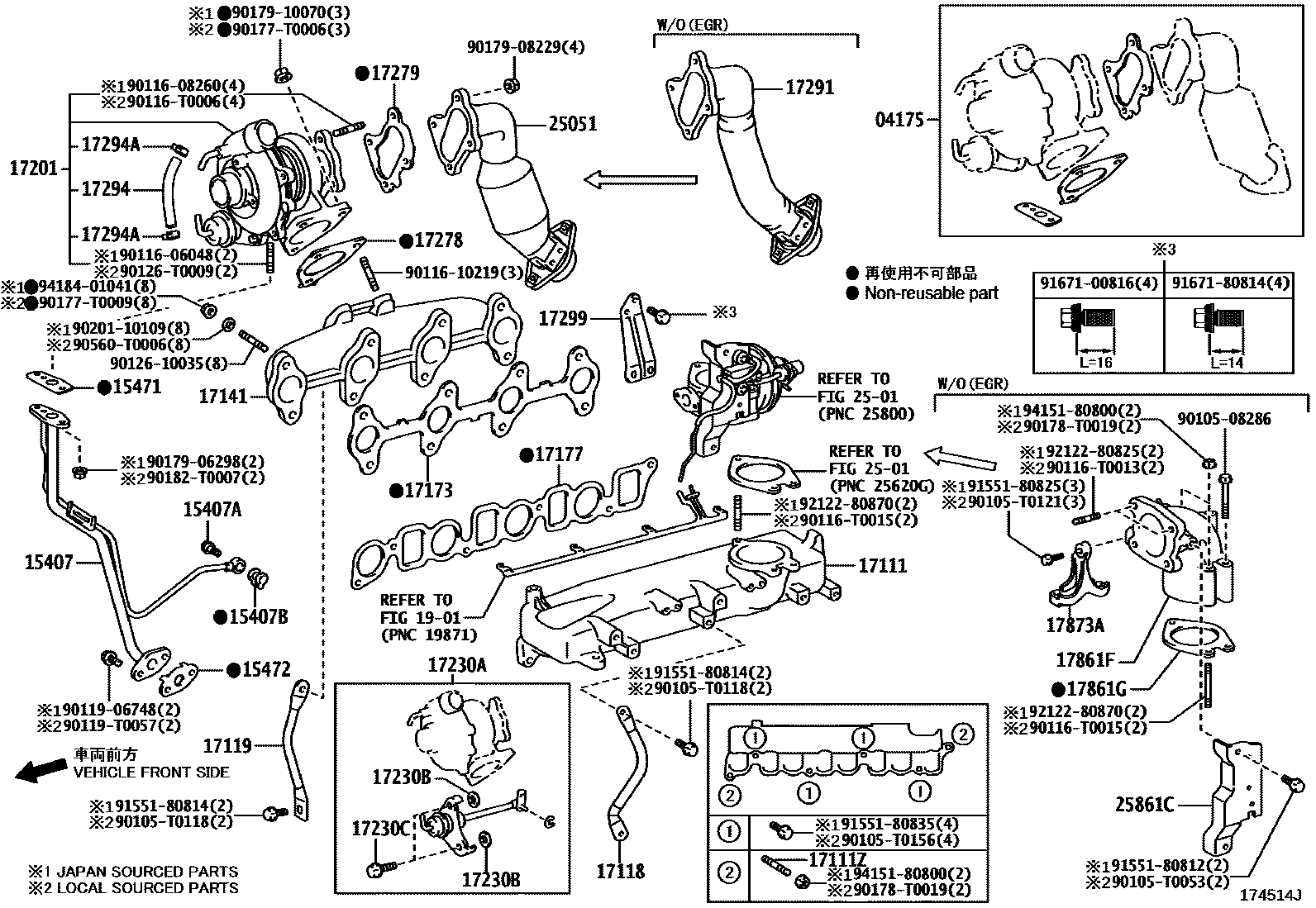

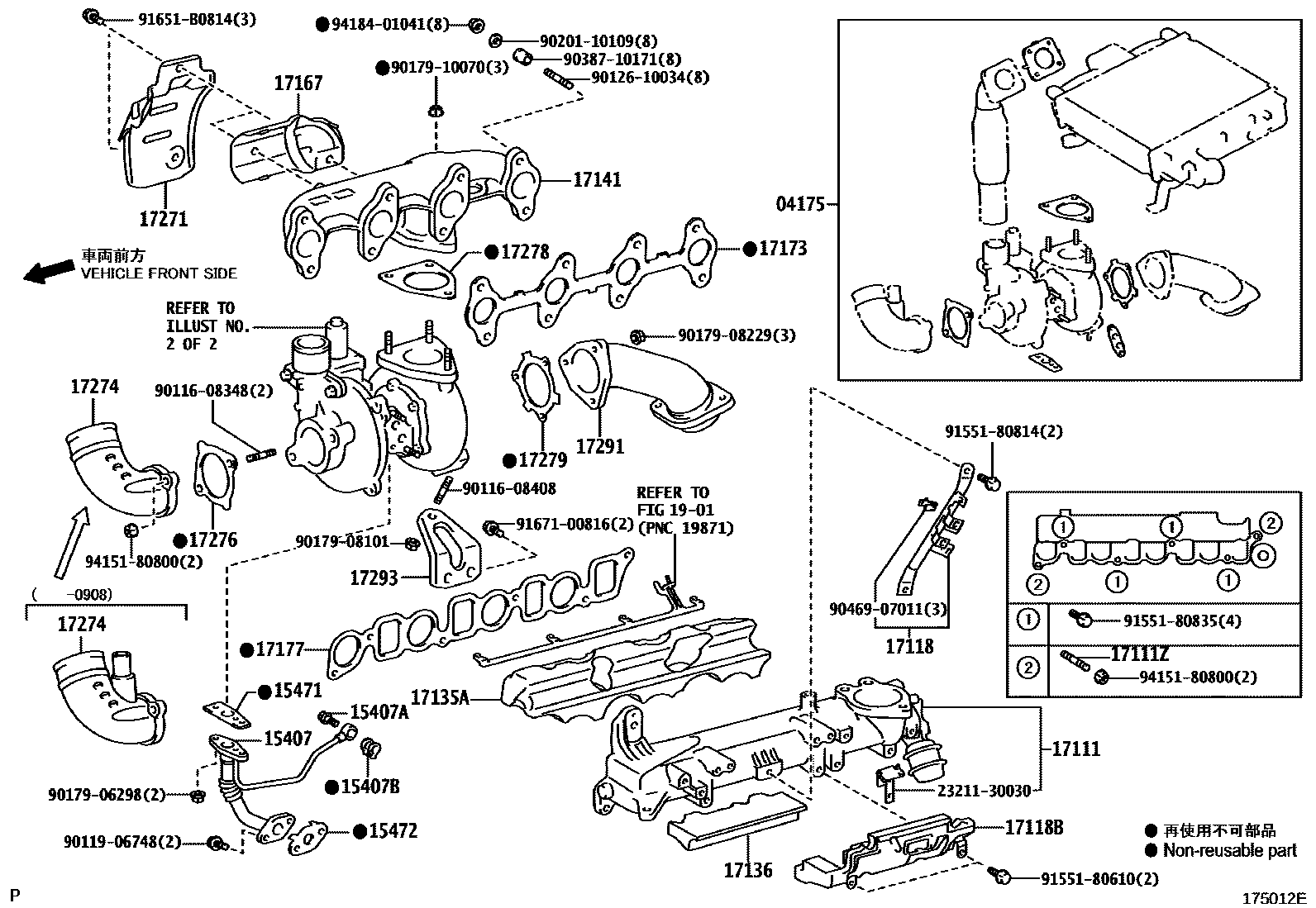

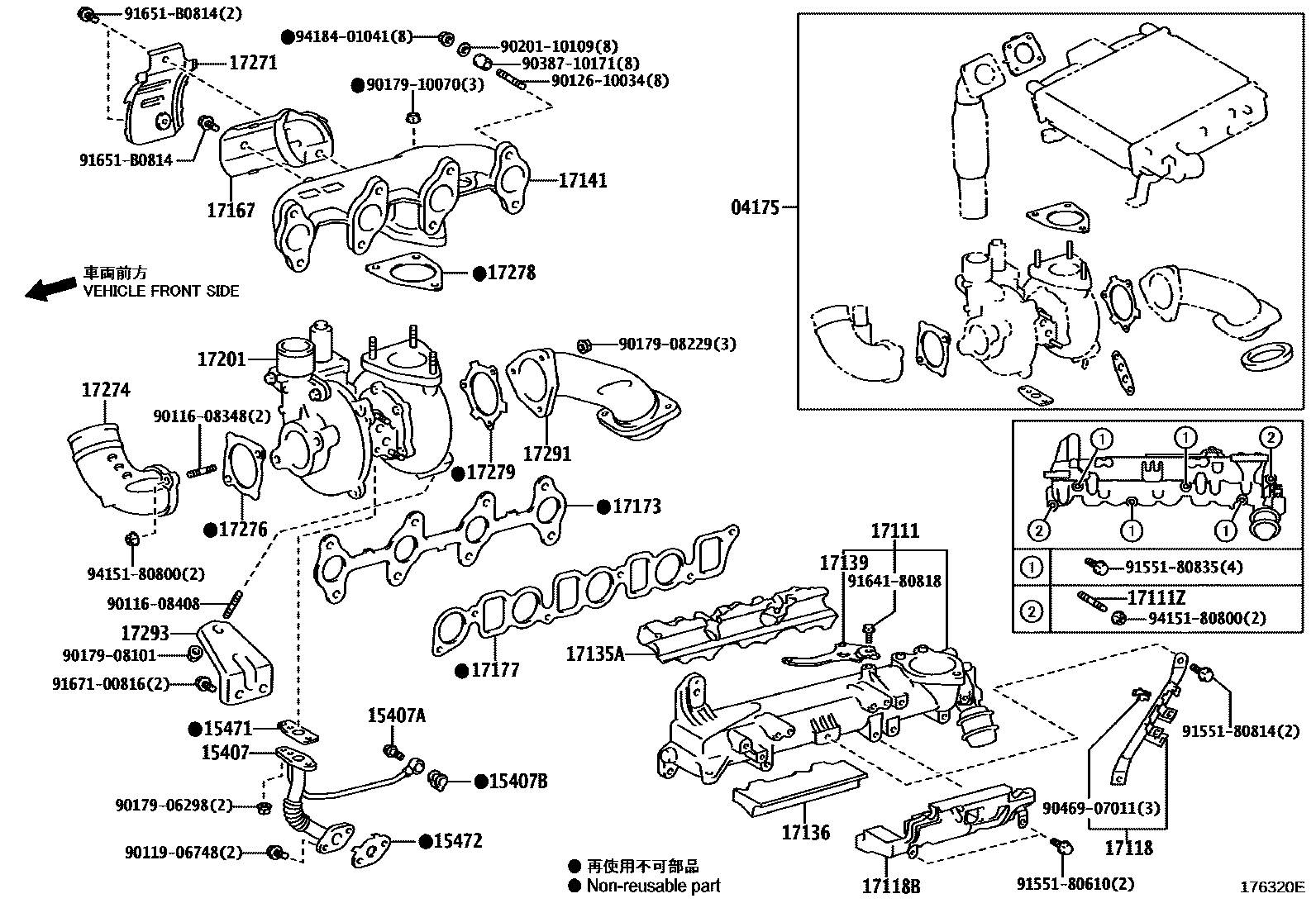

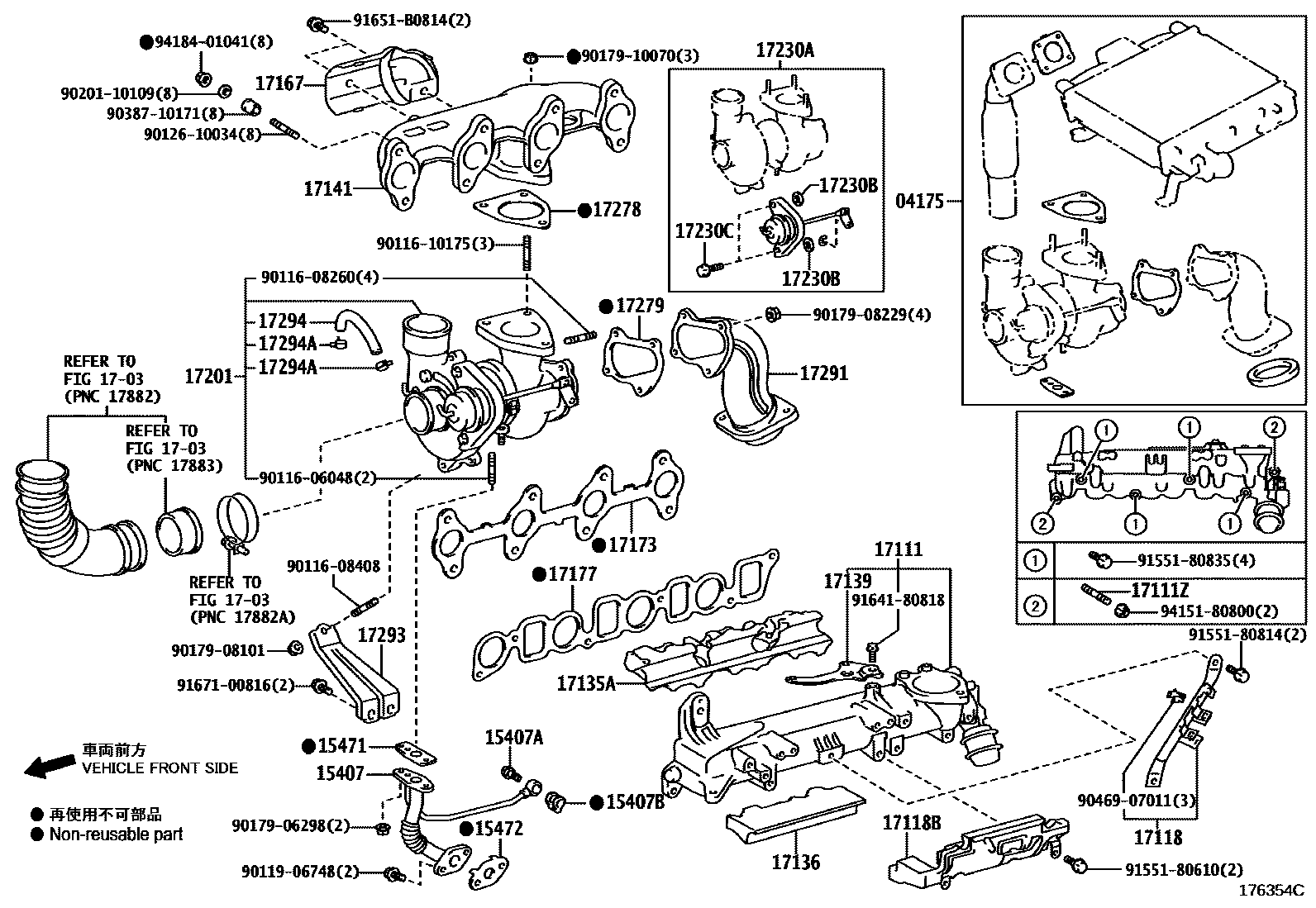

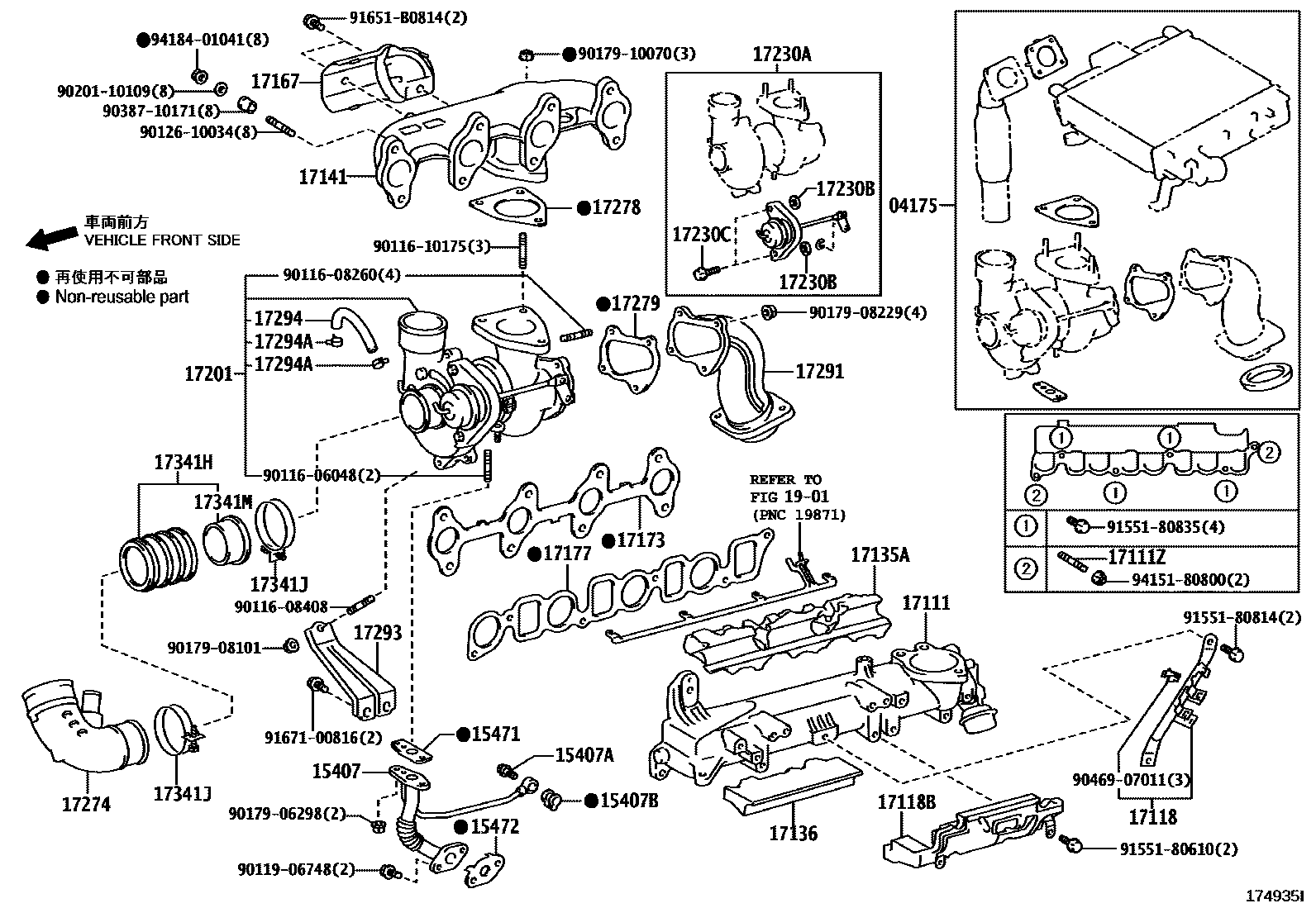

Toyota HILUX EPC diagram 1701, Manifold, with 7 images and 40 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04175 | Turbocharger gasket assembly | 04175-0L010 · 04175-30140 · 04175-30141 · 04175-30160 · 04175-30161 |
| 15407 | Turbine oil inlet pipe sub-assembly | 15407-0L010 · 15407-30031 · 15407-30032 · 15407-30050 · 15407-30060 · 15407-30061 · 15407-30120 |
| 15407A | Connector bolt (for turbine oil inlet pipe) | 90401-12097 · 90401-T0004 |
| 15407B | Gasket (for turbine oil inlet pipe) | 90430-T0006 · 90904-30004 |
| 15471 | Turbine oil inlet pipe gasket | 15471-0L010 · 15471-30010 · 15471-30011 |
| 15472 | No. 1 turbine oil outlet pipe gasket | 15472-0L010 · 15472-30010 · 15472-67010 |
| 17111 | Intake Manifold | 17101-0L030 · 17101-30040 · 17101-30050 · 17111-0L020 · 17111-30100 |
| 17111Z | Stud bolts (for intake manifold to cylinder head) | 90116-T0011 · 92122-80822 |
| 17118 | Manifold stays | 17118-0L030 · 17118-30070 · 17118-30090 |
| 17118B | Intake manifold heat shield | 17853-30010 |
| 17119 | No. 2 manifold stay | 17118-0L040 · 17118-30080 |
| 17135A | Intake manifold No. 1 heat shield | 17135-30011 |
| 17136 | Intake manifold No. 2 heat shield | 17136-30010 |
| 17139 | No. 2 manifold stay | 17139-0L010 |
| 17141 | exhaust manifold | 17141-0L010 · 17141-0L050 · 17141-30060 · 17141-30070 |
| 17167 | Exhaust manifold No. 1 heat shield | 17167-30020 |
| 17173 | Gasket (exhaust manifold to cylinder head) | 17173-0L010 · 17173-30020 · 17173-30030 |
| 17177 | No. 1 gasket (intake manifold to cylinder head) | 17177-0L011 · 17177-30011 |
| 17201 | Turbocharger sub-assembly | 17201-0L030 · 17201-0L070 · 17201-30110 · 17201-30120 · 17201-30140 · 17201-30141 |
| 17230A | Compensation actuator assembly with bracket | 17230-39085 · 17230-39115 |
| 17230B | Flat Washer (for compensating actuator assembly) | 90201-06042 · 90201-06043 · 90201-06044 · 90201-06045 |
| 17230C | Bolt with washer (for compensating actuator assembly) | 91621-60620 |
| 17271 | No. 1 turbine vibration isolation pad | 17271-0L020 · 17271-30030 |
| 17274 | Compressor oil inlet elbow pipe | 17274-0L020 · 17274-30020 · 17274-30110 |
| 17276 | Compressor oil inlet gasket | 17276-67010 |
| 17278 | Gasket (turbo to exhaust manifold) | 17278-0L010 · 17278-67010 |
| 17279 | Turbine outlet elbow gasket | 17279-0L020 · 17279-30020 · 17279-30030 |
| 17291 | Turbine oil outlet elbow | 17291-0L040 · 17291-0L050 · 17291-0L060 · 17291-30020 · 17291-30050 |
| 17293 | Turbocharger stay | 17293-0L050 · 17293-30040 · 17293-30080 |
| 17294 | Actuator hose | 90445-12151 · 90445-12251 · 90445-T0010 |
| 17294A | Clamp (for actuator hose) | 90466-12003 · 90466-T0008 · 96132-51100 |
| 17299 | Turbine oil outlet elbow brace | 17299-0L010 · 17299-0L020 · 17299-30030 |
| 17341H | air hose | 17880-0L050 |
| 17341J | hose clamp | 96111-10650 |
| 17341M | Air hose No. 1 | 17883-0L010 |
| 17861F | Intake connecting pipe | 17861-0L020 · 17861-30080 |
| 17861G | Intake connecting pipe gasket | 26171-0L010 · 26171-30030 |
| 17873A | No. 2 intake connecting pipe bracket | 26127-0L010 · 26127-30020 |
| 25051 | Exhaust manifold three-way catalytic converter sub-assembly | 25051-0L030 · 25051-0L040 · 25051-30030 |
| 25861C | Vacuum switch valve bracket | 25861-30050 |
