Toyota HILUX RADIATOR & WATER OUTLET — Figure 1603

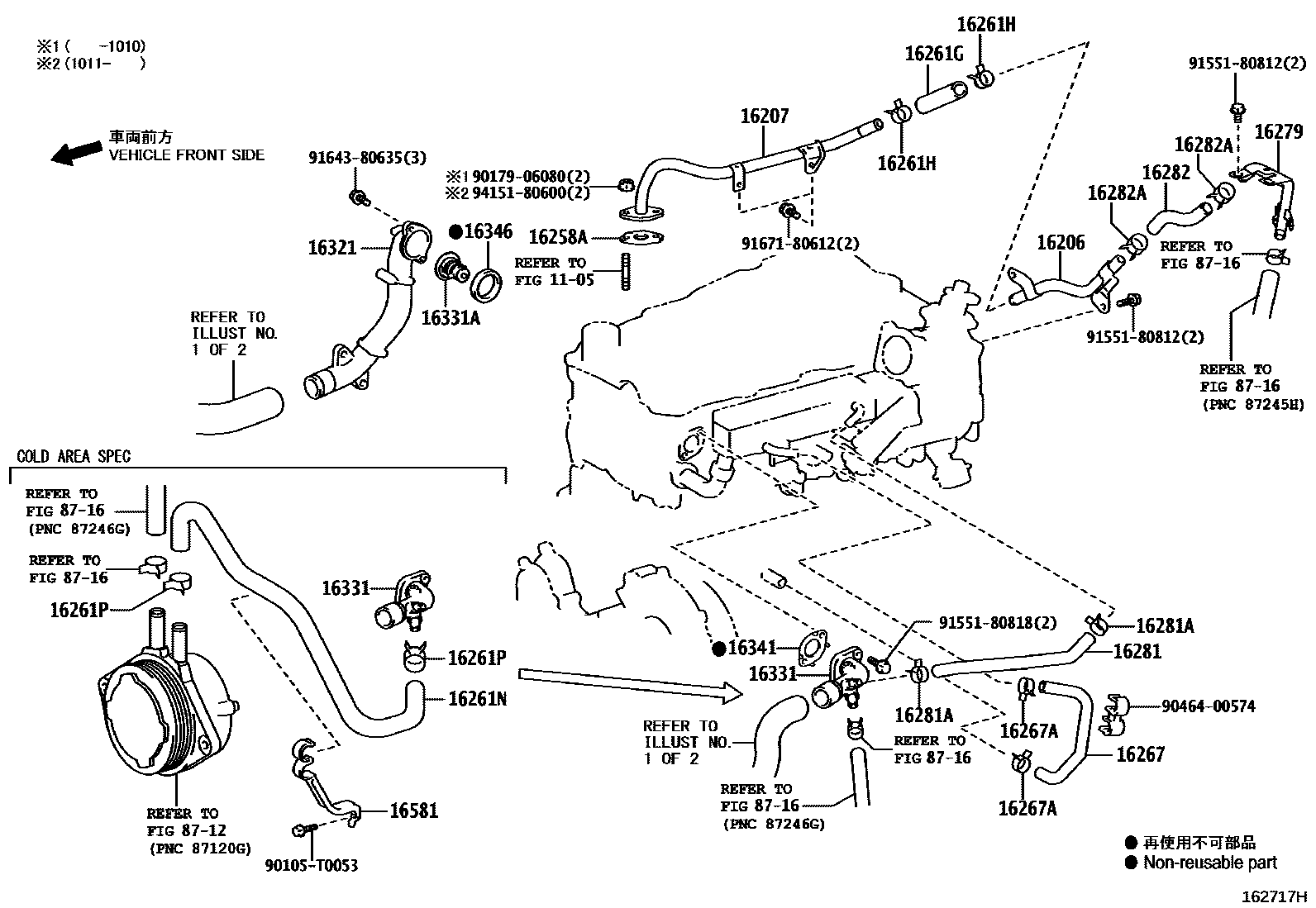

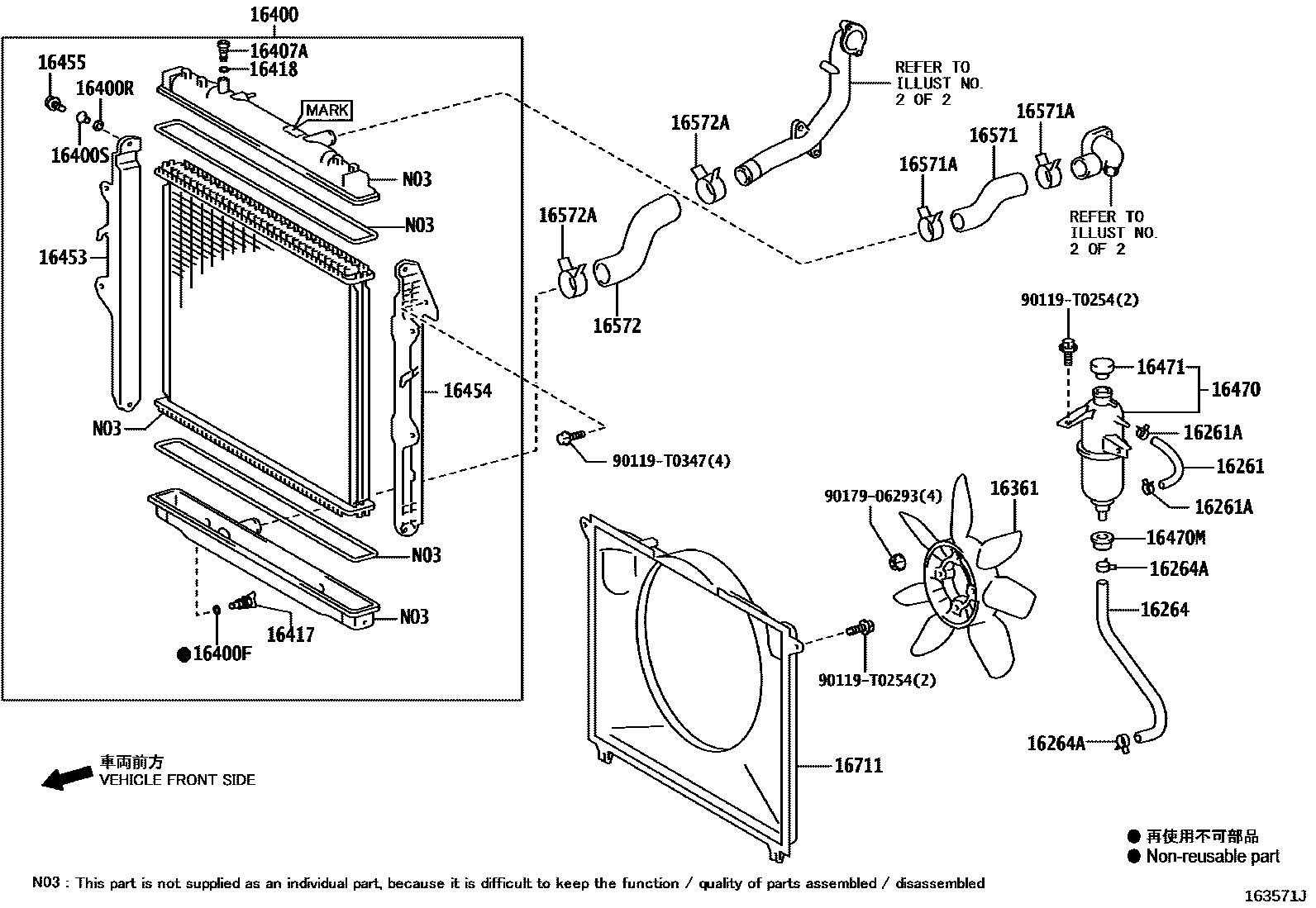

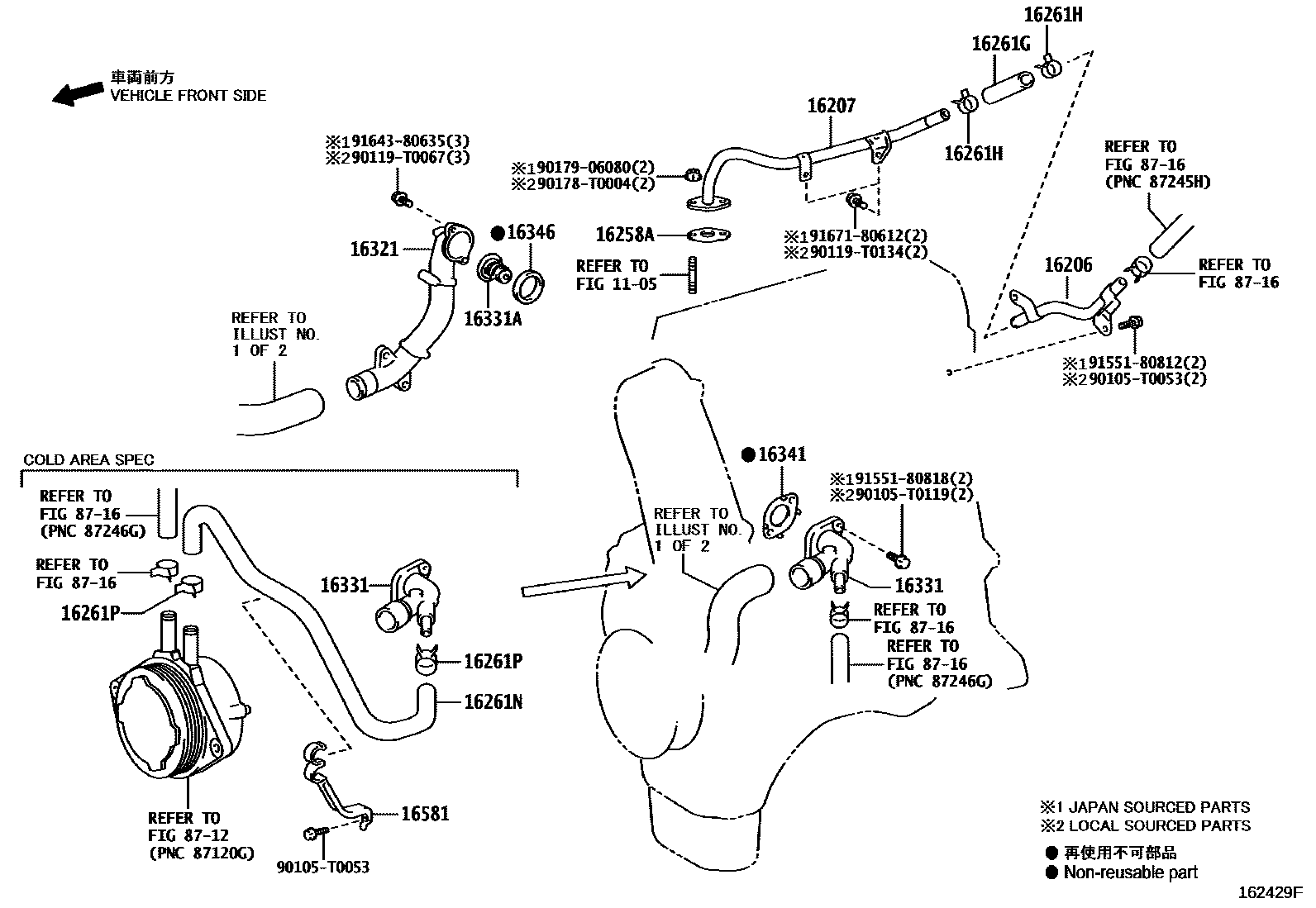

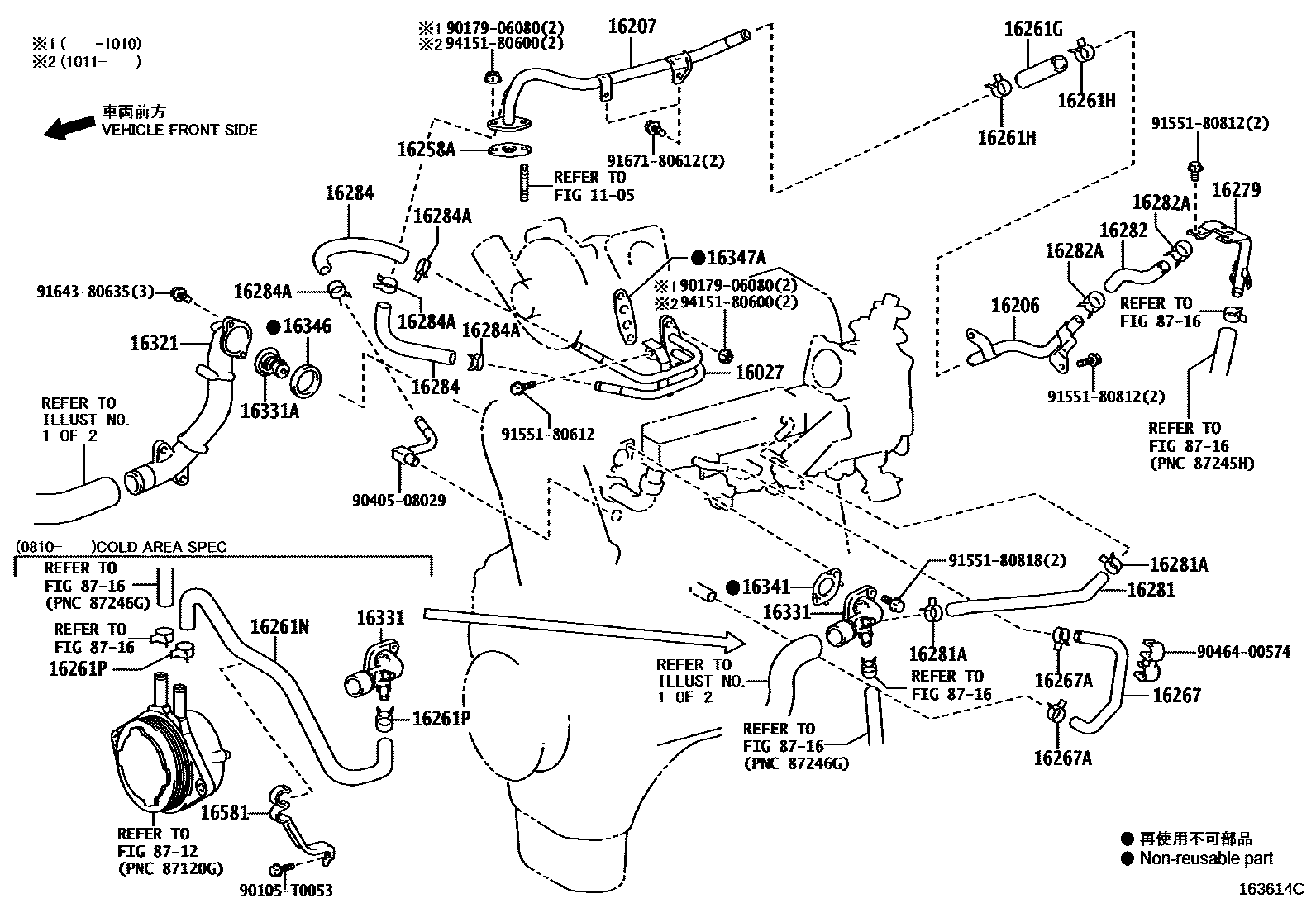

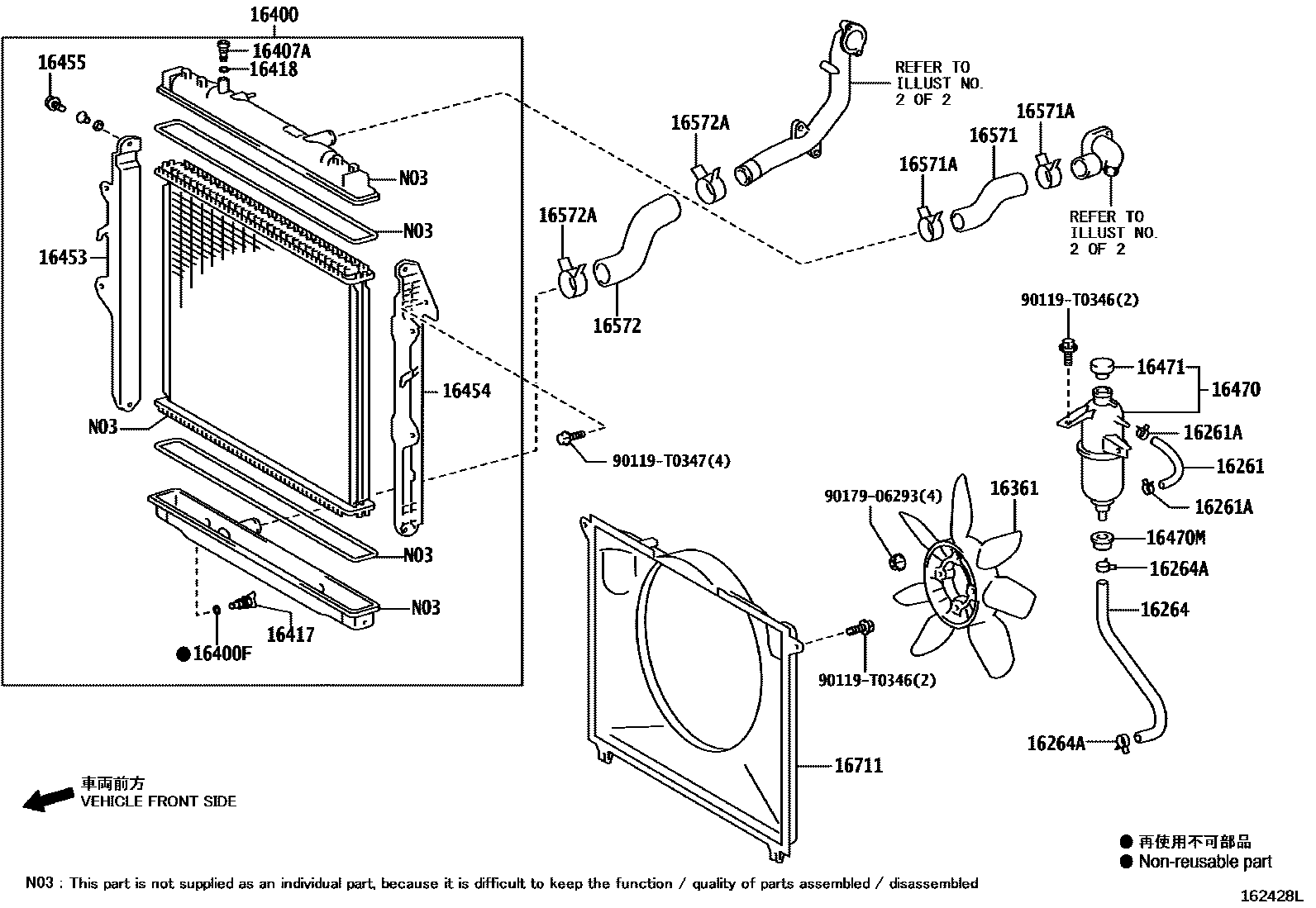

Toyota HILUX EPC diagram 1603, RADIATOR & WATER OUTLET, with 5 images and 47 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16027 | No. 1 turbine water pipe sub-assembly | 16027-0L020 · 16027-30060 |
| 16206 | PIPE SUB-ASSY, WATER BY-PASS | 16206-0L010 · 16206-0L020 · 16206-30050 |
| 16207 | No. 2 water bypass pipe sub-assembly | 16207-0L020 · 16207-0L040 · 16207-30110 · 16207-30120 |
| 16258A | Pad (for heater return) | 16258-0L010 · 16258-67010 |
| 16261 | HOSE, WATER BY-PASS | 16261-0L010 |
| 16261A | CLAMP OR CLIP, WATER BY-PASS HOSE | 90466-T0046 |
| 16261G | HOSE, WATER BY-PASS, NO.1 | 16261-0L050 · 16261-30060 |
| 16261H | CLIP, WATER BY-PASS HOSE NO.1 | 90466-21001 · 90466-T0010 |
| 16261N | HOSE, WATER BY-PASS, NO.2 | 16264-0L050 · 16264-0L090 |
| 16261P | CLIP, WATER BY-PASS HOSE NO.2 | 90466-T0010 |
| 16264 | HOSE, WATER BY-PASS, NO.2 | 16264-0L010 |
| 16264A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.2 | 90466-T0030 |
| 16267 | HOSE, WATER BY-PASS, NO.3 | 16267-30080 |
| 16267A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.3 | 90467-19022 |
| 16279 | No. 3 water bypass pipe | 16208-30010 |
| 16281 | HOSE, WATER BY-PASS, NO.4 | 16281-30080 |
| 16281A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.4 | 90467-19022 |
| 16282 | HOSE, WATER BY-PASS, NO.5 | 16282-30010 |
| 16282A | Clip or clip (for No. 5 water bypass hose) | 90466-21001 |
| 16284 | Turbine Water Hose No. 1 | 16284-30070 |
| 16284A | Clamp (for No. 1 turbine water hose) | 90467-13073 · 96137-41501 |
| 16321 | water inlet | 16321-0L010 · 16321-30040 |
| 16331 | Water outlet | 16304-30010 · 16331-0L040 · 16331-30110 |
| 16331A | thermostat | 90916-03118 |
| 16341 | GASKET, WATER OUTLET | 16341-0L010 · 16341-30020 |
| 16346 | thermostat gasket | 16346-0K010 · 16346-67010 |
| 16347A | Liners (for turbine water pipes) | 16347-30010 |
| 16361 | Fan | 16361-0L020 |
| 16400 | Radiator assembly | 16400-0L120 · 16400-0L130 · 16400-0L160 · 16400-0L170 · 16400-0L280 · 16400-0L290 · 16400-0L300 · 16400-0L310 |
| 16400F | Seal (for radiator drain switch) | 16492-0D430 · 16492-21050 |
| 16400R | Bushing (for radiator) | 16444-75180 |
| 16400S | Collar (for radiator) | 16445-0C180 |
| 16407A | Radiator drain switch sub-assembly | 16407-67240 |
| 16417 | switch | 16417-0C180 · 16417-0D430 |
| 16418 | Seals | 16418-0D310 |
| 16453 | Radiator side panel | 16453-0L120 |
| 16454 | Radiator side panel | 16454-0L120 |
| 16455 | Radiator side support plate bolts | 91651-B0820 |
| 16470 | Radiator reservoir assembly | 16470-0L010 |
| 16470M | gasket | 90480-T0004 |
| 16471 | Liquid storage tank cover sub-assembly | 16401-30010 · 16401-30011 |
| 16571 | Radiator water inlet hose | 16571-0L030 |
| 16571A | Hose clamp or clip (for radiator water inlet) | 90466-T0012 |
| 16572 | Radiator outlet hose | 16572-0L030 |
| 16572A | Hose clamp or clip (for radiator outlet No. 1) | 90466-T0012 |
| 16581 | Hose clamp (for water hose) | 16581-30050 · 16581-30150 |
| 16711 | fan cover | 16711-0L050 · 16711-0L070 |
