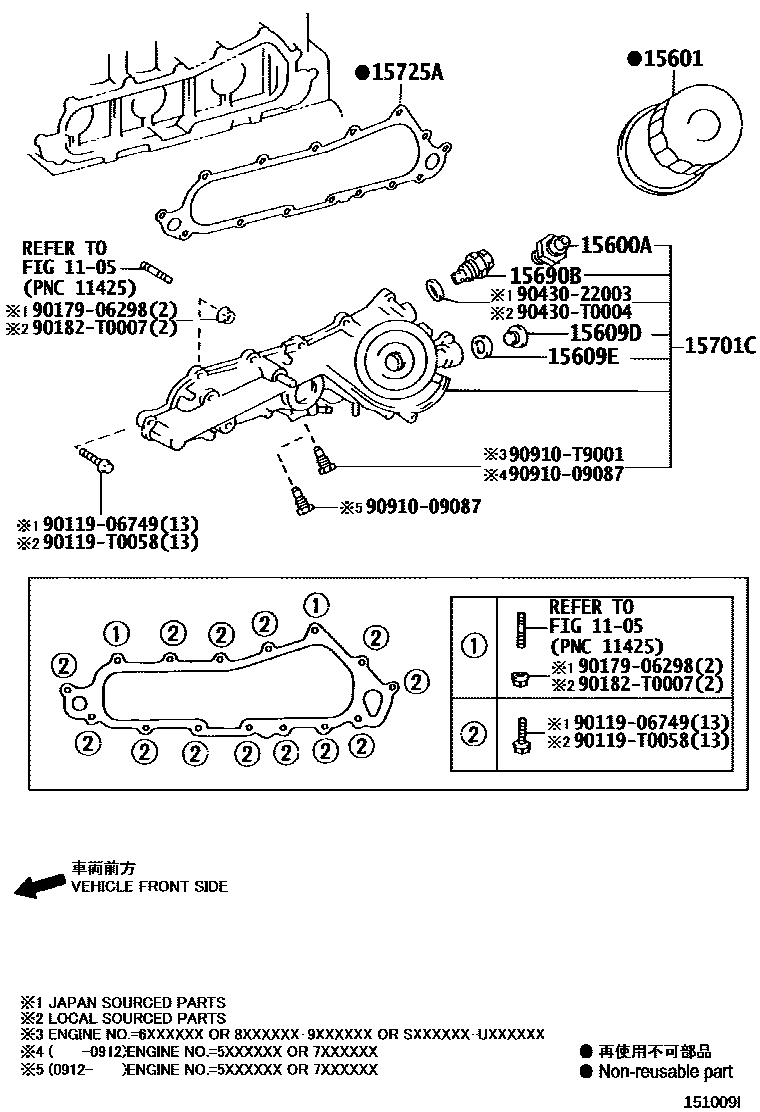

Toyota HILUX Oil Filter — Figure 1502
Toyota HILUX EPC diagram 1502, Oil Filter, with 1 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 15600A | Connector (for oil filter) | 90404-19002 · 90404-T0001 |
| 15601 | Oil filter sub-assembly | 90915-20003 · 90915-TB001 |
| 15609D | Straight threaded plug with head (for oil filter bracket) | 90341-20002 · 90341-T0006 |
| 15609E | Headed straight thread plug liner | 15134-67020 · 90430-T0005 |
| 15690B | Oil cooler pressure reducing valve assembly | 15690-0L010 · 15690-64010 · 15690-64011 |
| 15701C | Oil cooler cover sub-assembly | 15701-0L030 · 15701-30080 · 15701-30090 · 15701-30091 |
| 15725A | Oil cooler cover gasket | 15725-0L010 · 15725-67010 |
