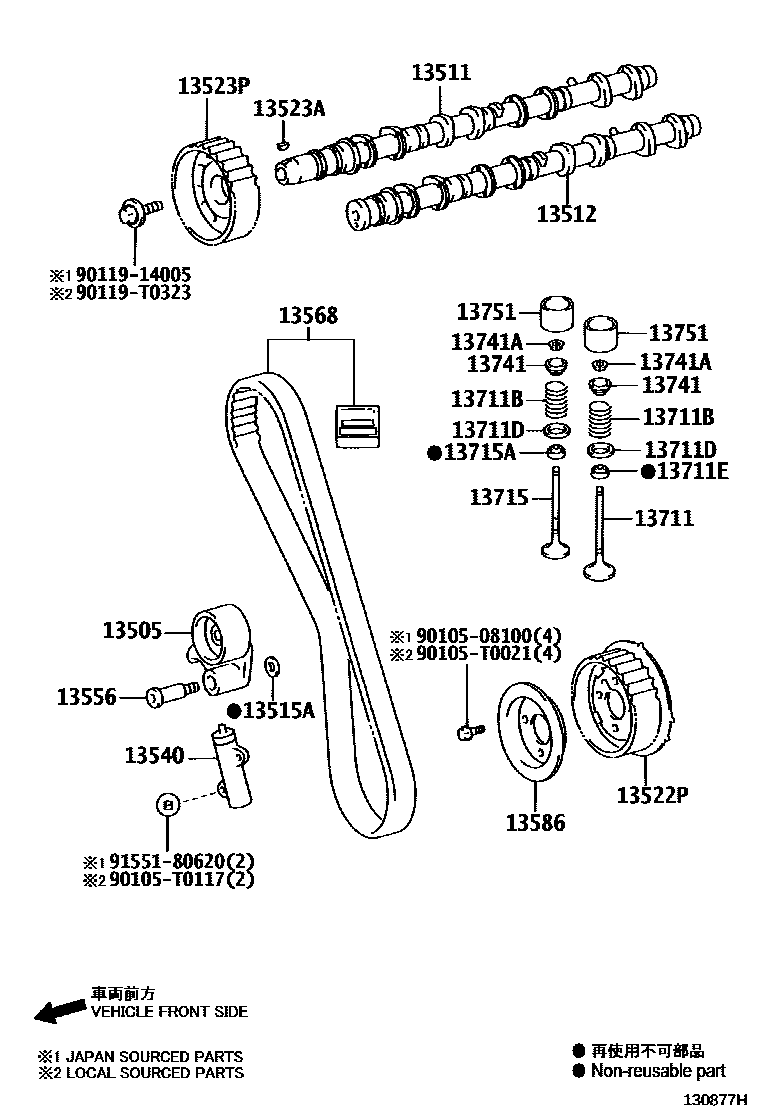

Toyota HILUX Camshaft & Valve — Figure 1302
Toyota HILUX EPC diagram 1302, Camshaft & Valve, with 1 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 13505 | No. 1 timing belt idler pulley sub-assembly | 13505-0L010 · 13505-67041 |
| 13511 | camshaft | 13501-0L010 · 13501-30040 · 13501-30050 |
| 13512 | Camshaft No. 2 | 13502-0L010 · 13502-30030 · 13502-30040 |
| 13515A | Flat washer (for distributor drive gear) | 90201-10124 · 90560-T0007 |
| 13522P | Pump drive shaft pulley | 13524-0L010 · 13524-30010 |
| 13523A | Half-moon pin (for timing gear) | 90280-05004 · 90280-T0001 |
| 13523P | Camshaft timing pulley | 13523-0L010 · 13523-17010 |
| 13540 | No. 1 chain tensioner assembly | 13540-0L010 · 13540-67020 |
| 13556 | Timing belt idler shaft | 13556-0L010 · 13556-67010 |
| 13568 | timing belt | 13568-09130 · 13568-39015 · 13568-39016 |
| 13586 | No. 2 camshaft timing pulley flange | 13586-0L010 · 13586-17020 |
| 13711 | intake valve | 13711-0L010 · 13711-30030 · 13711-30040 |
| 13711B | Compression spring (for inner side) | 90080-50404 · 90905-01077 |
| 13711D | Flat washer (for valve spring seat) | 90201-16023 · 90560-T0008 |
| 13711E | Intake valve stem oil seal | 90080-31099 · 90913-02121 |
| 13715 | exhaust valve | 13715-0L010 · 13715-30030 · 13715-30040 |
| 13715A | Exhaust valve stem oil seal | 90080-31099 · 90913-02121 |
| 13741 | Valve spring seat ring | 13741-0L010 · 13741-15020 |
| 13741A | Valve spring seat lock plate | 90913-03021 |
| 13751 | valve lifter | 13751-46030 · 13751-46040 · 13751-46050 · 13751-46060 · 13751-46070 · 13751-46080 · 13751-46090 · 13751-46100 · 13751-46110 · 13751-46120 · 13751-46130 · 13751-46140 · 13751-46150 · 13751-46160 · 13751-46170 · 13751-46180 · 13751-46190 · 13751-46200 · 13751-46210 · 13751-46220 · 13751-46230 · 13751-46240 · 13751-46250 · 13751-46260 · 13751-46270 · 13751-46280 · 13751-46290 · 13751-46300 · 13751-46310 · 13751-46320 · 13751-46330 · 13751-46340 · 13751-46350 · 13751-46360 · 13751-46370 |
