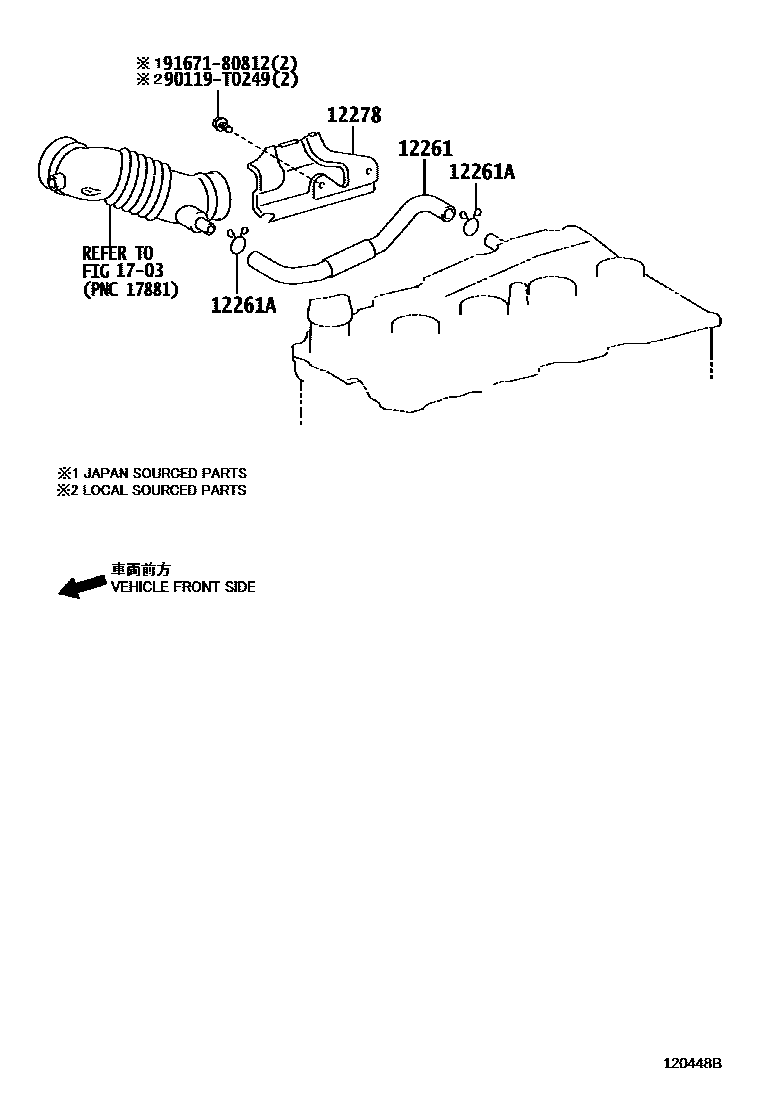

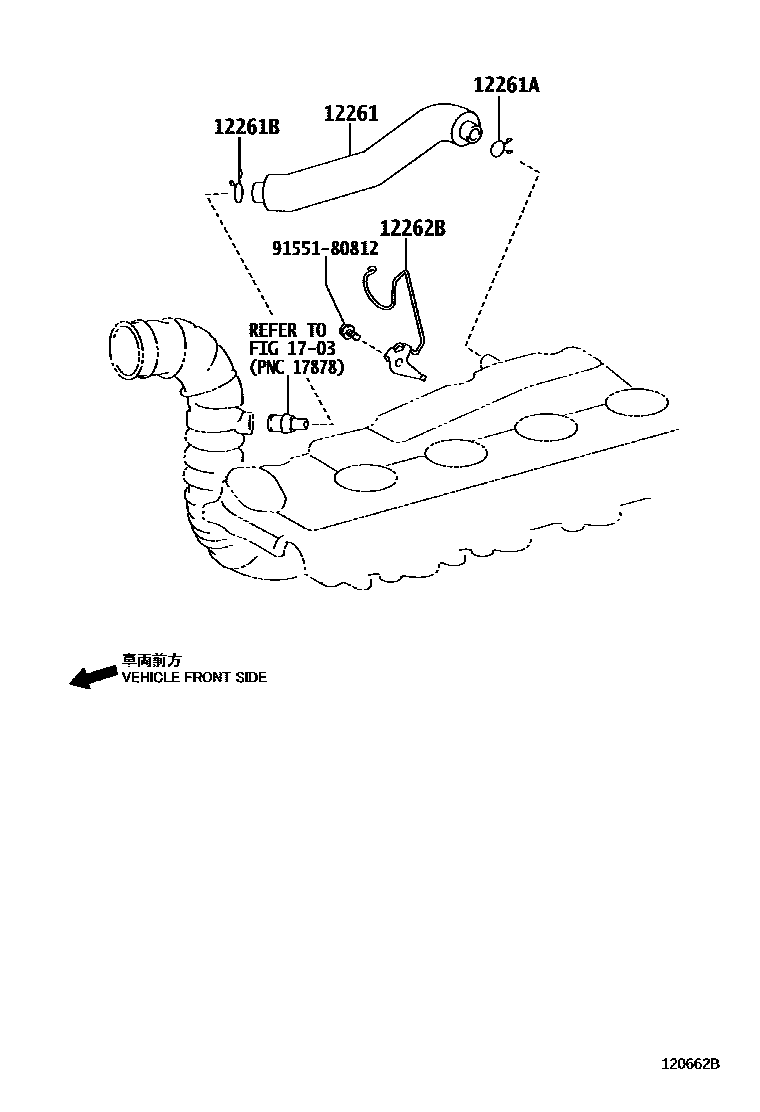

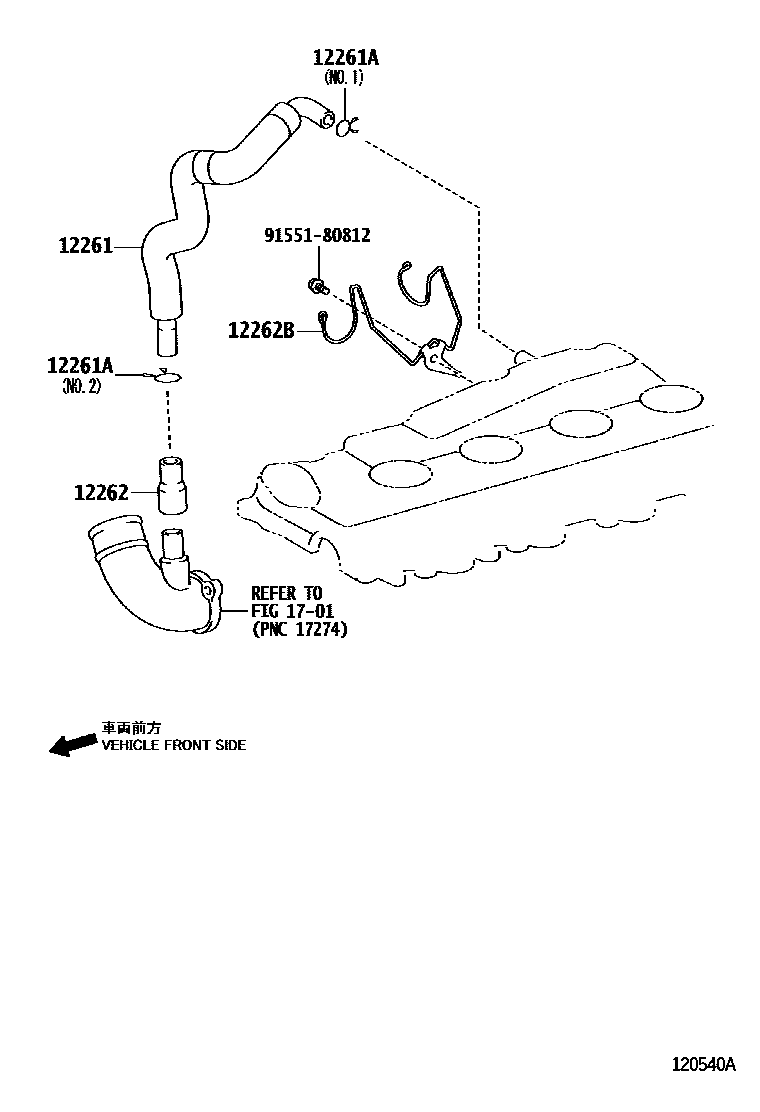

Toyota HILUX Ventilation Hose — Figure 1201
Toyota HILUX EPC diagram 1201, Ventilation Hose, with 4 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 12229 | ventilation duct | 12229-30040 |
| 12261 | Ventilation Hose | 12261-0L020 · 12261-0L021 · 12261-30040 · 12261-30070 · 12261-30090 |
| 12261A | Clip or clip (for vent hose) | 90466-T0032 · 90467-22010 · 90467-28002 |
| 12261B | Clip or clip (for vent hose) | 90467-21006 · 90467-28002 |
| 12262 | Ventilation hose No. 2 | 12262-30040 |
| 12262B | Clamp (for ventilation hose) | 16581-30170 · 16581-30180 |
| 12278 | Ventilation hose insulation pad | 12278-0L010 · 12278-30020 |
