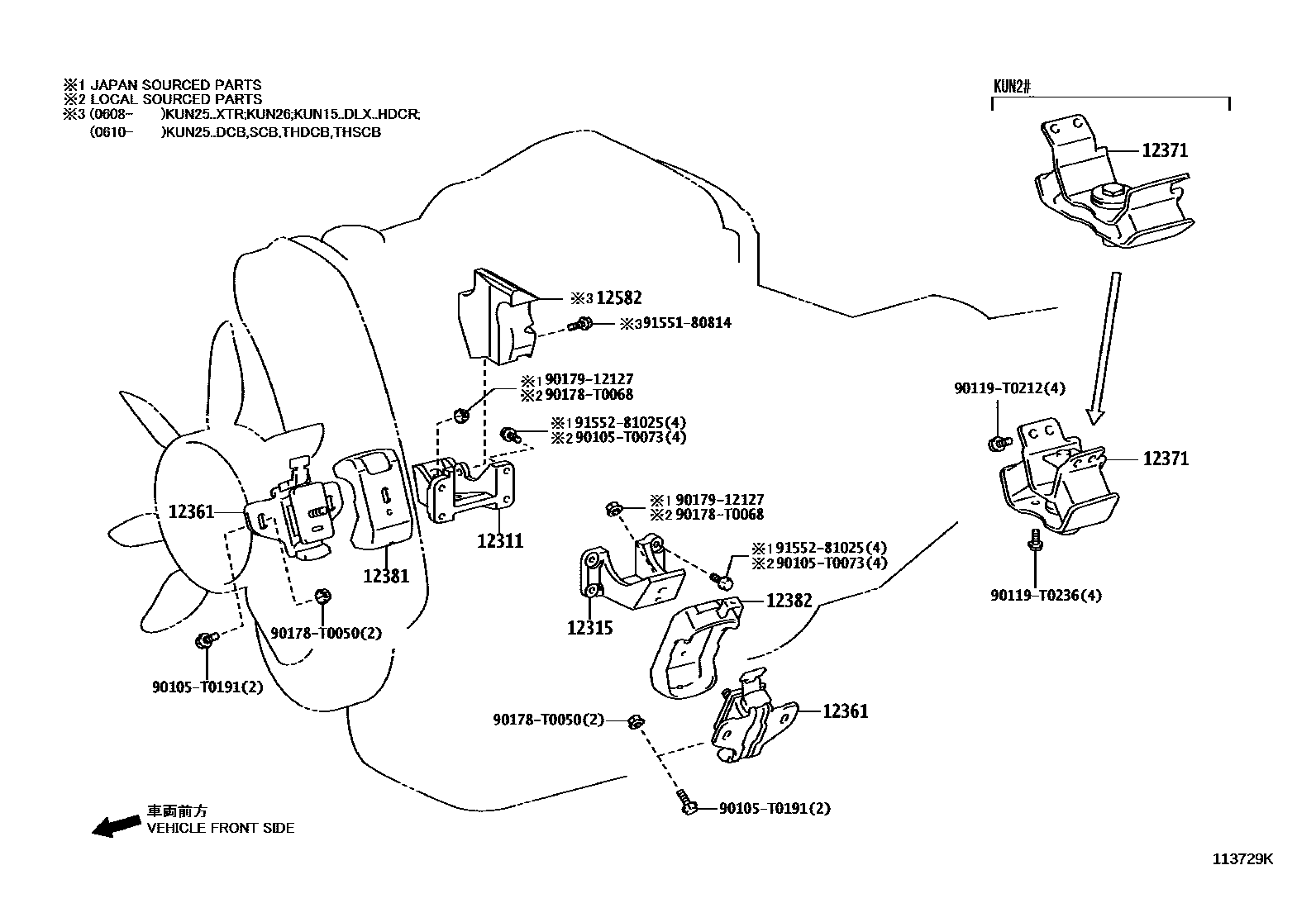

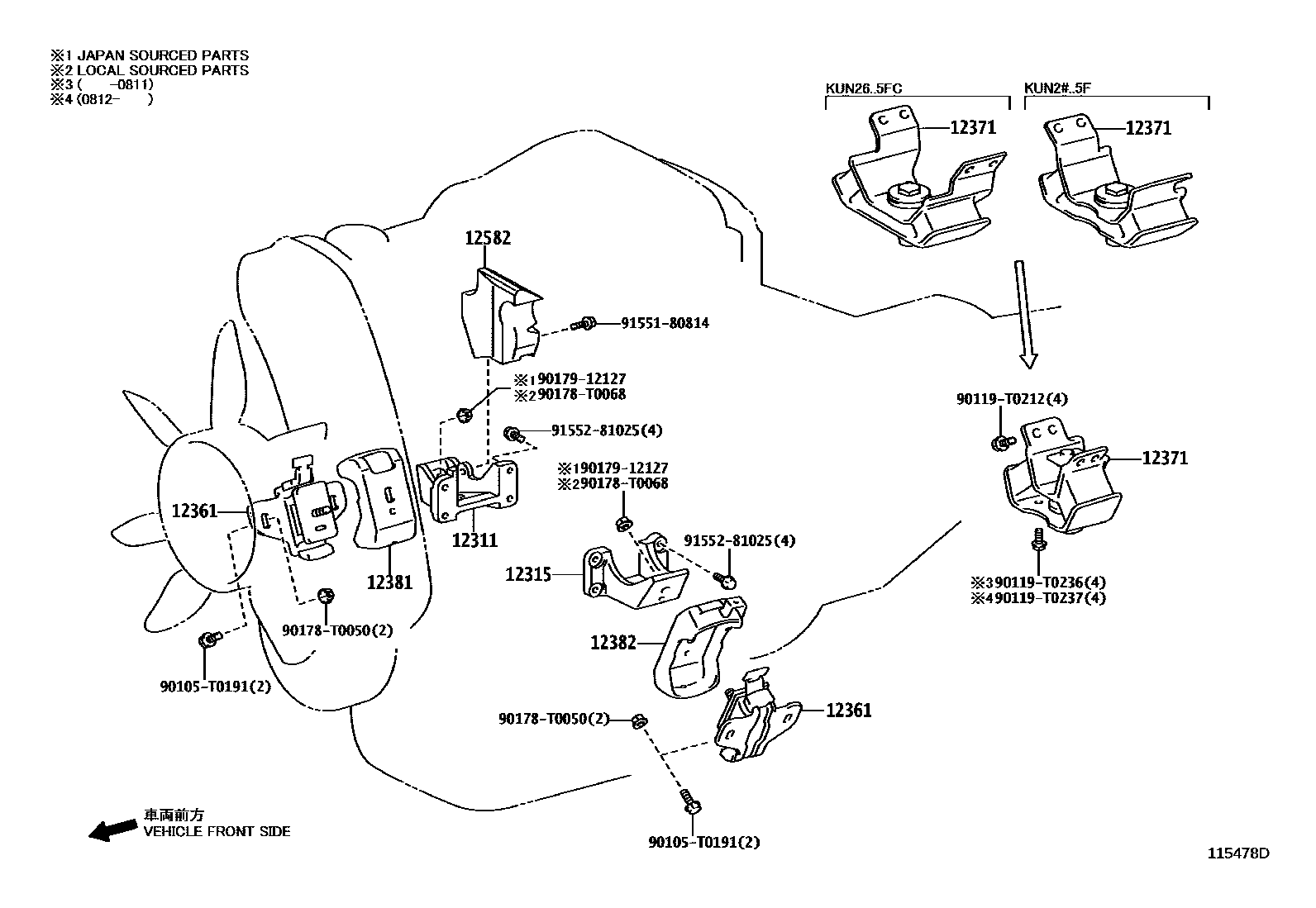

Toyota HILUX Engine Mounting — Figure 1107
Toyota HILUX EPC diagram 1107, Engine Mounting, with 2 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 12311 | Engine Mounting Bracket No. 1, Front RH | 12311-0L020 · 12311-0L030 · 12311-67021 |
| 12315 | Engine No. 1 left front suspension bracket | 12315-0L020 · 12315-0L030 · 12315-67011 |
| 12361 | Engine front mounting vibration isolation pad | 12361-0L030 · 12361-30080 · 12361-30131 · 12361-30160 |
| 12371 | Engine No. 1 rear mount vibration isolation pad | 12371-0C070 · 12371-0L030 · 12371-0L031 · 12371-0L050 · 12371-0L080 · 12371-0L081 · 12371-0L100 · 12371-0L101 |
| 12381 | engine mount stabilizer bar | 12381-0L031 · 12381-30021 · 12381-30050 · 12381-30060 · 12381-30061 |
| 12382 | Engine left mounting stabilizer bar | 12382-0L040 · 12382-30031 · 12382-30040 · 12382-30050 · 12382-30051 |
| 12582 | No. 2 cylinder block vibration isolation pad | 12582-30010 |
