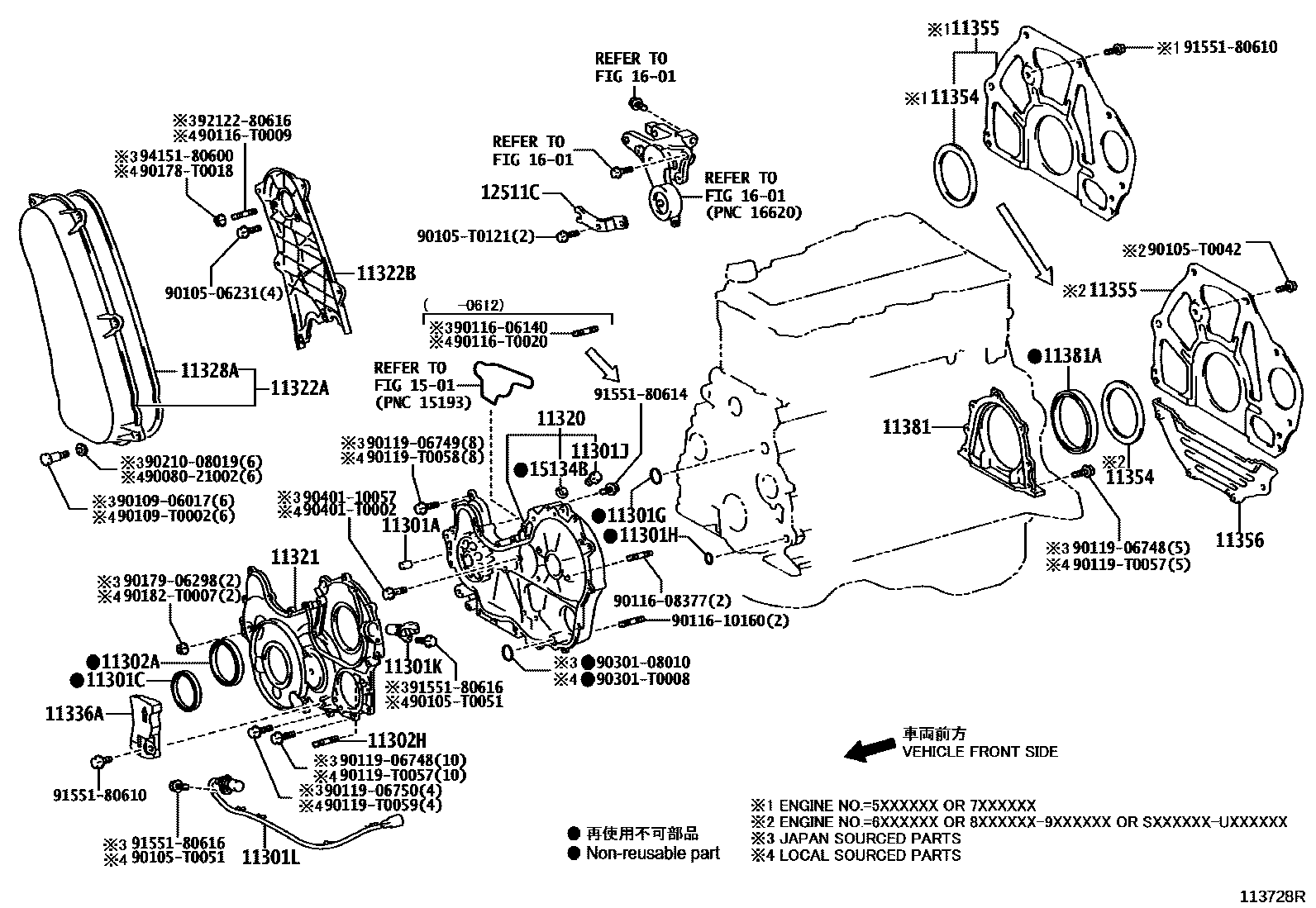

Toyota HILUX Timing Gear Cover & Rear End Plate — Figure 1106
Toyota HILUX EPC diagram 1106, Timing Gear Cover & Rear End Plate, with 1 images and 22 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11301A | Direct sales (for timing gearbox) | 90250-08120 · 90250-T0007 |
| 11301C | OIL SEAL (FOR TIMING GEAR OR CHAIN CASE) | 90080-31096 · 90311-50017 |
| 11301G | O-ring (for upper timing gearbox) | 90301-22007 · 90301-T0010 |
| 11301H | O-RING (FOR LOWER TIMING GEAR CASE) | 90301-09018 · 90301-T0012 |
| 11301J | Headed straight thread plug (for timing gearbox) | 90341-18015 |
| 11301K | crankshaft position sensor | 90919-05025 |
| 11301L | No. 2 crankshaft position sensor | 90919-05050 |
| 11302A | Oil seal (for timing chain or timing belt cover) | 90080-31098 · 90311-65003 |
| 11302H | Studs (for timing gear cover) | 90116-08374 · 90116-08376 · 90116-08377 |
| 11320 | Timing gearbox assembly | 11320-0L030 · 11320-0L050 · 11320-30040 · 11320-30060 · 11320-30070 |
| 11321 | timing gearbox | 11321-0L010 · 11321-30020 |
| 11322A | No. 1 timing belt cover | 11332-0L010 · 11332-0L020 · 11332-30020 |
| 11322B | No. 2 timing belt cover | 11322-0L010 · 11322-0L020 · 11322-30010 |
| 11328A | No. 1 timing belt cover gasket | 11328-30020 |
| 11336A | Timing gear cover vibration isolation pad | 11336-30010 |
| 11354 | Flywheel housing dust seal | 11354-30010 |
| 11355 | rear end plate | 11355-0L010 · 11355-67011 |
| 11356 | No. 2 rear end plate | 11356-0L010 · 11356-0L020 |
| 11381 | RETAINER, ENGINE REAR OIL SEAL | 11381-0K010 · 11381-67020 |
| 11381A | SEAL, ENGINE REAR OIL | 90080-31100 · 90311-95008 |
| 12511C | Generator bracket | 12511-0L010 · 12511-0L020 |
| 15134B | Oil pump pressure reducing valve gasket | 15134-0L010 · 15134-67010 |
