Toyota HILUX Engine Overhaul Gasket Kit — Figure 1103

Toyota HILUX EPC diagram 1103, Engine Overhaul Gasket Kit, with 2 images and 2 PNC and OE references.

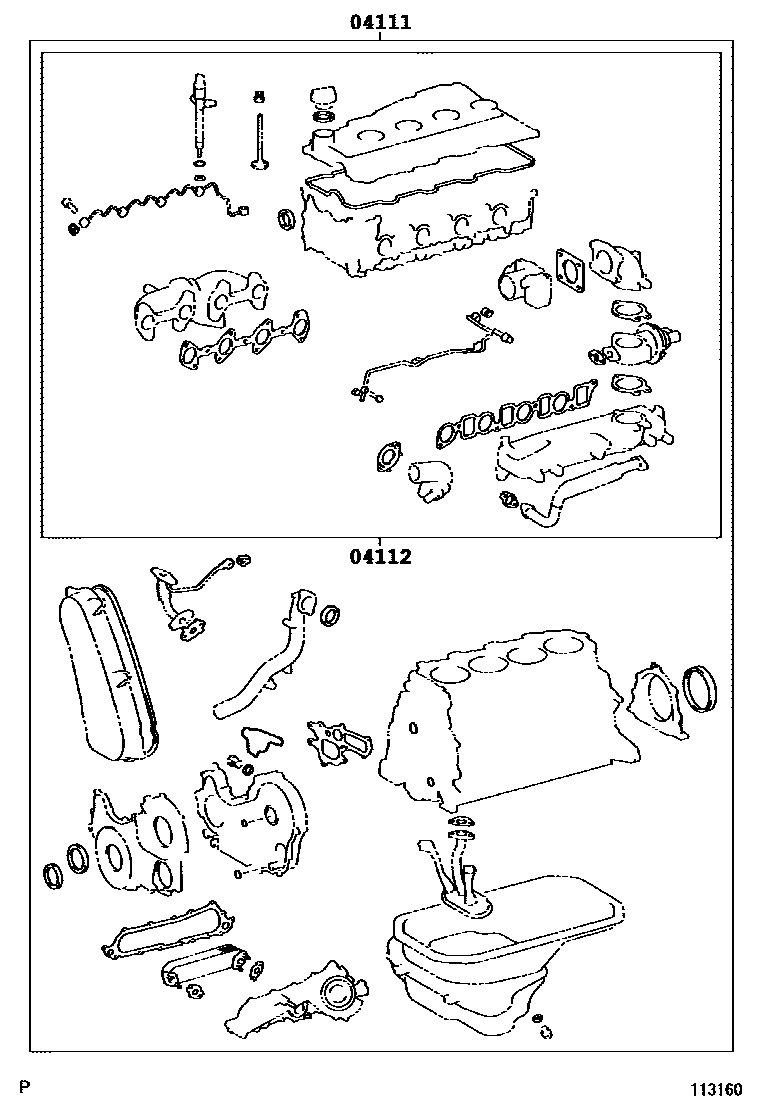

Toyota HILUX Engine Overhaul Gasket Kit EPC diagram — 113160
Engine Overhaul Gasket Kit — 113160 (200507 – 999999)

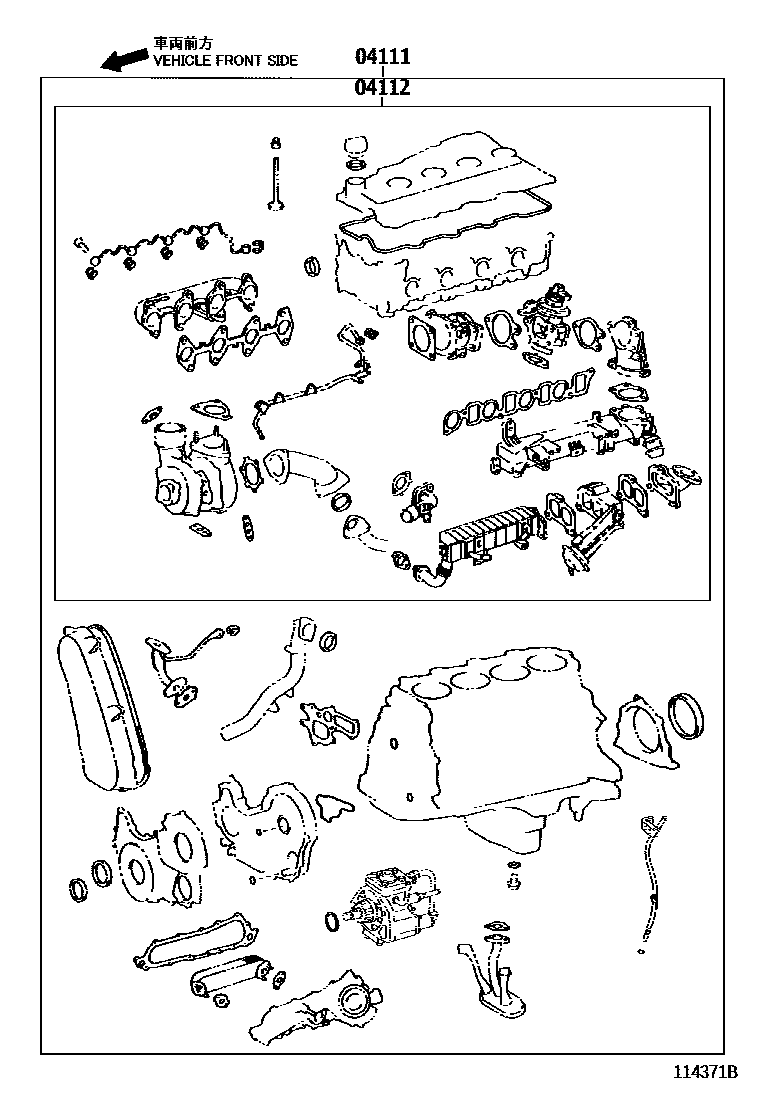

Toyota HILUX Engine Overhaul Gasket Kit EPC diagram — 114371B
Engine Overhaul Gasket Kit — 114371B (200608 – 999999)

PNC and OE references

PNCPart nameOE numbers
04111Engine overhaul gasket assembly04111-0L080 · 04111-30670 · 04111-30671 · 04111-30672 · 04111-30680 · 04111-30681 · 04111-30682
04112Engine valve grinding pad assembly04112-0L080 · 04112-30290 · 04112-30291 · 04112-30300 · 04112-30301
