Toyota HILUX Partial Engine Assembly — Figure 1101

Toyota HILUX EPC diagram 1101, Partial Engine Assembly, with 1 images and 1 PNC and OE references.

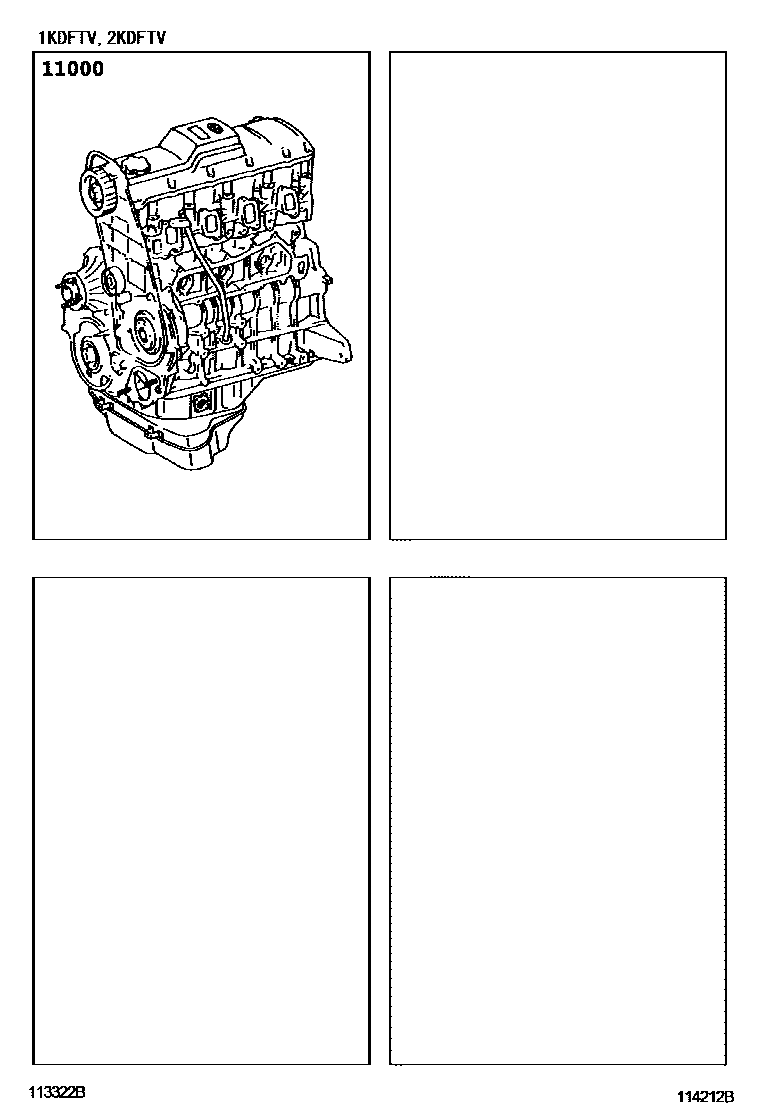

Toyota HILUX Partial Engine Assembly EPC diagram — 114212B
Partial Engine Assembly — 114212B (200507 – 999999)

PNC and OE references

PNCPart nameOE numbers
11000Partial Engine Assembly19000-30440 · 19000-30450 · 19000-30550 · 19000-30551 · 19000-30560 · 19000-30561 · 19000-30650 · 19000-30660 · 19000-30700
