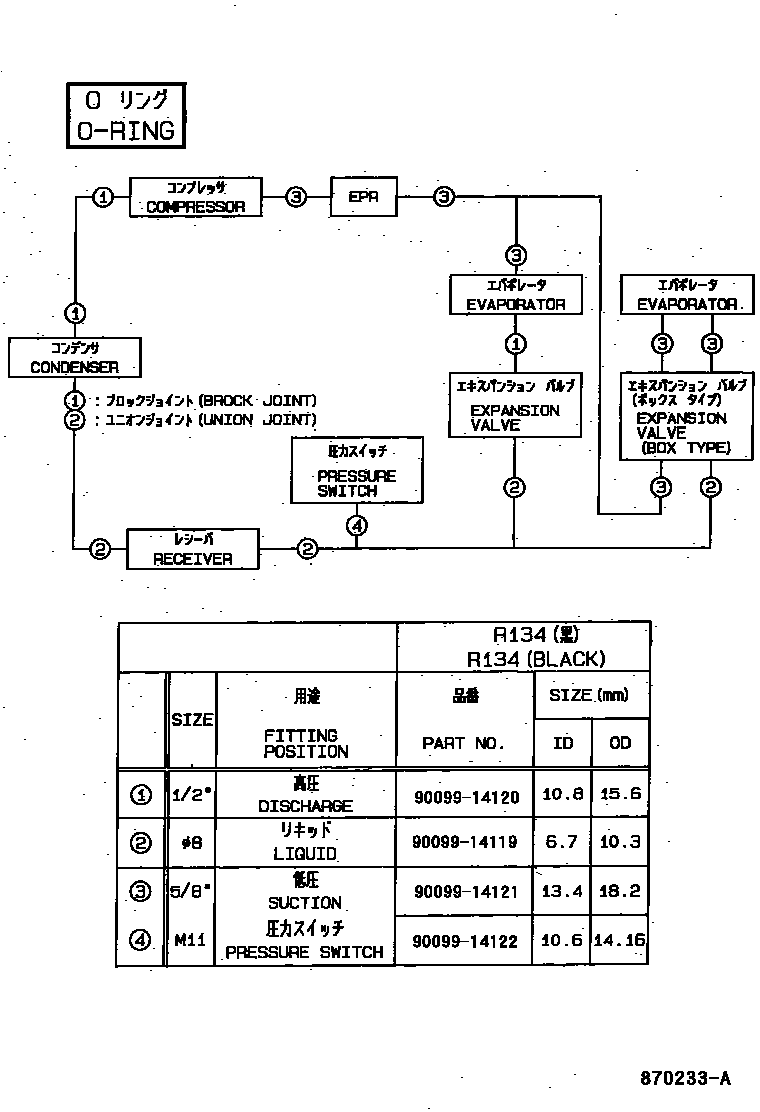

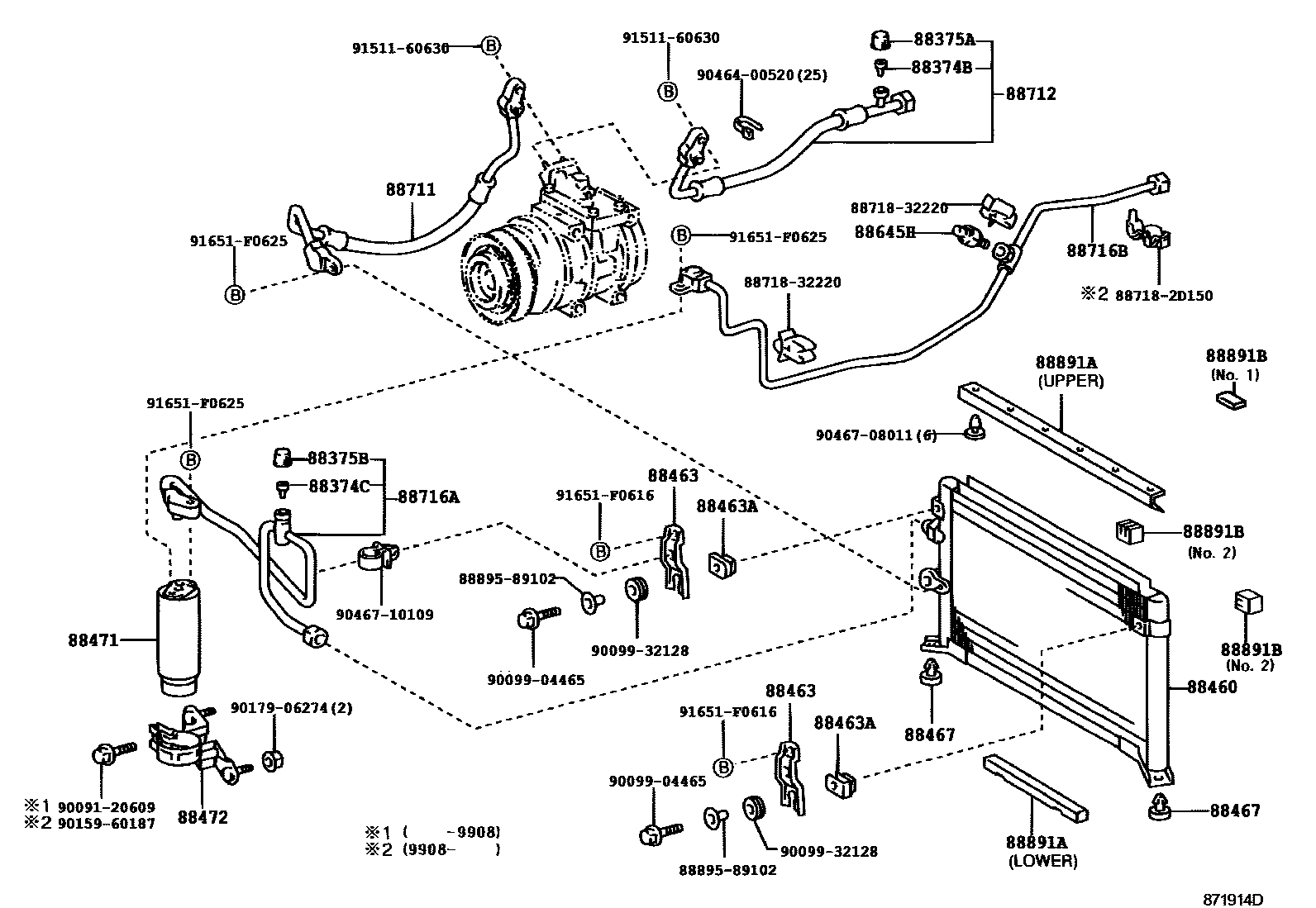

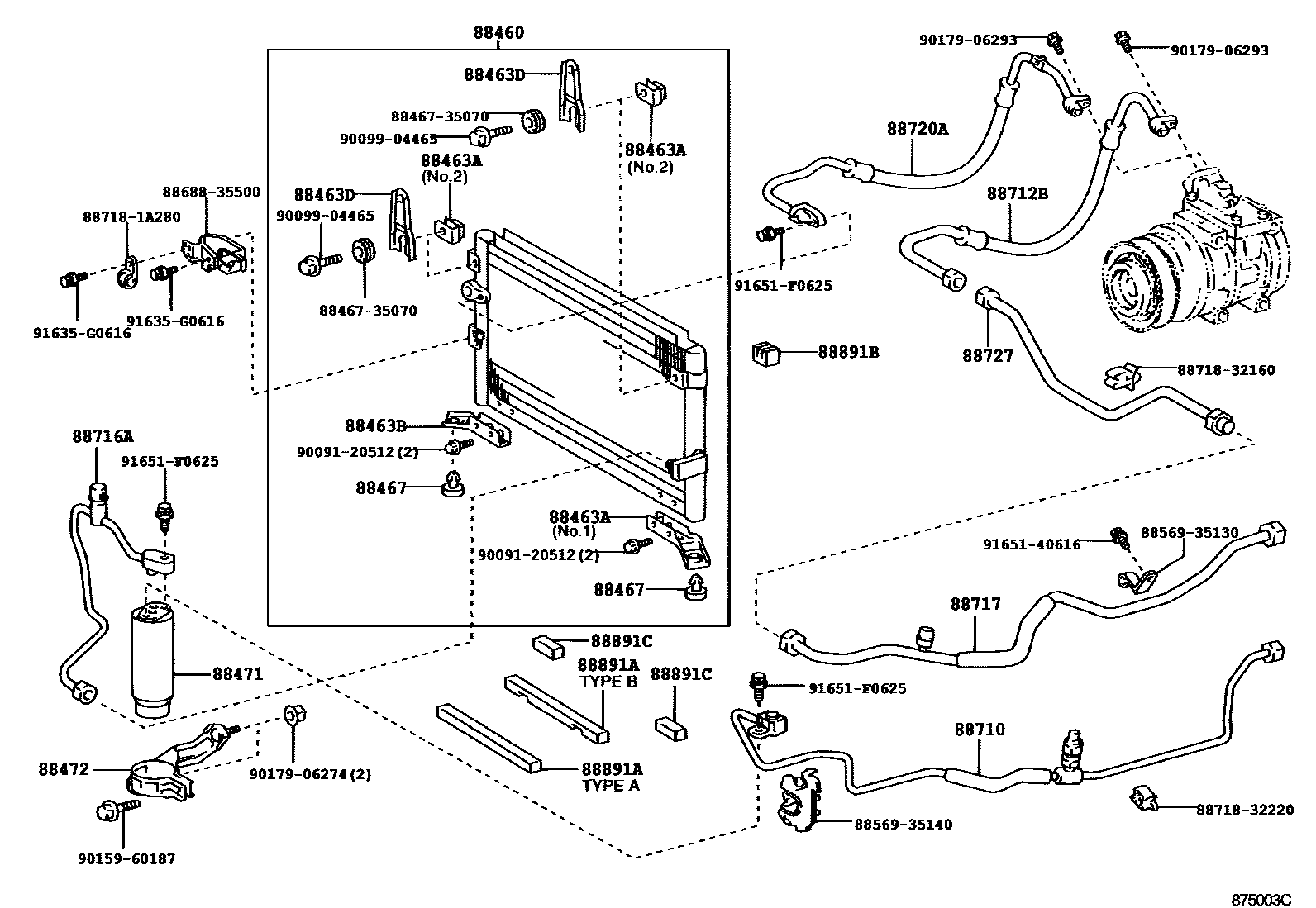

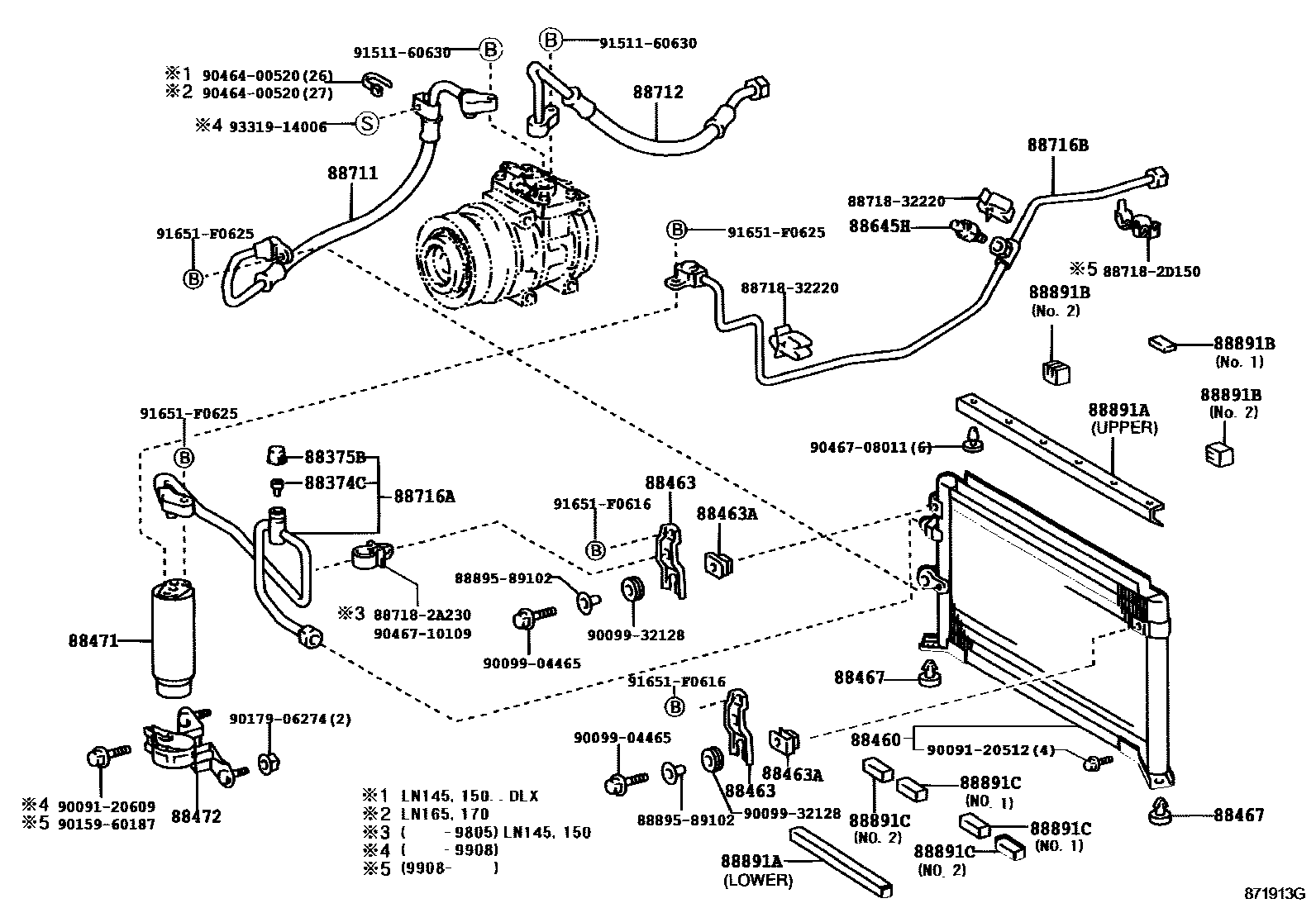

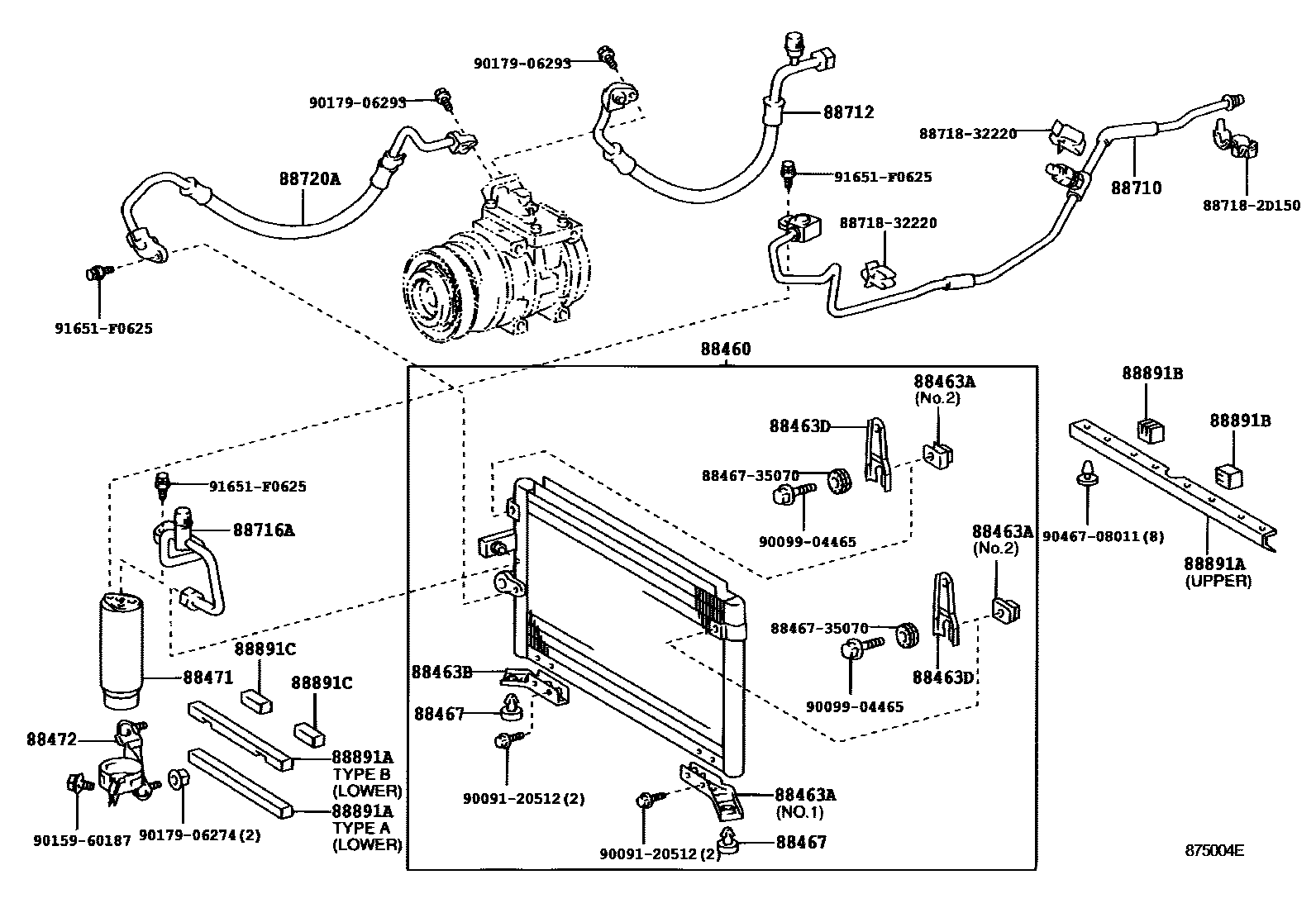

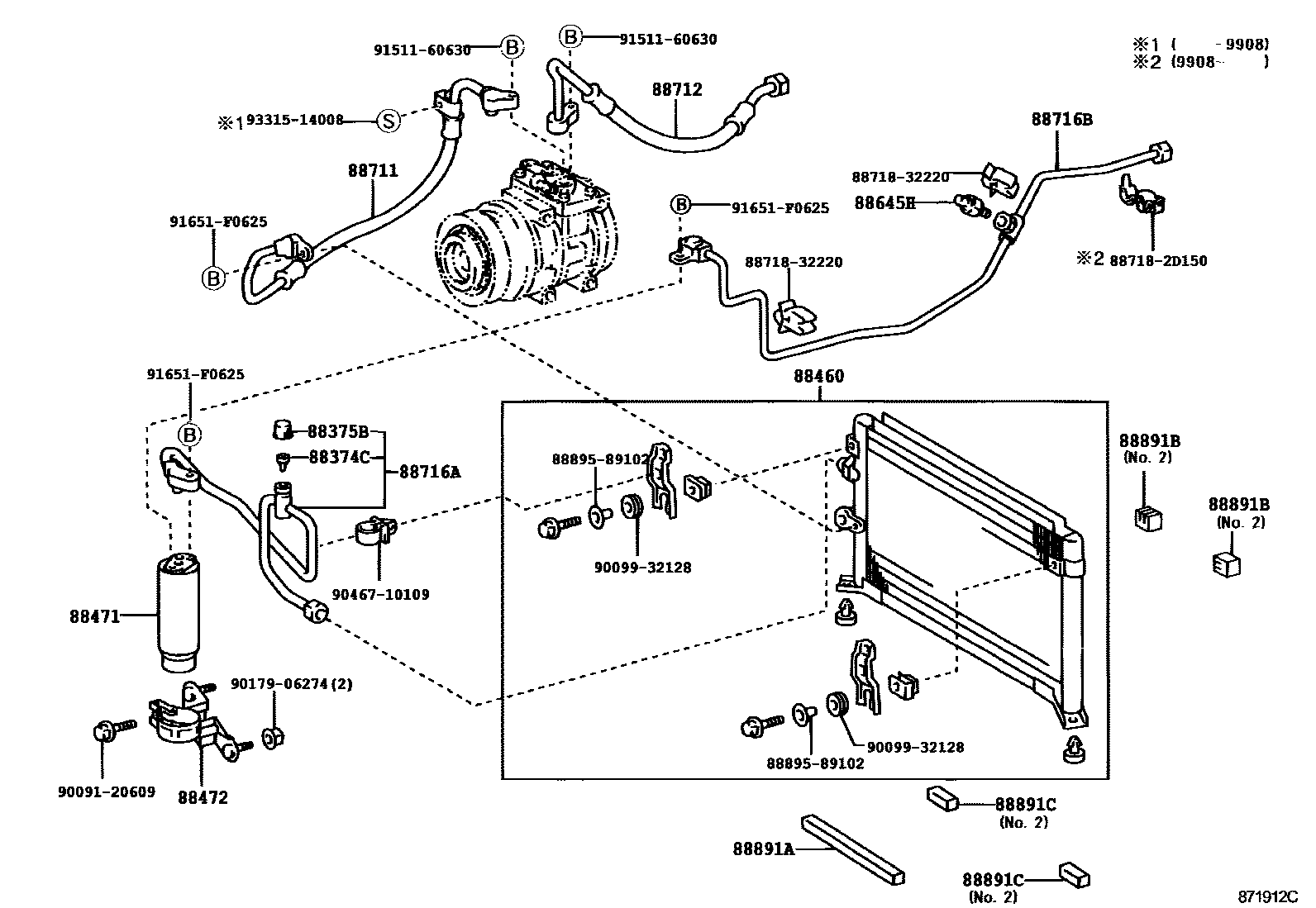

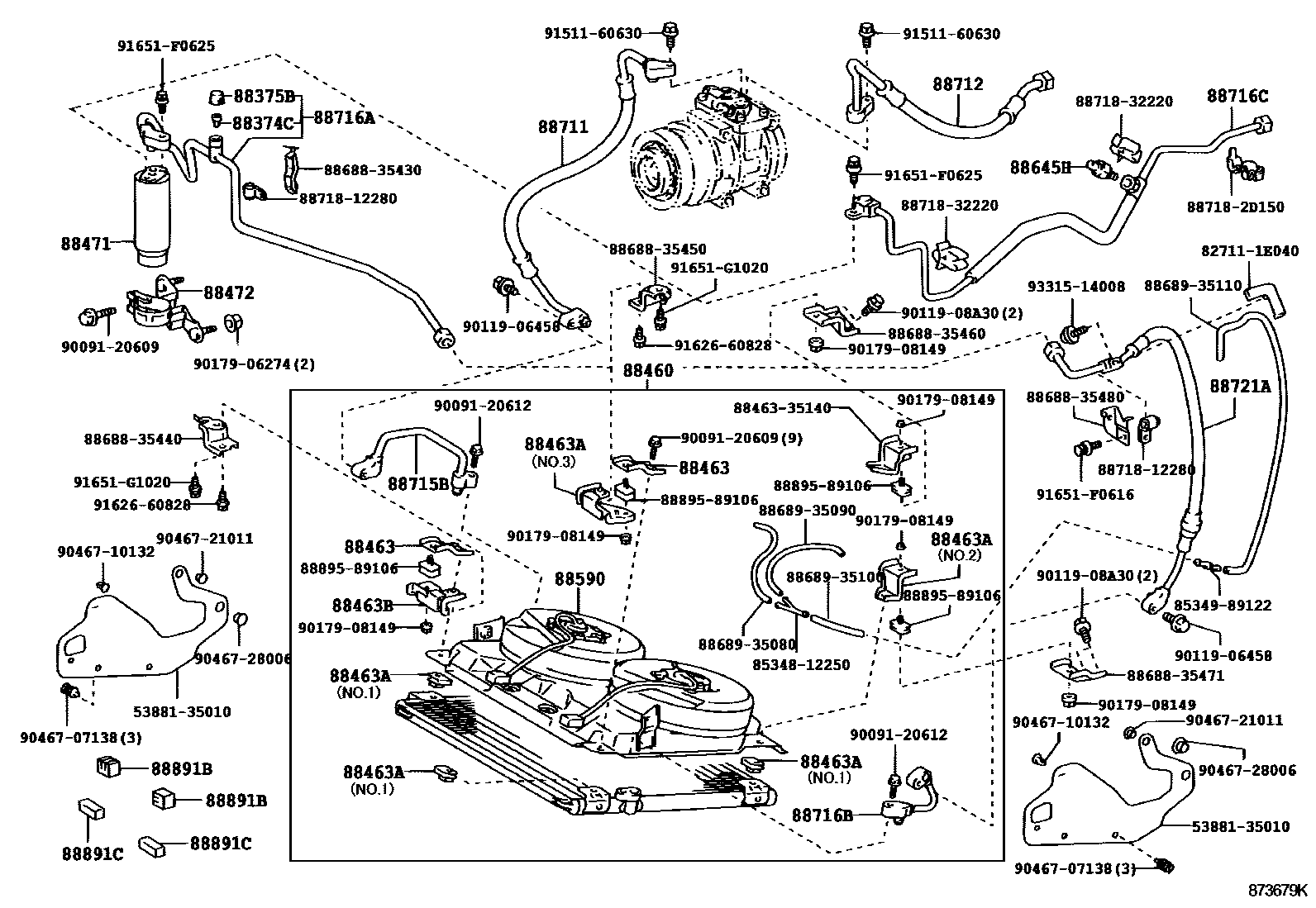

Toyota HILUX Heating & Air Conditioning - Cooler Piping — Figure 8718
Toyota HILUX EPC diagram 8718, Heating & Air Conditioning - Cooler Piping, with 7 images and 29 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88374B | Service valve No. 1 | 88374-30010 |
| 88374C | Service valve No. 2 | 88374-30010 |
| 88375A | Repair valve cover (for cooler tube) | 88375-30290 |
| 88375B | No. 1 maintenance valve cover | 88375-30280 |
| 88460 | Air conditioning condenser assembly | 88460-35200 · 88460-35220 · 88460-35230 · 88460-35270 · 88460-35280 · 88460-35300 · 88460-35340 · 88460-35360 |
| 88463 | No. 1 air conditioner condenser bracket | 88463-35090 · 88463-35150 |
| 88463A | No. 2 air conditioner condenser bracket | 88463-35100 · 88463-35120 · 88463-35130 · 88463-35160 |
| 88463B | No. 3 air conditioner condenser bracket | 88463-35110 · 88463-35170 |
| 88463D | No. 5 air conditioner condenser bracket | 88463-35180 |
| 88467 | No. 1 air conditioning condenser buffer pad | 88467-12100 · 88467-35030 · 88467-35040 |
| 88471 | Air conditioning fluid storage tank | 88471-34010 |
| 88472 | No. 1 liquid storage tank bracket | 88472-35040 · 88472-35050 · 88472-35060 |
| 88590 | Blower assembly with hood | 88590-35030 |
| 88645H | No. 1 pressure switch | 88645-20050 · 88645-34010 |
| 88710 | Air conditioning pipe assembly | 88710-35490 · 88710-35500 · 88710-35501 |
| 88711 | Cooler No. 1 refrigerant drain hose | 88711-35530 · 88711-35540 · 88711-35560 |
| 88712 | Cooler No. 1 refrigerant suction hose | 88712-35510 · 88712-35520 · 88712-35590 |
| 88712B | Cooler refrigerant suction hose | 88712-35580 |
| 88715B | Cooler refrigerant discharge pipe B | 88715-35040 |
| 88716A | Cooler refrigerant liquid pipe A | 88716-35370 · 88716-35410 · 88716-35590 · 88716-35610 · 88716-35690 |
| 88716B | Cooler refrigerant liquid pipe B | 88716-35450 · 88726-35040 · 88726-35070 · 88726-35130 |
| 88716C | Cooler refrigerant liquid pipe C | 88726-35080 |
| 88717 | Cooler No. 1 refrigerant suction pipe | 88717-35160 |
| 88720A | Air conditioning hoses and accessories | 88720-35450 · 88720-35470 · 88720-35510 |
| 88721A | Liquid hose A | 88721-35030 |
| 88727 | Suction tube No. 2 | 88727-35040 |
| 88891A | Seal A (for cooler) | 53381-35030 · 53381-35040 · 53381-35041 · 88578-35130 · 88578-89119 |
| 88891B | Seal B (for cooler) | 88578-35110 · 88578-35120 |
| 88891C | Seal C (for cooler) | 88578-89103 · 88578-89111 |
