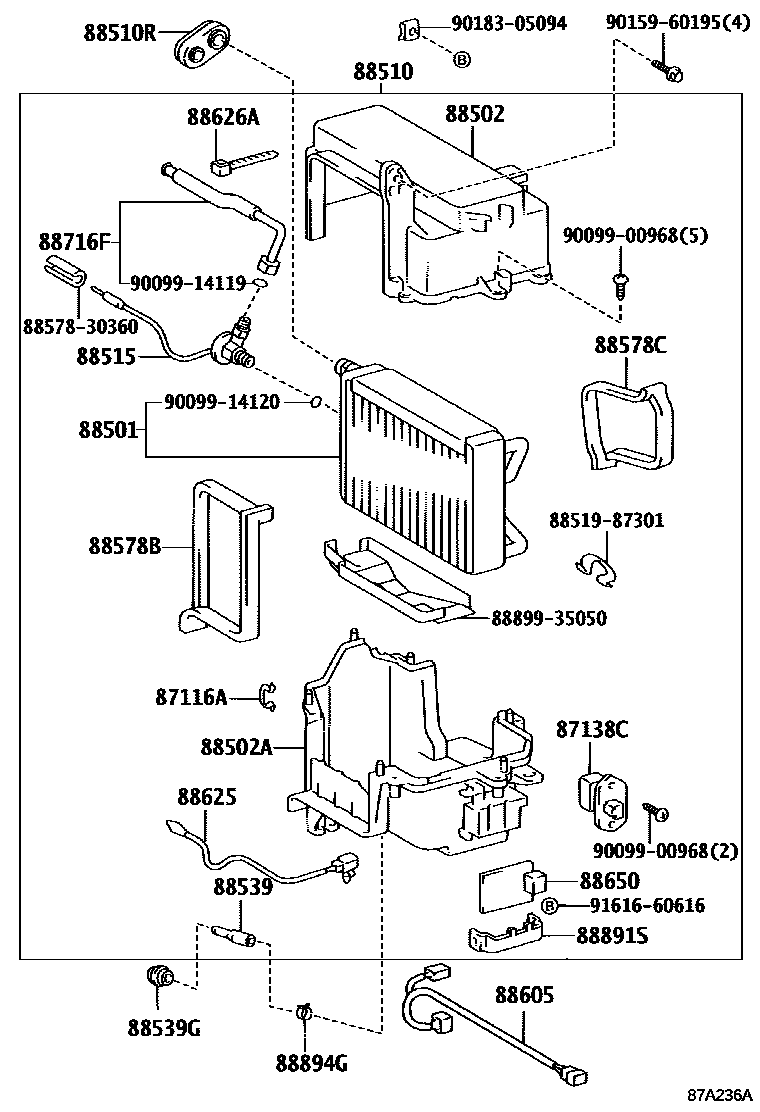

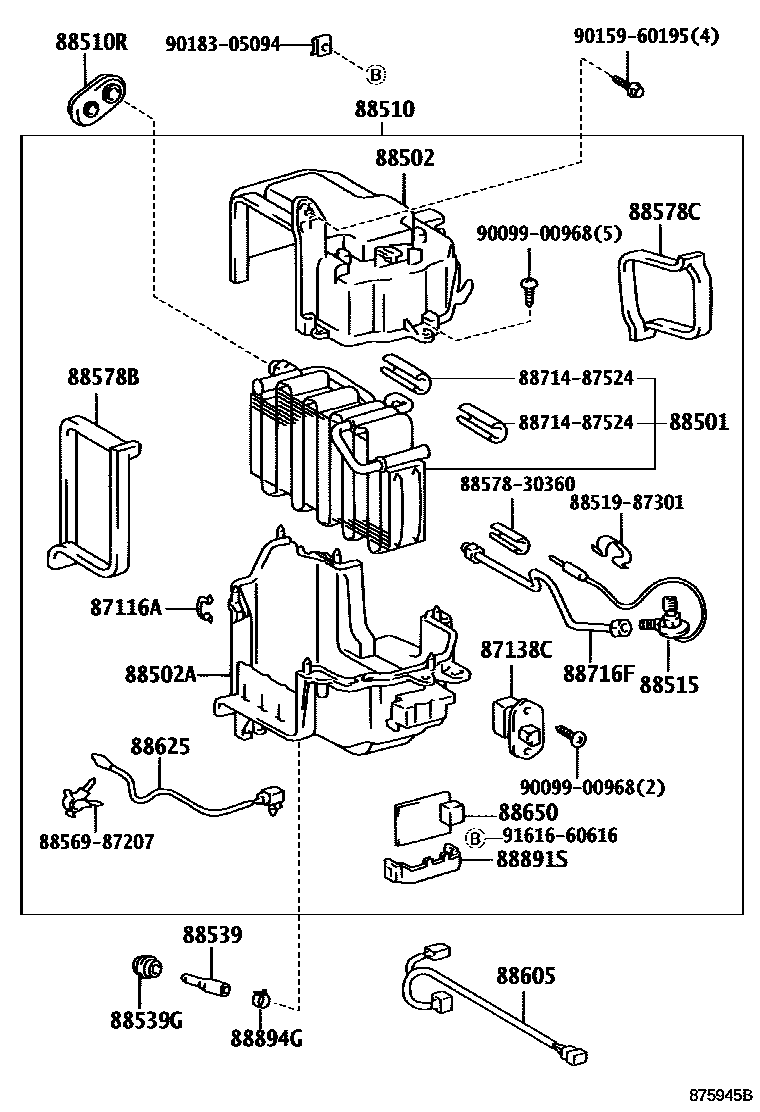

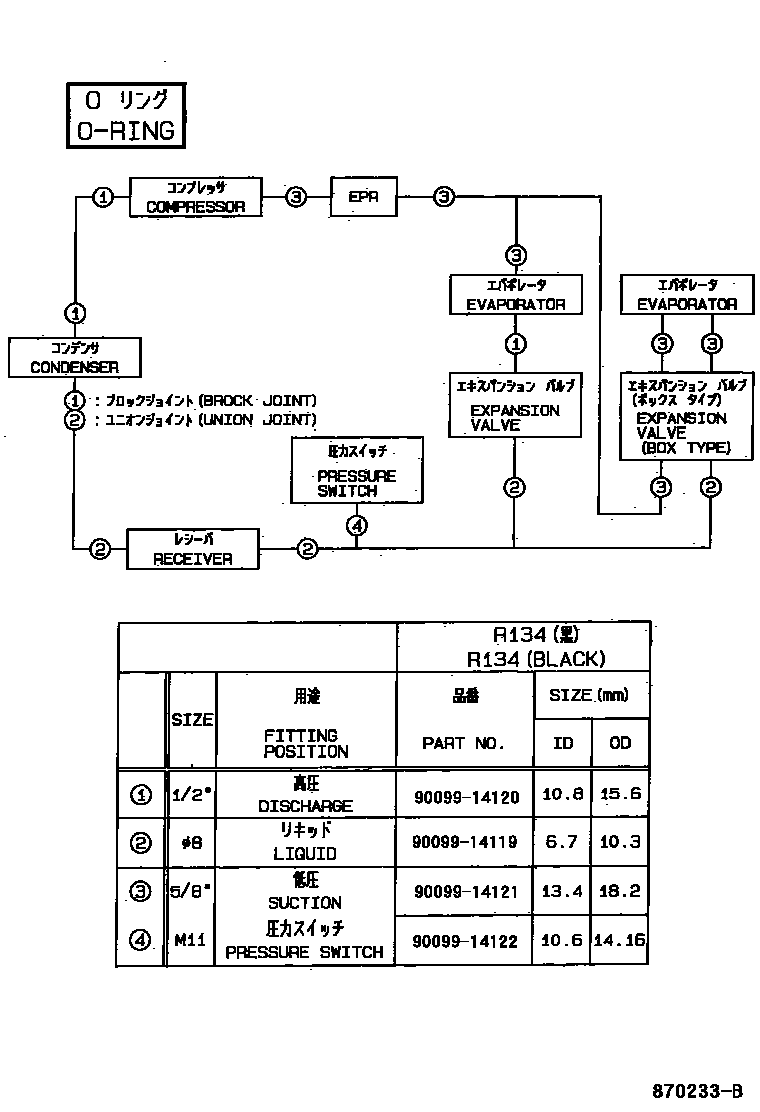

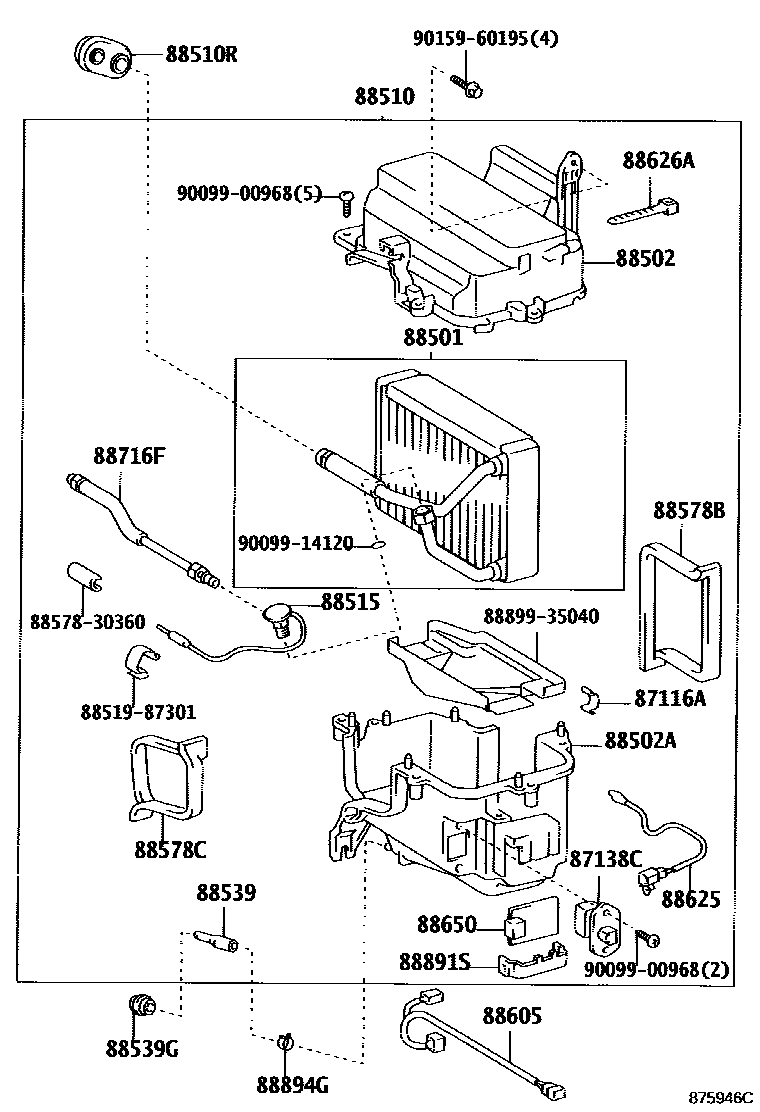

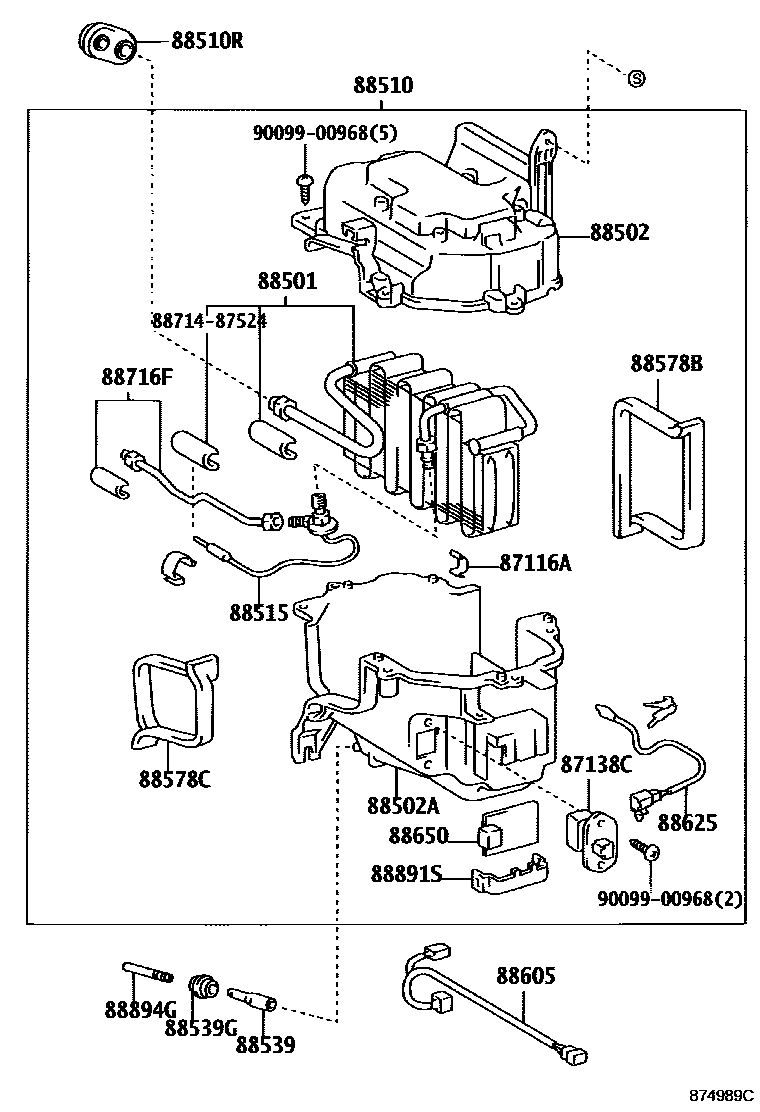

Toyota HILUX 暖风和空调系统 - 冷却器组件 — Figure 8714
Toyota HILUX EPC diagram 8714, 暖风和空调系统 - 冷却器组件, with 6 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87116A | Fixing spring (for cooler unit housing) | 87116-14010 |
| 87138C | Blower resistor | 87138-35080 |
| 88501 | Cooler No. 1 evaporator sub-assembly | 88501-35060 · 88501-35070 · 88501-35080 · 88501-35110 |
| 88502 | Cooling device shell sub-assembly | 88502-35050 · 88502-35080 · 88521-35230 · 88521-35240 |
| 88502A | Cooling device shell sub-assembly | 88502-35060 · 88502-35090 · 88521-35250 · 88521-35270 |
| 88510 | Cooler device assembly | 88510-35590 · 88510-35610 · 88510-35640 · 88510-35790 · 88510-35820 · 88510-3D050 · 88510-3D060 · 88510-3D100 |
| 88510R | Seals (for cooler units) | 90480-24008 |
| 88515 | Cooler expansion valve | 88515-35010 |
| 88539 | No. 1 Cooler Unit Drain Hose | 88539-89113 |
| 88539G | Seal (for cooler unit drain hose) | 90480-26022 |
| 88578B | Cooling unit seal No. 1 | 88578-35040 |
| 88578C | No. 2 cooling unit seal | 88578-35050 |
| 88605 | No. 1 cooler wiring harness sub-assembly | 88605-35220 |
| 88625 | Cooler No. 1 Thermistor | 88625-16210 · 88625-35040 · 88625-35070 |
| 88626A | Thermistor mount | 88626-28010 |
| 88650 | Cooler stabilized amplifier assembly | 88650-35060 · 88650-35170 · 88650-35180 |
| 88716F | Cooler refrigerant liquid pipe F | 88726-35050 · 88726-35060 · 88726-35100 · 88726-35210 · 88726-35220 |
| 88891S | Cooler cover No. 1 | 88891-35010 |
| 88894G | Drain hose connector | 88894-35060 · 88894-35070 |
