Toyota HILUX 后视镜 — Figure 8701

Toyota HILUX EPC diagram 8701, 后视镜, with 1 images and 6 PNC and OE references.

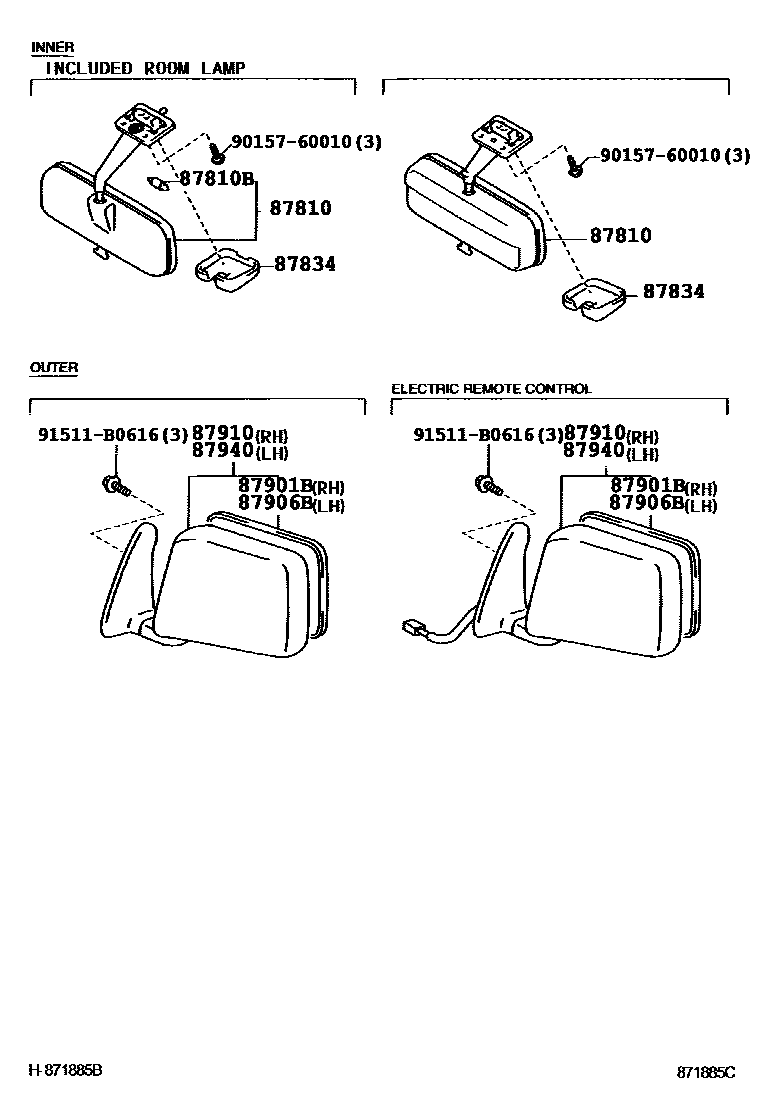

Toyota HILUX 后视镜 EPC diagram — 871885C
后视镜 — 871885C (199708 – 999999)

PNC and OE references

PNCPart nameOE numbers
87810BInterior rearview mirror light bulb99132-13050
87834Interior rearview mirror stay fixing cover87834-89104
87901BRight exterior rearview mirror sub-assembly87931-35440 · 87931-35450 · 87931-35460 · 87931-35470
87906BLeft exterior rearview mirror sub-assembly87961-35410 · 87961-35420 · 87961-35430 · 87961-35440
87910Right exterior rearview mirror assembly87910-35440 · 87910-35450 · 87910-35460 · 87910-35470 · 87910-35780 · 87910-35820
87940Left exterior rearview mirror assembly87940-35410 · 87940-35420 · 87940-35430 · 87940-35440 · 87940-35460 · 87940-35730
