Toyota HILUX 收音机、放大器和冷凝器 — Figure 8601

Toyota HILUX EPC diagram 8601, 收音机、放大器和冷凝器, with 2 images and 6 PNC and OE references.

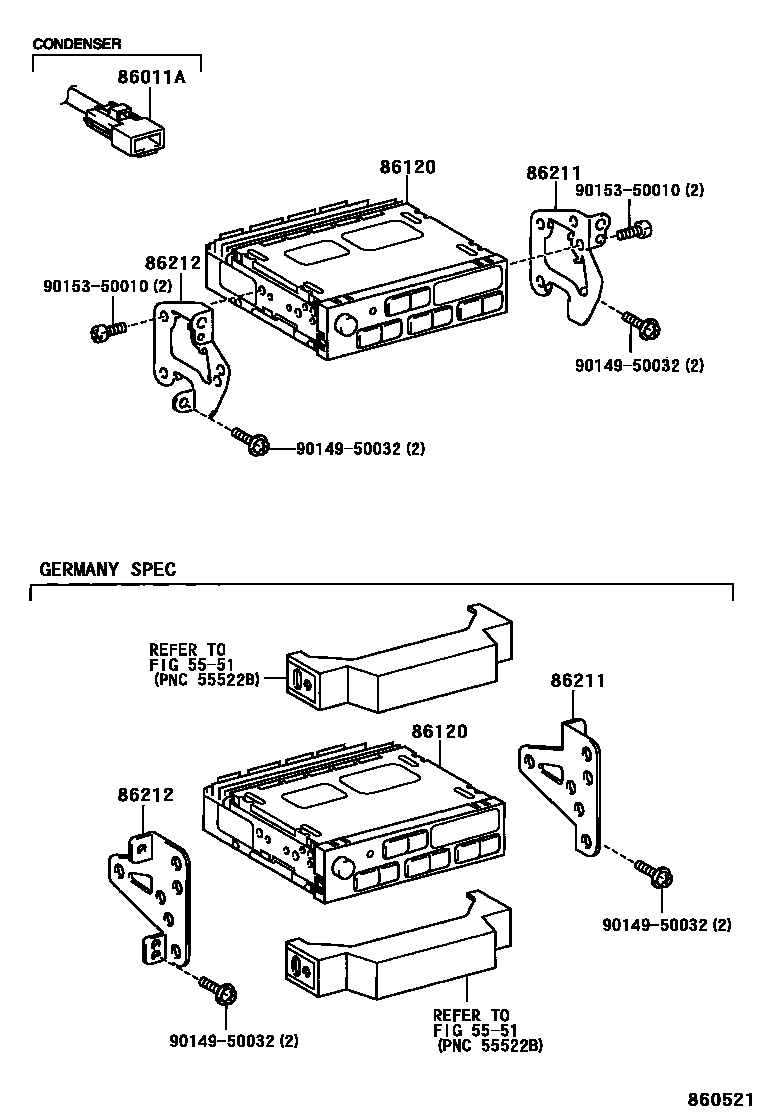

Toyota HILUX 收音机、放大器和冷凝器 EPC diagram — 860521
收音机、放大器和冷凝器 — 860521 (199708 – 999999)

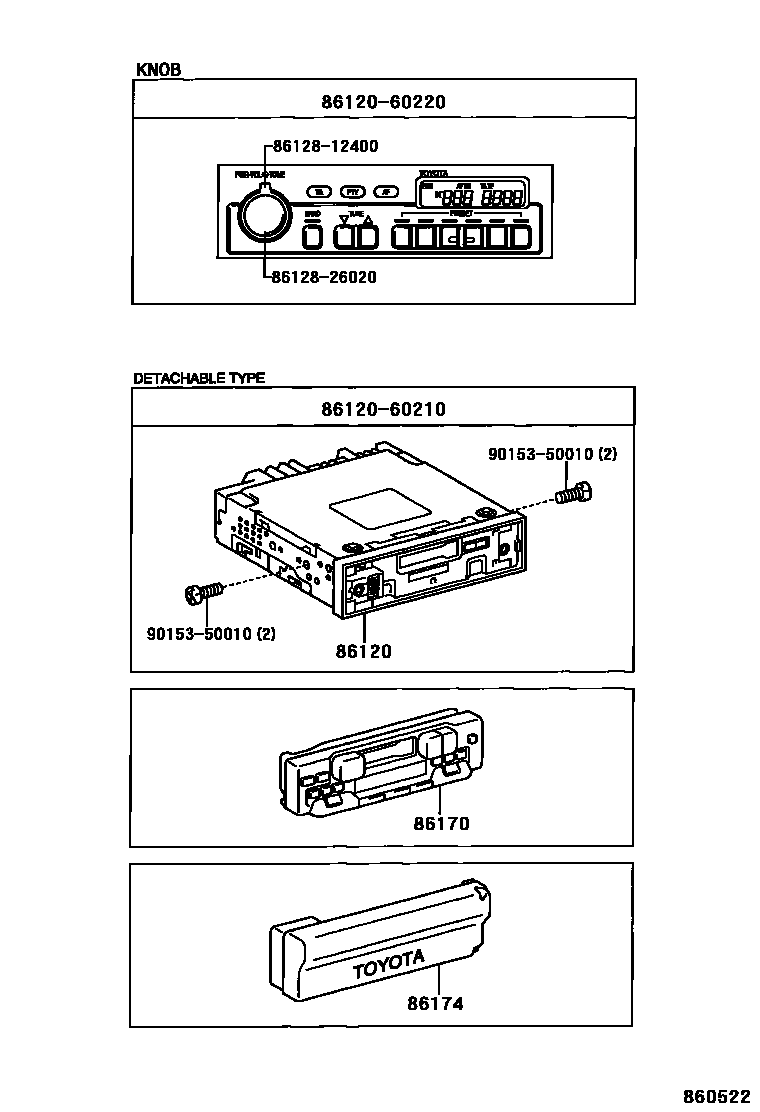

Toyota HILUX 收音机、放大器和冷凝器 EPC diagram — 860522
收音机、放大器和冷凝器 — 860522 (199708 – 999999)

PNC and OE references

PNCPart nameOE numbers
86011Aradio settings phase modulator90980-04083
86120Radio assembly86120-60210 · 86120-60220
86170Radio switch and volume assembly86170-60010
86174Switch and volume box86174-60010
86211No. 1 radio bracket86211-89111 · 86211-89113
86212No. 2 radio bracket86212-89111 · 86212-89113
