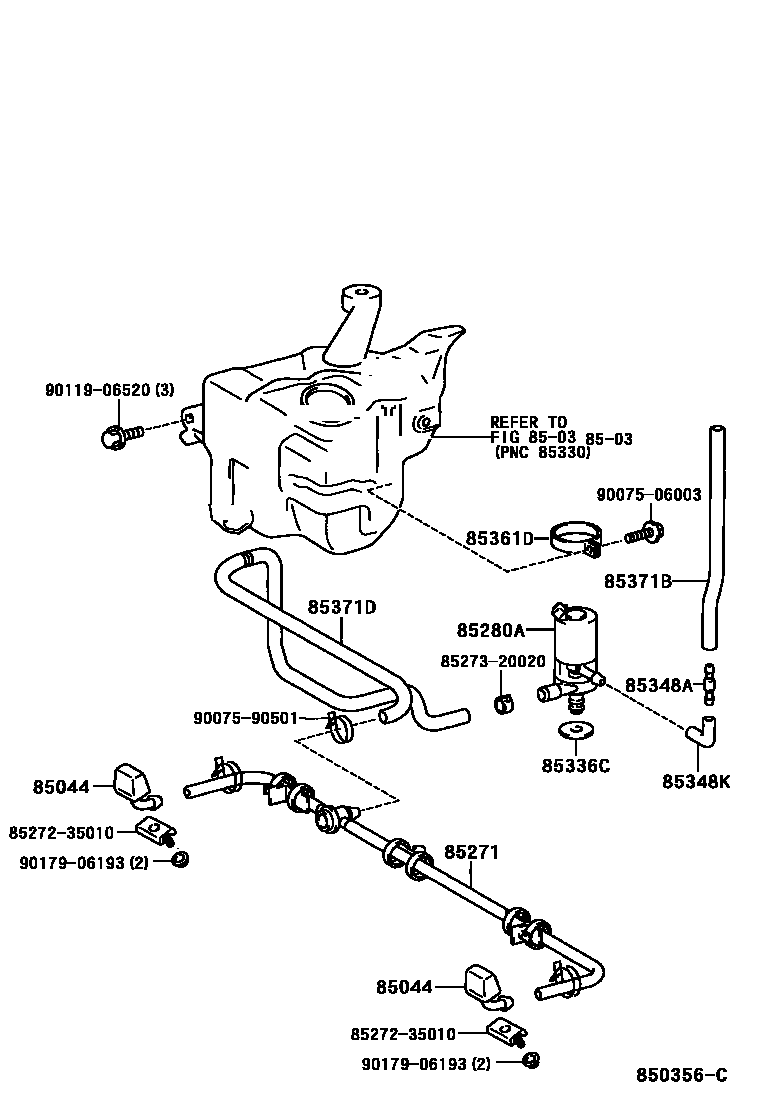

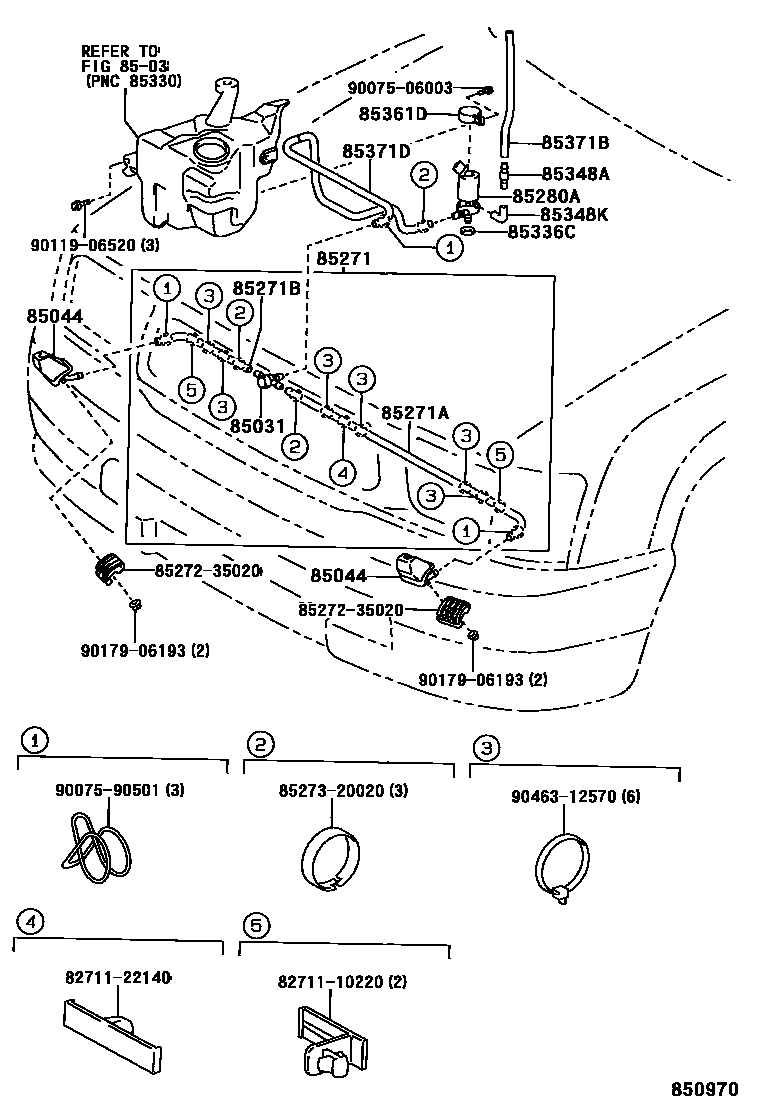

Toyota HILUX 前大灯清洗器 — Figure 8505
Toyota HILUX EPC diagram 8505, 前大灯清洗器, with 2 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85031 | Headlight washer hose valve | 85031-12010 |
| 85044 | Right type 1 headlight washer nozzle sub-assembly | 85044-35030 · 85044-35040 |
| 85271 | No. 1 headlight washer hose | 85271-35010 |
| 85271A | No. 2 headlight washer hose | 85271-14010 |
| 85271B | No. 3 headlight washer hose | 85275-60070 |
| 85280A | Headlight washer motor and pump assembly | 85280-30020 |
| 85336C | Headlight washer motor seal | 85336-10010 |
| 85348A | Headlight washer hose connector No. 1 | 85349-89122 |
| 85348K | No. 1 headlight washer elbow joint | 85336-12230 |
| 85361D | No. 2 headlight washer bracket | 85366-35040 |
| 85371B | Headlight washer hose (from motor to connector) | 85275-35040 |
| 85371D | No. 2 headlight washer hose | 90075-15006 |
