Toyota HILUX 超速档和电子控制变速器 — Figure 8410

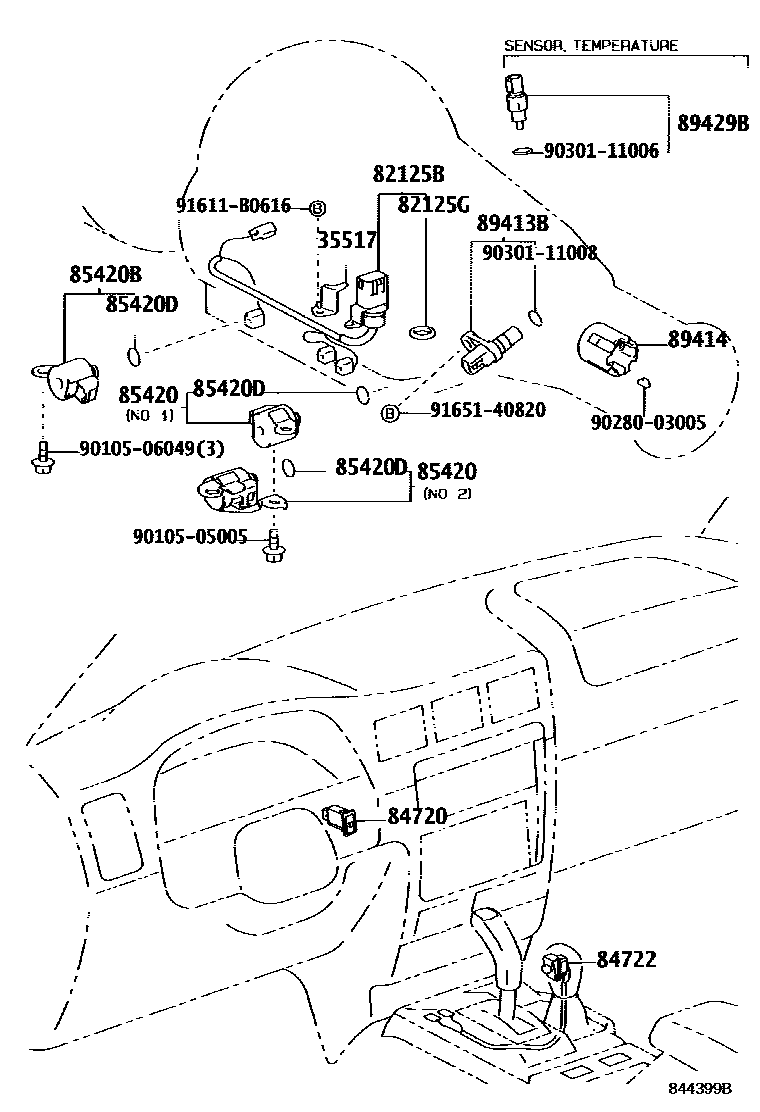

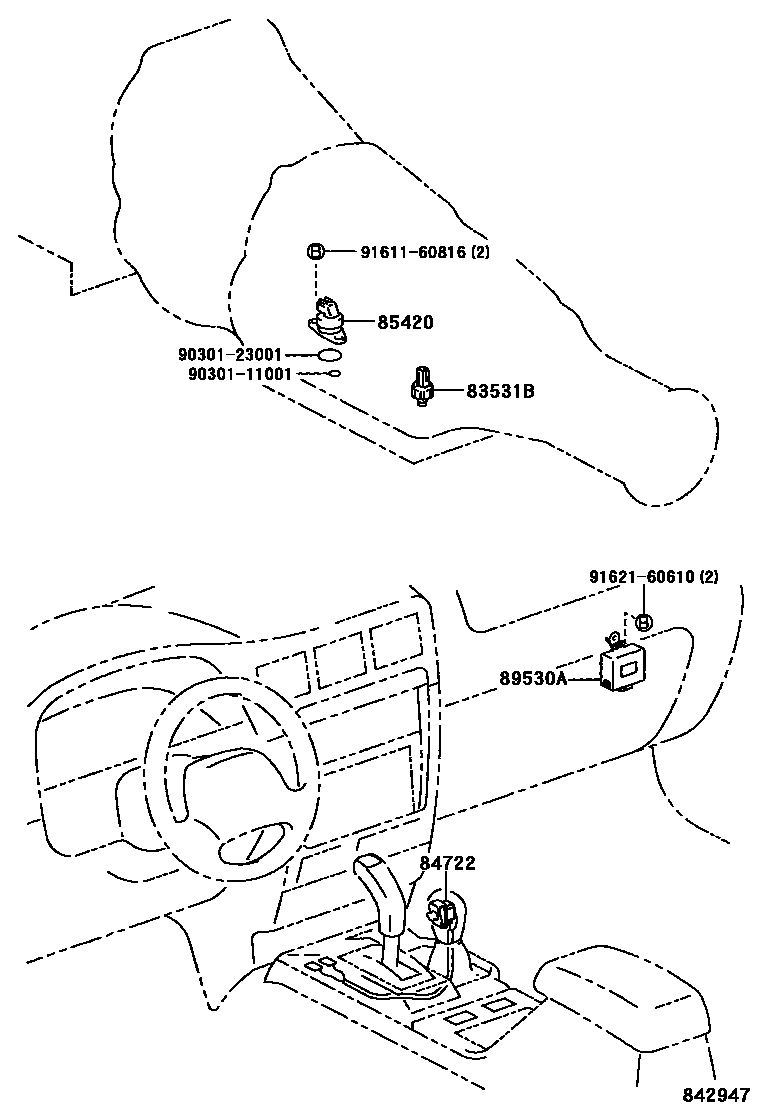

Toyota HILUX EPC diagram 8410, 超速档和电子控制变速器, with 2 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 35517 | Transmission harness locking plate | 35517-30010 |
| 82125B | Transmission wiring harness | 82125-60310 |
| 82125G | O-ring (for transmission wiring harness) | 96721-24018 |
| 83531B | Oil pressure switch | 83531-12010 |
| 84720 | Mode selection switch assembly | 84720-35070 |
| 85420 | Transmission solenoid valve assembly | 35250-30050 · 35250-30070 · 85420-22150 · 85420-22170 · 85420-30160 |
| 85420B | Transmission solenoid valve assembly | 35250-50030 · 85420-30260 · 85420-30270 |
| 85420D | O-ring (for transmission solenoid valve) | 90301-06004 |
| 89413B | Transmission speed sensor | 89413-24010 |
| 89414 | sensor rotor | 89414-22010 |
| 89429B | No. 2 temperature sensor | 89429-34010 |
| 89530A | Transmission control ECU assembly | 89530-35260 |
