Toyota HILUX 电子控制柴油机(ECD) — Figure 8405

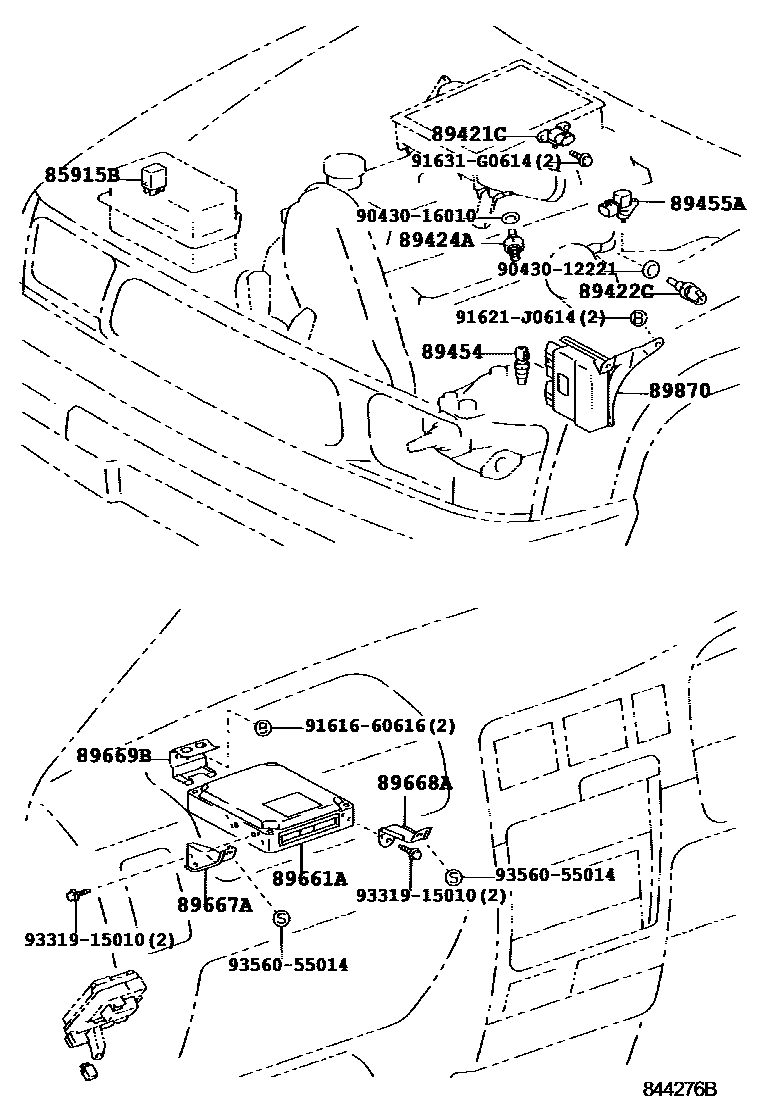

Toyota HILUX EPC diagram 8405, 电子控制柴油机(ECD), with 1 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85915B | Main relay (for diesel turbine) | 90987-02012 |
| 89421C | Turbo pressure sensor (for diesel turbines) | 89421-20210 · 89421-71020 |
| 89422C | Diesel engine water temperature sensor | 89422-35010 |
| 89424A | Intake air temperature sensor (for diesel turbine) | 89424-60010 |
| 89454 | fuel temperature sensor | 89454-60010 |
| 89455A | EGR valve position sensor | 89455-35020 |
| 89661A | Engine control ECU | 89666-35250 · 89666-35260 · 89666-35270 · 89666-35280 · 89666-35440 |
| 89667A | No. 1 engine control ECU bracket | 89667-35110 |
| 89668A | No. 2 engine control ECU bracket | 89668-35160 |
| 89669B | No. 3 engine control ECU bracket | 89669-35070 |
| 89870 | Relief control valve driver assembly | 89870-35020 · 89870-35030 |
