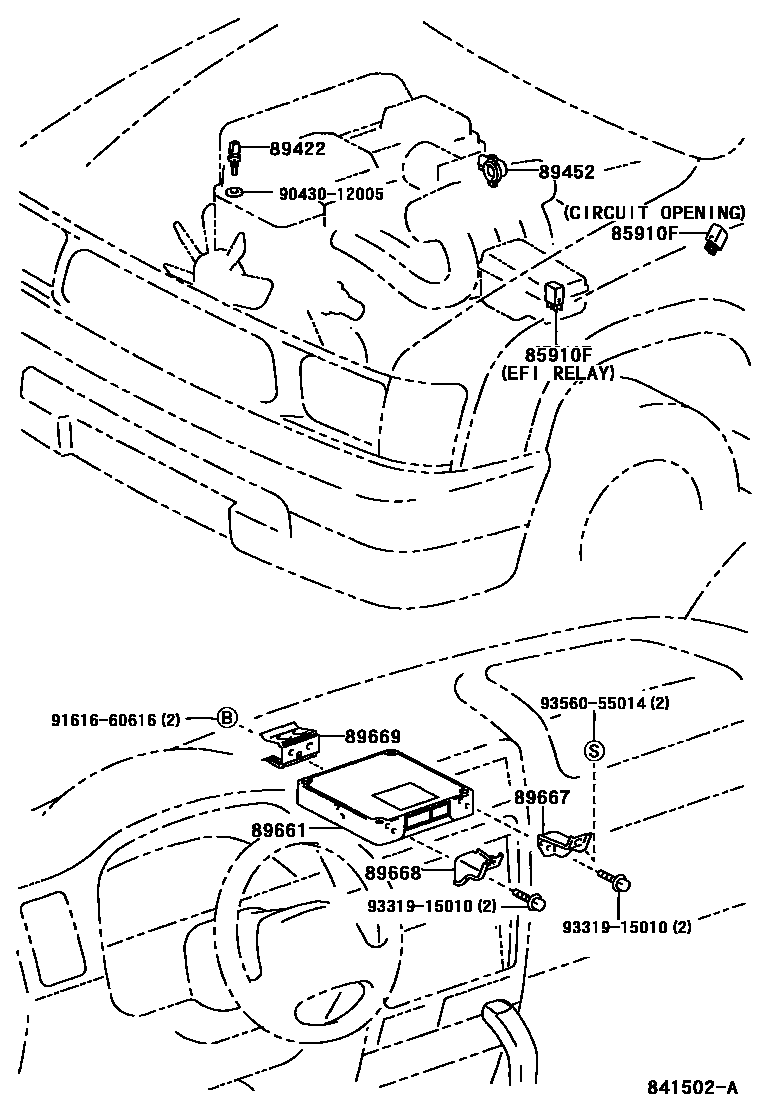

Toyota HILUX 电子燃油喷射系统 — Figure 8404
Toyota HILUX EPC diagram 8404, 电子燃油喷射系统, with 1 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85910F | ECU relay (for EFI) | 90987-02012 |
| 89422 | Water temperature sensor (for E.F.I.) | 89422-35010 |
| 89452 | Throttle position sensor (for E.F.I.) | 89452-35020 |
| 89661 | Engine control ECU | 89661-3D460 · 89661-3D540 |
| 89667 | Engine control ECU bracket | 89667-35110 |
| 89668 | No. 2 engine control ECU bracket | 89668-35140 |
| 89669 | No. 3 engine control ECU bracket | 89669-35070 |
