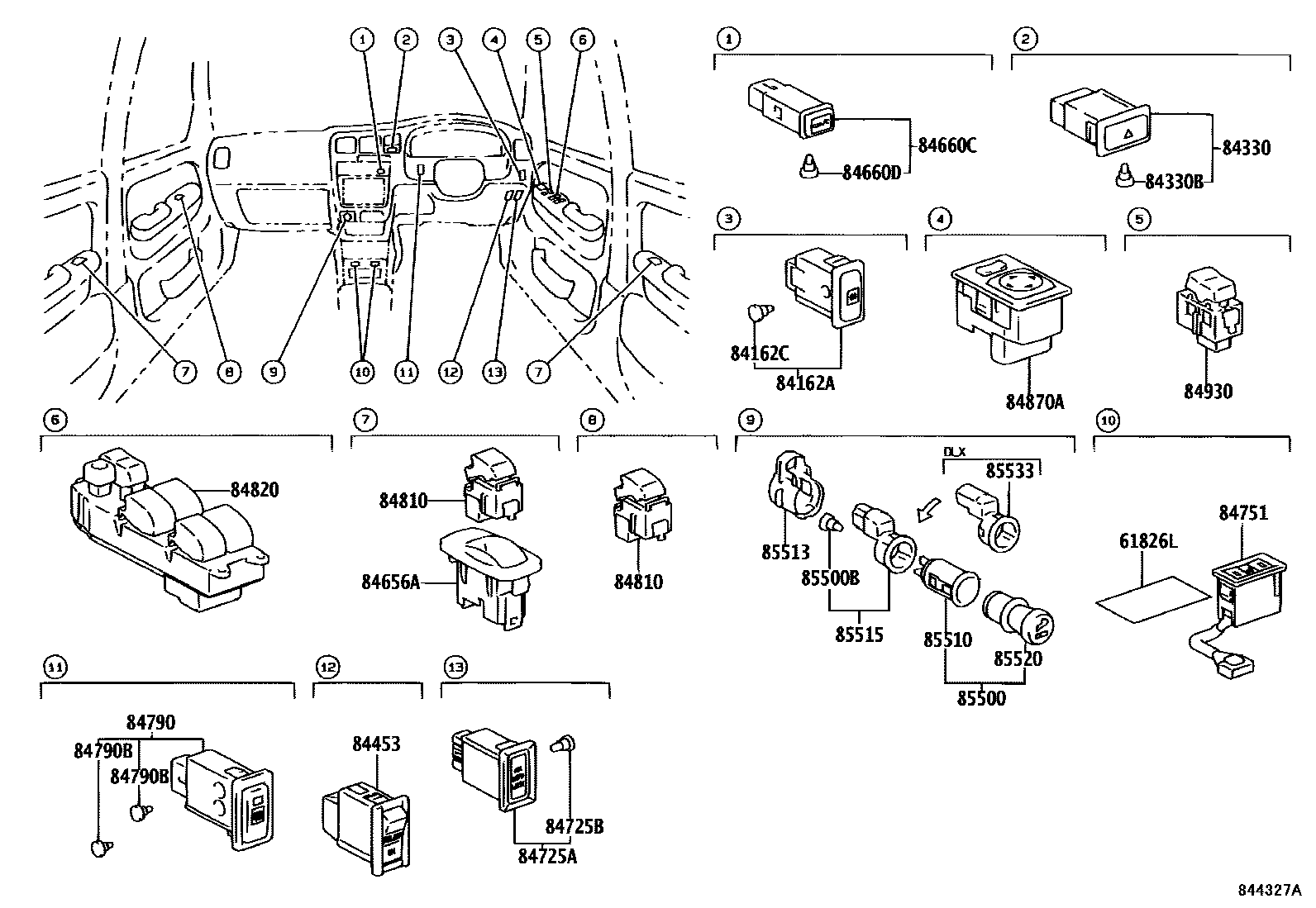

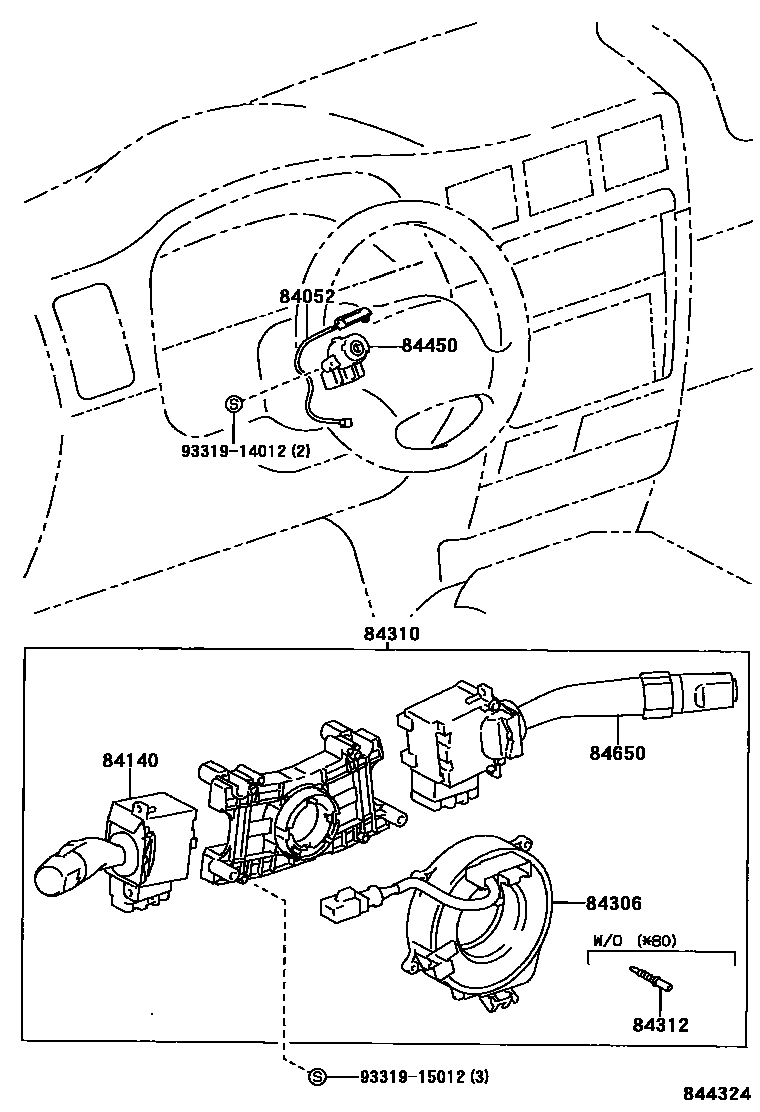

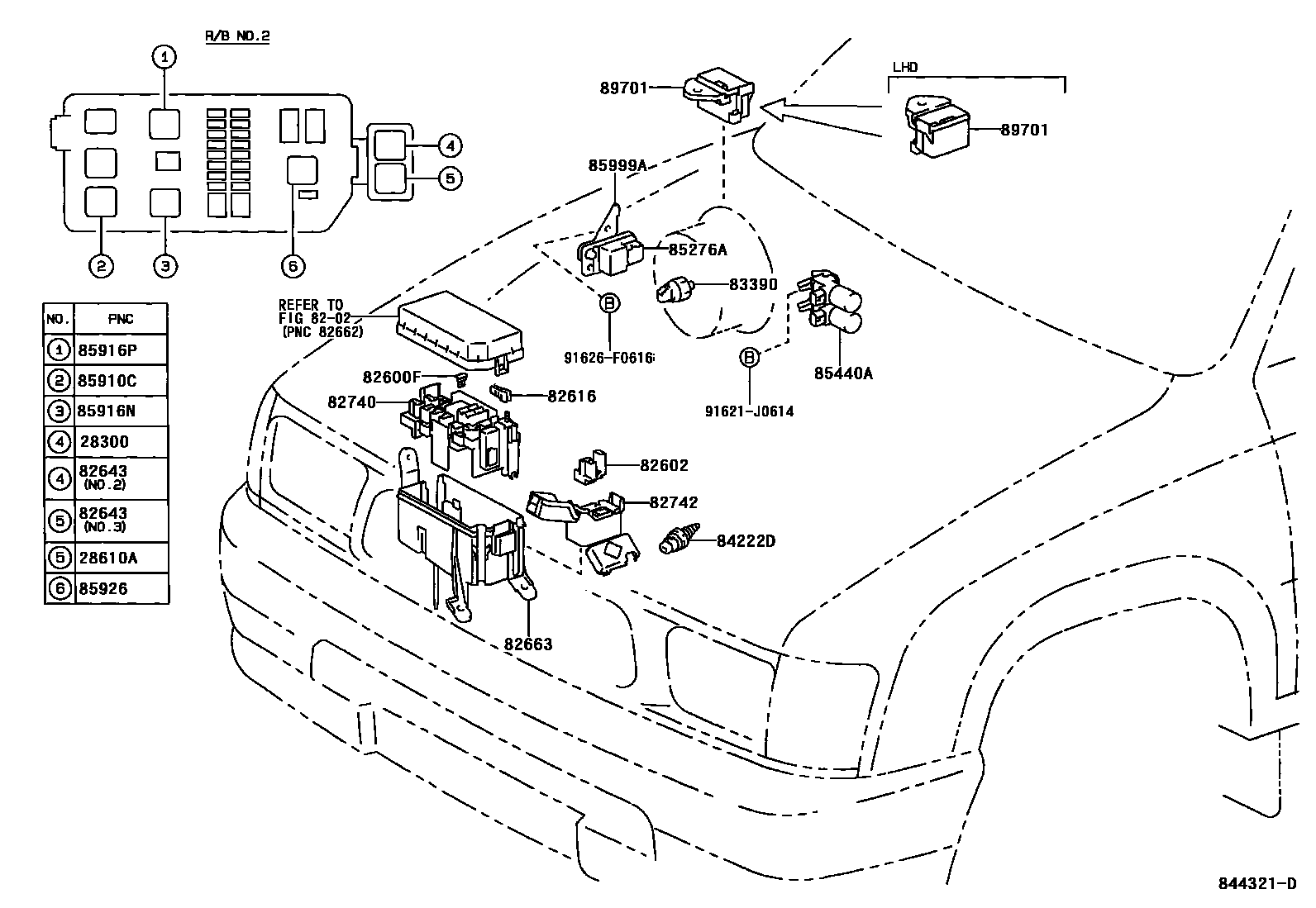

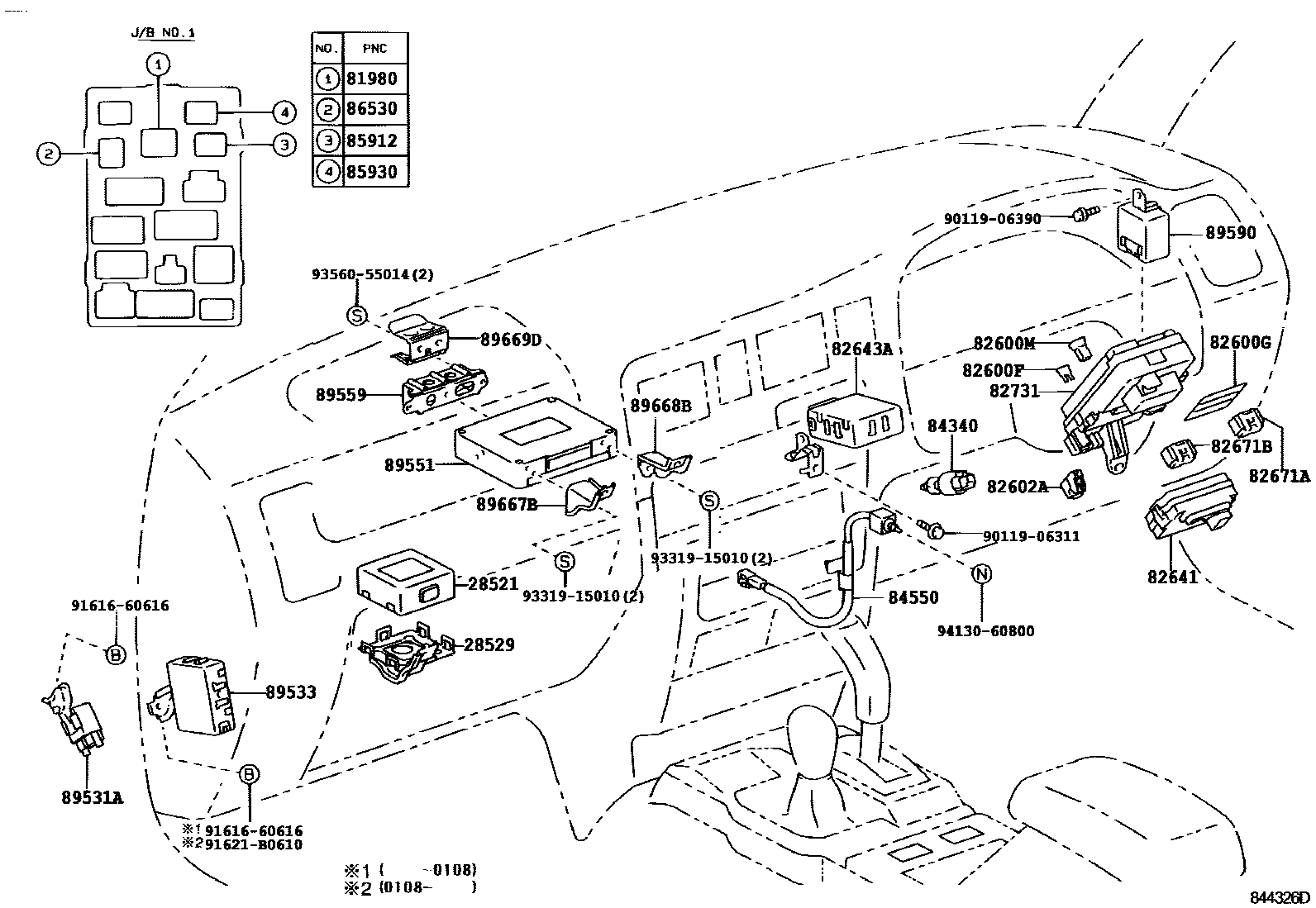

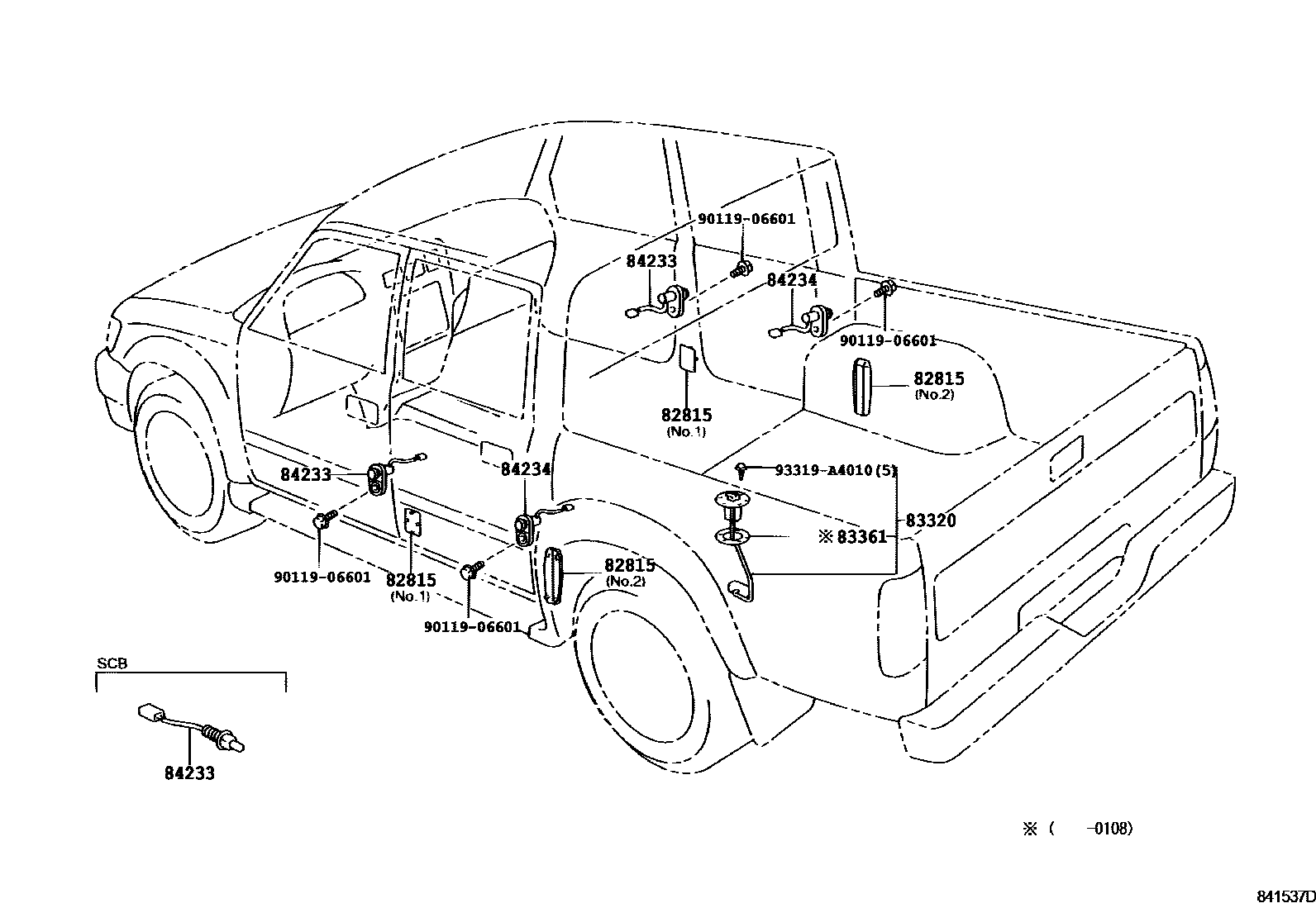

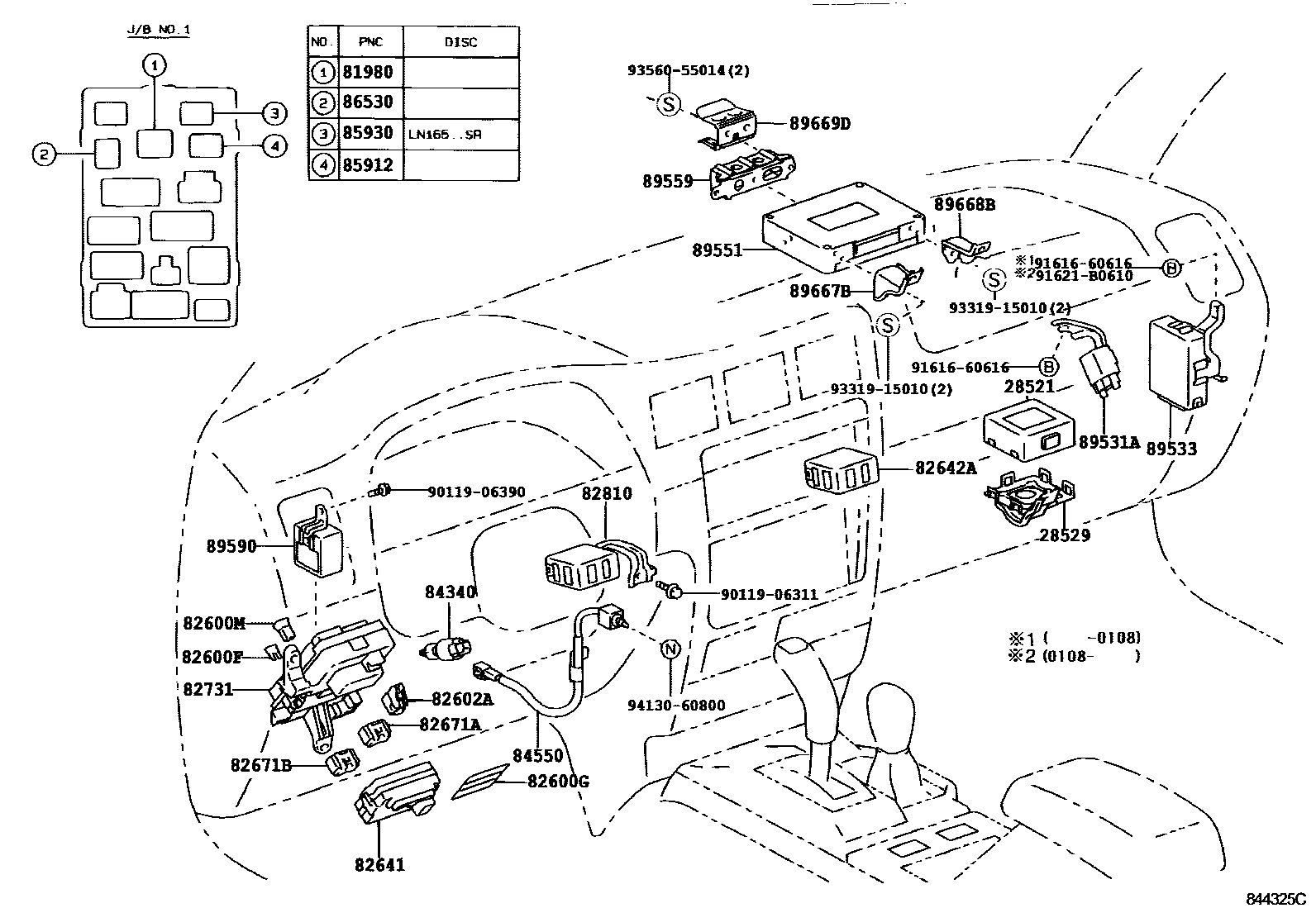

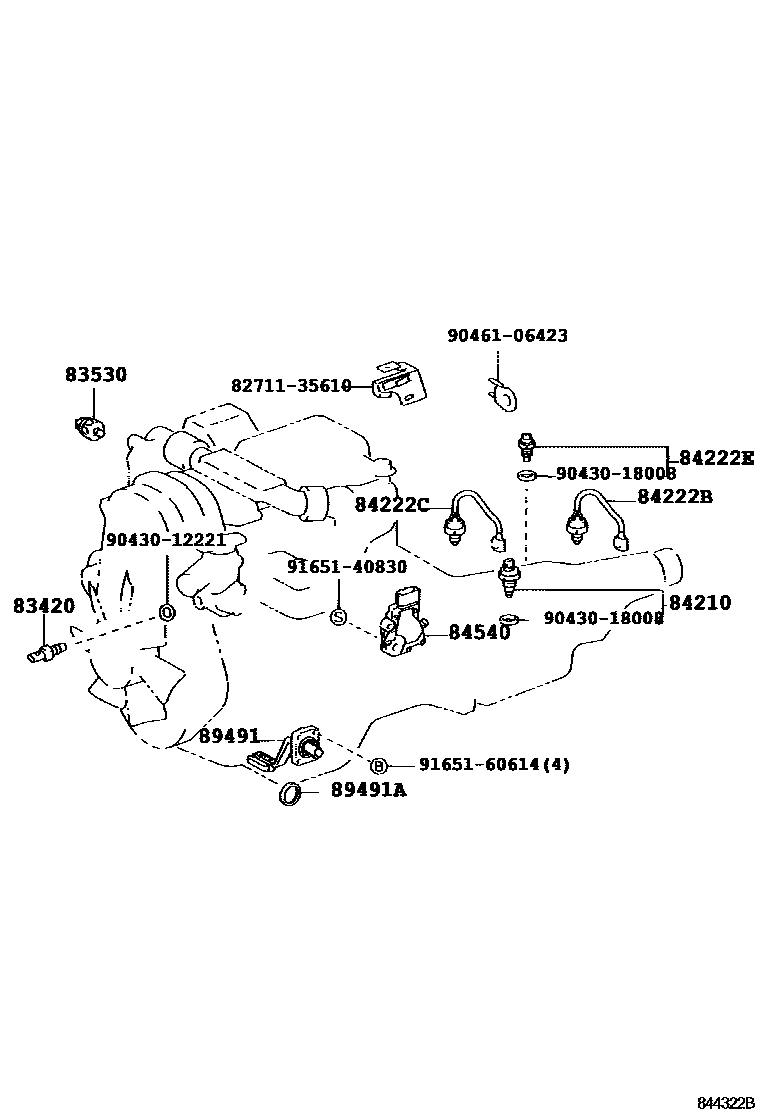

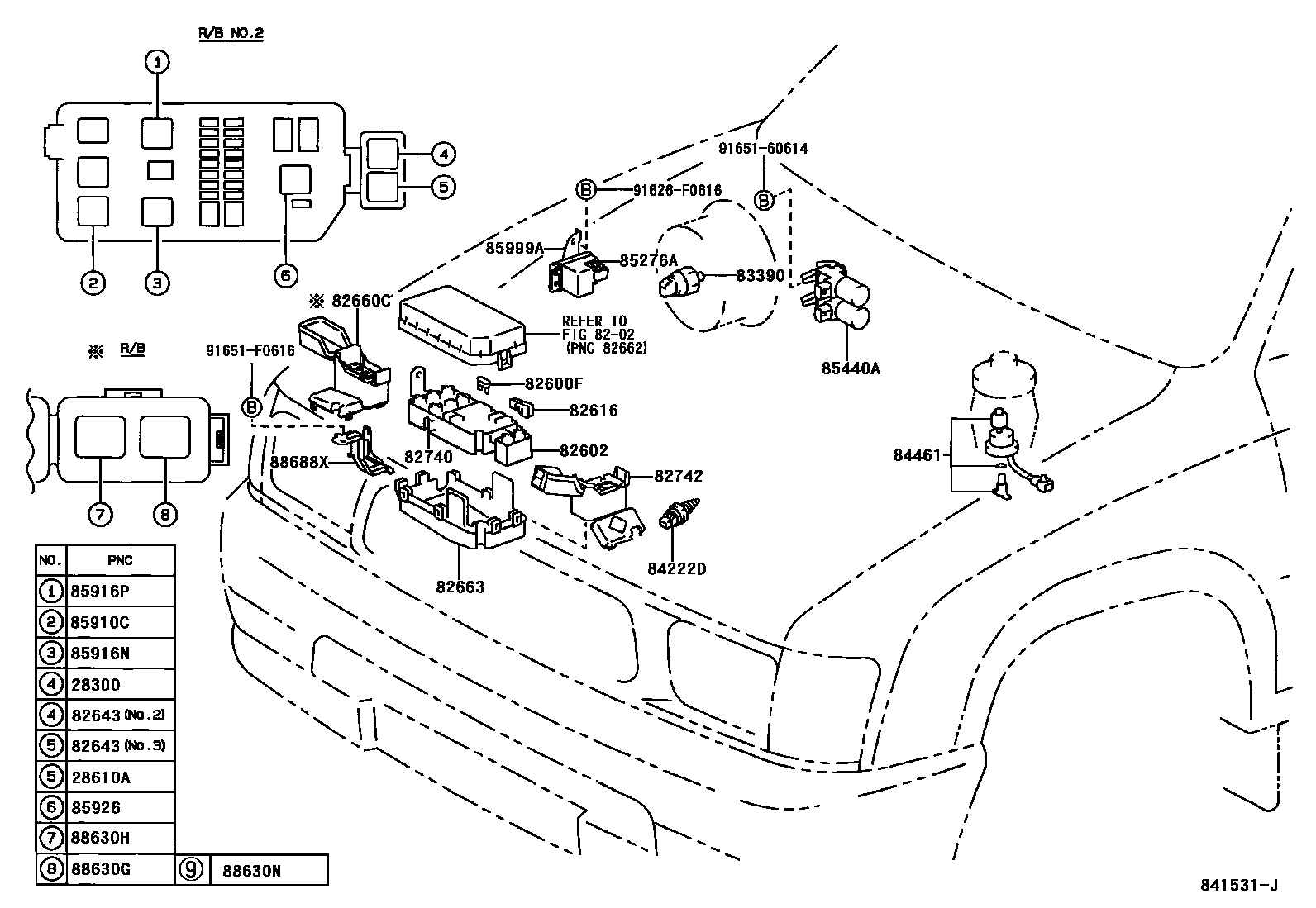

Toyota HILUX 开关和继电器和ECU — Figure 8401

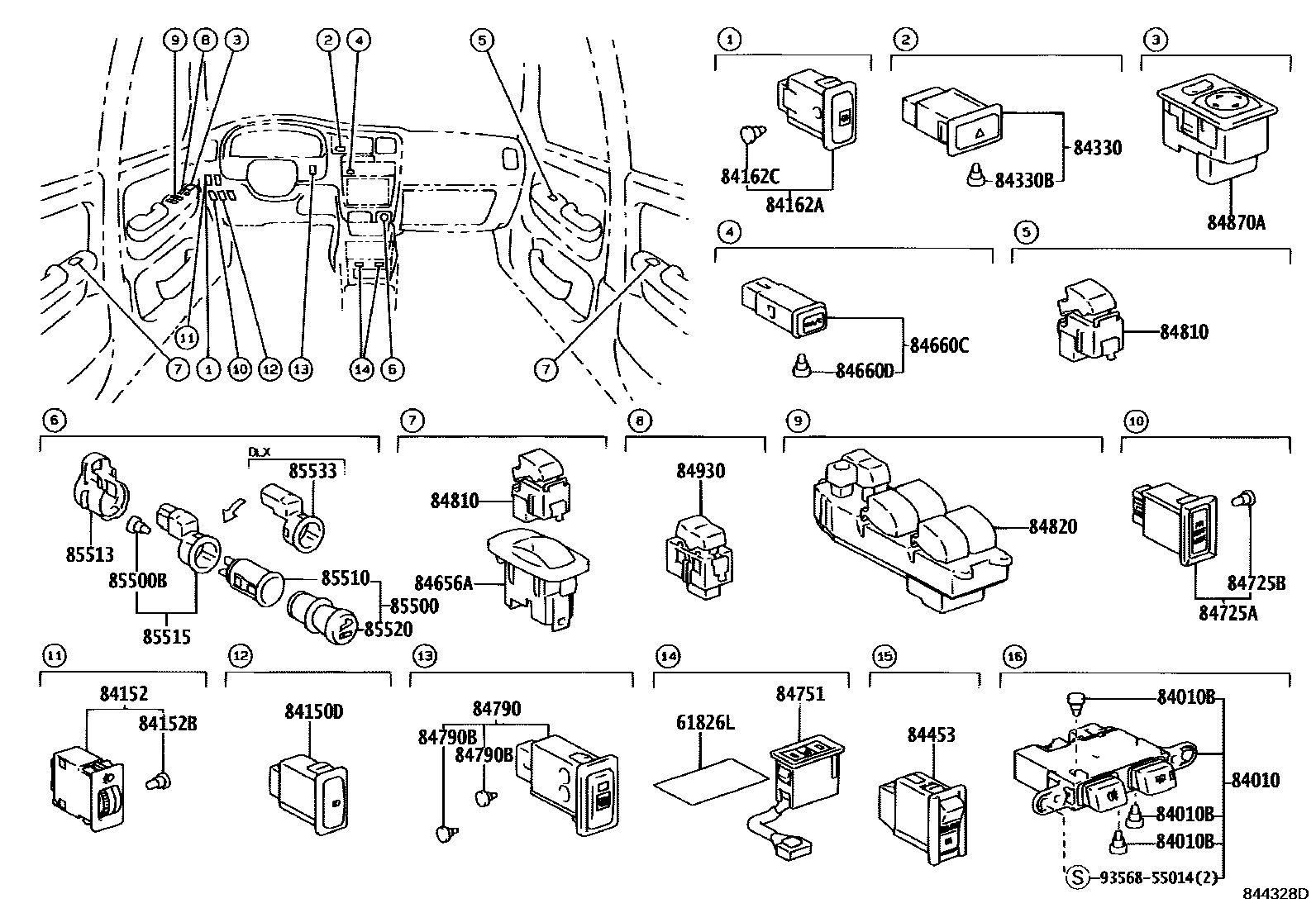

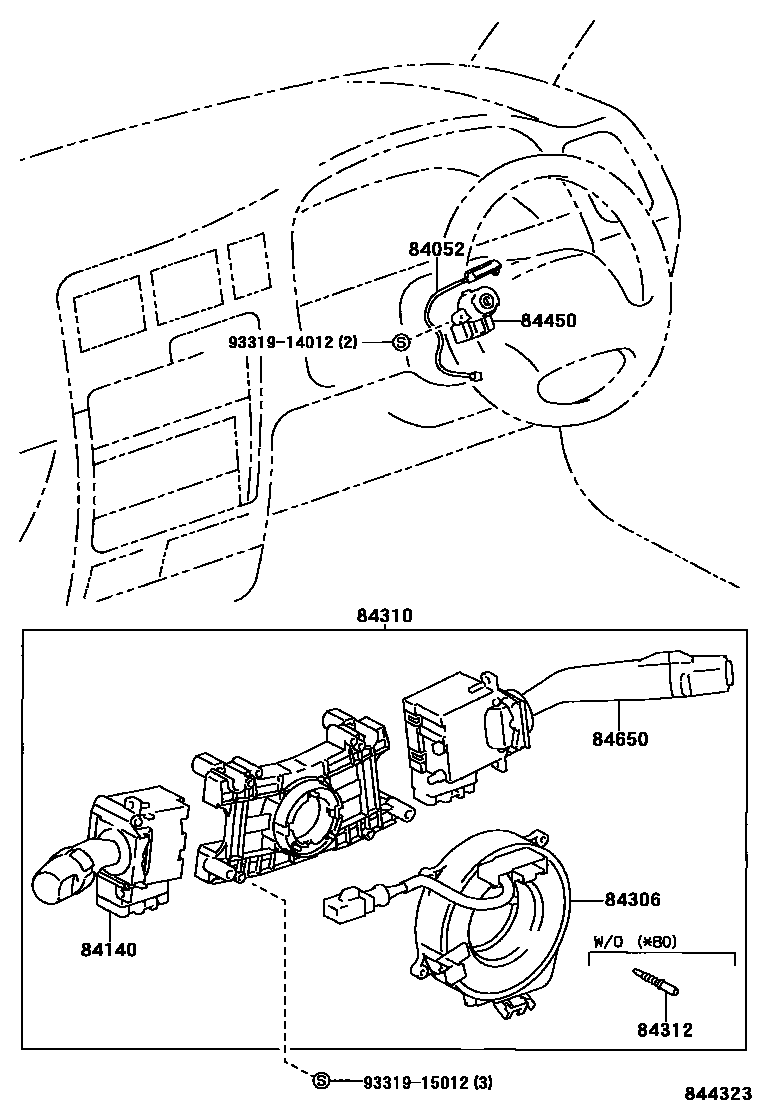

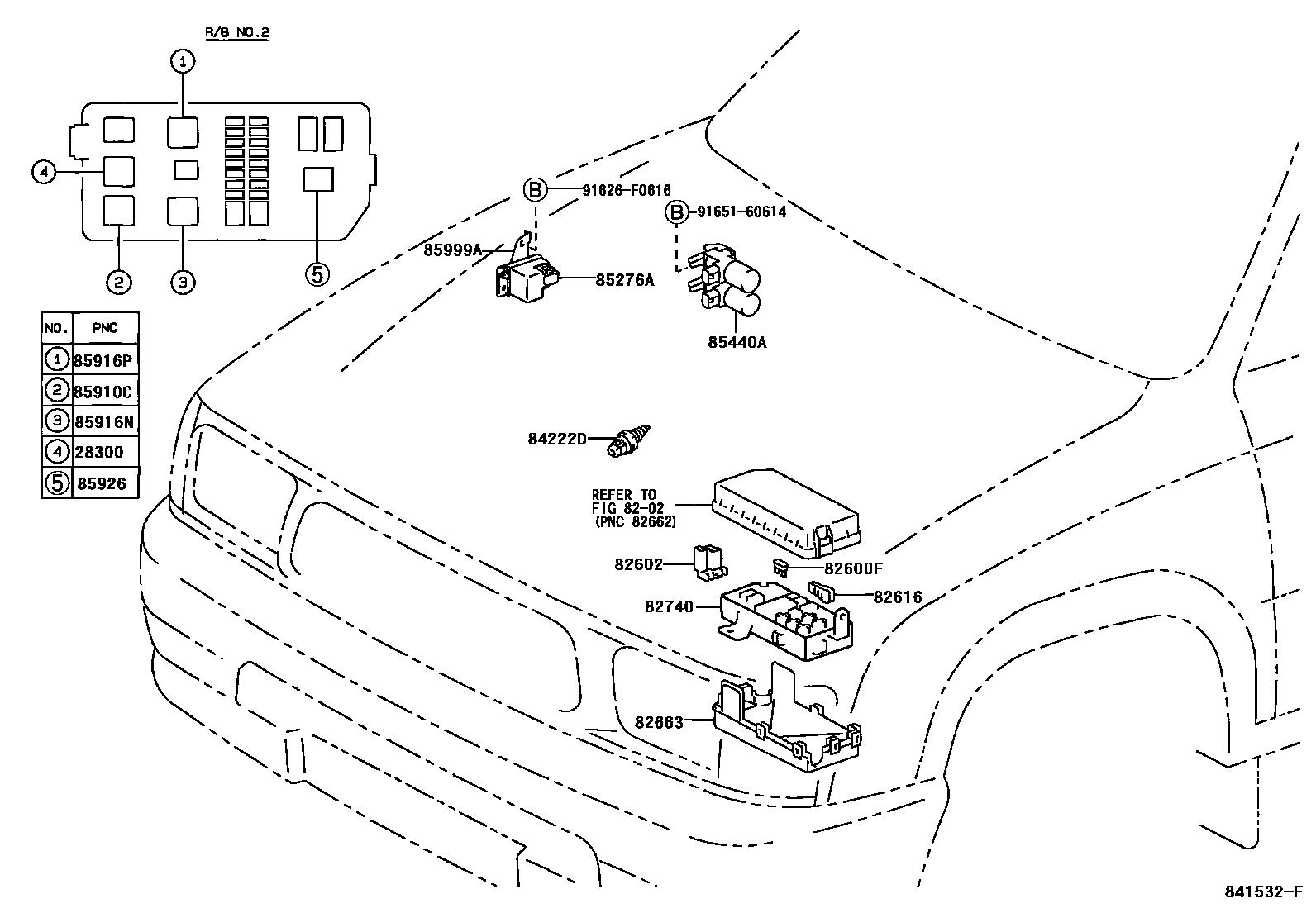

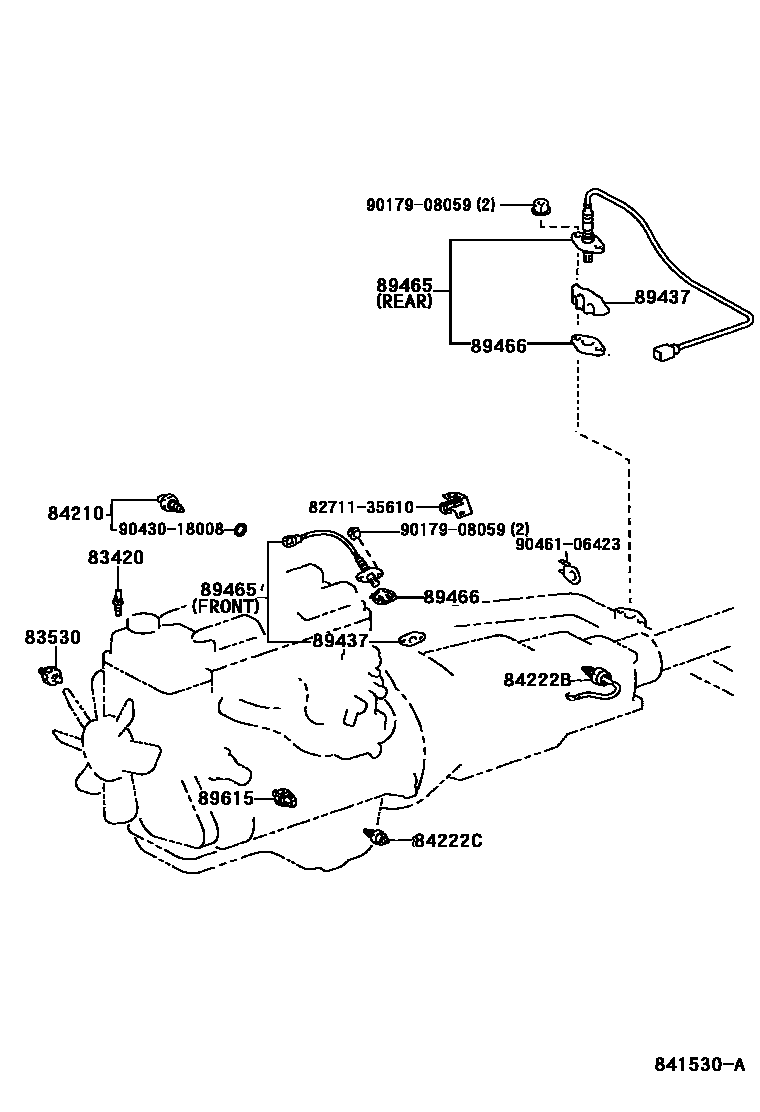

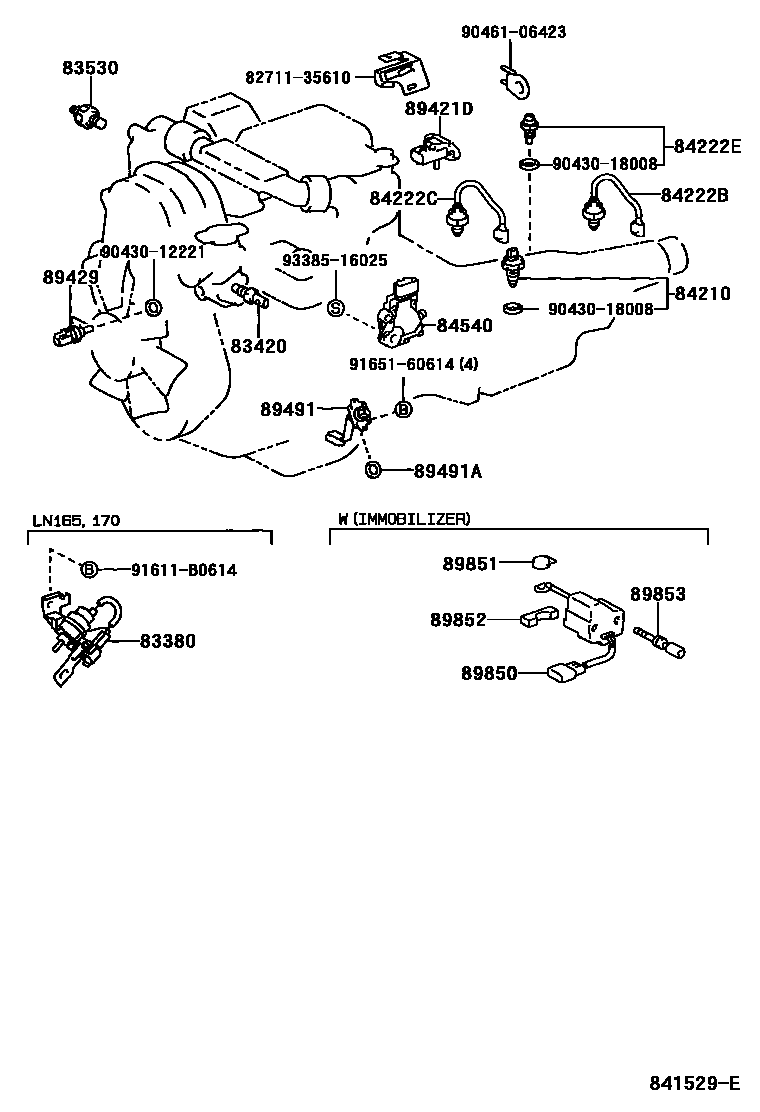

Toyota HILUX EPC diagram 8401, 开关和继电器和ECU, with 13 images and 112 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28300 | Starter relay assembly | 28300-10020 · 28300-46010 |
| 28521 | Preheat timer | 28521-54591 · 28521-54600 |
| 28529 | Preheat timer bracket No. 1 | 28529-54320 |
| 28610A | Sub glow plug relay assembly | 28610-54360 |
| 61826L | Noise Control Panel No. 3 | 61826-12020 |
| 81980 | Turn signal flasher relay assembly | 81980-12110 · 81980-32010 |
| 82600F | Spare fuse | 90982-09008 · 90982-09009 · 90982-09010 · 90982-09011 · 90982-10001 |
| 82600G | Warning nameplate (for fuses) | 82683-35120 |
| 82600M | medium current fuse | 90982-10001 |
| 82602 | Relay box sub-assembly | 82602-35040 |
| 82602A | Relay box sub-assembly | 82602-35150 |
| 82616 | fuse puller | 82616-20010 |
| 82641 | Integrated relay No. 1 | 82641-35200 · 82641-35210 · 82641-35220 · 82641-35230 · 82641-35270 · 82641-35280 · 82641-60040 · 82641-60060 |
| 82642A | driving light relay | 82642-12050 |
| 82643 | low beam relay | 90987-02006 · 90987-04002 |
| 82643A | low beam relay | 82643-12020 |
| 82660C | Relay assembly | 82660-35120 |
| 82663 | Relay box lower cover | 82663-35050 · 82663-35070 |
| 82671A | junction box | 82671-30340 · 82671-30360 |
| 82671B | junction box | 82671-30370 |
| 82731 | Driver's side junction box | 82731-35010 · 82731-35020 · 82731-35030 |
| 82740 | Engine room relay box assembly | 82741-35020 · 82741-35030 · 82741-35040 · 82741-35080 · 82741-35090 · 82741-35100 |
| 82742 | Engine room No. 2 relay box | 82742-35010 |
| 82810 | Driving light relay assembly | 82810-35060 |
| 82815 | Wiring harness protector cover | 82815-35010 · 82815-35020 |
| 83320 | Fuel gauge sensor assembly | 83320-80357 · 83320-80358 · 83320-80359 · 83320-80398 · 83320-80399 · 83320-80401 · 83320-80402 · 83320-80404 · 83320-80405 |
| 83361 | fuel gauge sensor gasket | 83361-20030 |
| 83380 | Pressure switch assembly | 83380-35040 |
| 83390 | Vacuum warning switch assembly | 83390-30100 |
| 83420 | Water temperature sensor assembly | 83420-16040 · 83420-20040 · 83420-26010 |
| 83530 | Oil pressure switch assembly (for engine) | 83530-28020 · 83530-30060 · 83530-60010 · 83530-60020 · 83530-60030 |
| 84010 | Central instrument cluster integrated switch assembly | 84010-35080 · 84010-35110 |
| 84010B | Integrated control and panel light bulbs | 90010-01061 · 90010-01077 · 90010-01078 |
| 84052 | Unlock warning switch assembly | 84052-12070 |
| 84140 | Headlight dimmer switch assembly | 84140-26140 |
| 84150D | Headlight washer switch assembly | 84150-89101 |
| 84152 | Headlight beam height adjustment switch | 84152-35010 · 84152-48010 · 84152-89101 |
| 84152B | Bulb (for headlight beam height adjustment switch) | 90010-08100 |
| 84162A | Rear fog light switch | 84165-16010 |
| 84162C | Bulb (for rear fog light switch) | 84999-20120 |
| 84210 | Reversing light switch assembly | 84210-12040 |
| 84222B | No. 2 transfer case indicator switch | 84222-35060 |
| 84222C | No. 3 transfer case indicator light switch | 84222-35080 |
| 84222D | No. 4 transfer case indicator light switch | 84222-35070 |
| 84222E | Differential lock indicator light switch | 84222-12010 |
| 84233 | Door control light switch assembly (for front door) | 84230-12120 · 84230-20120 · 84231-35030 |
| 84234 | Door control light switch assembly (for rear door) | 84231-35030 |
| 84306 | Spiral cable sub-assembly | 84306-26070 · 84306-35030 |
| 84310 | Turn signal switch assembly | 84310-35630 · 84310-35850 · 84310-3D110 |
| 84312 | Speaker contact piece | 84312-26010 |
| 84330 | Hazard warning signal switch assembly | 84332-35060 |
| 84330B | Hazard warning signal switch light bulb | 84999-10860 |
| 84340 | brake light switch assembly | 84340-35020 · 84340-35030 |
| 84450 | Ignition or starter switch assembly | 84450-12200 |
| 84453 | Idle speed boost switch | 84453-35020 |
| 84461 | Liquid level warning switch | 84461-28040 |
| 84540 | Neutral start switch assembly | 84540-30270 · 84540-30290 · 84540-30300 |
| 84550 | Parking brake switch assembly | 84550-34010 · 84550-35020 |
| 84650 | Windshield wiper switch assembly | 84652-2G010 |
| 84660C | Cooler switch | 84660-35010 · 84660-35030 |
| 84660D | Light bulb (for cooler switch) | 88607-16010 |
| 84725A | Differential lock switch | 84725-35010 |
| 84725B | Differential lock switch light bulb | 84999-10320 |
| 84751 | Seat heater switch | 84751-35030 · 84751-35040 |
| 84790 | Rear window defogger switch assembly | 84790-35020 |
| 84790B | Bulb (for rear window defogger switch) | 84999-10320 |
| 84810 | Electric window lift switch assembly | 84810-12080 |
| 84820 | Electric window lift main switch assembly | 84820-10090 · 84820-10100 · 84820-60080 · 84820-60090 |
| 84870A | Exterior rearview mirror switch assembly | 84870-16020 · 84870-34010 |
| 84930 | Door control switch assembly | 84930-14090 |
| 85276A | Cleaner control relay | 85942-33010 |
| 85440A | Four-wheel drive control solenoid valve assembly | 85440-35070 · 85440-35080 |
| 85500 | Cigarette lighter assembly | 85500-12240 |
| 85500B | Cigarette lighter bulb | 84999-10250 |
| 85510 | Cigarette lighter socket and fixing bracket assembly | 85510-16040 |
| 85513 | Cigarette lighter cover | 85513-12020 |
| 85515 | Cigarette lighter frame bracket | 85515-32010 |
| 85520 | Cigarette lighter button and cigarette lighter core assembly | 85520-28010 |
| 85533 | Cigarette lighter indicator lamp shade | 85533-26010 |
| 85910C | Relay assembly (for heater blower motor) | 90987-04002 |
| 85912 | defogger relay | 90987-02012 |
| 85916N | Tail light relay | 90987-02012 |
| 85916P | headlight relay | 90987-02006 |
| 85926 | Headlight dimmer relay | 85926-30020 |
| 85930 | Electric window relay assembly | 90987-02012 |
| 85999A | No. 2 relay bracket | 85999-35120 |
| 86530 | Speaker relay assembly | 86530-20070 |
| 88630G | Cooler relay assembly | 90987-04003 |
| 88630H | Cooler relay assembly | 90987-03003 |
| 88630N | Cooler relay assembly | 90987-02012 |
| 88688X | switch bracket | 88688-35490 |
| 89421D | turbo pressure sensor | 89421-21010 |
| 89429 | oil temperature sensor | 89422-20010 |
| 89437 | sensor cover | 89437-42010 |
| 89465 | oxygen sensor | 89465-80021 · 89465-80022 |
| 89466 | Oxygen sensor pad | 89466-20020 |
| 89491 | Engine oil level sensor | 89491-26111 · 89491-35011 · 89491-35040 · 89491-35050 |
| 89491A | Engine oil level sensor gasket | 89493-60010 |
| 89531A | transmission control relay | 89531-35040 |
| 89533 | Four-wheel drive control ECU | 89533-35120 |
| 89551 | Emission control ECU | 89551-35100 · 89551-35101 · 89551-35110 · 89551-35111 |
| 89559 | Emission control ECU bracket | 89559-35010 · 89559-35020 |
| 89590 | Status indicator light ECU assembly | 89590-35020 |
| 89615 | knock control sensor | 89615-50010 |
| 89667B | No. 1 engine control ECU bracket | 89667-35100 |
| 89668B | No. 2 engine control ECU bracket | 89668-35140 |
| 89669D | No. 3 engine control ECU bracket | 89669-35070 |
| 89701 | ABS relay box sub-assembly | 89701-12010 |
| 89850 | Fuel cut-off valve control unit assembly | 89850-20011 |
| 89851 | fuel shutoff valve control cover | 89851-20010 |
| 89852 | Fuel shut-off valve controller clip | 89852-20010 |
| 89853 | fuel shutoff valve control bolt | 89853-20010 |
