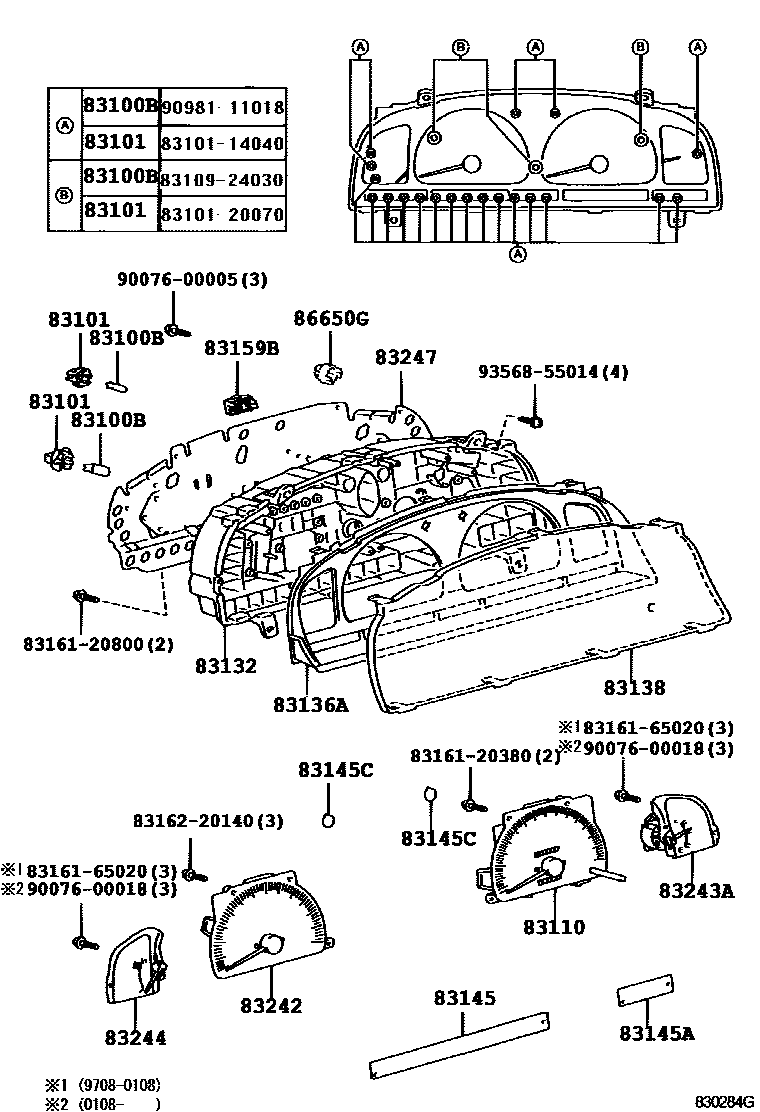

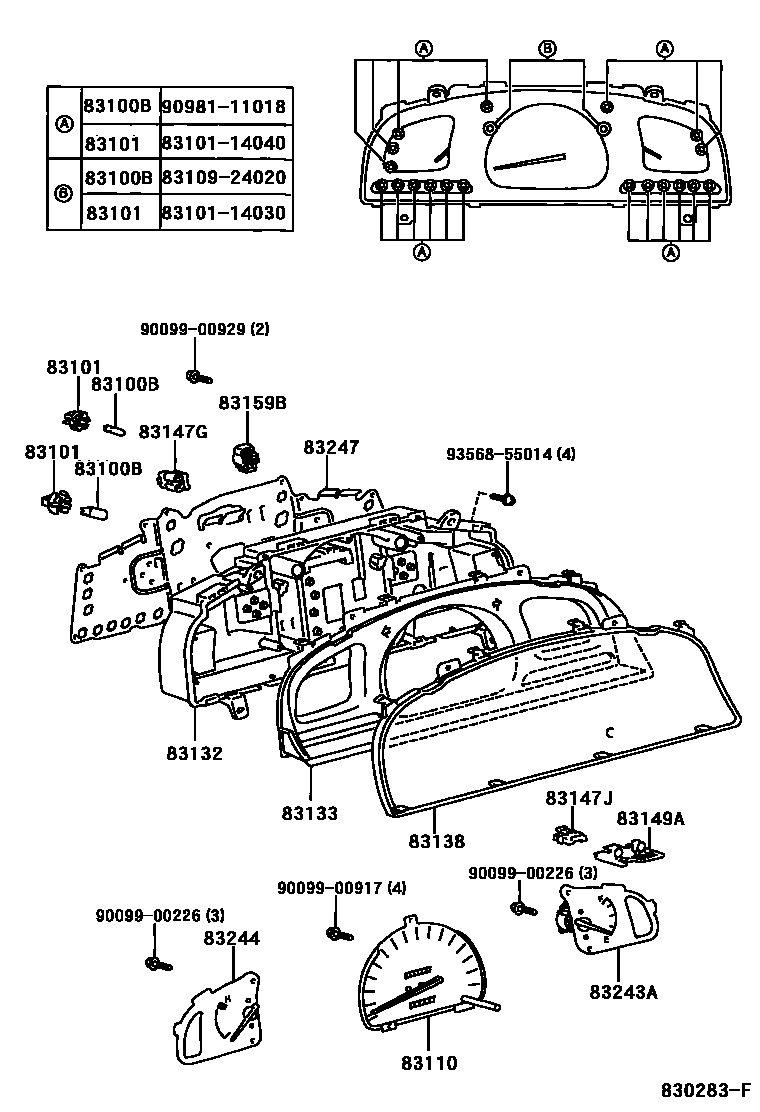

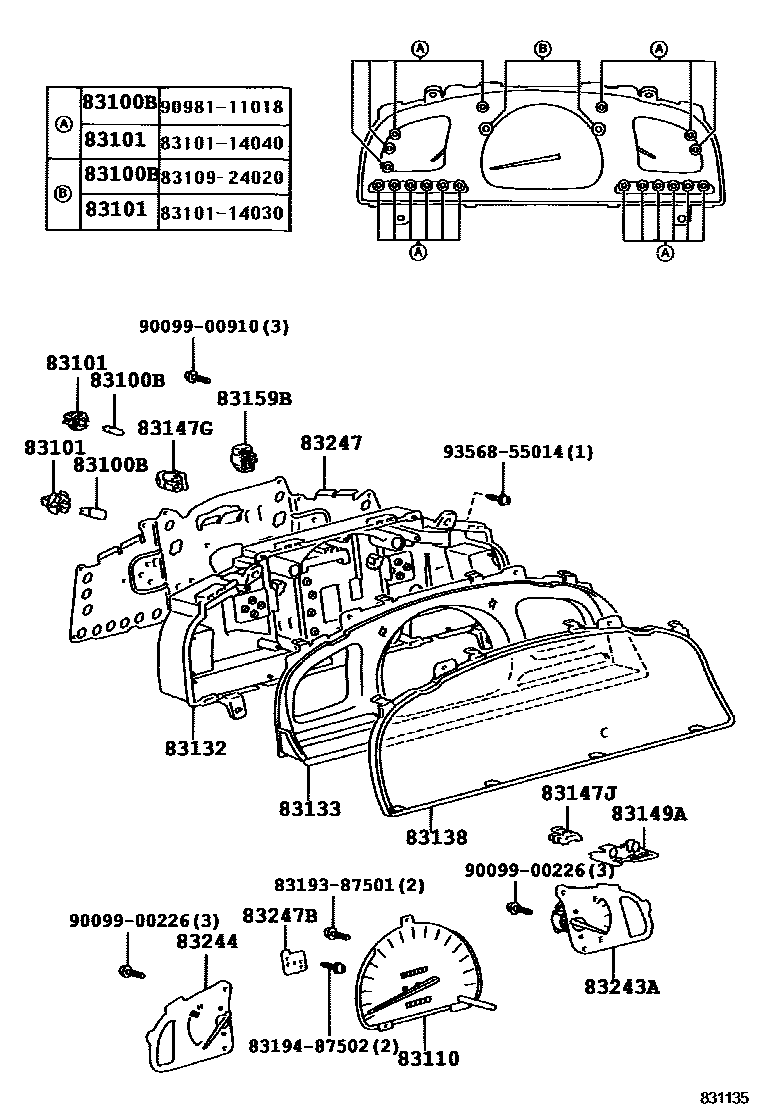

Toyota HILUX 仪表 — Figure 8301
Toyota HILUX EPC diagram 8301, 仪表, with 6 images and 24 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 83100B | Combination instrument bulb No. 1 | 83109-24020 · 83109-24030 · 83120-60020 · 90010-06006 · 90010-06007 · 90981-11018 · 99132-12034 |
| 83101 | Combined instrument lamp holder sub-assembly | 83101-14030 · 83101-14040 · 83101-20070 |
| 83110 | Speedometer assembly | 83220-35110 · 83220-35111 · 83220-35140 · 83220-35141 · 83220-35170 · 83220-35171 · 83220-35250 · 83220-35270 · 83220-35280 · 83220-35390 · 83220-35590 · 83220-35600 · 83220-35730 · 83220-35740 |
| 83132 | Instrument cluster housing | 83841-35380 · 83841-35470 · 83841-35540 · 83841-35580 · 83841-3D890 · 83841-3G260 |
| 83133 | Combined instrument panel No. 1 | 83811-35380 |
| 83136A | Instrument combination cover | 83821-3G260 · 83851-35580 |
| 83138 | speedometer glass | 83852-35380 · 83852-35580 · 83852-3D890 · 83852-3G260 |
| 83145 | Instrument No. 1 lampshade | 83831-35580 · 83831-35700 · 83831-3D160 · 83831-3G260 · 83831-3G270 |
| 83145A | Instrument No. 2 lampshade | 83831-35600 · 83832-35580 |
| 83145C | Instrument No. 4 lampshade | 83833-26010 |
| 83147G | Instrument combination connector | 83147-28010 |
| 83147J | No.2 instrument cluster connector | 83147-16010 |
| 83149A | No. 2 instrument circuit board | 83149-1G610 |
| 83159B | Instrument relay assembly | 83159-22370 |
| 83180 | Speed detector assembly | 83180-35020 · 83180-37010 · 83180-60080 |
| 83242 | Engine tachometer assembly | 83881-35580 · 83881-35700 · 83881-35720 · 83881-35790 · 83881-3G200 |
| 83243A | Fuel gauge sub-assembly | 83882-35380 · 83882-35580 · 83882-3D110 · 83882-3D750 · 83882-3G030 |
| 83244 | Water temperature meter sub-assembly | 83883-35380 · 83883-35580 · 83883-3D110 · 83883-3D750 · 83883-3G260 |
| 83247 | Instrument circuit board | 83861-35460 · 83861-35560 · 83861-35690 · 83861-35780 · 83861-35790 · 83861-3D130 · 83861-3D160 · 83861-3D161 · 83861-3D890 · 83861-3G260 · 83861-3G270 · 83862-35120 |
| 83247B | No. 2 instrument circuit board | 83862-3D890 |

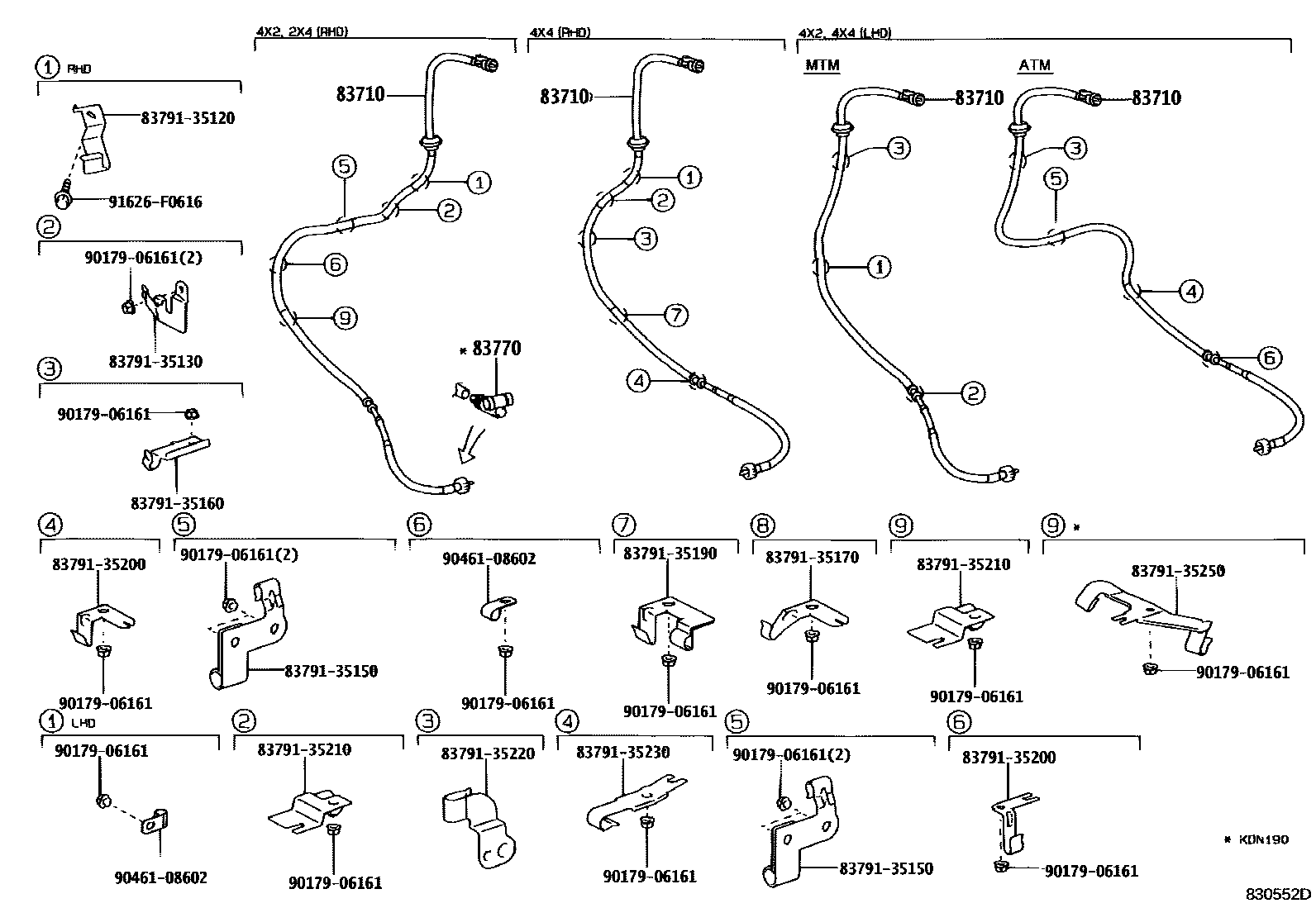

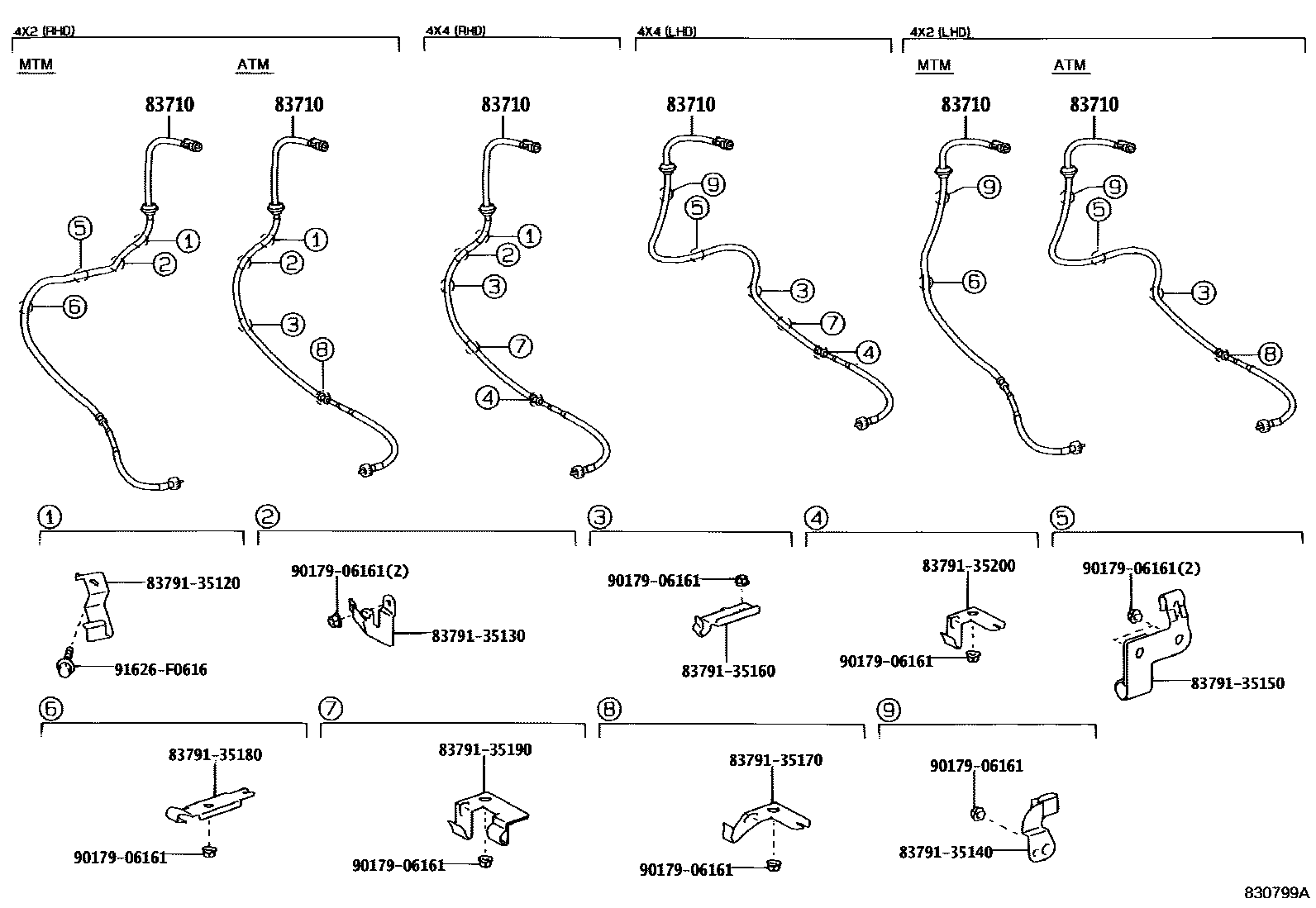

| 83710 | No. 1 speedometer transmission cable assembly | 83710-35540 · 83710-35590 · 83710-35610 · 83710-35620 · 83710-35630 · 83710-35690 · 83710-35720 · 83710-35730 · 83710-35740 · 83710-35790 · 83710-35830 · 83710-35840 · 83710-35850 · 83710-35860 · 83710-35870 · 83710-35880 · 83710-35890 |
| 83770 | Speedometer transmission flexible shaft joint assembly | 83770-35010 |
| 83910 | clock assembly | 83910-26020 |
| 86650G | Buzzer assembly | 83248-20010 |
