Toyota HILUX 蓄电池和蓄电池电缆 — Figure 8201

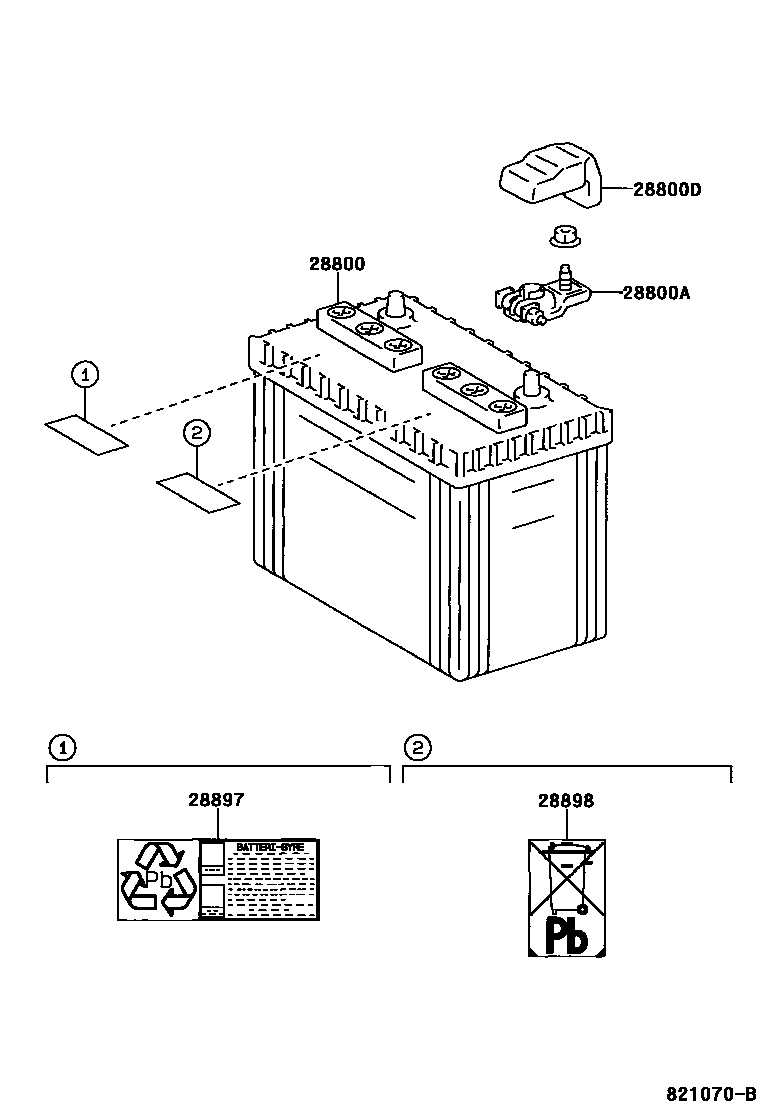

Toyota HILUX EPC diagram 8201, 蓄电池和蓄电池电缆, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28800 | battery | 28800-17111 · 28800-17121 · 28800-42042 · 28800-42090 · 28800-42102 · 28800-42122 · 28800-54020 · 28800-54150 · 28800-54232 · 28800-54342 · 28800-64010 · 28800-64122 · 28800-64132 · 28800-64151 · 28800-76080 · 28800-76090 |
| 28800A | battery positive terminal | 90982-05035 |
| 28800D | Connector cover (for battery terminals) | 82821-35020 |
| 28897 | Battery warning nameplate | 28898-46010 |
| 28898 | battery plates | 28898-46020 |
