Toyota HILUX 车内灯 — Figure 8121

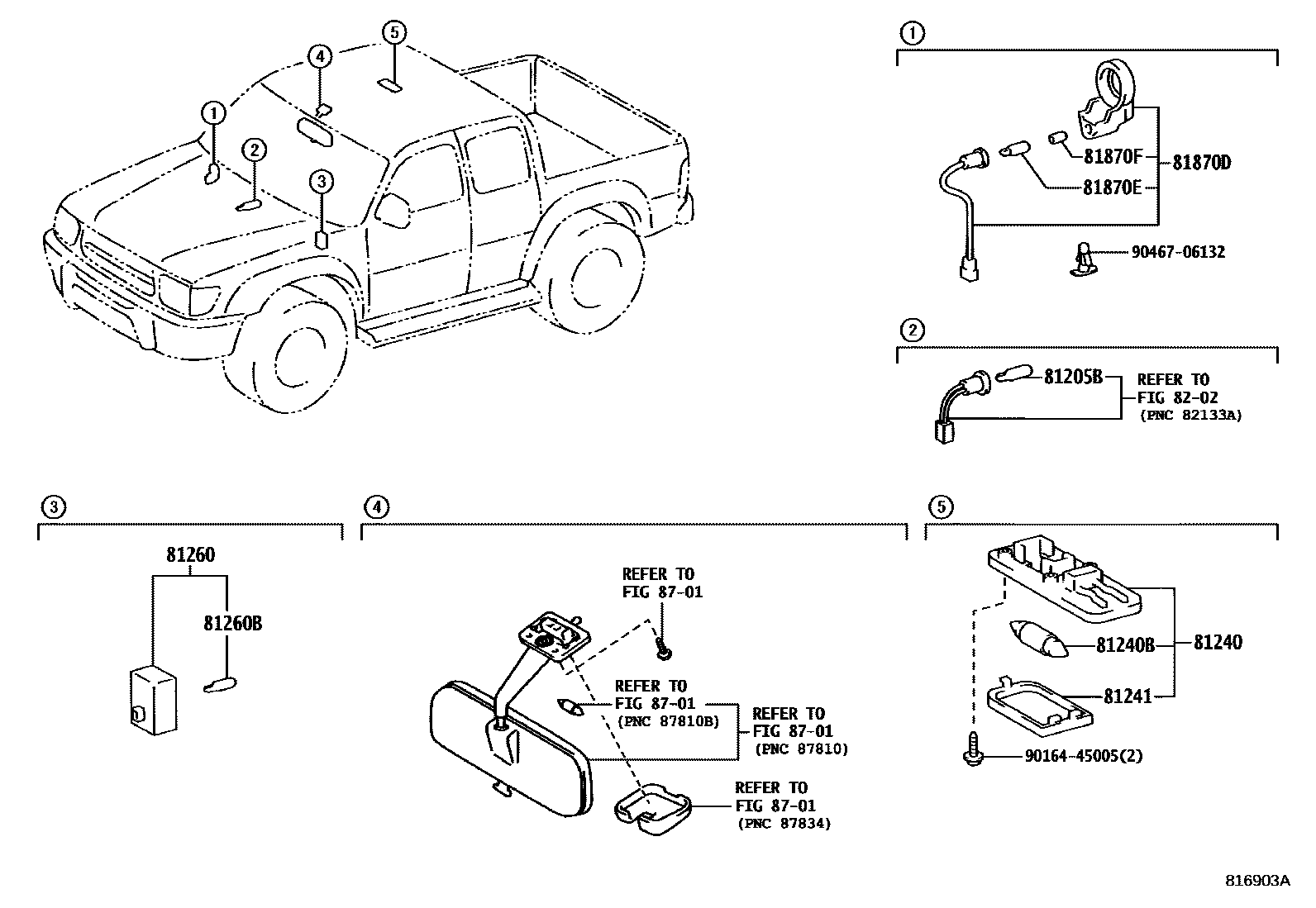

Toyota HILUX EPC diagram 8121, 车内灯, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81205B | ashtray light bulb | 90981-11041 |
| 81240B | Interior light bulb No. 1 | 99132-12100 |
| 81241 | Interior light cover No. 1 | 81241-20060 |
| 81260 | Glove box light assembly | 81260-33010 |
| 81260B | Light bulb (for glove box) | 90981-11018 |
| 81870D | Lock core lighting assembly | 81870-35040 |
| 81870E | Lock cylinder lighting bulb | 90981-11014 |
| 81870F | Lock cylinder lighting bulb cover | 84998-10070 |
