Toyota HILUX 后牌照灯 — Figure 8113

Toyota HILUX EPC diagram 8113, 后牌照灯, with 4 images and 6 PNC and OE references.

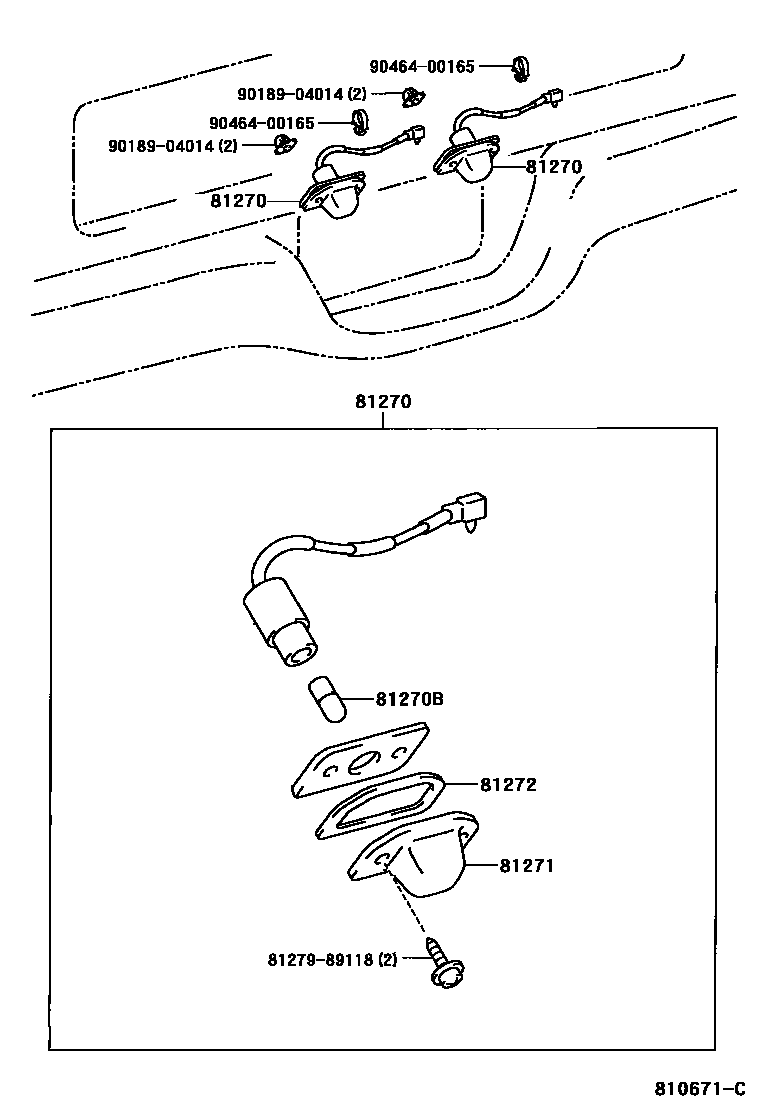

Toyota HILUX 后牌照灯 EPC diagram — 810671C
后牌照灯 — 810671C (199708 – 200108)

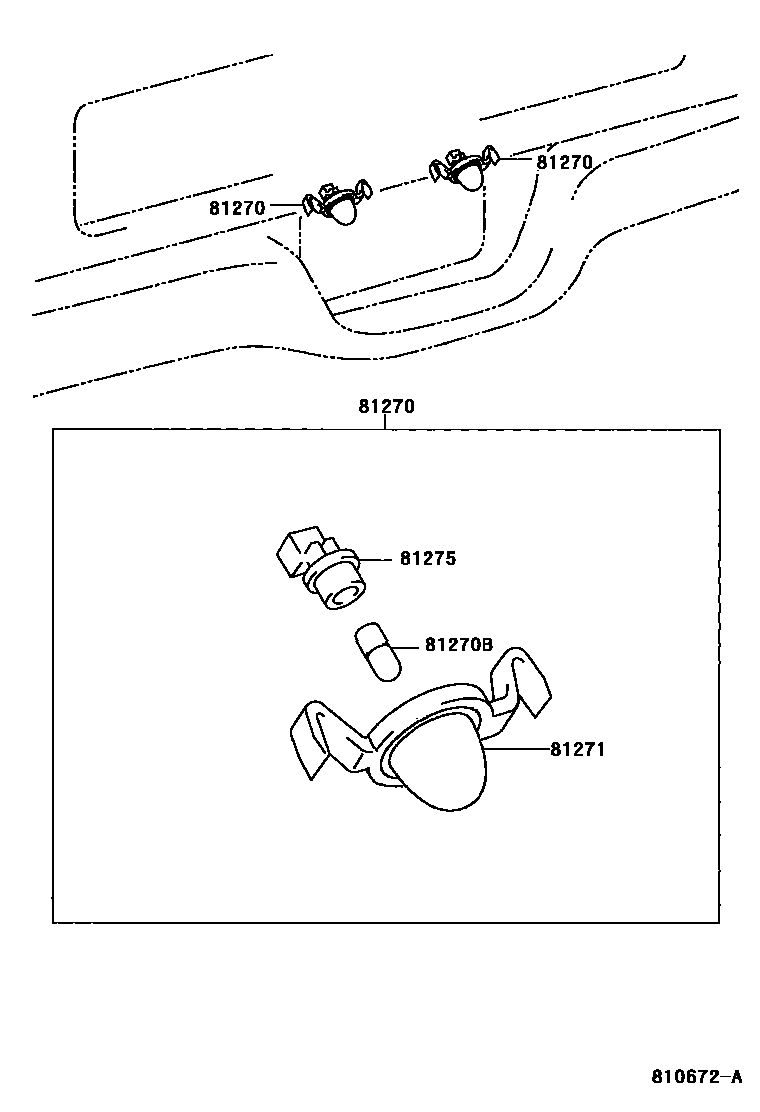

Toyota HILUX 后牌照灯 EPC diagram — 810672A
后牌照灯 — 810672A (199708 – 200108)

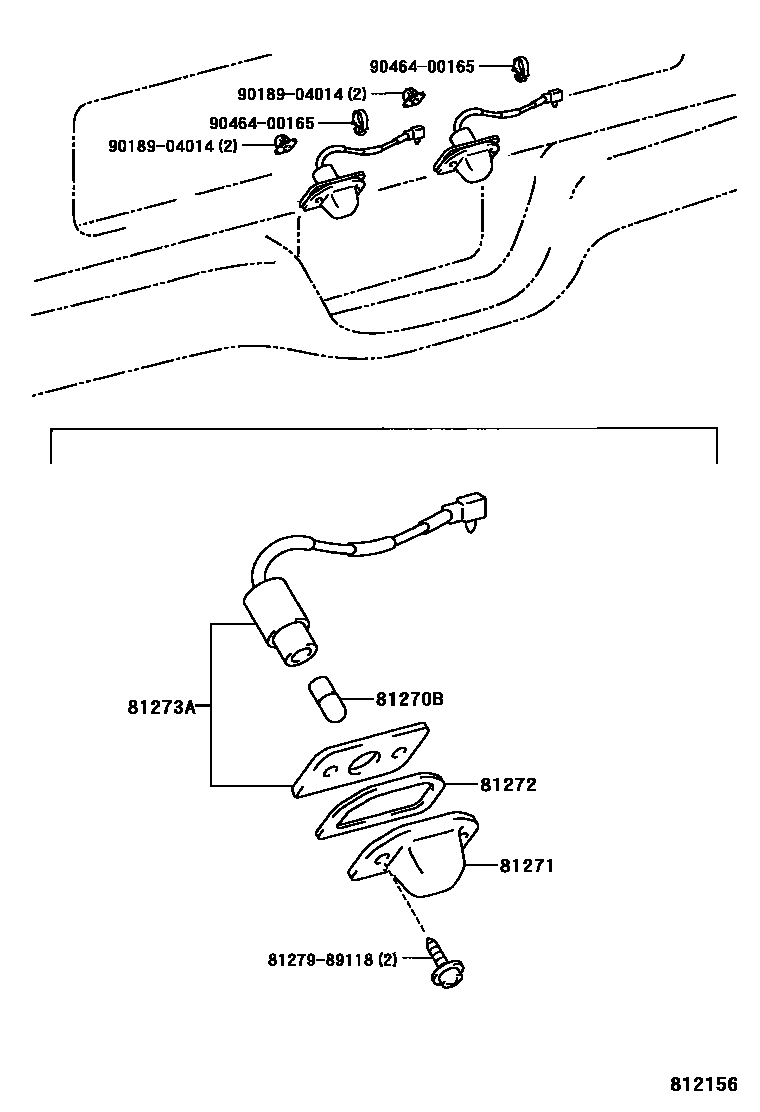

Toyota HILUX 后牌照灯 EPC diagram — 812156
后牌照灯 — 812156 (200108 – 999999)

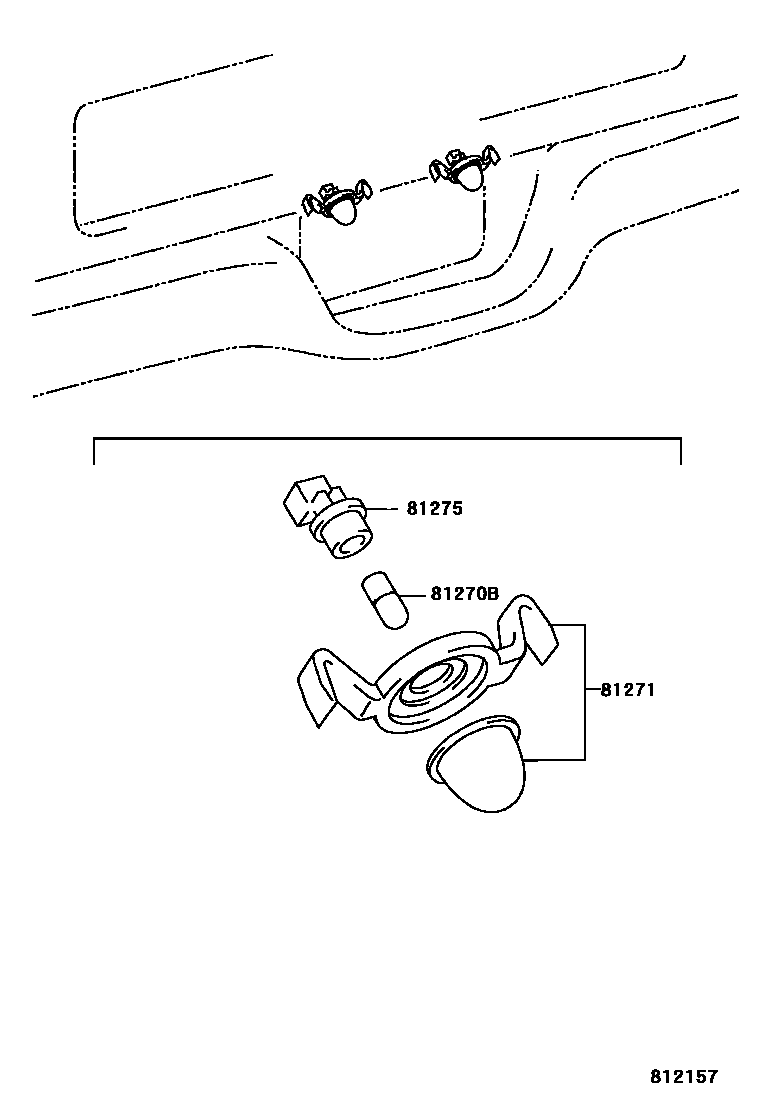

Toyota HILUX 后牌照灯 EPC diagram — 812157
后牌照灯 — 812157 (200108 – 999999)

PNC and OE references

PNCPart nameOE numbers
81270License plate light assembly81270-35110 · 81270-89124
81270BBulb (for license plate light)99132-12050
81271license plate lamp shade81271-35110 · 81271-89110
81272License plate lamp shade gasket81272-89110
81273Alicense plate light body81273-89124
81275License plate lamp holder and wiring harness90075-99012
