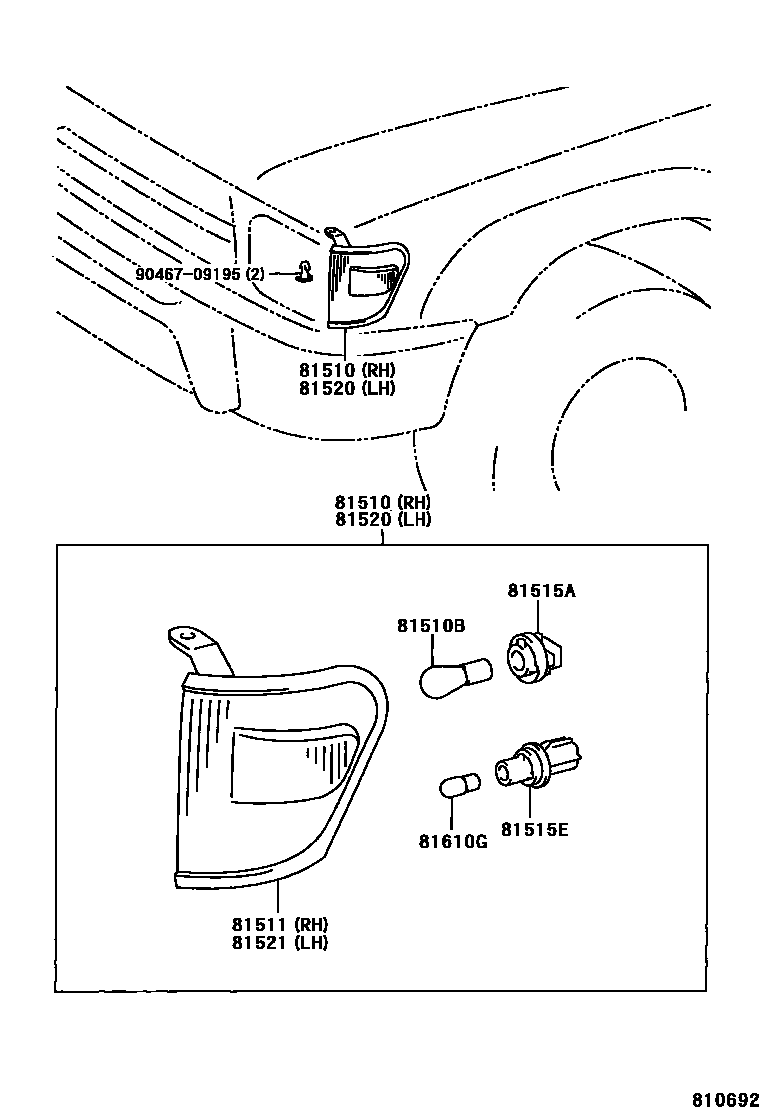

Toyota HILUX 前转向灯 — Figure 8103
Toyota HILUX EPC diagram 8103, 前转向灯, with 2 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81510 | Right front turn signal lamp assembly | 81510-35180 · 81510-35181 · 81510-35190 · 81510-35191 · 81510-35200 · 81510-35201 · 81510-35210 · 81510-35211 |
| 81510B | Bulb (for front turn signal lamp) | 90981-13043 · 99132-11210 |
| 81511 | Right front turn signal lamp cover | 81511-35180 · 81511-35181 · 81511-35190 · 81511-35191 · 81511-35200 · 81511-35201 · 81511-35210 · 81511-35211 · 81511-35300 |
| 81515A | Front turn signal light plug assembly | 90075-99078 · 90075-99080 |
| 81515E | Lamp holder plug assembly | 90075-99109 |
| 81520 | Left front turn signal lamp assembly | 81520-35170 · 81520-35171 · 81520-35180 · 81520-35181 · 81520-35190 · 81520-35191 · 81520-35200 · 81520-35201 |
| 81521 | Left front turn signal lamp cover | 81521-35170 · 81521-35171 · 81521-35180 · 81521-35181 · 81521-35190 · 81521-35191 · 81521-35200 · 81521-35201 · 81521-35290 |
| 81610G | Light bulb (for width indicator light) | 99132-12050 |
